Decided to pull my finger out and get to work on getting the car to the way I want it.

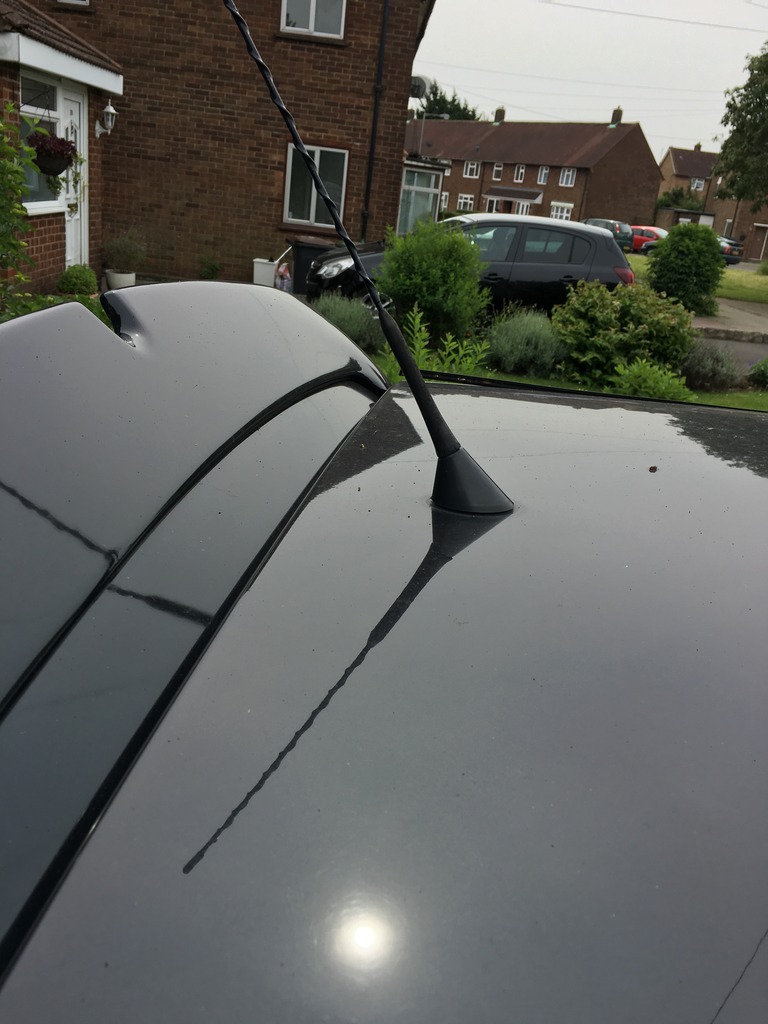

New shark fin aerial made a huge improvement to the aesthetic, function wise its about 75% performance/range of the normal antenna.
OLD:


NEW: I know this isnt the best pic

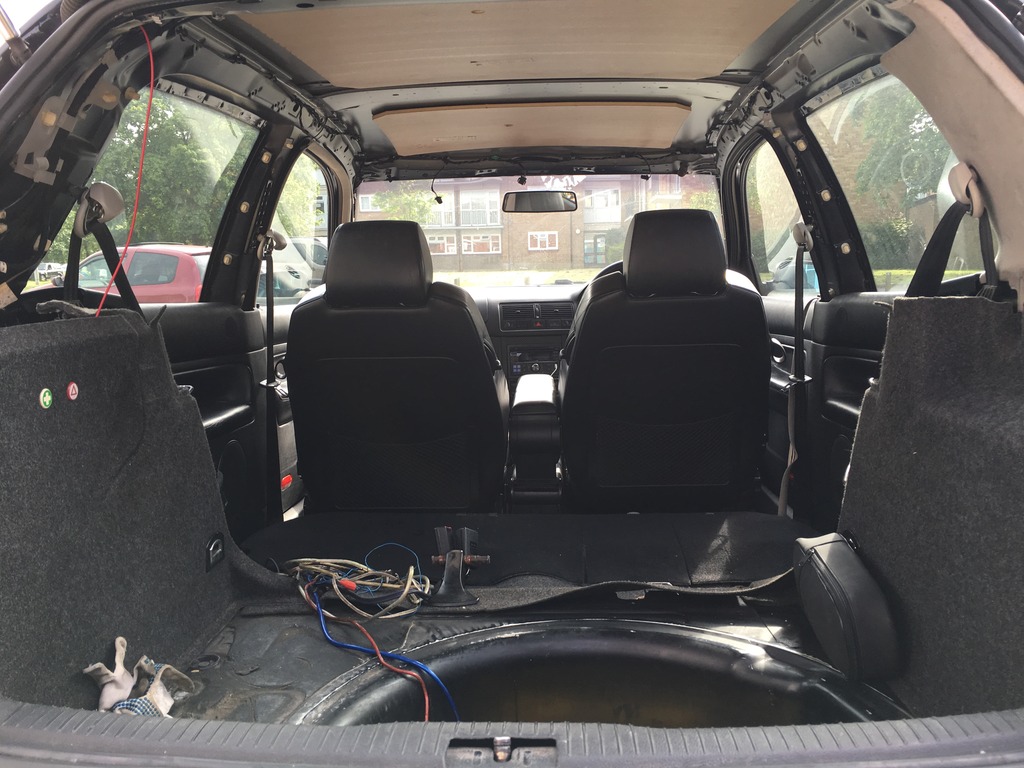

Also want to get the sound system the way I want it. Rather than routing cables by tucking them under trim, I will be stripping the interior right to the shell and re laying the cables.
Its the longest but easiest way of doing a system as complicated as I have planned. All ready for CS though! :smilingimp:

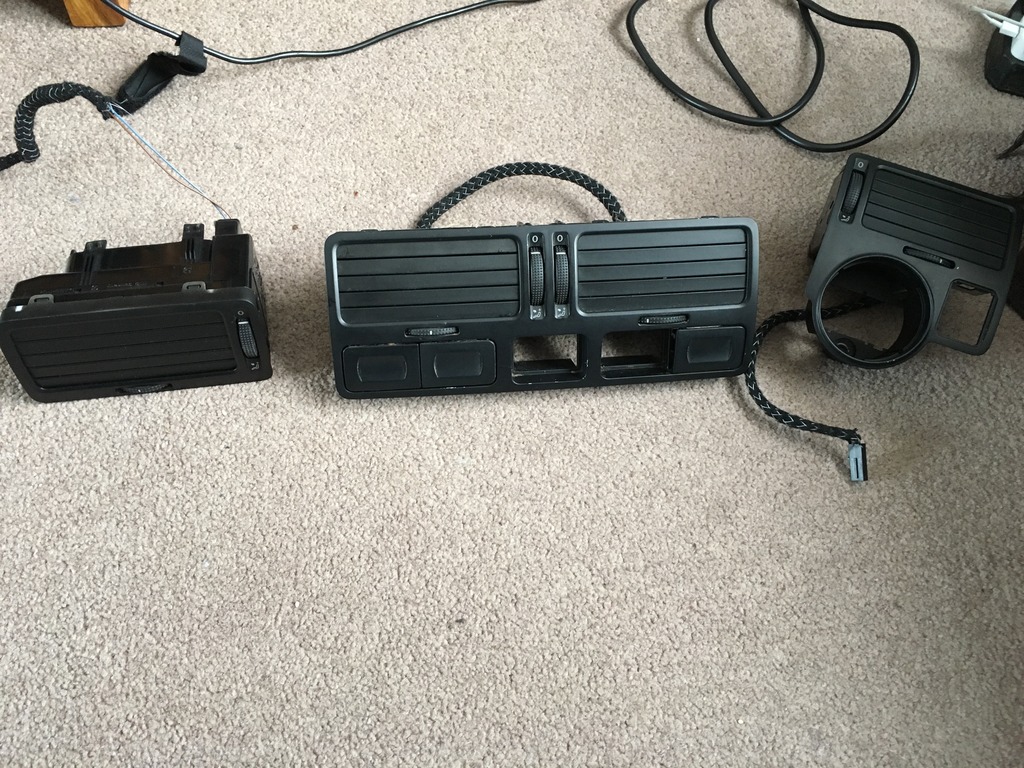

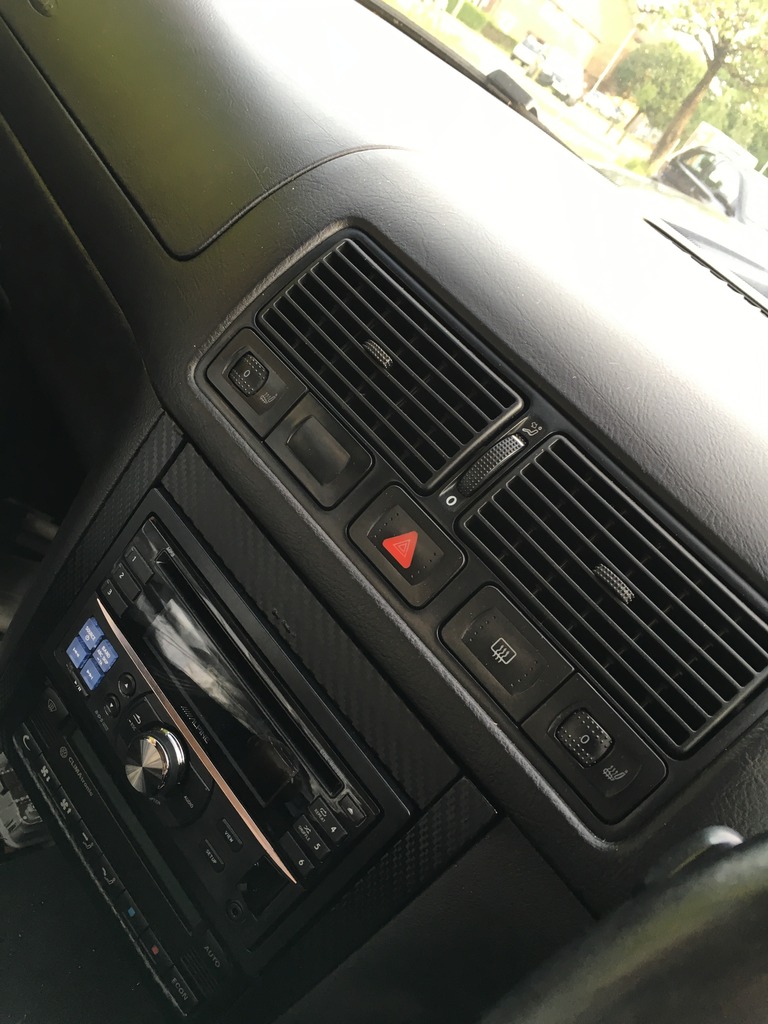

Also bought some Bora High line interior vents which look wayy more modern than the original. They are expensive for what they are but a popular mod and I can see why.

ORIGINAL:


NEW:


M90SR

ClioSport Club Member
Well unfortunate sad news regarding the Golf...

The engine blew out on me so yeah I guess that's the end of that...

Full rebuild to follow, hopefully it gets done before CS16


M90SR

ClioSport Club Member
How did it "blow"?

I have yet to take the block apart but...
- Before the engine went I heard a metal on metal sound (the timing belt was fine and did not slip)
- Compression testing revealed 200 psi on Cylinder 1-3, however cylinder 4 was 35 psi
- Using the 'oil down the spark plug test' it was narrowed down that the piston ring was 'fried'.
- When draining the oil the first half of it was anti-freeze before the oil came out (indicating a possible cracked head/block)

Fortunately I have bought another engine to which I will use as the replacement. With massive thanks to @STEVE.M for helping me with the engine swap and fault finding. Like I said earlier in the thread I like to try things myself and learn so this a HUGE learning curve :smile:


M90SR

ClioSport Club Member
Its been about 12 days now, since the engine sh@ itself.
Been a hectic 12 days constantly working on the car after work, wouldnt have it any other way.... well having a working car would be alright.

Day 1: Engine sh@ itself

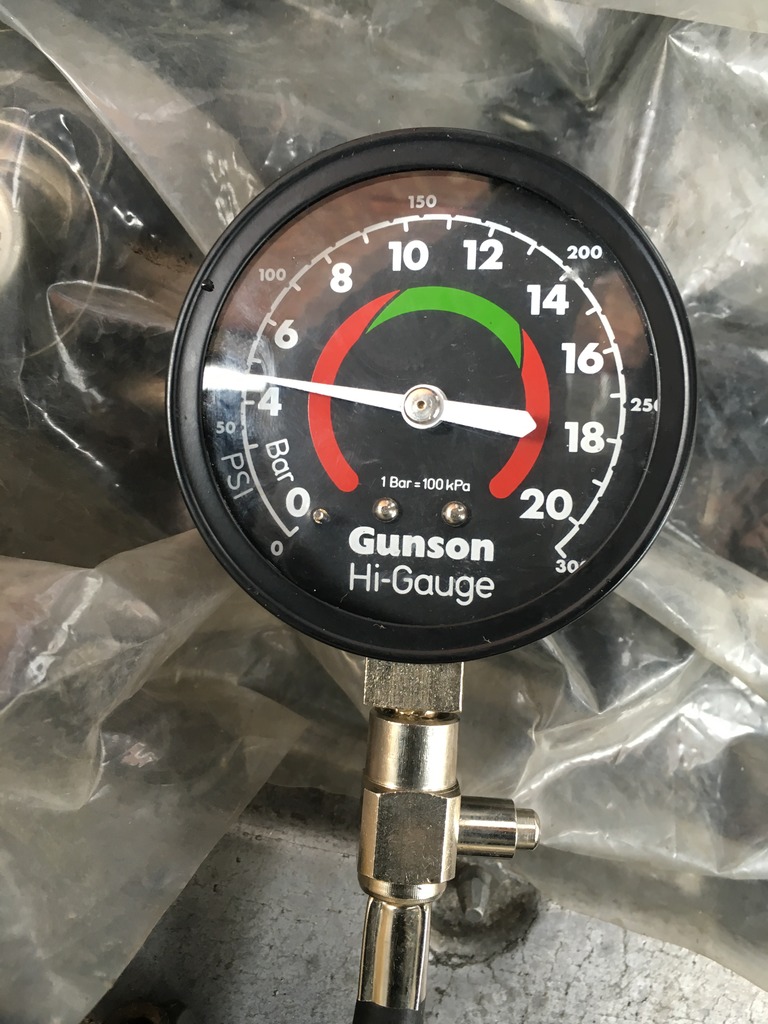

Compression tested the cylinders, 200 PSI, 200 PSI, 200 PSI and then..

Cylinder number 4 is the issue, now what is wrong?
Further testing indicated it might be the Piston Rings so the engine was coming out.
Day 2: New Engine bought

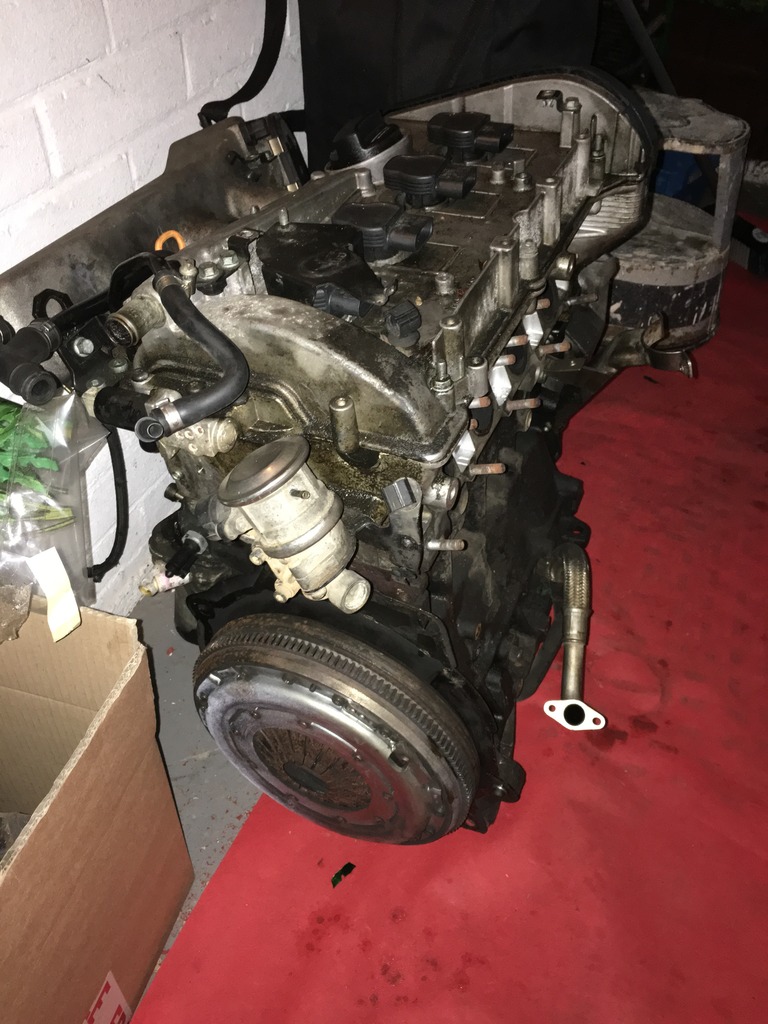

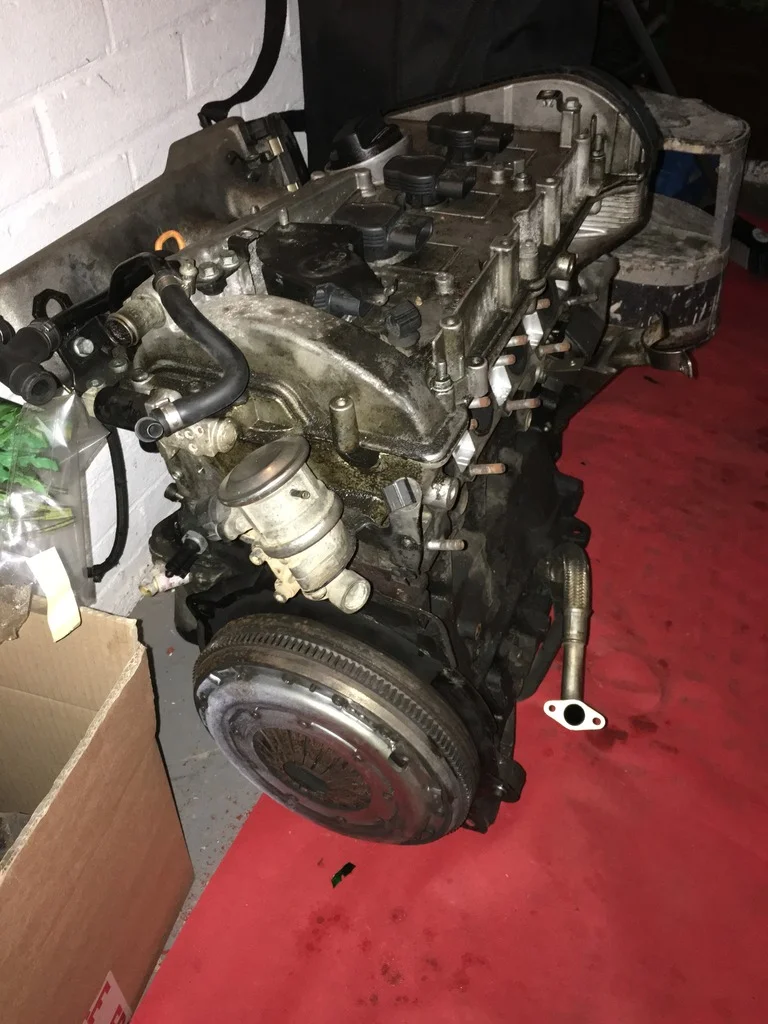

VW AUM Engine slightly different to mine but intend to use the Block from it, bought cheap on a Sunday delievered within 40 minutes cant complain.

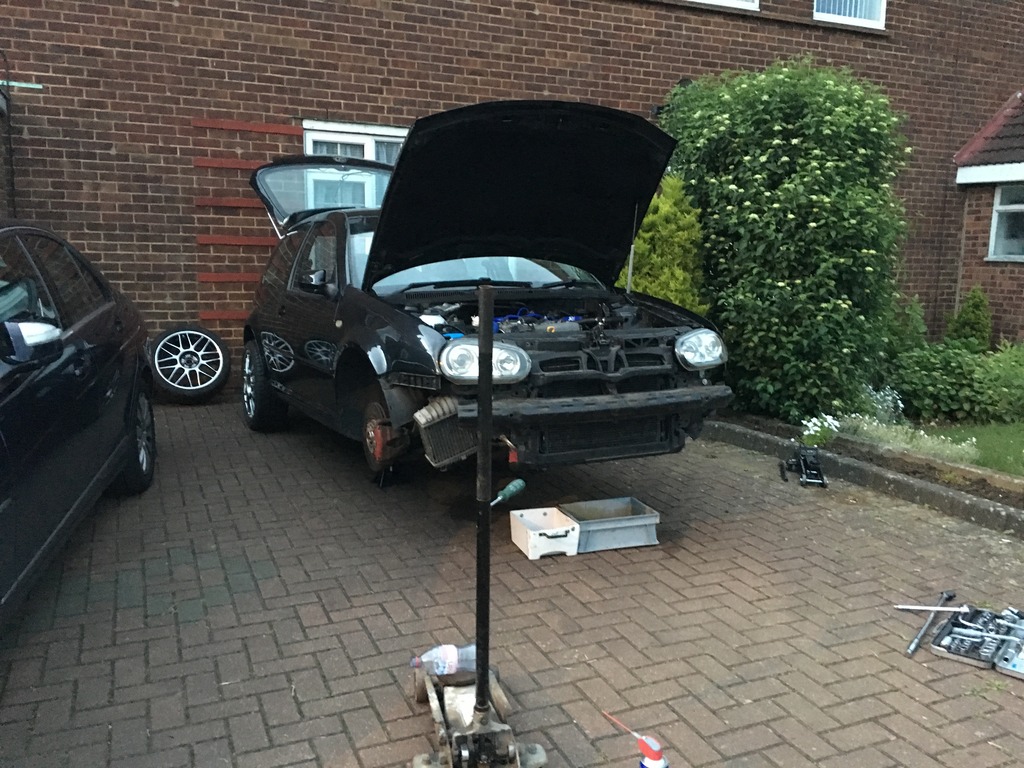

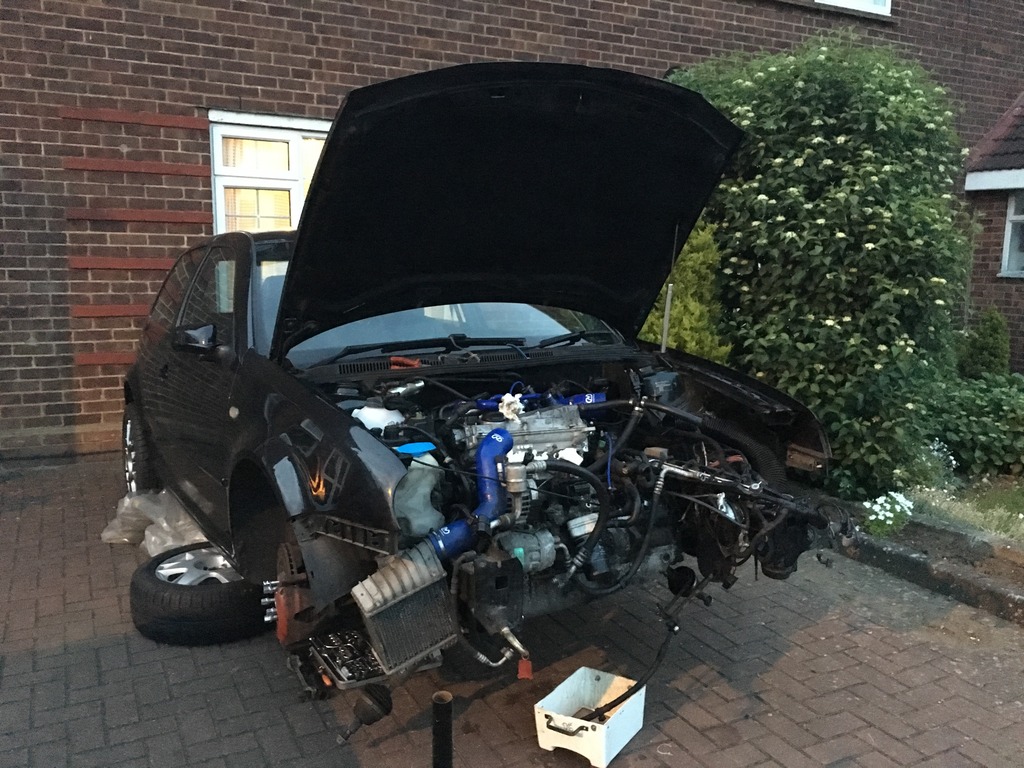

Day 4: Car Jacked up, started to unbolt and un-wire things

All fluids drained
Day 5: Wires,pipes almost fully removed and radiator removed

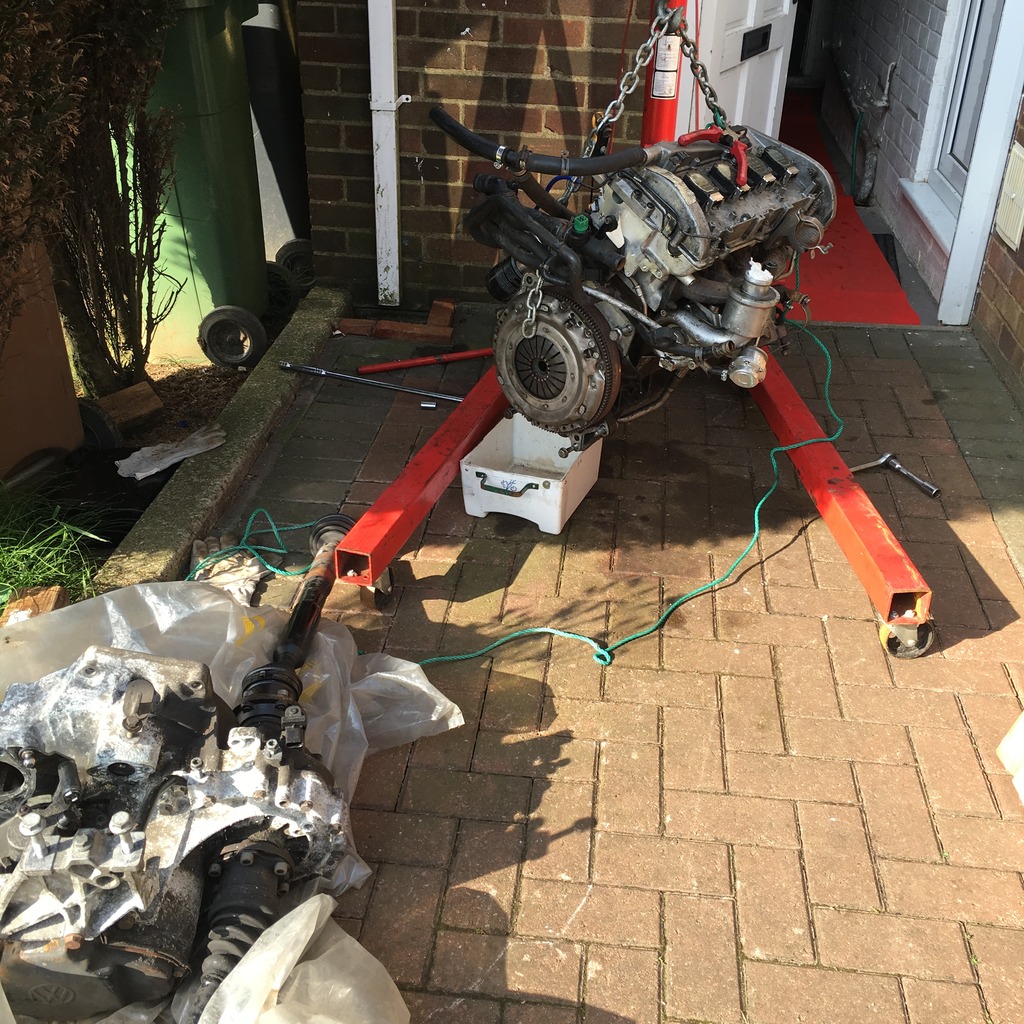

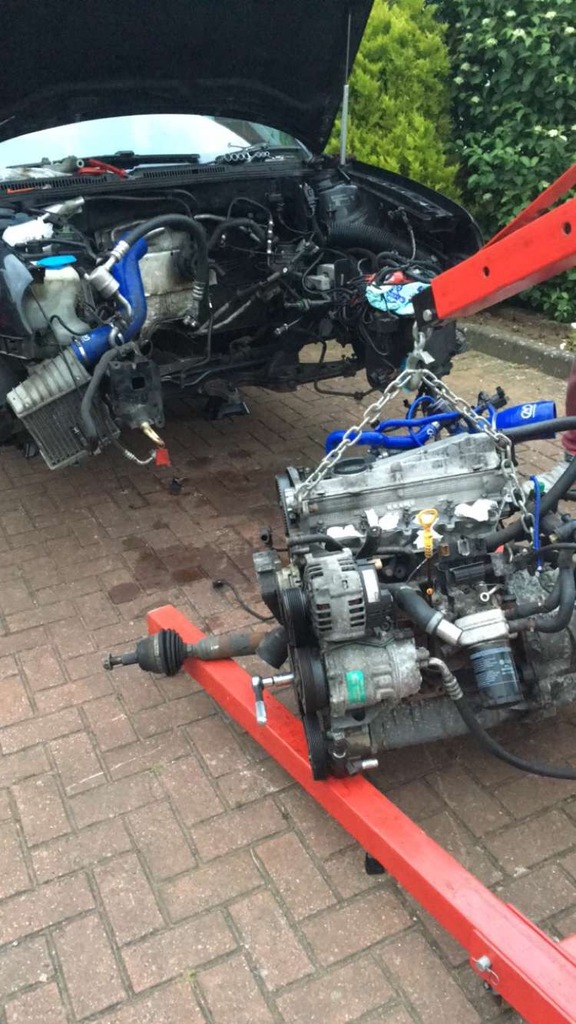

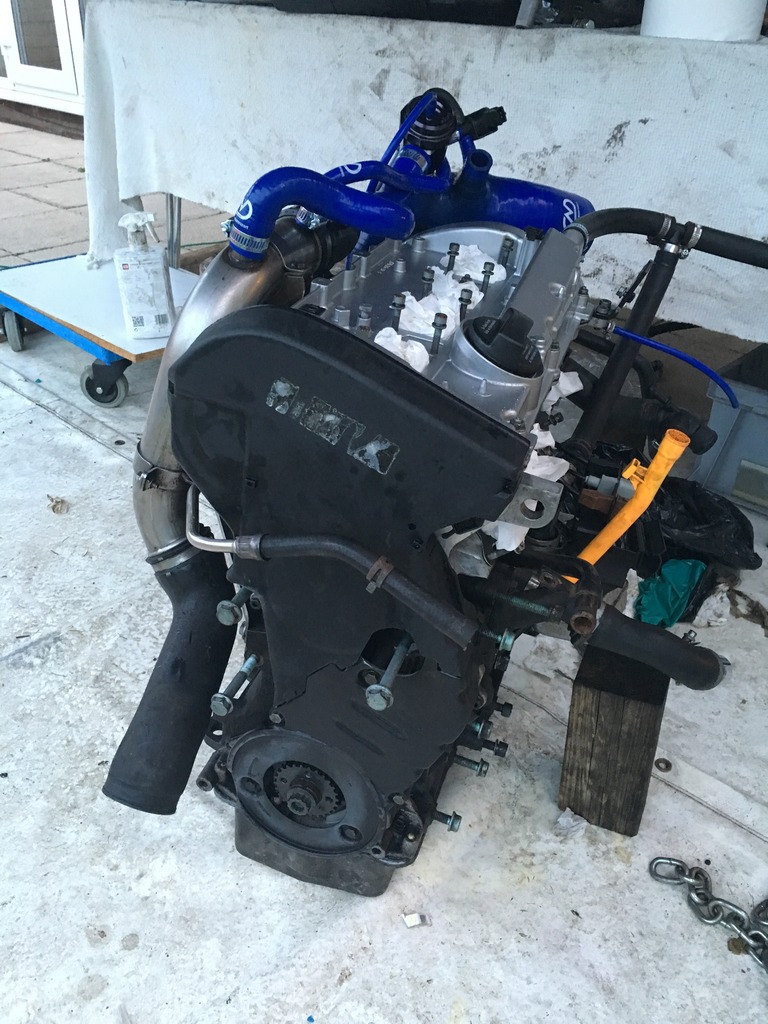

Day 6: Engine Removed

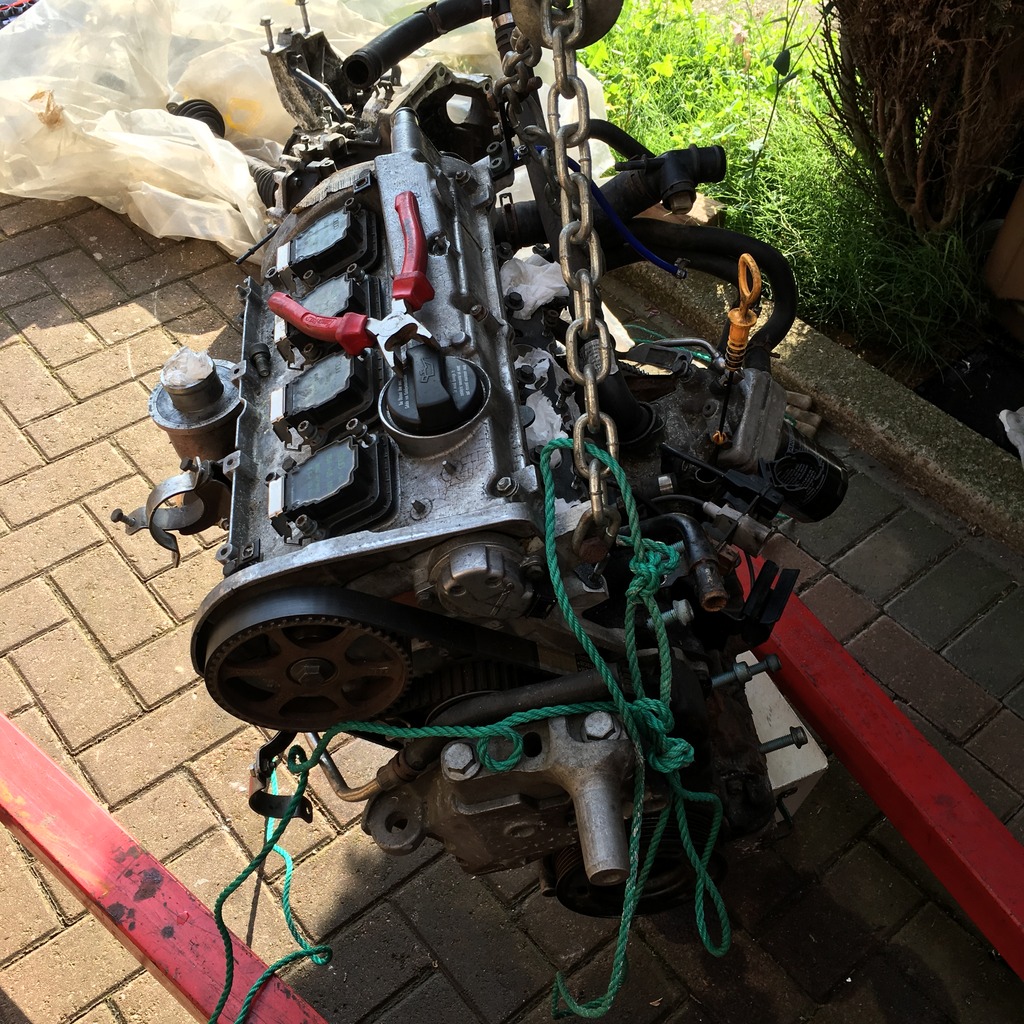

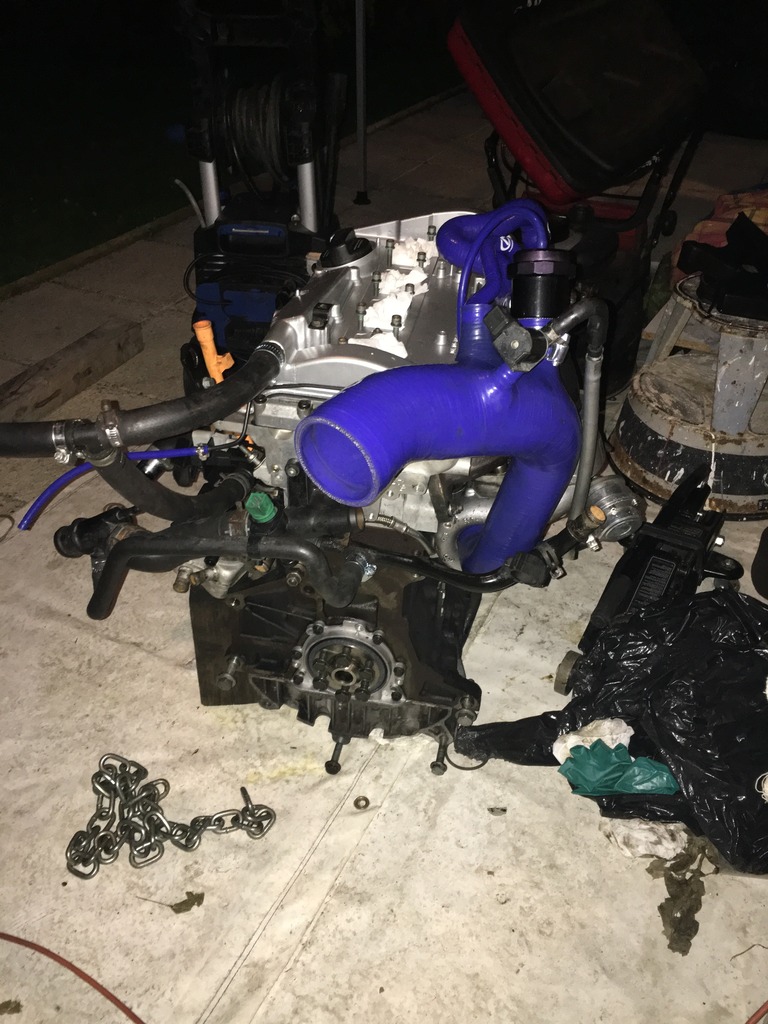

Day 7: Engine Ancillaries Removed

Day 8: Gearbox Removed

Day 9: Blown Engine dismantled to see what went wrong

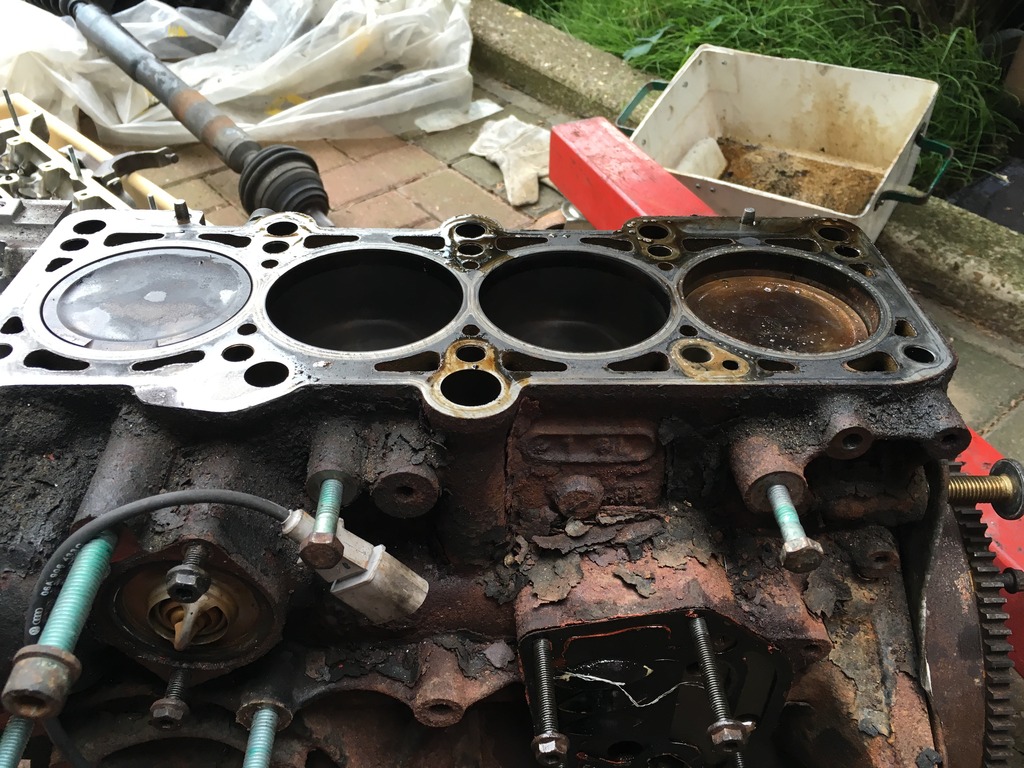

Head removed and Pistons 1 and 4 should be top dead centre (TDC) and...

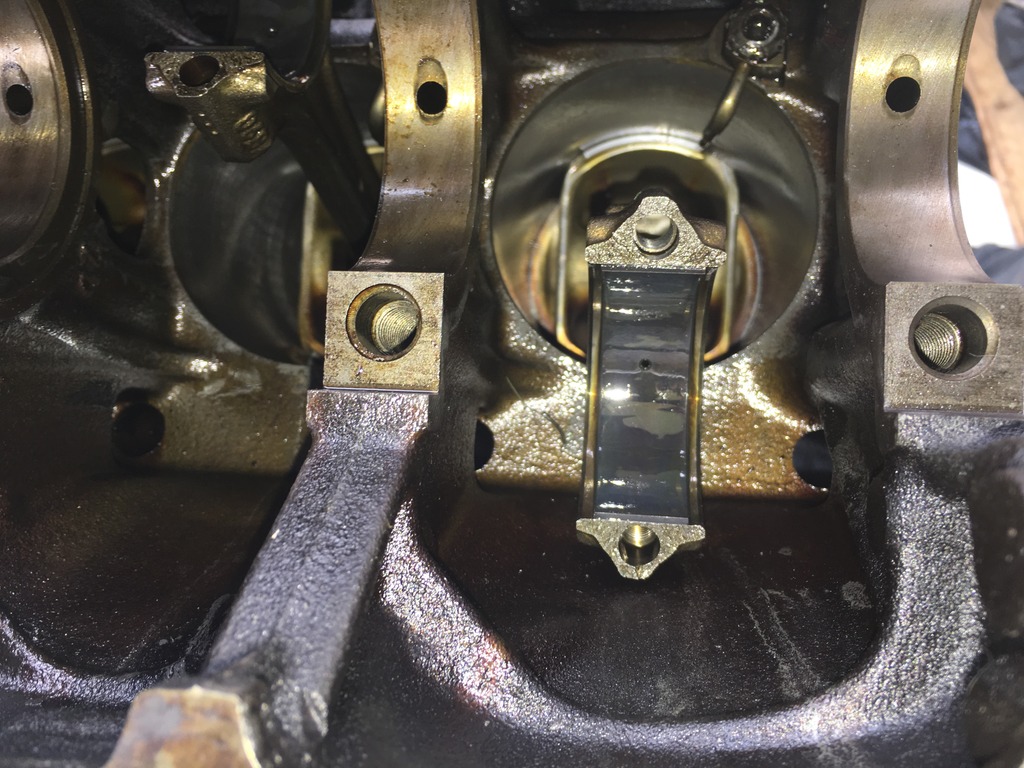

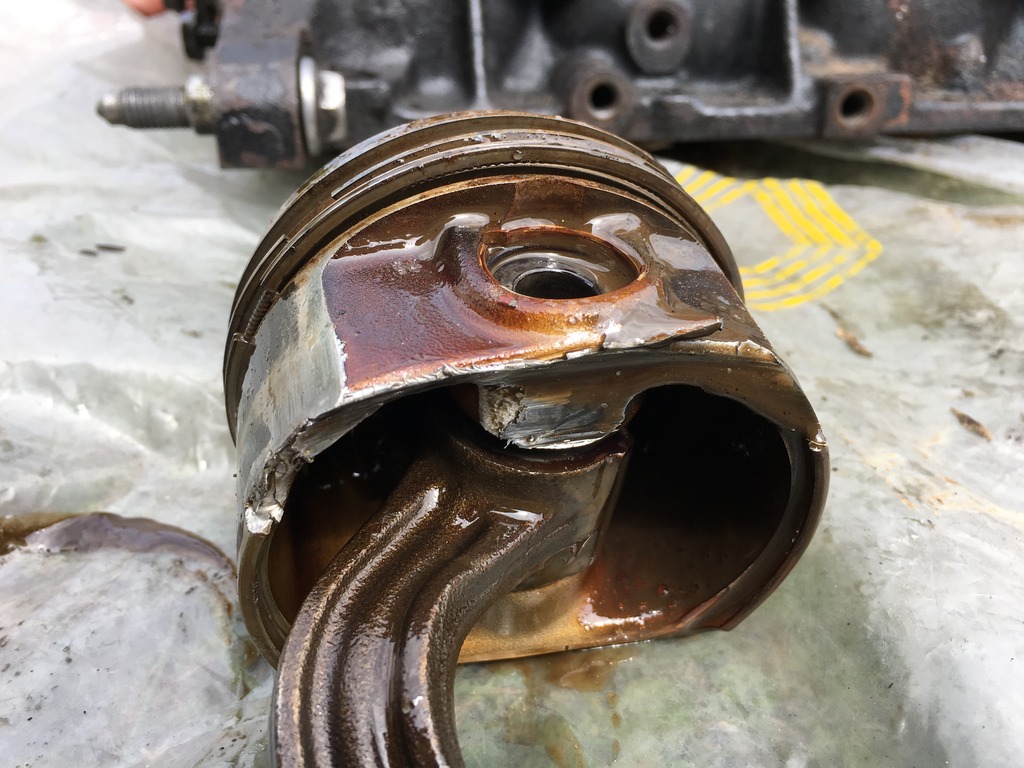

Something clearly wrong here!

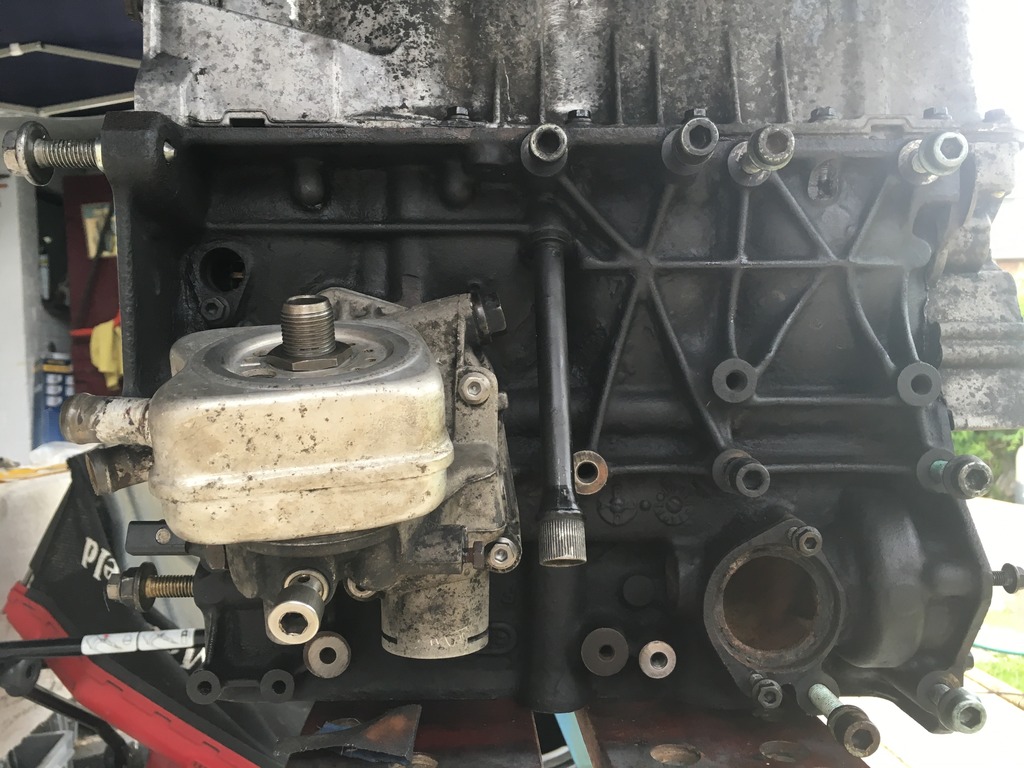

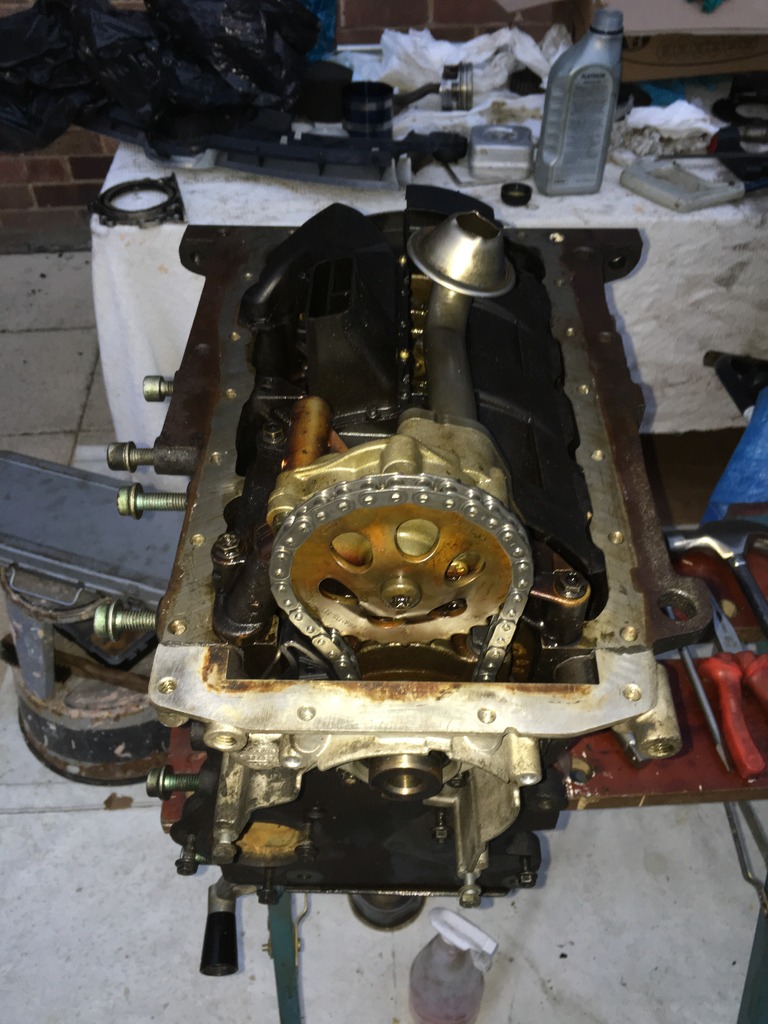

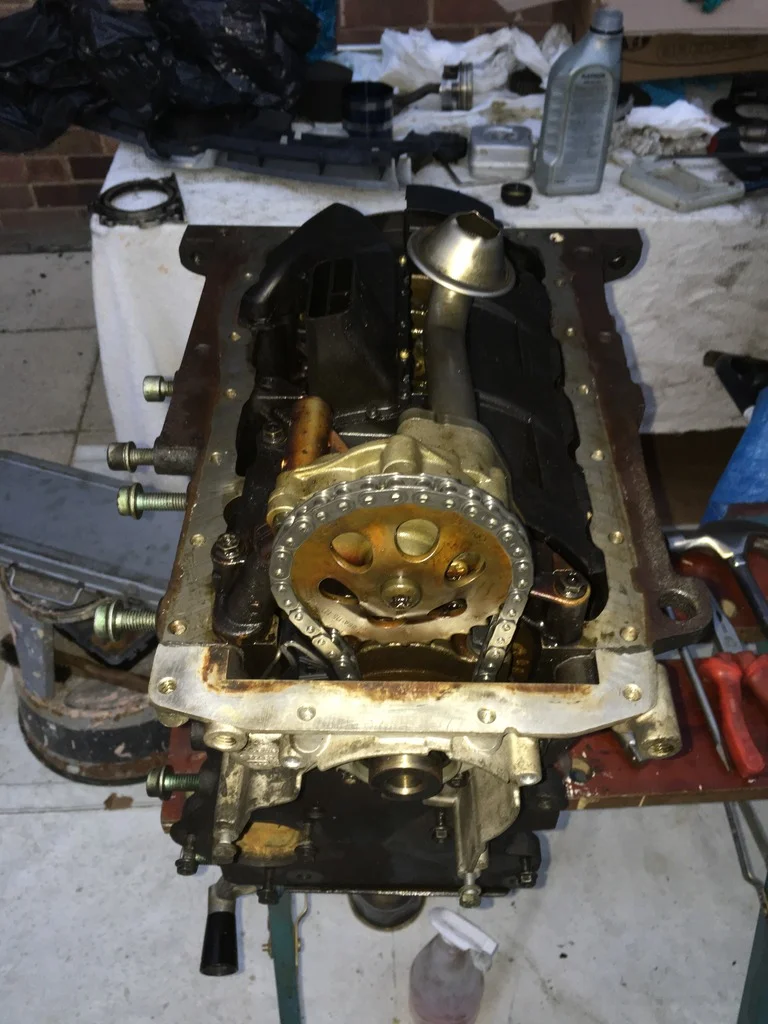

Taking the sump off revealed:

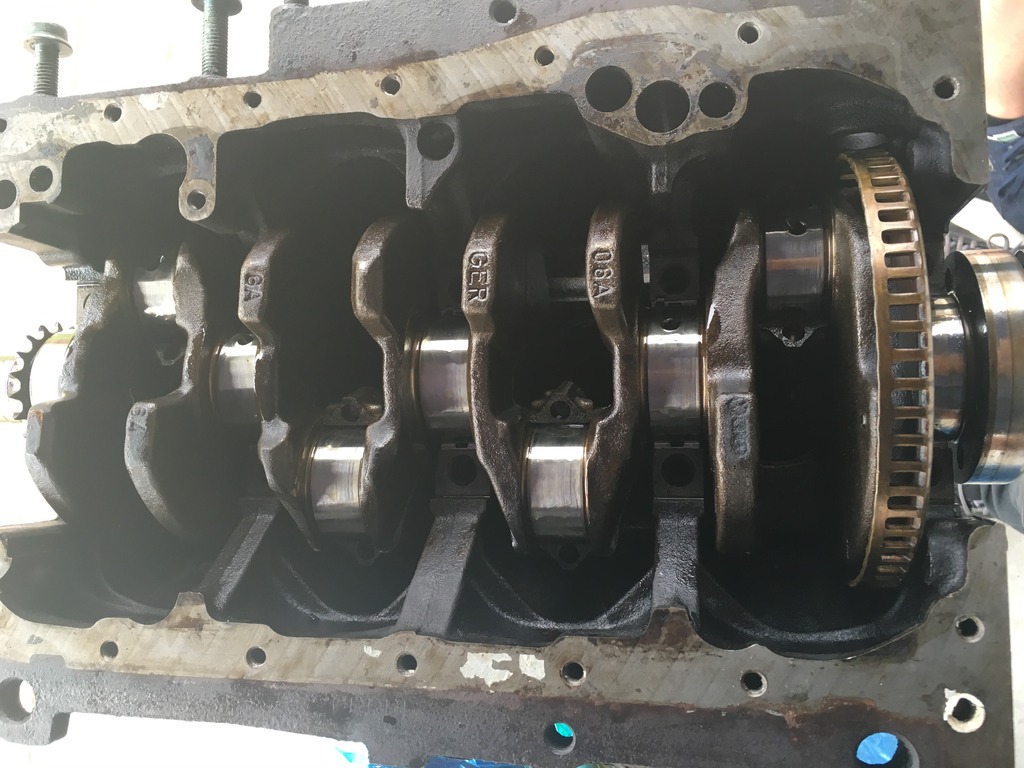

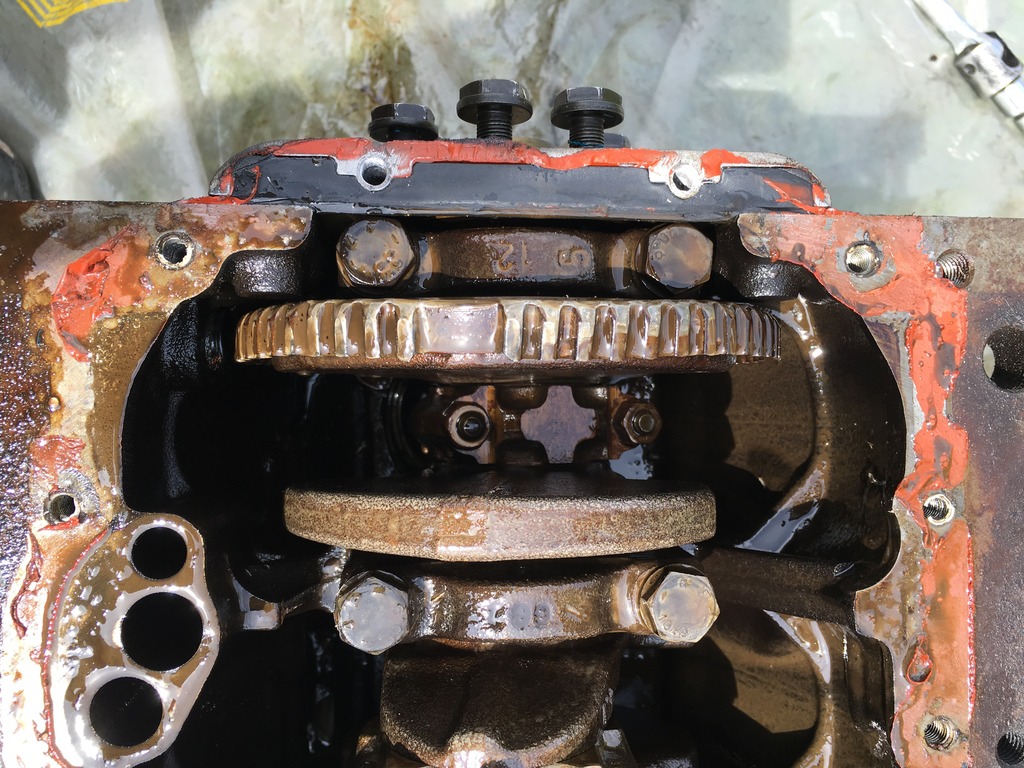

Shredded teeth on the Crankshaft sensor ring thingy. Which explains the grinding sound hear before the car died. Now what was grinding against it??
Well no surprise:


Going to make a nice paper weight, but I'll leave that for another thread.

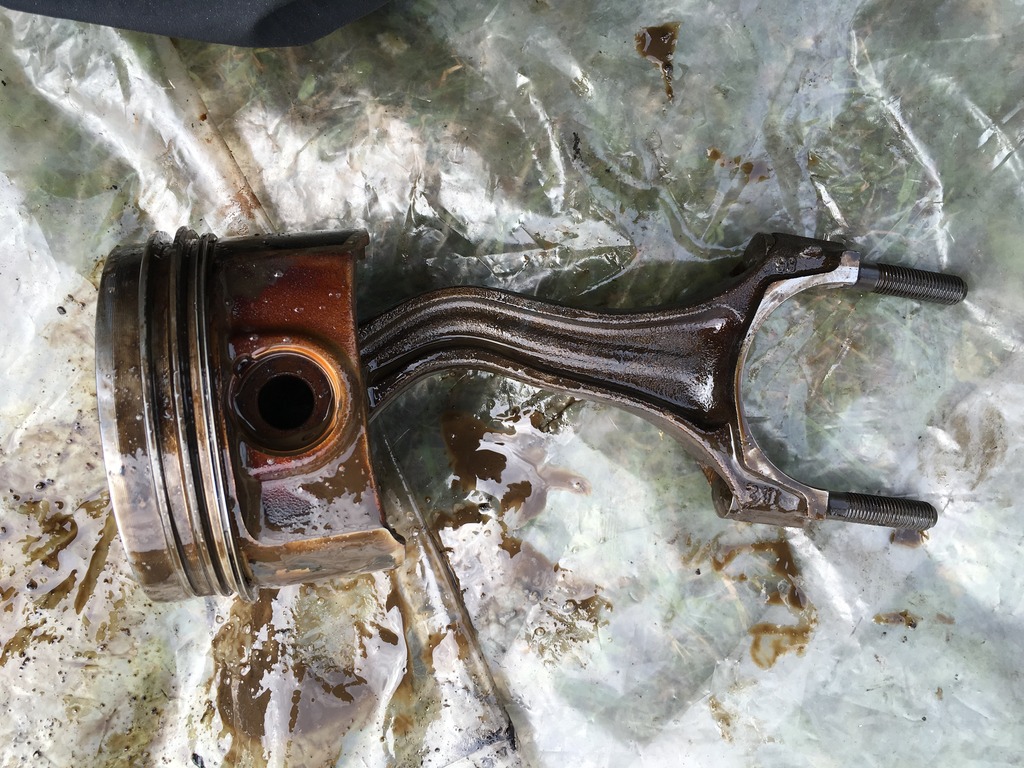

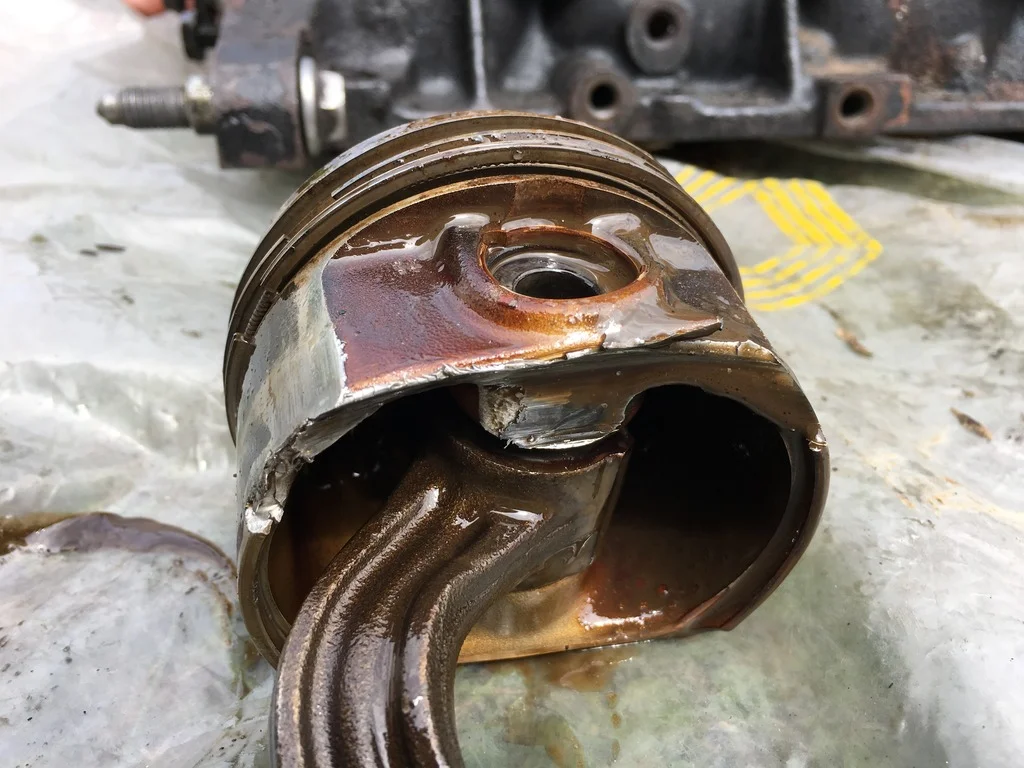

What had happened was the Headgasket for some strange reason perished slightly allowing water to come into the block and was gradually filling it up. Eventually there was so much water and no where for it to go the Engine Hydro Locked and Bent Rod No.4.

More pics to follow as soon as I take them.


M90SR

ClioSport Club Member
Long time no update...
Well its been 2 months since I last updated and I have good news to say the car is up and running. I'll continue the write up including pictures of the process :)

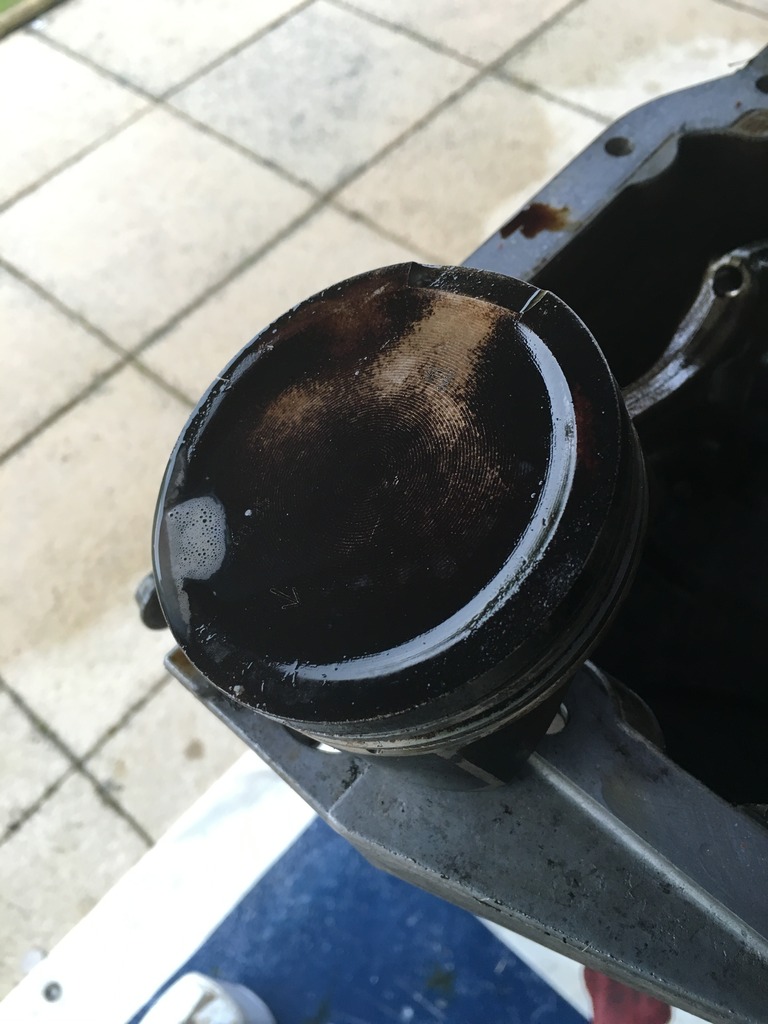

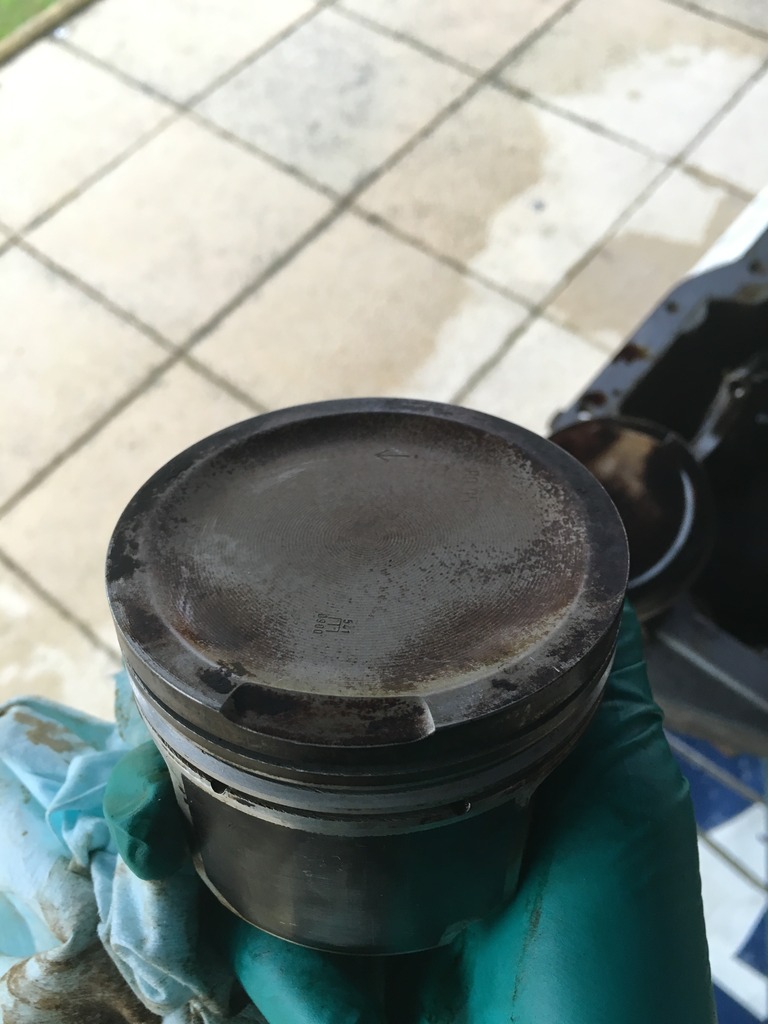

Cleaned up the pistons while they were out:

Cleaned up 75% didnt do a 100% clean pic

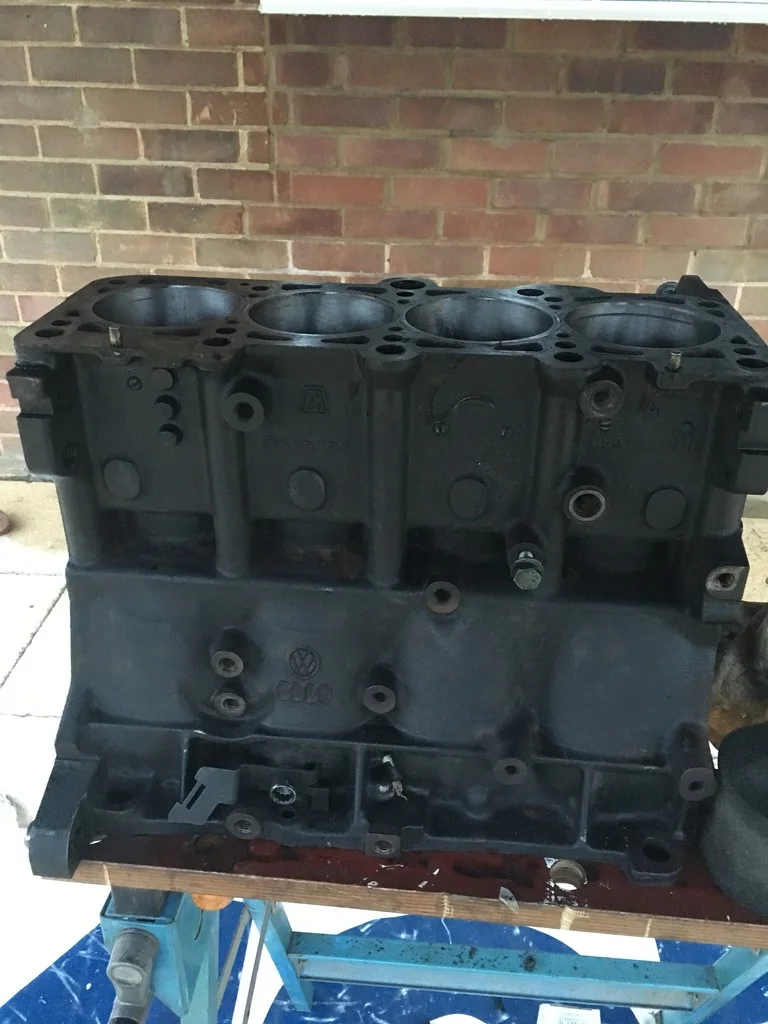

Sprayed the block with some Engine paint matte black

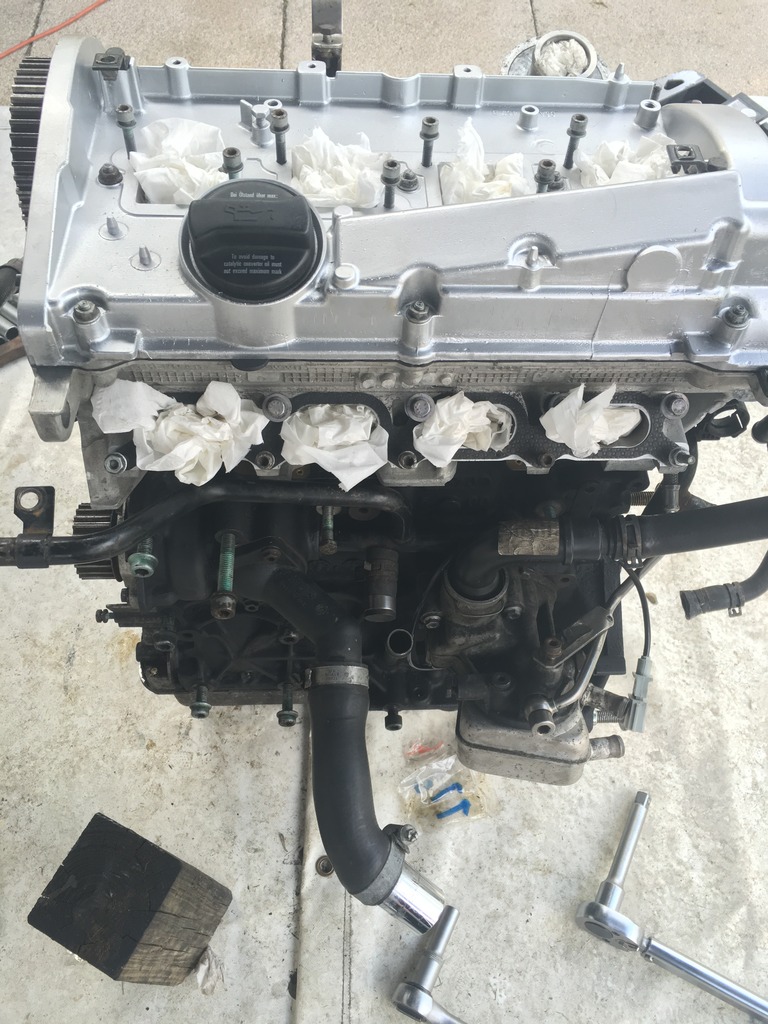

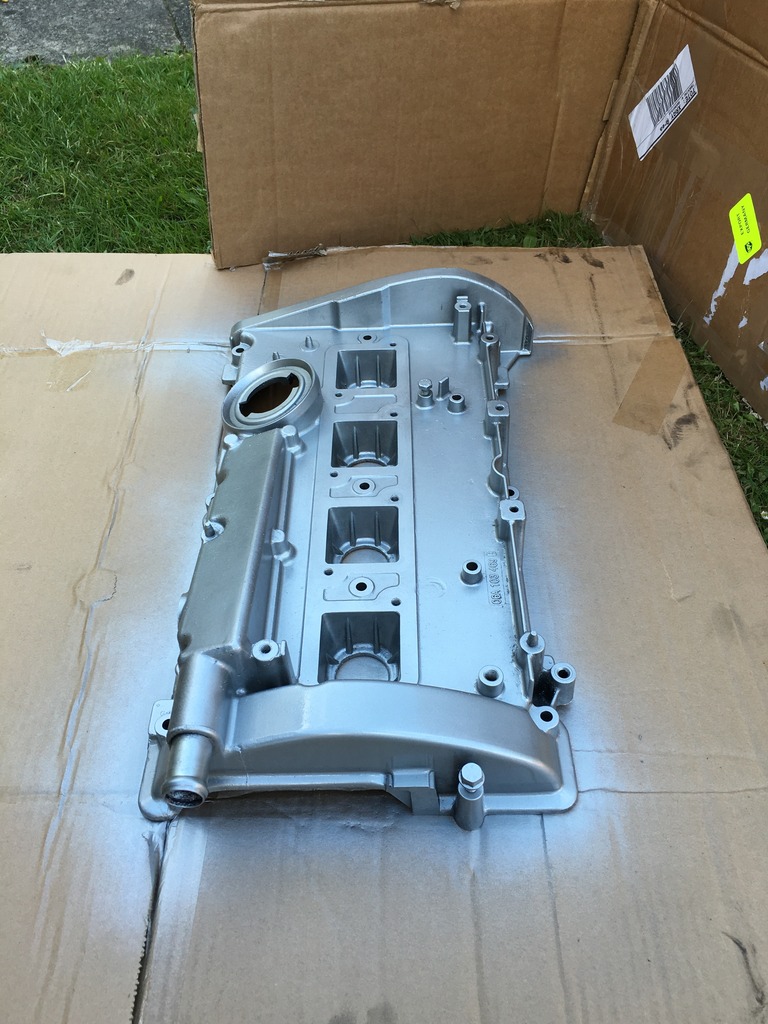

Sprayed the rocker cover

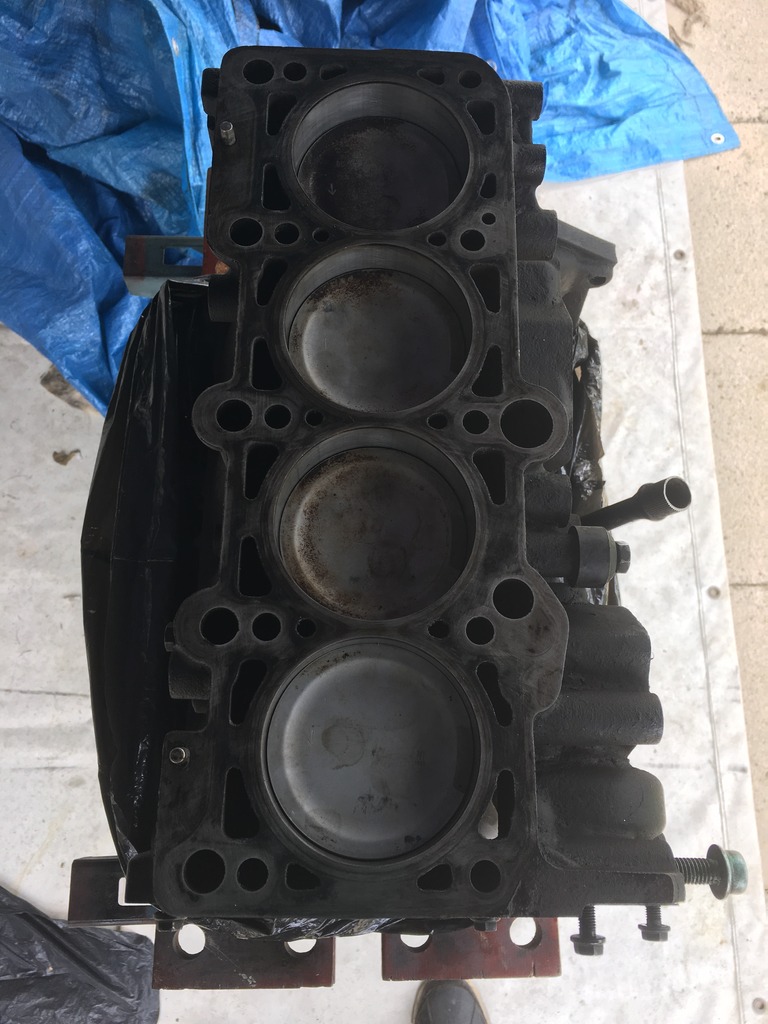

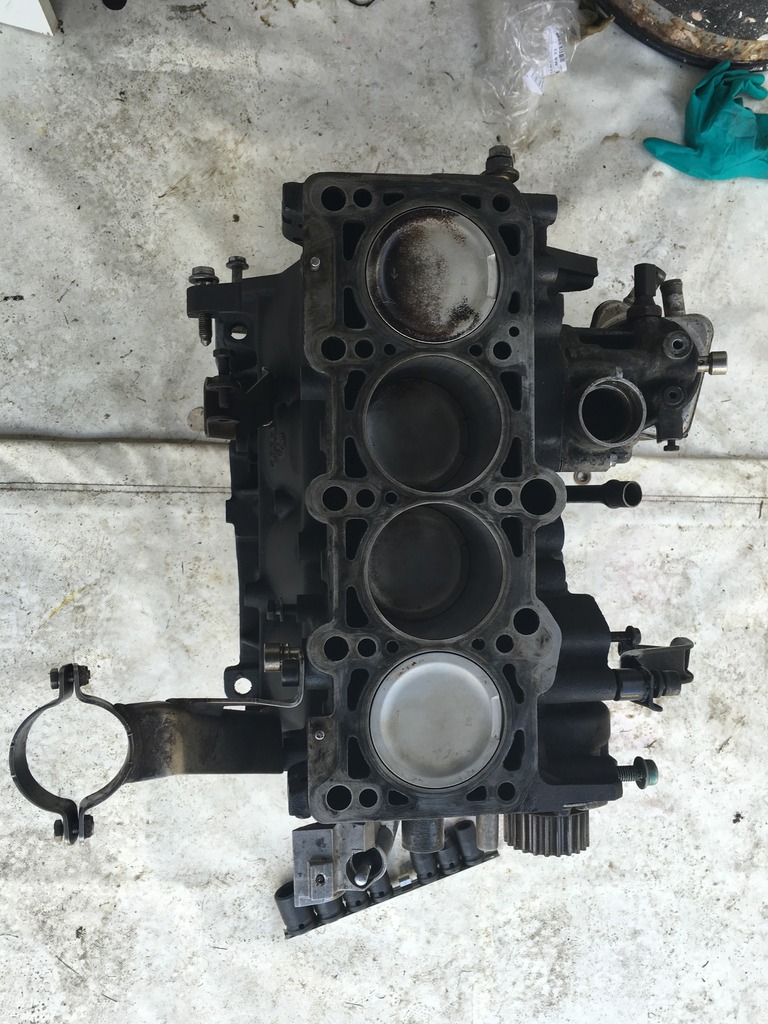

Pistons in the block

New bearings

Crank in

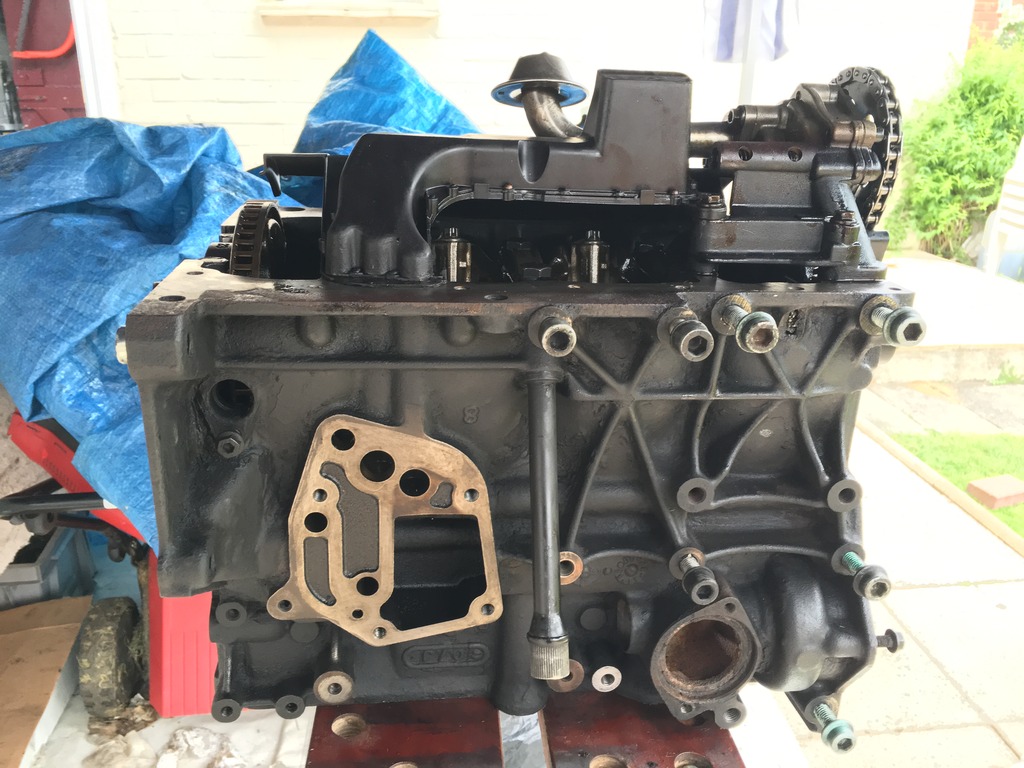

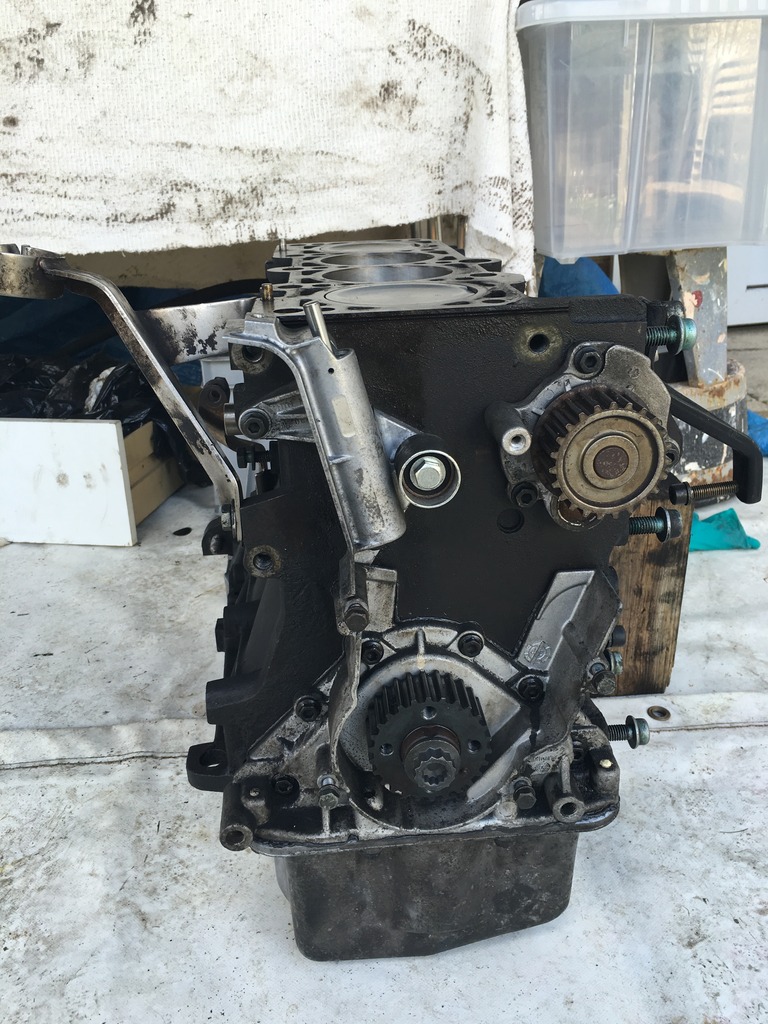

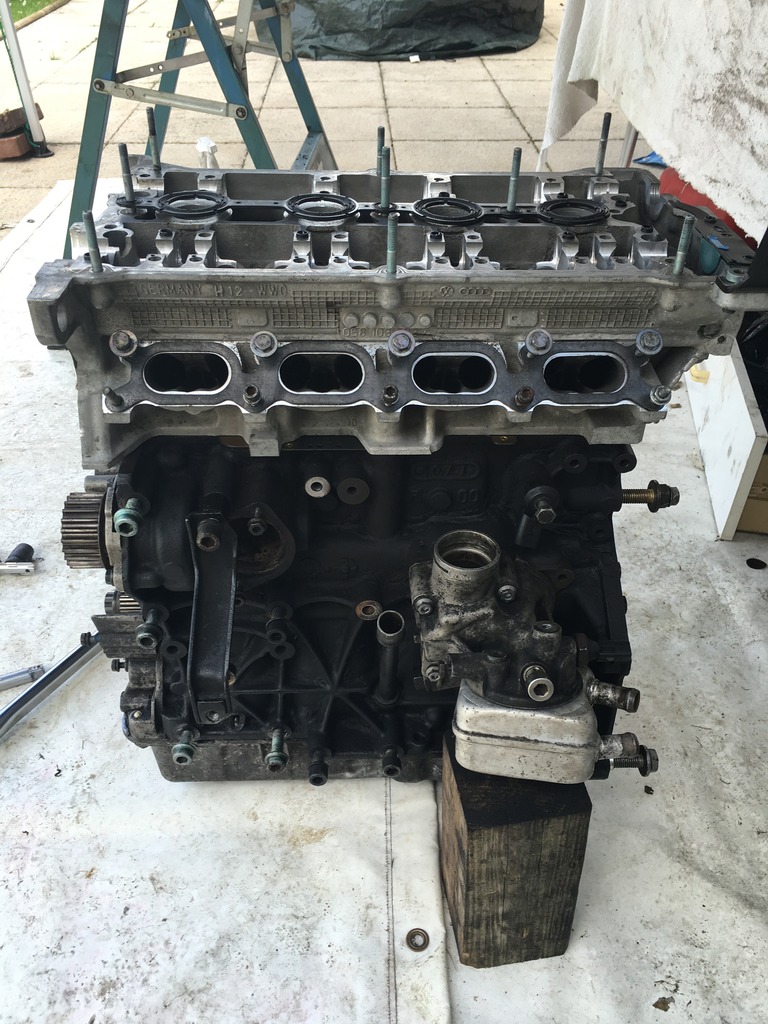

General assembly of block




Cylinder 1 and 4 at TDC

Timing bits

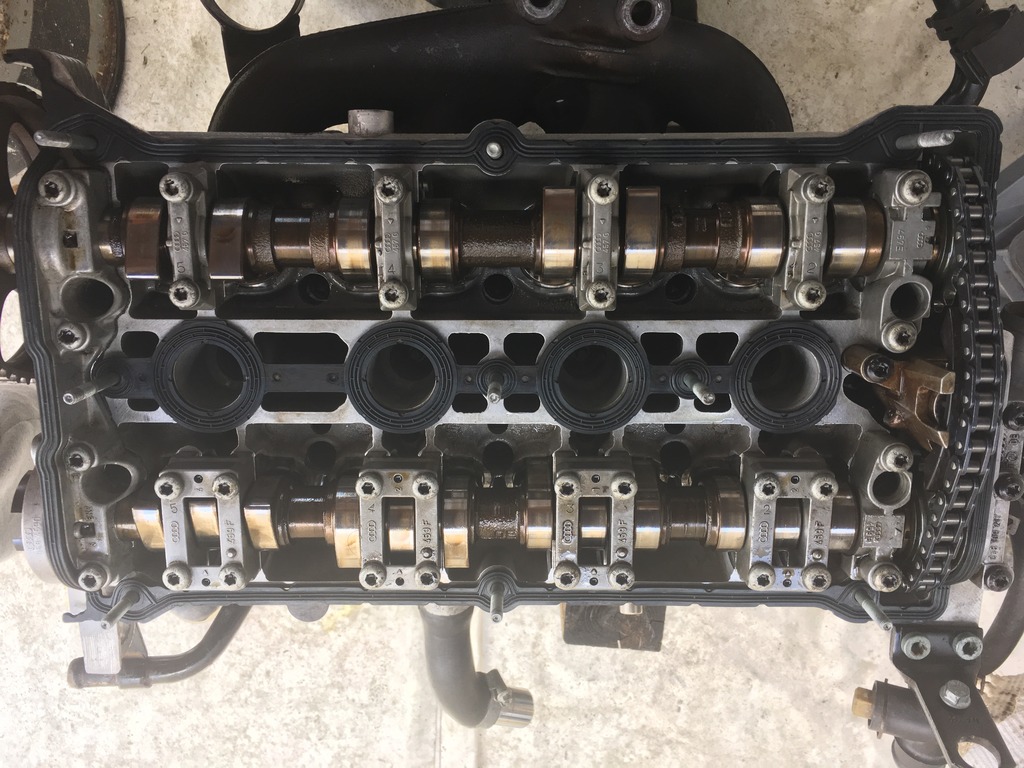

Head

Cams in

Looking so much like an engine now

Timing Belt

Silicone piping for turbo

Timing covers

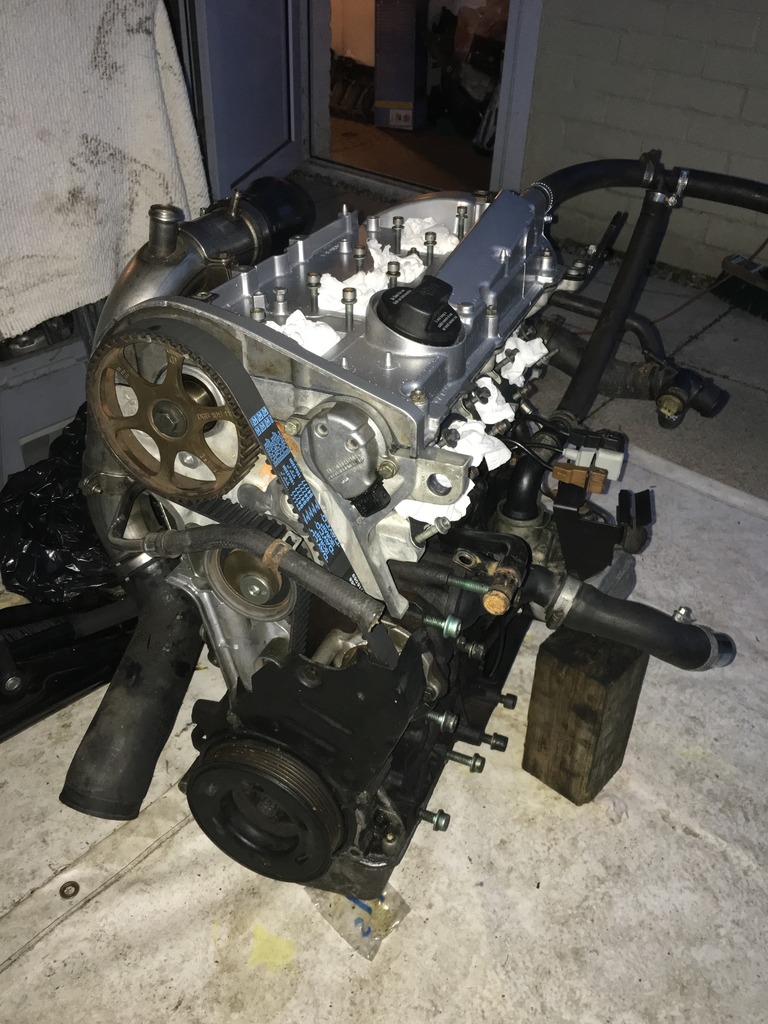

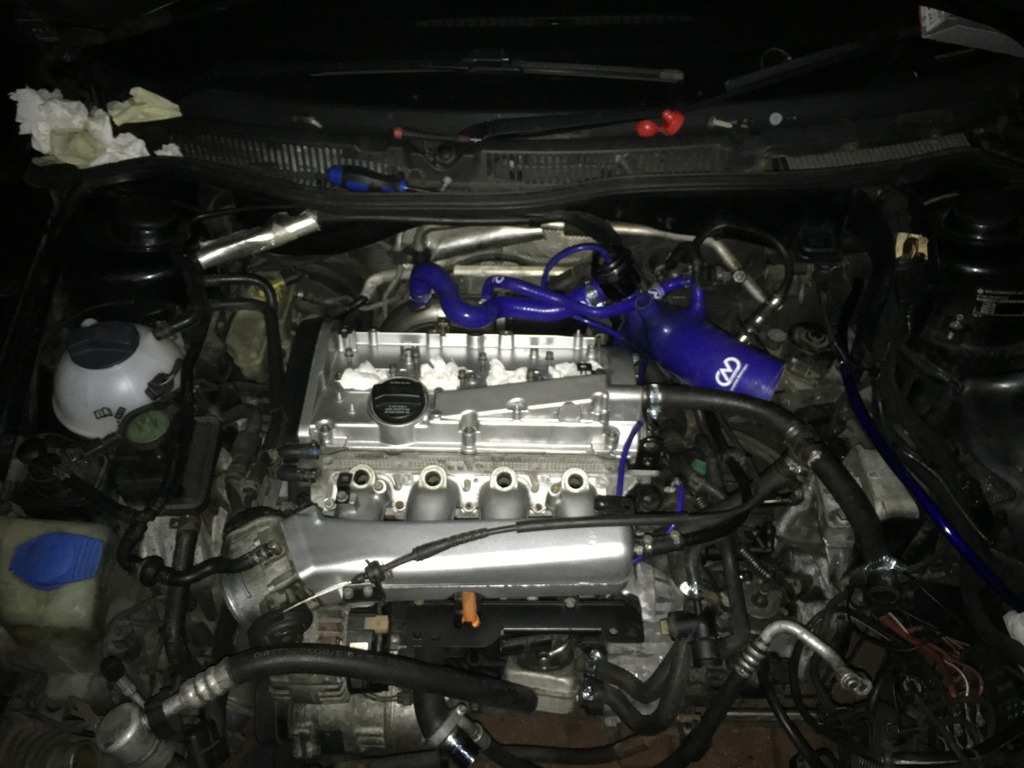

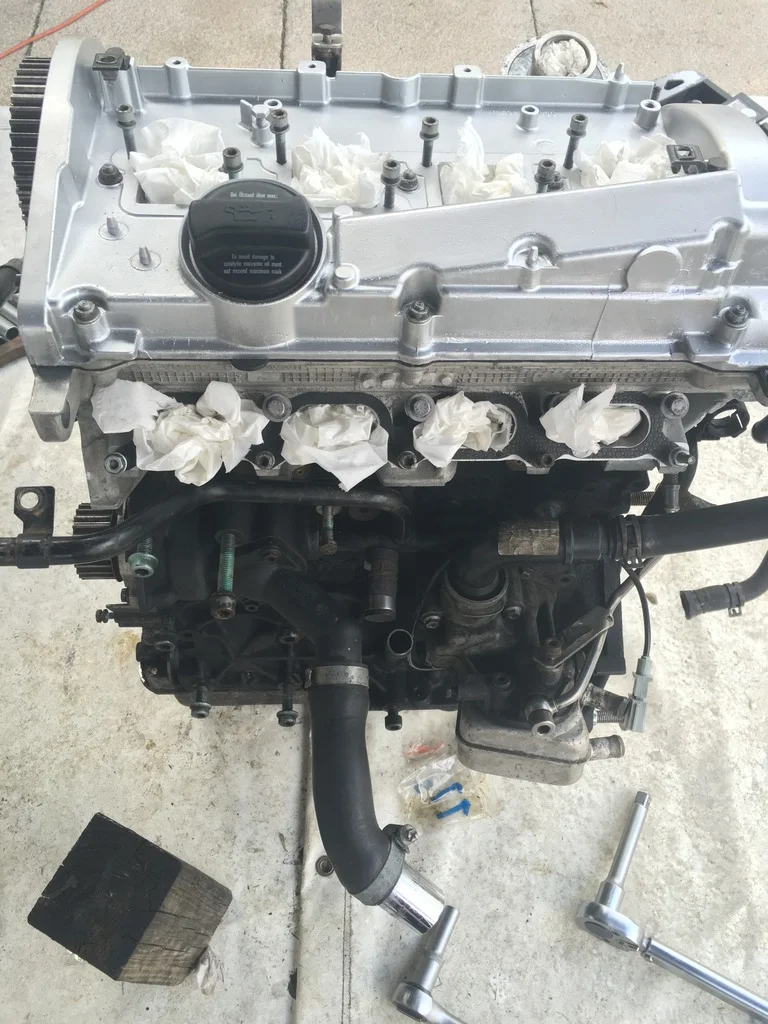

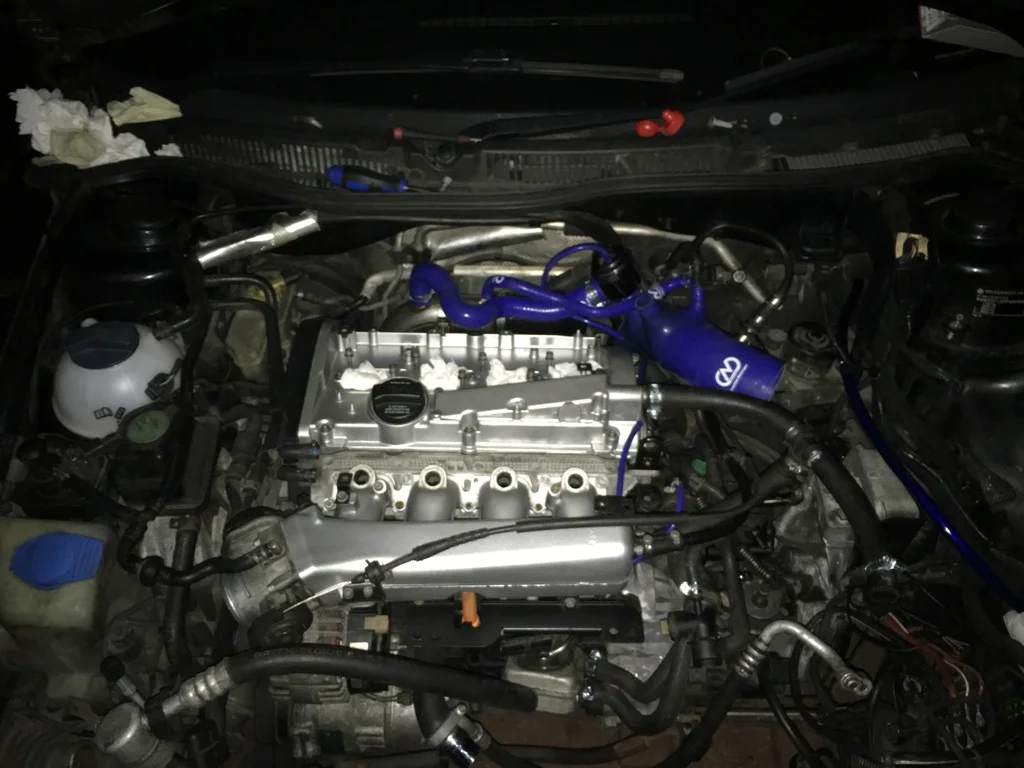

And after a long day the engine in the car :D


Done about 150 miles in the car so far. Taking it relatively easy at the moment. Cars taken off the road until 25th Septemeber for TRAX.
In the mean time I'll be fixing up the exterior and some cosmetics of the car.


M90SR

ClioSport Club Member
This build would have not have been done if it wasnt for the help of @STEVE.M incredible learnt so much and without his help dont think the engine would of started first time.

  PH2 172
This build would have not have been done if it wasnt for the help of @STEVE.M incredible learnt so much and without his help dont think the engine would of started first time.
Thanks for the acknowledgement,but I just advised.It was your work that made it happen..Well done again.


DaveDreads

aka Philomena Cunk aka Barry Shitpeas
ClioSport Club Member

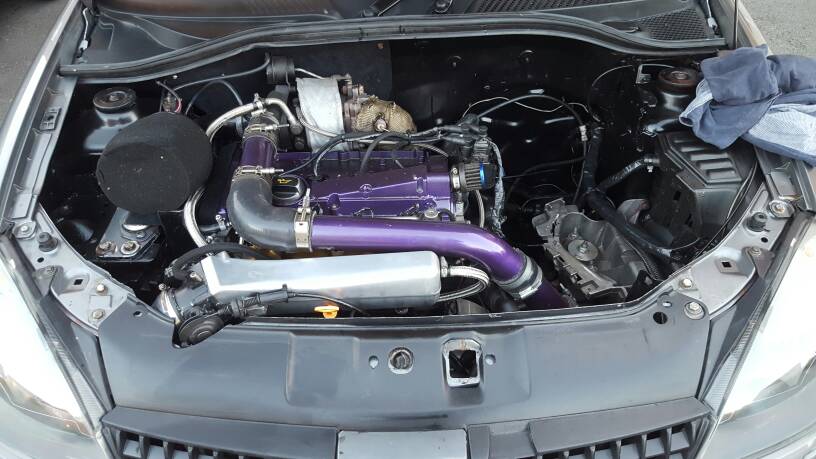

F*ck me why did I ever stop driving Golfs and get a Clio?
The amount i've spent on the dog kennel over the years I could have built a doomsday 20VT by now.


M90SR

ClioSport Club Member
Only down side its a different driving experience. I love the go karted-ness of the Clio, the golf feels agile but not nearly as much as the Clio. It is a better build car with the doors making that 'doof' sound when you close them.
The power step ups in the Golf (from my understanding are as follows)
- Stage 1 150bhp to 180-200bhp (Remap, Intake, exhaust)
- Stage 1.5 200bhp to 230bhp (Silicone hoses, DECAT)
- Stage 2 230bhp-260bhp (KO3s turbo, FMIC, 3" MAF etc..)
- Stage 3 260bhp - 300bhp (KO4 turbo)
- Then forged, hybrid turbo, injectors, fuel pump etc.. you'll keep going up and up.
Don't quote me on the stages.


M90SR

ClioSport Club Member
Haven't updated in a while one would assume the cars been sent to the scrappy or one might assume I'd happily driving it around. Neither unfortunately.
Car is still at home and gets a tire rotation and a maintenance wash every now and then.

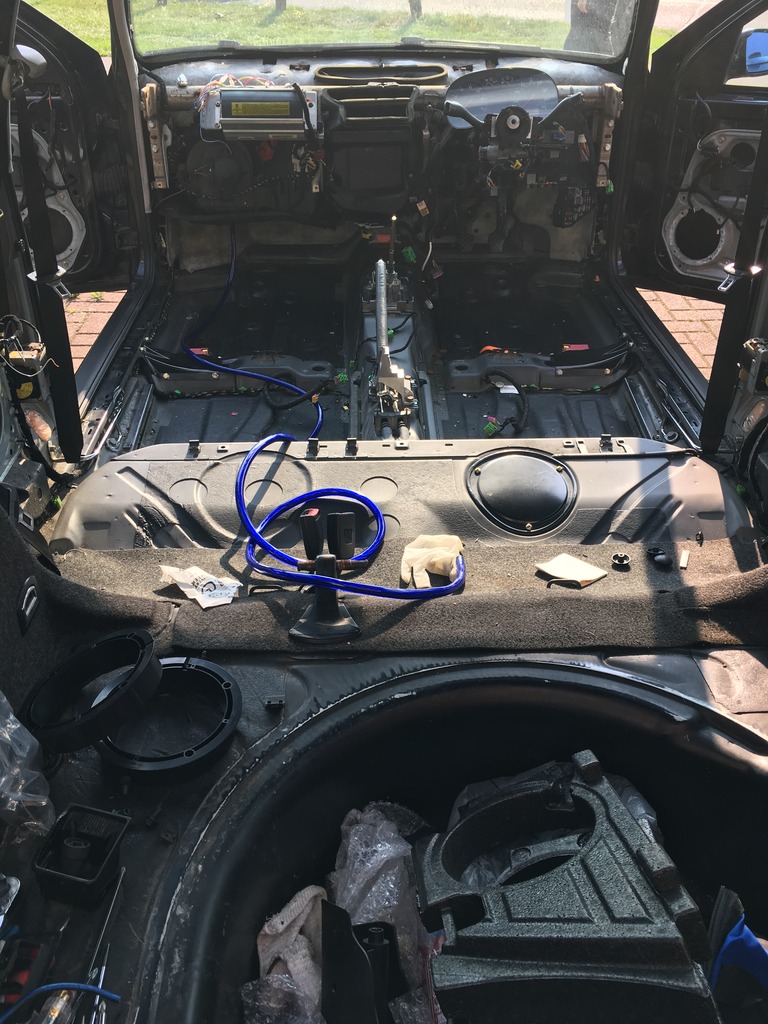

The plan currently is to rebuild the interior which gives me the opportunity to incorporate my sound system into the vehicle.
There was also a leak which caused the underlay behind the dash to become moldy.

So seeing as though I rebuilt the engine it only makes sense to just strip the interior and start from scratch. Essentially all I have done is create a track car, however I don't see it being a better car on track than the 182. Plus I wanna put some genuine non thrashing miles on the engine to warrant me rebuilding it.

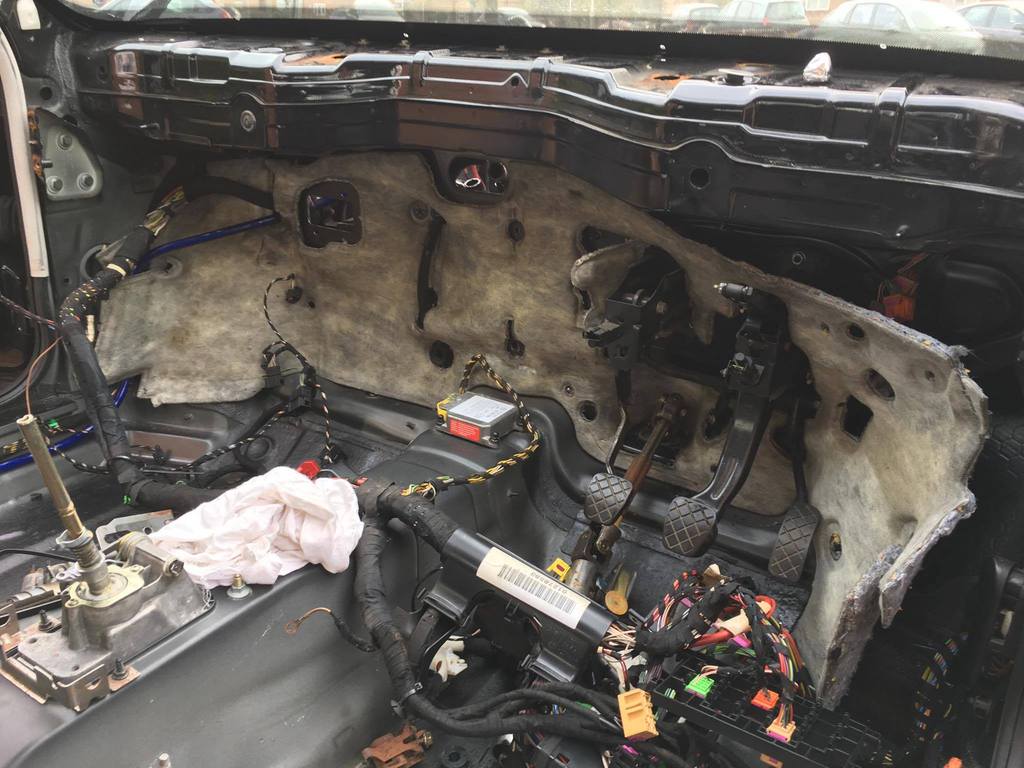

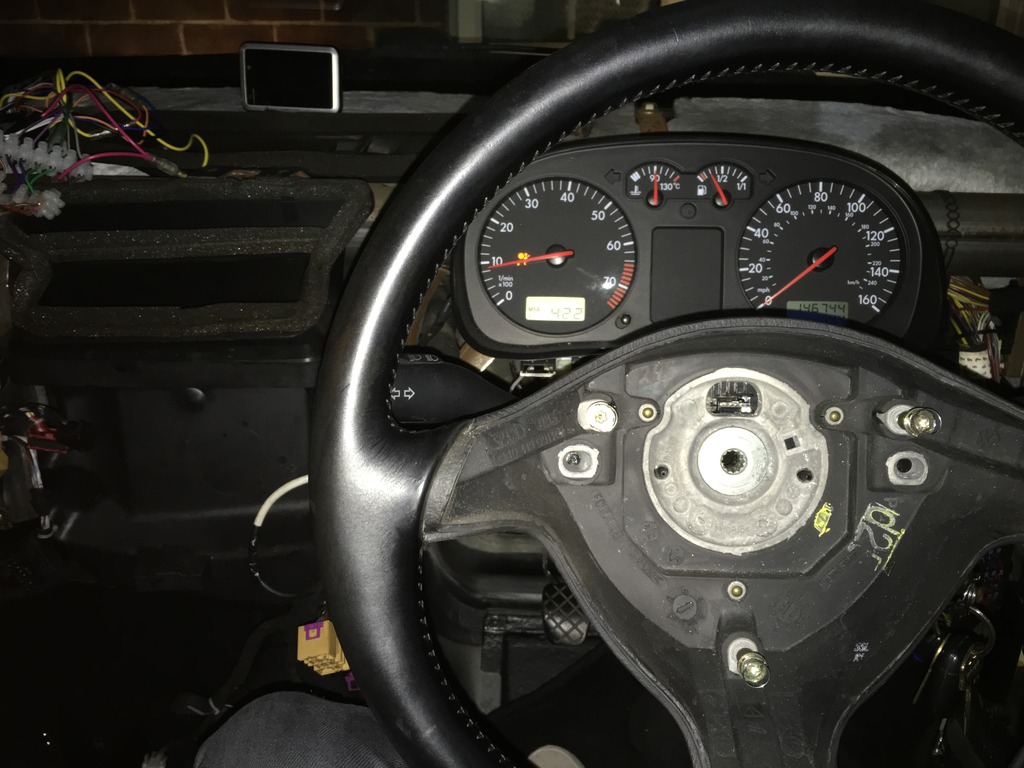

Starts with the basics dash and carpet removal:

I then felt the need to take it for a drive whilst my first Clio (1.2 dynamique) engine replacement took place. (I blew that too....)

The looks I would get when people looked into the car from traffic was hilarious. In my opinion the car was still safe to drive, seat belt and seat secured.

Wave of the magic wand and...

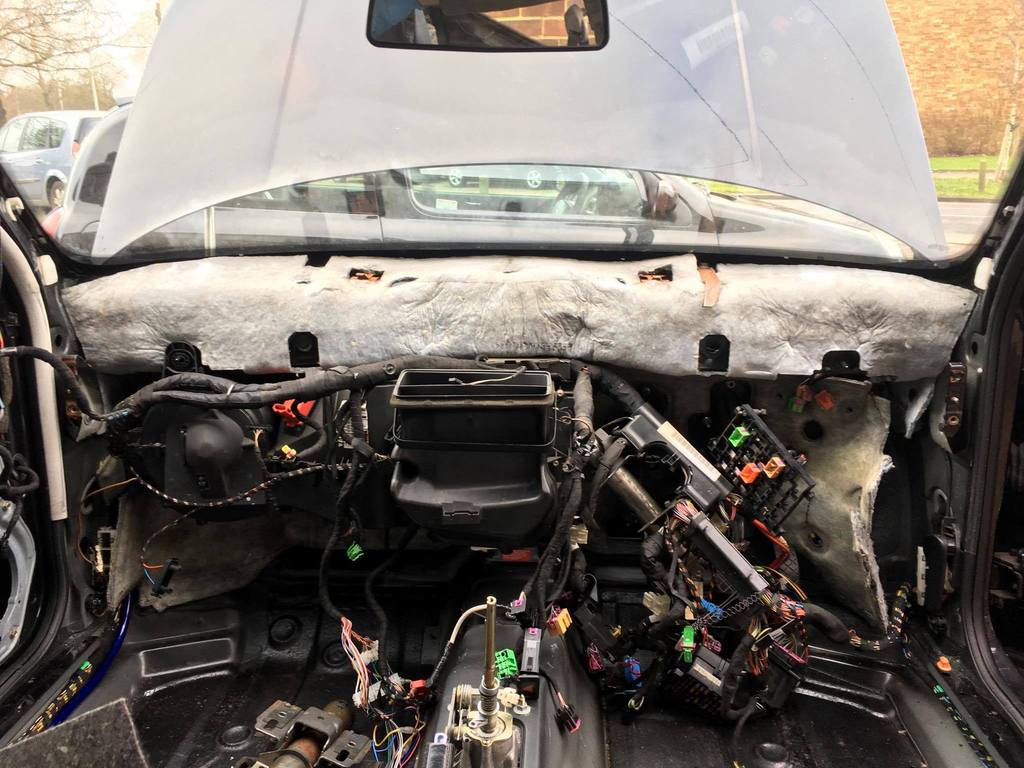

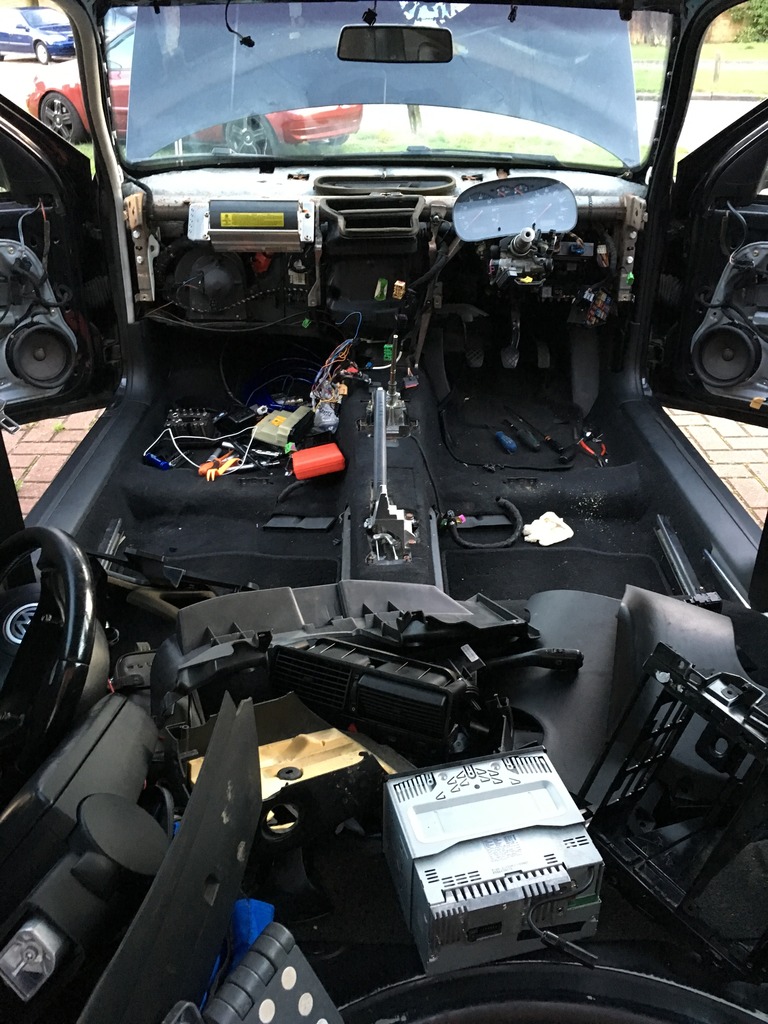

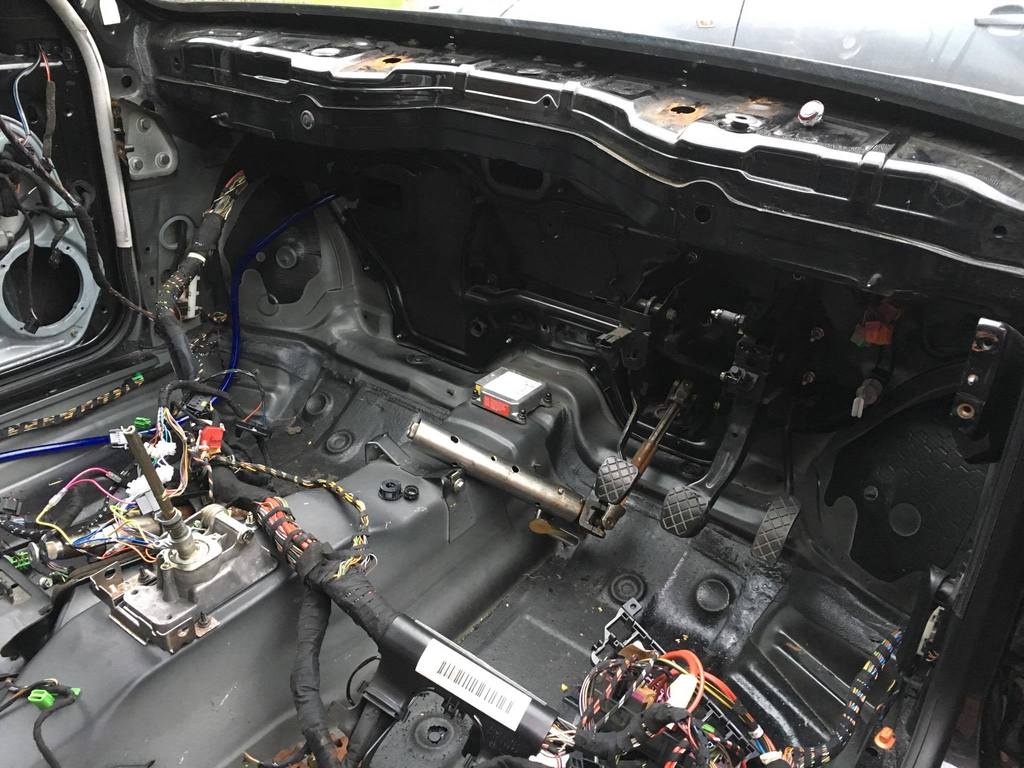

Internal Cross member out

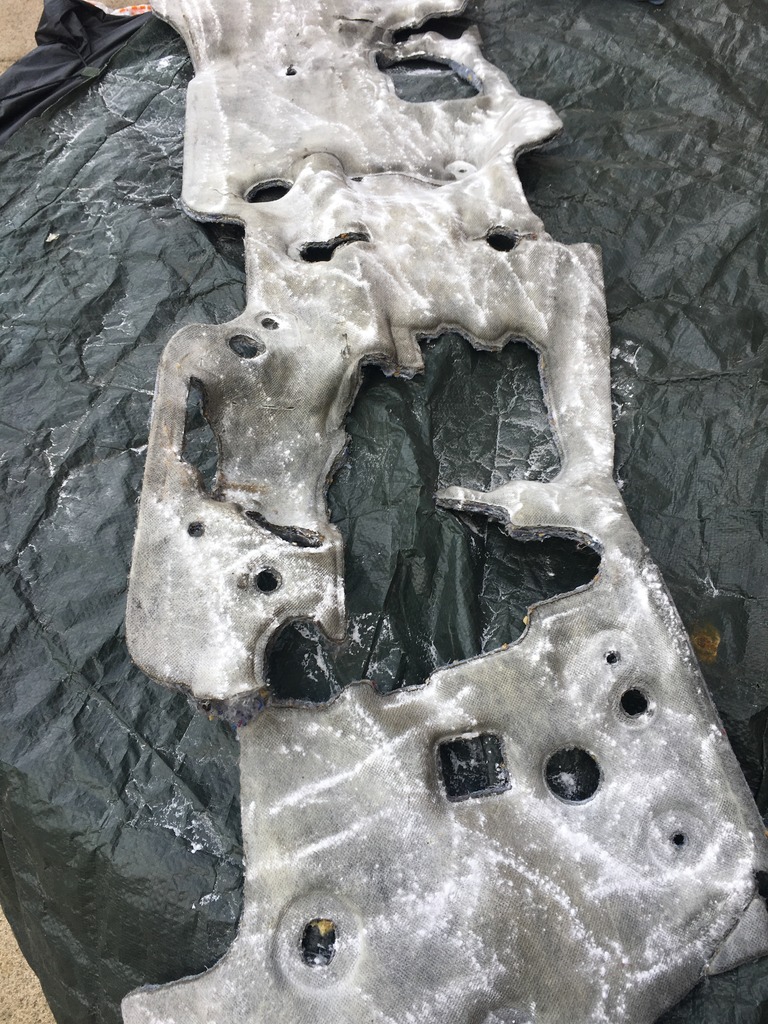

Carpet underlay

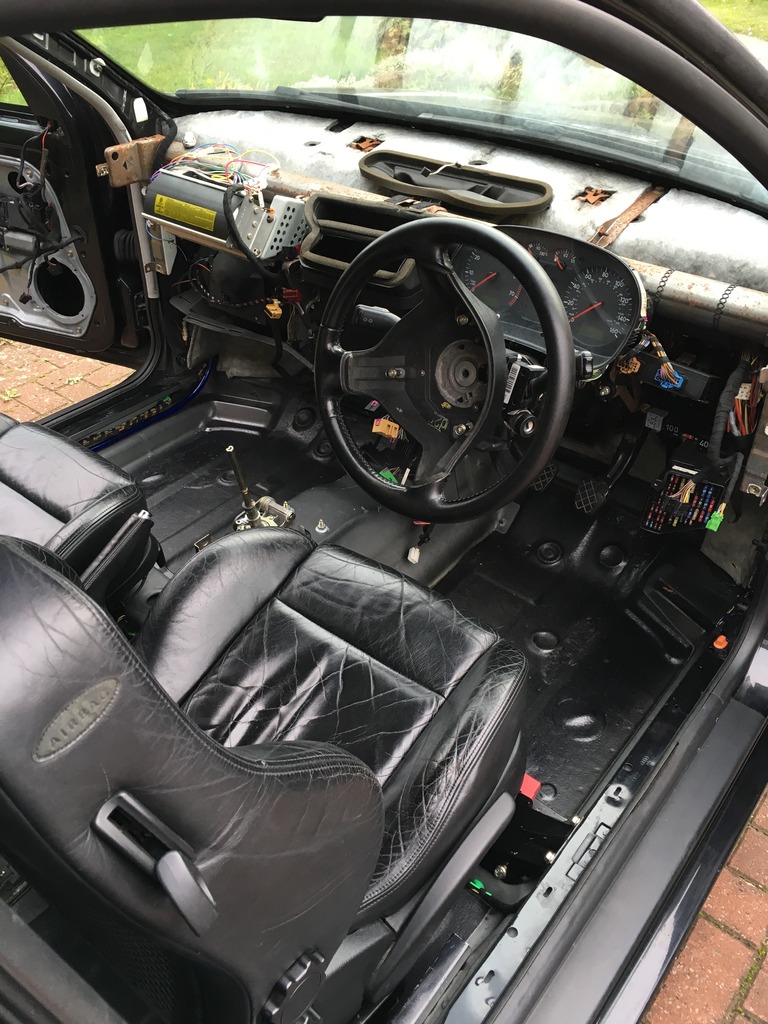

All stripped

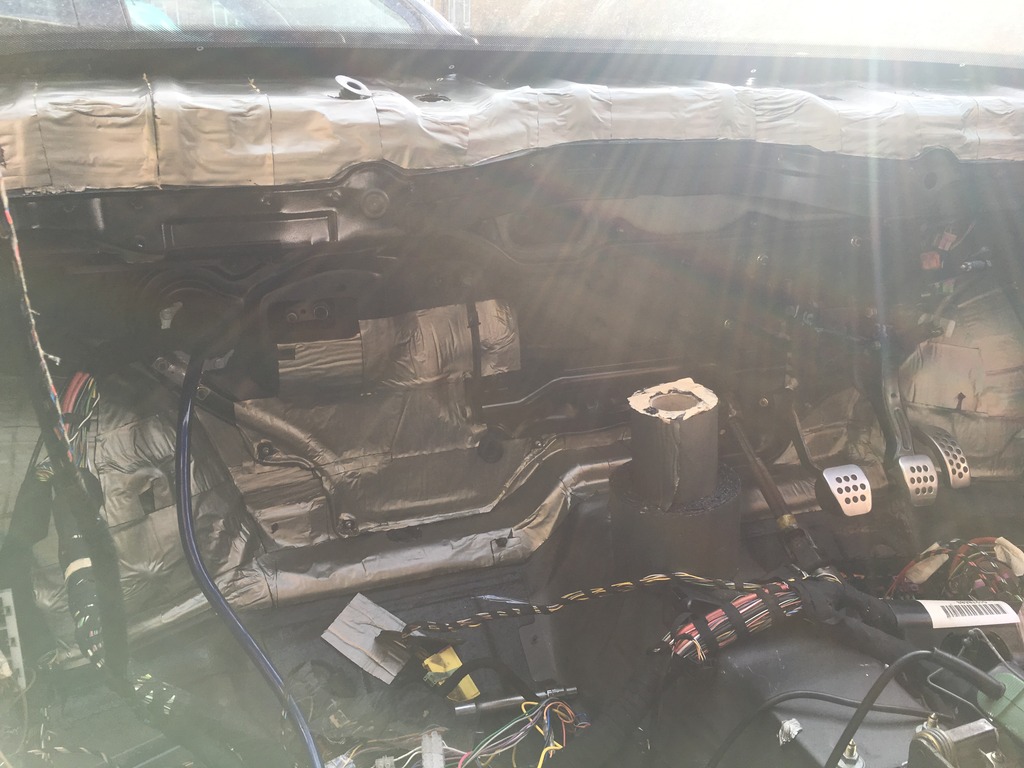

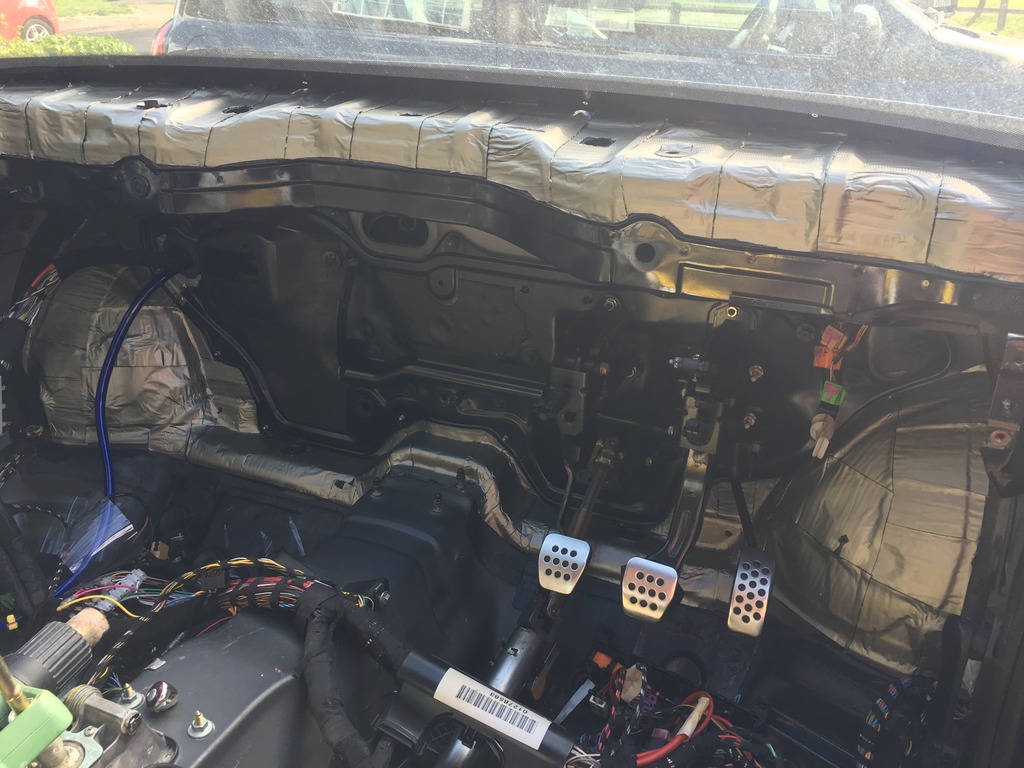

Sound deadening for the firewall during its application


I applied baking soda to the underlay to help remove the smell.



So thats pretty much where the car stands. I have been buying loads of parts for it regardless so lots more left to document on this build.
One things for sure a car I can say I fully rebuilt and probably one of the only cars I would have the pleasure in doing so.


Akay

ClioSport Club Member
  Clubman Cooper S
Love it, I had a Mk4 Golf TDI 130 after my CTR, and then again after my 182 (the same car, never sold it), despite the poor handling the engine and build quality were great imo, plenty of support and mods for them as well.
