Hi bud,
Good news getting the alternator, it will fit for sure don't worry.
Apologies about the delay with the pictures, haven't had a chance to upload until now.

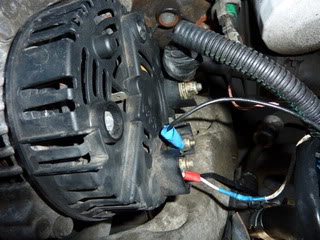

See pic below-odd angle but you get the idea! so the small wire closest to the front of the car(left one on pic)...is your warning lamp for the dash board. The next small black wire(middle position) is my 12v live on ignition feed-this is the one you will have to put in as original altenator does not have this. Far right(larger wire in black conduit) is the charge feed from the alternator back to the battery.

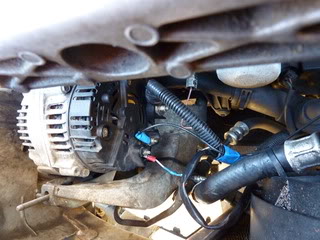

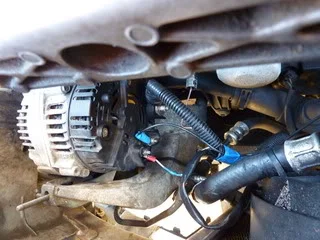

And another closer pic for clarity
Can you make these out ok?
Sounds as though you have already done a lot of the hard work-i.e pas pump and pipework. So fitting the laguna alternator should be easy enough. Hope this is of some help to you. Happy to help further if I can.
On a different subject... I have been thinking of late that some sort of PH1 register/sub-forum/independant forum (as per the trophy boys own forum) would be great to see. Haven't the foggiest idea how to go about something like that..but would be good to recognise the PH1 as it deserves. Obviously not to compete with cliosport, rather just a place for PH1 owners to visit and register.
When are you fitting your alternator? Have you binned the aircon fan blower unit (behind the scuttle panel i think). I would like to do this in the future as im guessing its a hefty bit of kit. Although im led to believe by Burps thread that this is one unit-therfore will effect the heater/blower aswell.
Let me know if you need any more pics etc.
Cheers
Lewis
