Mk1 F4R/172'd Track Car Project [Year 3 - Engine and Chassis Rebuild]
Christopher
ClioSport Club Member
Z4M
Re: Mk1 Hybrid Project
Manual FTW
I said it from the start
Manual FTW
I said it from the start
Re: Mk1 Hybrid Project
Day 53

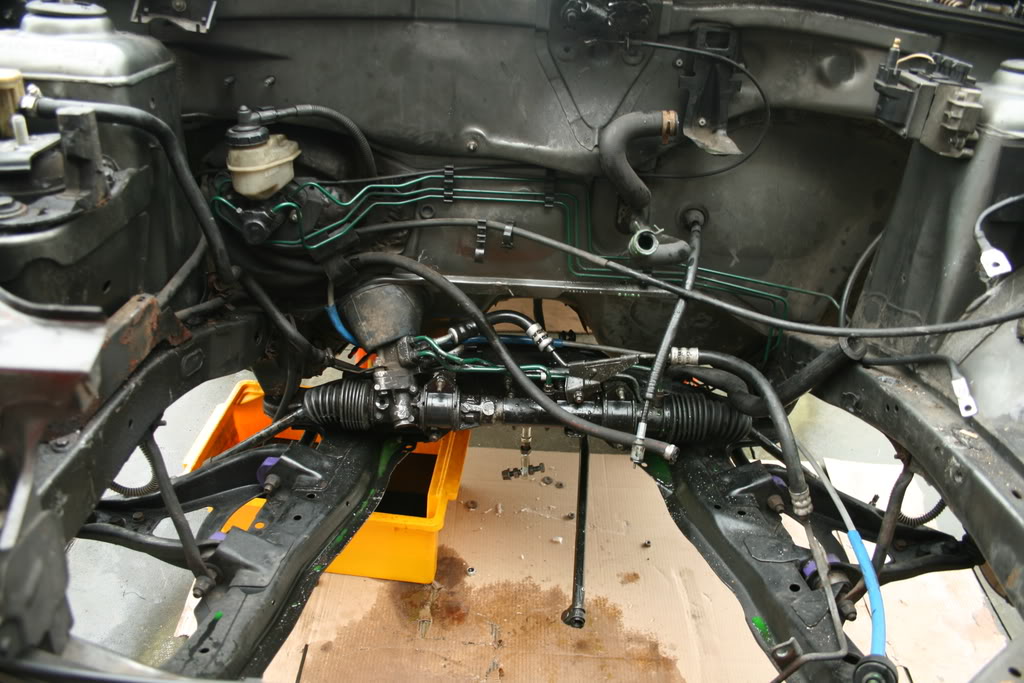

After the issues with the power steering over the past week, I decided to remove the engine completely, swap the steering rack to a manual one, then put the new engine in.

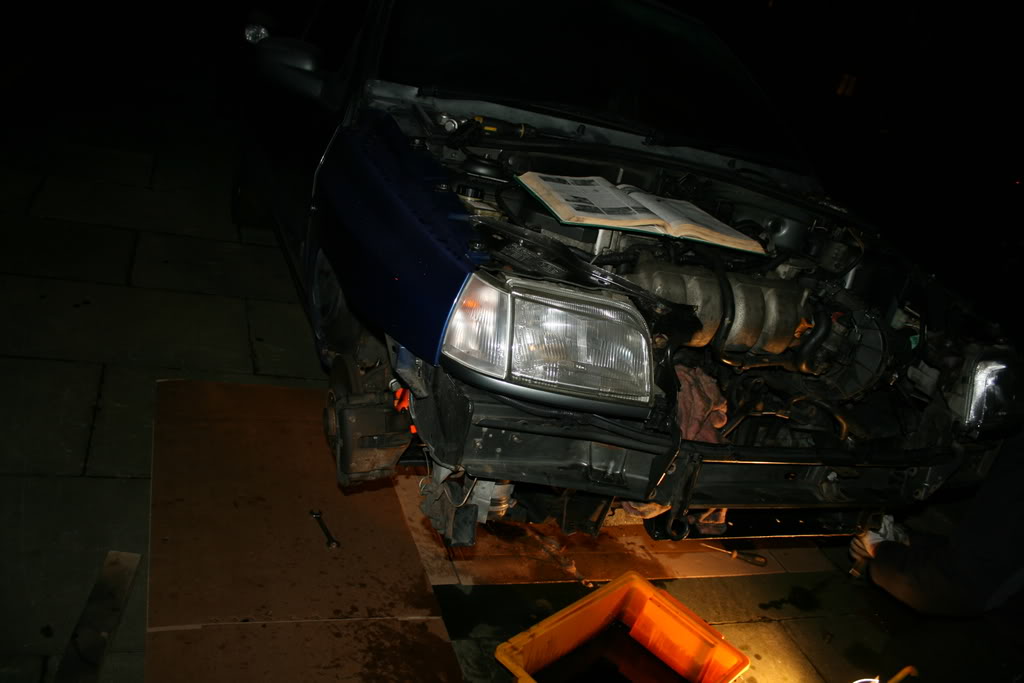

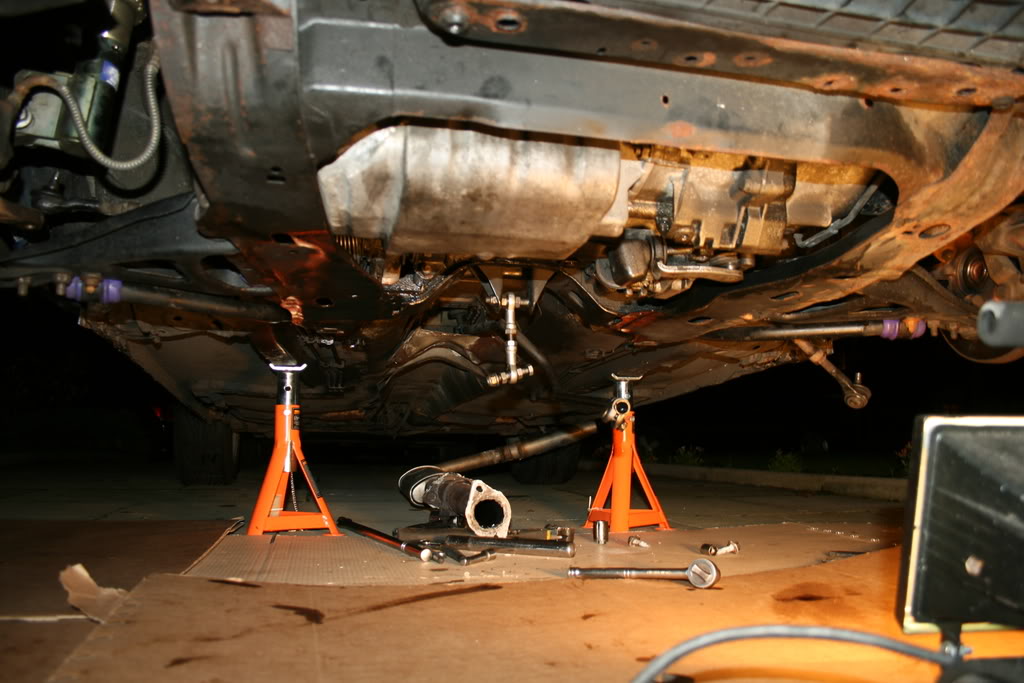

I was starting as it was going dark, but it didnt really matter as once the engine was loose it was just a matter of lifting it out. Started by draining the oil from the engine and gearbox, then undoing the hubs from the shocks, so they could be swung down to allow the driveshafts to be removed. After both driveshafts were removed I put one bolt back through the hub so it would not be leaning on the bottom ball joint all the time until the car was ready to be driven again.

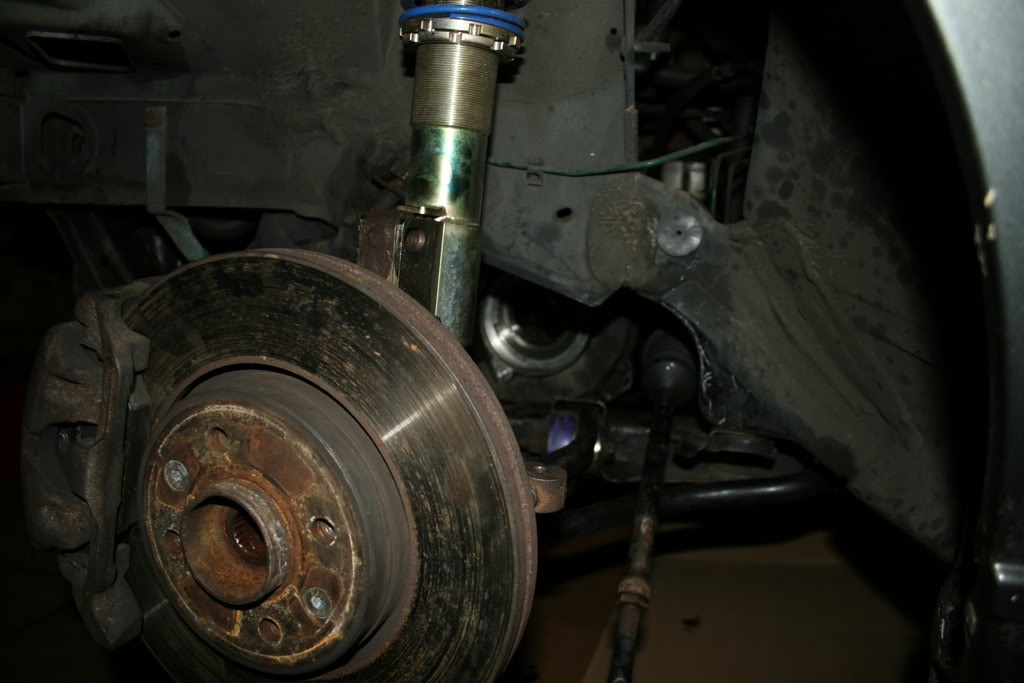

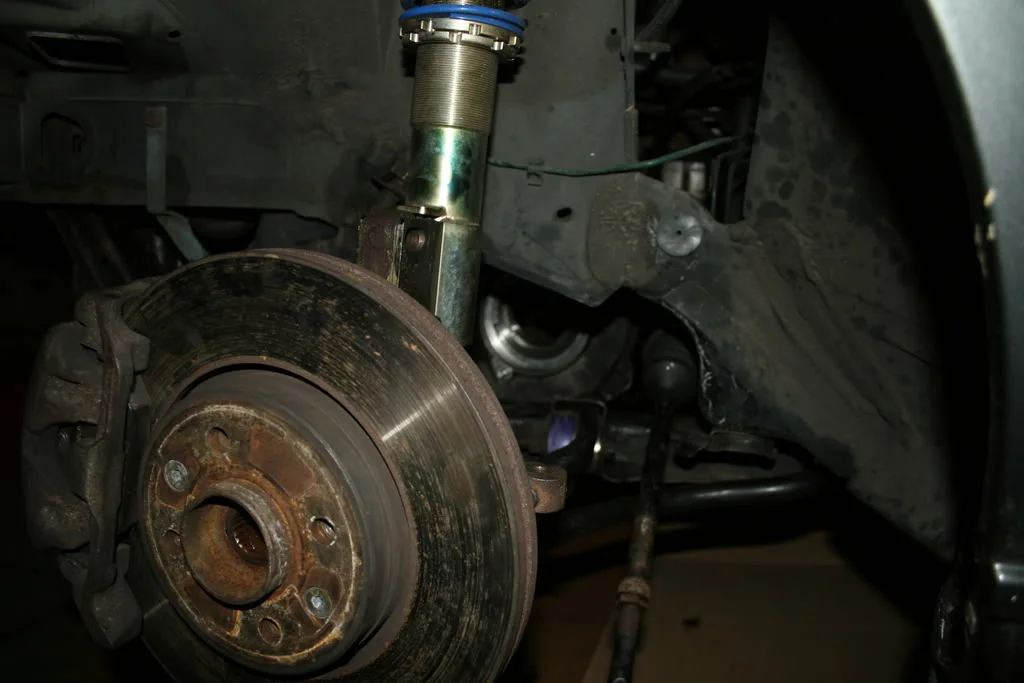

The next job was to remove the manifold downpipe and exhaust, then the rear dogbone mount and its bracket, so it would not get caught when the engine was being lifted. Before I went any further I realised that the power steering hose is bolted to the engine and gearbox at various points, so I undid these and removed the line, draining the fluid at the same time.
Next I removed the coolant hoses from the radiator, and drained the coolant from the system, then lifted the radiator out. I removed the coolant bottle completely, along with the pipe that links the water system to the heater matrix. The last few things to remove were the fuel lines from under the car, a couple of vaccum hoses and the main engine loom plug under the relay box.
I decided to leave the loom connected to the engine, and just unplug the main plug, as the new engine will have a loom on it also. This means when I lift the new engine in, it will be as simple as just plugging it in.
All that was left to do is undo the engine mounts on the left and right, then it would be ready to lift. After undoing the engine mounts, it was nearly 10pm, so I left it for the night, and would lift the engine tommorow morning…
Day 53
After the issues with the power steering over the past week, I decided to remove the engine completely, swap the steering rack to a manual one, then put the new engine in.
I was starting as it was going dark, but it didnt really matter as once the engine was loose it was just a matter of lifting it out. Started by draining the oil from the engine and gearbox, then undoing the hubs from the shocks, so they could be swung down to allow the driveshafts to be removed. After both driveshafts were removed I put one bolt back through the hub so it would not be leaning on the bottom ball joint all the time until the car was ready to be driven again.
The next job was to remove the manifold downpipe and exhaust, then the rear dogbone mount and its bracket, so it would not get caught when the engine was being lifted. Before I went any further I realised that the power steering hose is bolted to the engine and gearbox at various points, so I undid these and removed the line, draining the fluid at the same time.
Next I removed the coolant hoses from the radiator, and drained the coolant from the system, then lifted the radiator out. I removed the coolant bottle completely, along with the pipe that links the water system to the heater matrix. The last few things to remove were the fuel lines from under the car, a couple of vaccum hoses and the main engine loom plug under the relay box.
I decided to leave the loom connected to the engine, and just unplug the main plug, as the new engine will have a loom on it also. This means when I lift the new engine in, it will be as simple as just plugging it in.
All that was left to do is undo the engine mounts on the left and right, then it would be ready to lift. After undoing the engine mounts, it was nearly 10pm, so I left it for the night, and would lift the engine tommorow morning…
Re: Mk1 Hybrid Project
Day 54

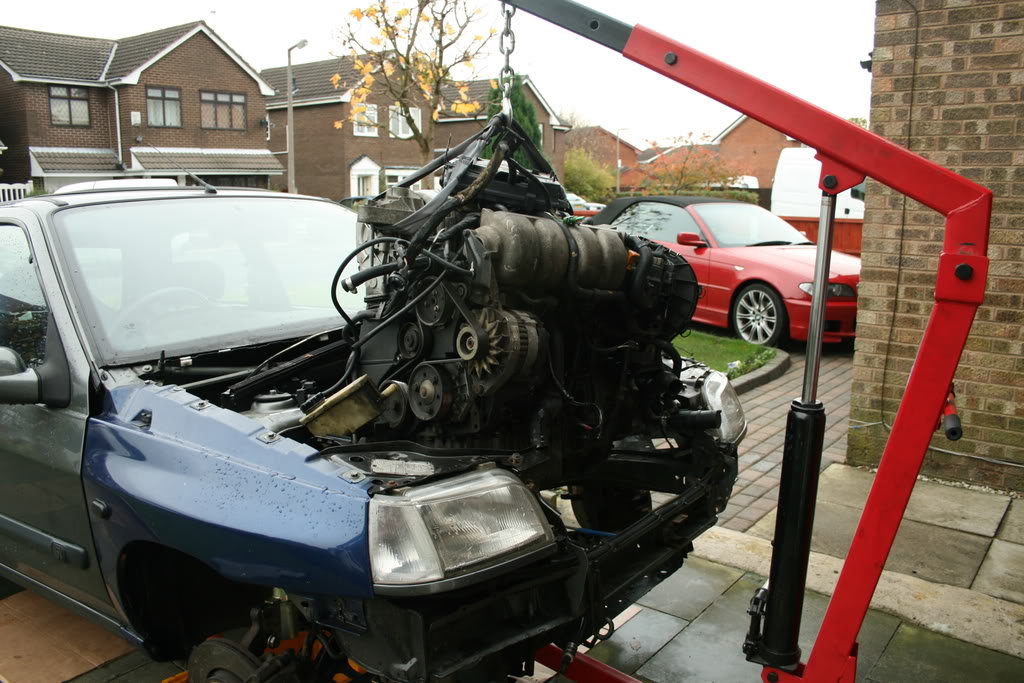

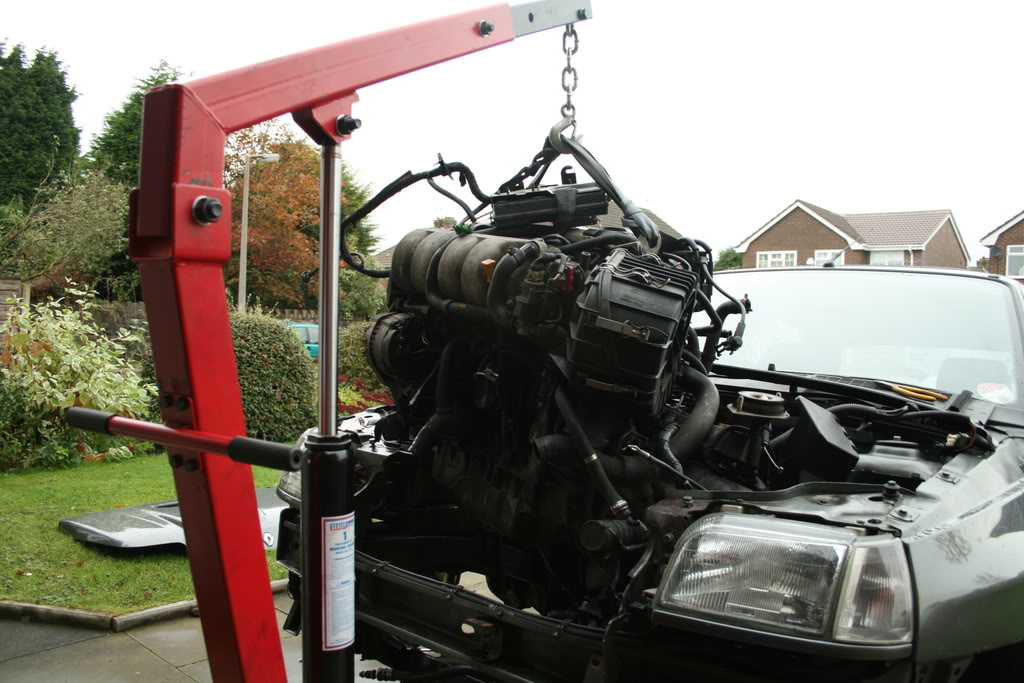

After removing everything connected to the engine last night, I needed to lift it out this morning. Quite and early start, and the engine was out within an hour. Found out as I started to lift I hadnt undone the ECU, so I had to remove the scuttle panel and ECU before I could lift it any further.
When I had removed the ECU, the engine came out slowly, lifting it bit by bit to make sure it wasnt catching anywhere. Once it was out, I put it onto a pallet on the driveway. I decided to clean the bay, considering there was power steering fluid everywhere after it had been leaking. Also removed the Williams steering rack, fitted just a week ago, as im running manual steering from now on, just cant be bothered with the hassle power steering seems to be causing.
After cleaning the engine bay, I moved the engine and put it down on a pallet. I had to organise renting a van so I could move this engine down the road to the place where I store all my other car parts, and to get the new engine from Winstons. Managed to hire a van for the day, but I could not drive it as you have to be at least 23 years old, Nick stepped in to drive me around for the day.

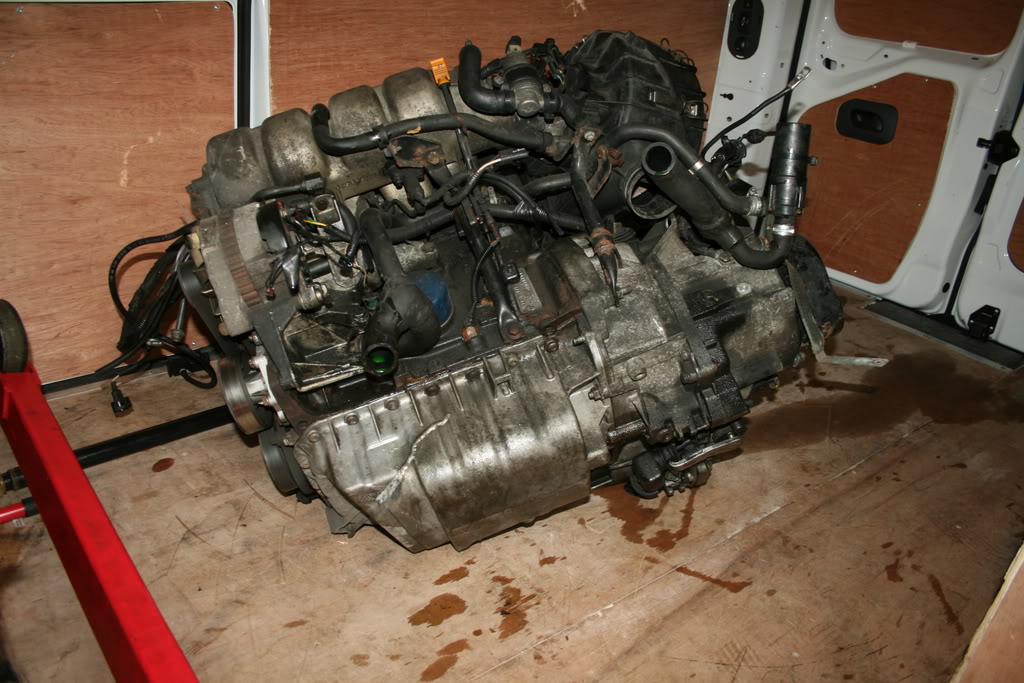

Took the engine off the pallet, and back onto the crane. Then wheeled the crane down the drive, and put the engine into the side of the van on its side to make sure it would not move around. Then loaded a few tools, trolley jack and the engine crane into the van also, and set off for Winstons.

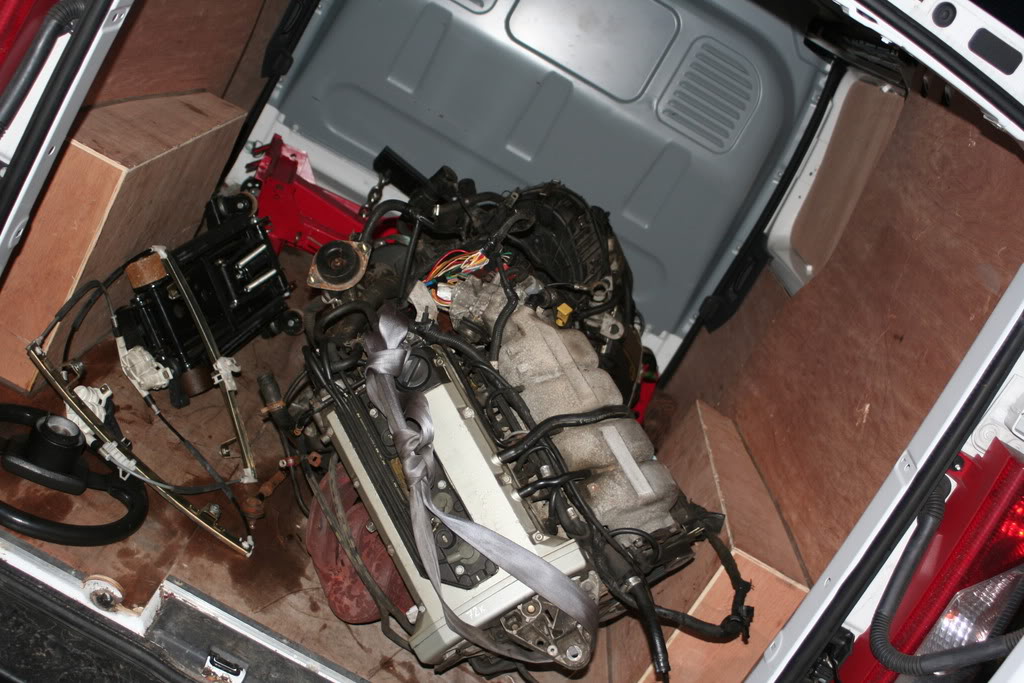

Winston had already removed everything attached to the engine, so it was just a matter of lifting it out. After a mishap with the engine lifting hoop shearing off when it was being lifted, we managed to get the engine out and into the back of the van with the other one.

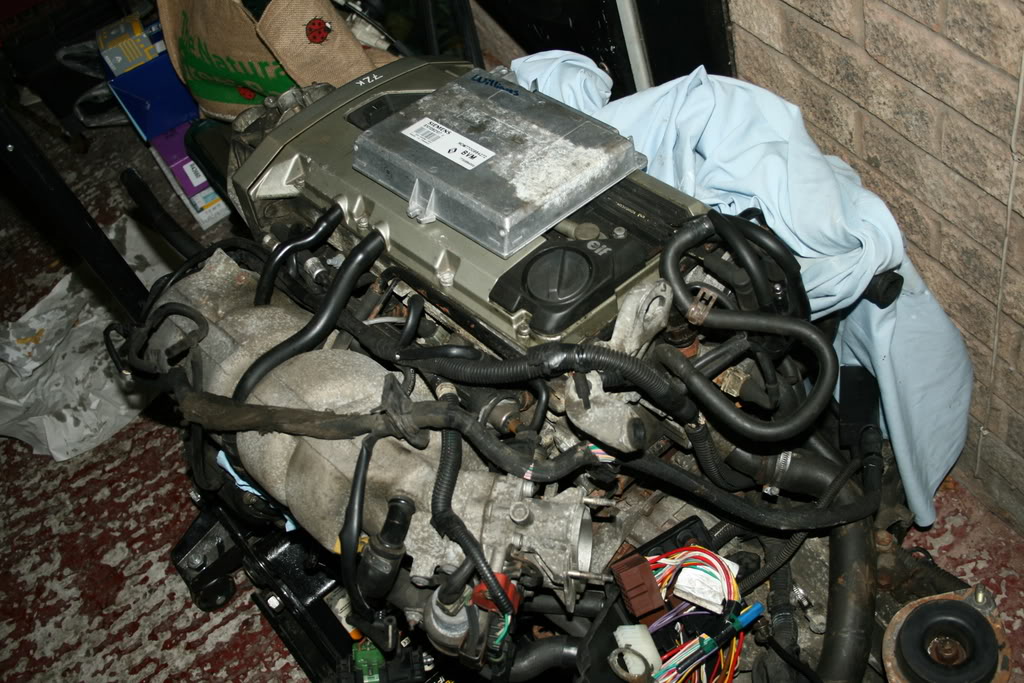

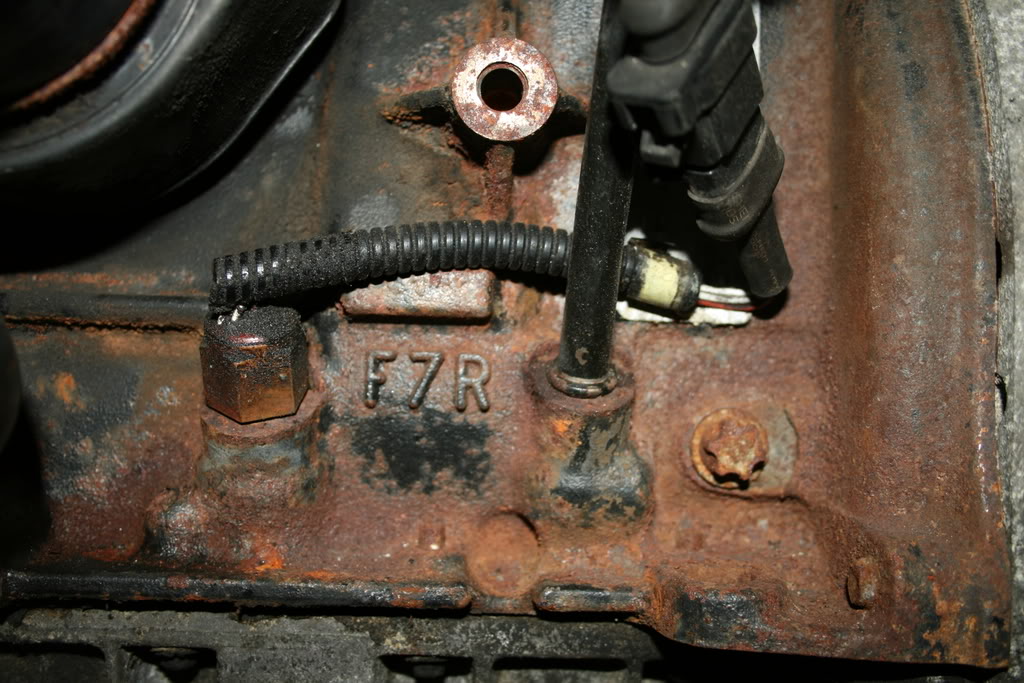

Now I had my F7P engine (1.8 16v) and a F7R engine (2.0 16v), the latter is going to be put into my car. The engine had been in the car since the previous owner built a hybrid himself, and gave up due to other commitments. A couple of months back myself and Winston went halves on the car, I was to have the engine and he was to have the rest; Winston had just been using it as a runaround until I was ready to put the engine into mine. Both engines, the crane, jack and tools went into the van fine

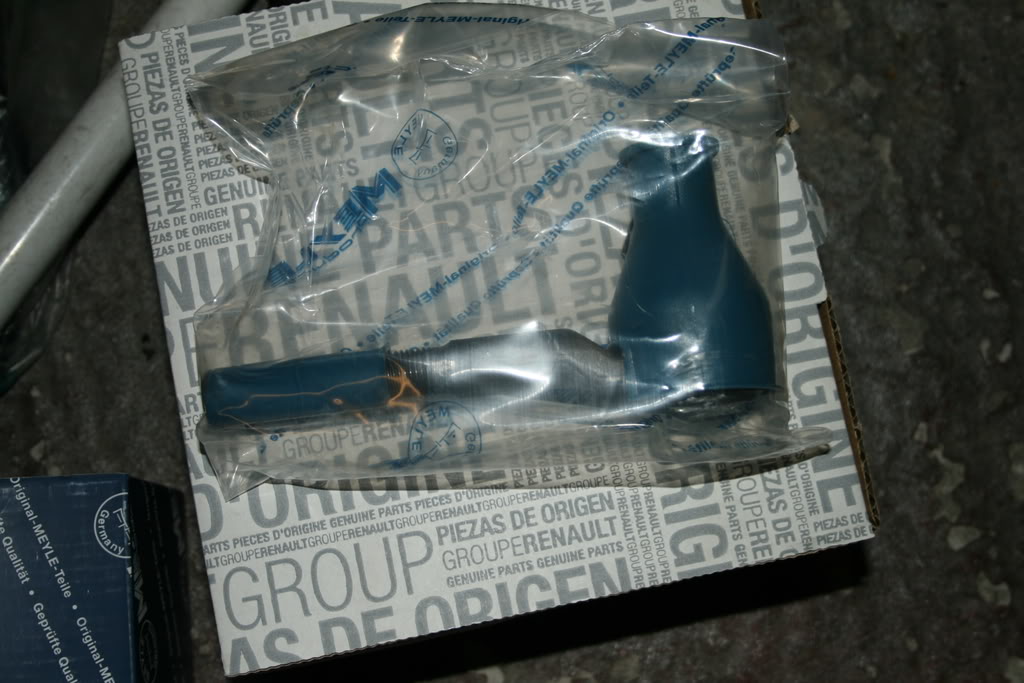

On the way back from Winstons, I had to call at GSF to pick up some new track rod ends (for the manual steering rack) and a new waterpump. Considering that the engine is out of the car I thought it would be worthwile to change the cambelt and waterpump, so it will not need doing for quite a while. After GSF, we headed to Renault, as I had ordered some parts in.

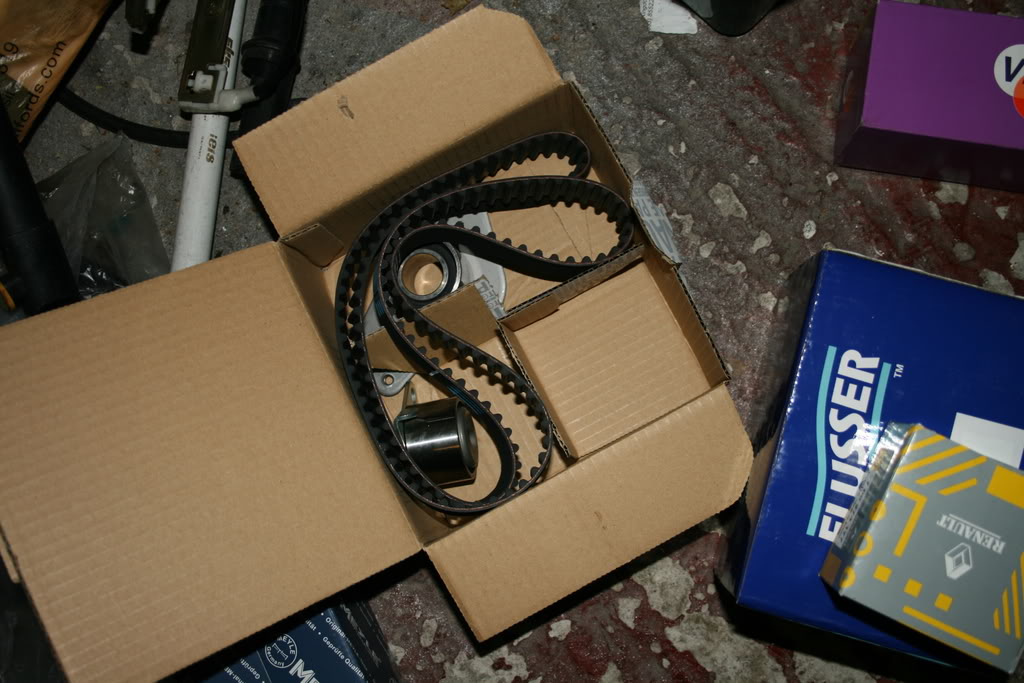

I picked up a genuine cambelt kit with new idler and tensioner, an oil filter, and a few other bits and bobs. Once I had all the parts, we headed back to where I store all my spare parts, to add an engine to the collection. Once we got there we reaslied how much of an effort it was going to be, as there were steps into the building at every entrance, and the engine crane does not have much ‘reach’, it will only go as far as its legs. We ended up going through a side door, onto a pallet trolley, and dragging it through the building, up more steps, nightmare! Eventually had it on a pallet in a safe place after a few hours.
Last thing to do was head back to my house and unload the engine. Lifted so many engines today it was a doddle, fitted perfectly in the front of the garage. The engine has the loom still attached, along with all the coolant pipes, so its as simple as dropping it in, connecting the pipes and plugging one plug in. A Williams ECU was also included with the engine, as the engine would not run with my Valver ECU.
I have had to take a few things off the F7P engine, like the standard airbox and ECU casing, to use on the F7R. This isnt really a problem as the other engine is going to be in storage until someone wants it, or if I need any spare parts for my engine.

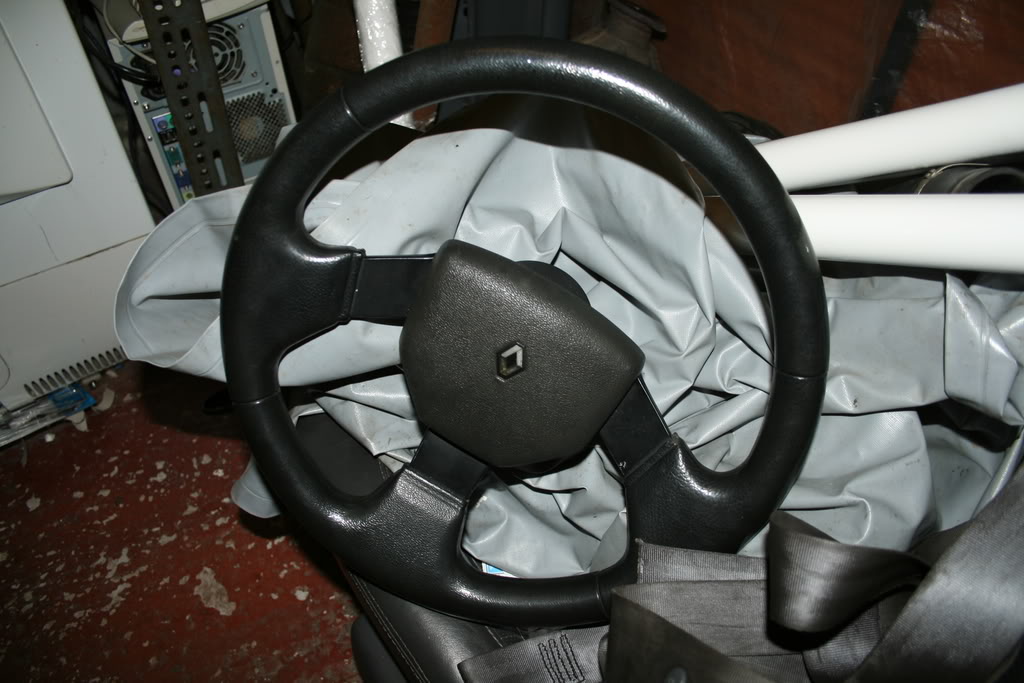

Along with the engine, I picked up a few other bits and bobs from Winston, as he is scrapping the car that the engine was in. I got the Valver/Basic steering wheel (Smaller than my current one), the fixed rear quarter windows + seals, and manual front windows. This means I can now remove the door looms, and some of the main loom, as there will be no more electric windows.
Once again, I had run out of time again. Nick headed off in the van and I cleared everything up. Tommorow I am going to fit the new cambelt and time it up, change the oil filter and a few other bits, so I can drop the engine in on friday morning. More soon!
Day 54
After removing everything connected to the engine last night, I needed to lift it out this morning. Quite and early start, and the engine was out within an hour. Found out as I started to lift I hadnt undone the ECU, so I had to remove the scuttle panel and ECU before I could lift it any further.
When I had removed the ECU, the engine came out slowly, lifting it bit by bit to make sure it wasnt catching anywhere. Once it was out, I put it onto a pallet on the driveway. I decided to clean the bay, considering there was power steering fluid everywhere after it had been leaking. Also removed the Williams steering rack, fitted just a week ago, as im running manual steering from now on, just cant be bothered with the hassle power steering seems to be causing.
After cleaning the engine bay, I moved the engine and put it down on a pallet. I had to organise renting a van so I could move this engine down the road to the place where I store all my other car parts, and to get the new engine from Winstons. Managed to hire a van for the day, but I could not drive it as you have to be at least 23 years old, Nick stepped in to drive me around for the day.
Took the engine off the pallet, and back onto the crane. Then wheeled the crane down the drive, and put the engine into the side of the van on its side to make sure it would not move around. Then loaded a few tools, trolley jack and the engine crane into the van also, and set off for Winstons.
Winston had already removed everything attached to the engine, so it was just a matter of lifting it out. After a mishap with the engine lifting hoop shearing off when it was being lifted, we managed to get the engine out and into the back of the van with the other one.
Now I had my F7P engine (1.8 16v) and a F7R engine (2.0 16v), the latter is going to be put into my car. The engine had been in the car since the previous owner built a hybrid himself, and gave up due to other commitments. A couple of months back myself and Winston went halves on the car, I was to have the engine and he was to have the rest; Winston had just been using it as a runaround until I was ready to put the engine into mine. Both engines, the crane, jack and tools went into the van fine
On the way back from Winstons, I had to call at GSF to pick up some new track rod ends (for the manual steering rack) and a new waterpump. Considering that the engine is out of the car I thought it would be worthwile to change the cambelt and waterpump, so it will not need doing for quite a while. After GSF, we headed to Renault, as I had ordered some parts in.
I picked up a genuine cambelt kit with new idler and tensioner, an oil filter, and a few other bits and bobs. Once I had all the parts, we headed back to where I store all my spare parts, to add an engine to the collection. Once we got there we reaslied how much of an effort it was going to be, as there were steps into the building at every entrance, and the engine crane does not have much ‘reach’, it will only go as far as its legs. We ended up going through a side door, onto a pallet trolley, and dragging it through the building, up more steps, nightmare! Eventually had it on a pallet in a safe place after a few hours.
Last thing to do was head back to my house and unload the engine. Lifted so many engines today it was a doddle, fitted perfectly in the front of the garage. The engine has the loom still attached, along with all the coolant pipes, so its as simple as dropping it in, connecting the pipes and plugging one plug in. A Williams ECU was also included with the engine, as the engine would not run with my Valver ECU.
I have had to take a few things off the F7P engine, like the standard airbox and ECU casing, to use on the F7R. This isnt really a problem as the other engine is going to be in storage until someone wants it, or if I need any spare parts for my engine.
Along with the engine, I picked up a few other bits and bobs from Winston, as he is scrapping the car that the engine was in. I got the Valver/Basic steering wheel (Smaller than my current one), the fixed rear quarter windows + seals, and manual front windows. This means I can now remove the door looms, and some of the main loom, as there will be no more electric windows.
Once again, I had run out of time again. Nick headed off in the van and I cleared everything up. Tommorow I am going to fit the new cambelt and time it up, change the oil filter and a few other bits, so I can drop the engine in on friday morning. More soon!
Re: Mk1 Hybrid Project
BEBOP!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!1
BEBOP!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!1
Re: Mk1 Hybrid Project
Good that things are going well for you jord, manual rack is a good idea on a car like this, think of the extra weight loss, 800kg's is what your aiming for isnt it?
oh and get the 13's on, they where awsomewhen winston had them on the hybrid you went half on at the warrington meet the other day.
Good that things are going well for you jord, manual rack is a good idea on a car like this, think of the extra weight loss, 800kg's is what your aiming for isnt it?
oh and get the 13's on, they where awsomewhen winston had them on the hybrid you went half on at the warrington meet the other day.
Re: Mk1 Hybrid Project
nah there was a little piece of metal with two 13mm bolts, that just popped out once the bolts were undone
nah there was a little piece of metal with two 13mm bolts, that just popped out once the bolts were undone
Re: Mk1 Hybrid Project
best way to do it
nice work mate.
nah! learning as im going along....put myself in at the deepend as Winston would say
best way to do it
nice work mate.
Re: Mk1 Hybrid Project
Good stuff and best way to learn!
I hope its a ph1 willy ecu for immobiliser reasons although I have a feeling willys arent affected like valvers are
Good stuff and best way to learn!
I hope its a ph1 willy ecu for immobiliser reasons although I have a feeling willys arent affected like valvers are
Re: Mk1 Hybrid Project
eeeeerm, lol..........fingers crossed i guess :approve:
williams is some silly insurance group
eeeeerm, lol..........fingers crossed i guess :approve:
buying a williams easier or does that take the fun away from it
good work regardless for driveway mechanics
i love my 2 post lift's
williams is some silly insurance group
Re: Mk1 Hybrid Project
Milking the knowledge i never knew i had lol
But Jord is more than out doing him self... so proud of the monster he has turned into :approve:
nah! learning as im going along....put myself in at the deepend as Winston would say
Milking the knowledge i never knew i had lol
But Jord is more than out doing him self... so proud of the monster he has turned into :approve:
Christopher
ClioSport Club Member
Z4M
Re: Mk1 Hybrid Project
13's won't fit over 172 callipers
I'll come over in the morning fella, what time are you dropping it in?
13's won't fit over 172 callipers
I'll come over in the morning fella, what time are you dropping it in?
Christopher
ClioSport Club Member
Z4M
Re: Mk1 Hybrid Project
Nice one
Will fire you a text in the morning
Nice one
Will fire you a text in the morning
Christopher
ClioSport Club Member
Z4M
Re: Mk1 Hybrid Project
Update this... lazy b*stard.
Looked ace today too, 2.0 power
Update this... lazy b*stard.
Looked ace today too, 2.0 power
Christopher
ClioSport Club Member
Z4M
Re: Mk1 Hybrid Project
The rig-ups were surprisingly thin on the ground TBH I expected more.
Although... fitting the offside trackrod end = RIG to the U.P.
The rig-ups were surprisingly thin on the ground TBH
I expected more.Although... fitting the offside trackrod end = RIG to the U.P.
Re: Mk1 Hybrid Project
no fuse from the battery anywhere...? what happens if the live running of the length of the car somehow gets split....? why not?
no fuse from the battery anywhere...? what happens if the live running of the length of the car somehow gets split....? why not?
Re: Mk1 Hybrid Project
it will never be finished....few days of updates coming this evening :approve:
it will never be finished....few days of updates coming this evening :approve:
