RenaultSport Clio 182 geo/tracking settings



  Clio 182 FF
Hi,

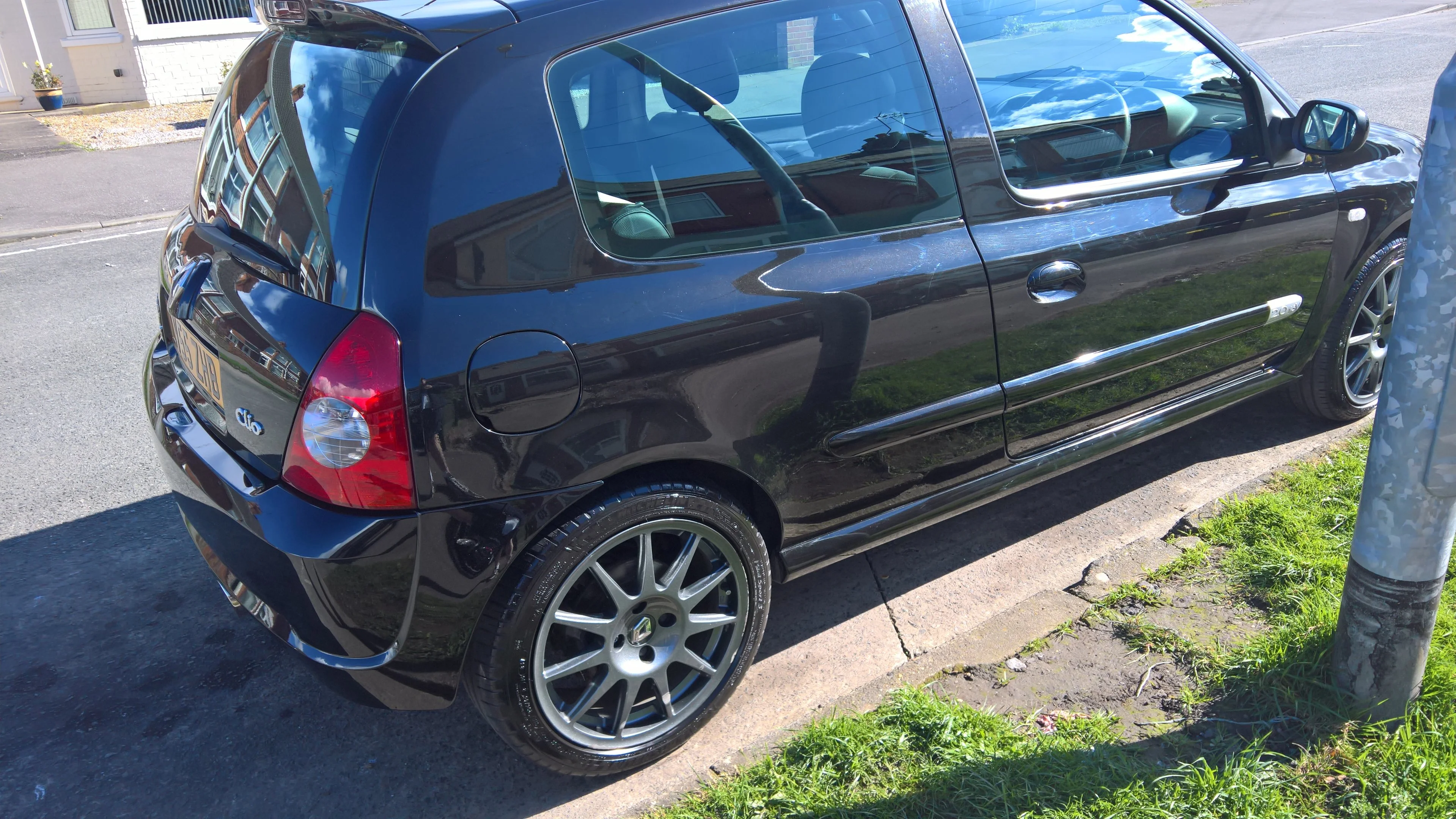

this is my first post. I own a RenaultSport Clio 182 55 plate in black gold. it has under 70k on the clock and is well looked after. I live in Hull, just off willerby road.

I have had my Clio for around 4 years now and up to now, nothing has really gone wrong. I have mainly maintained it, replaced worn parts and upgraded others.

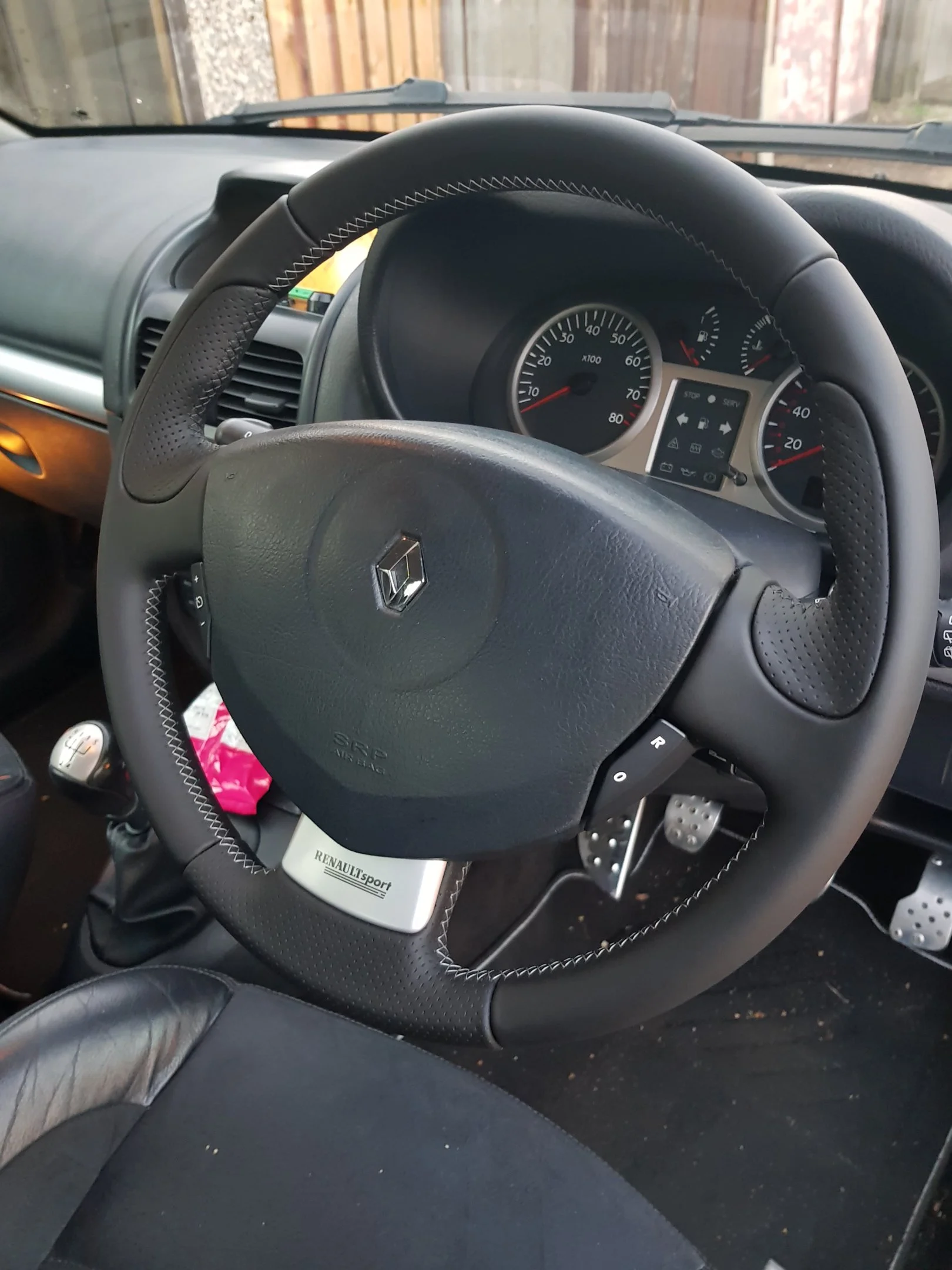

it has Michelin ps3 all round and turini alloys, I have had the steering wheel refurbished by 'snappy' in January and retrofitted the factory sat nav myself.

I will post some photos for you all but won't bore you with them.

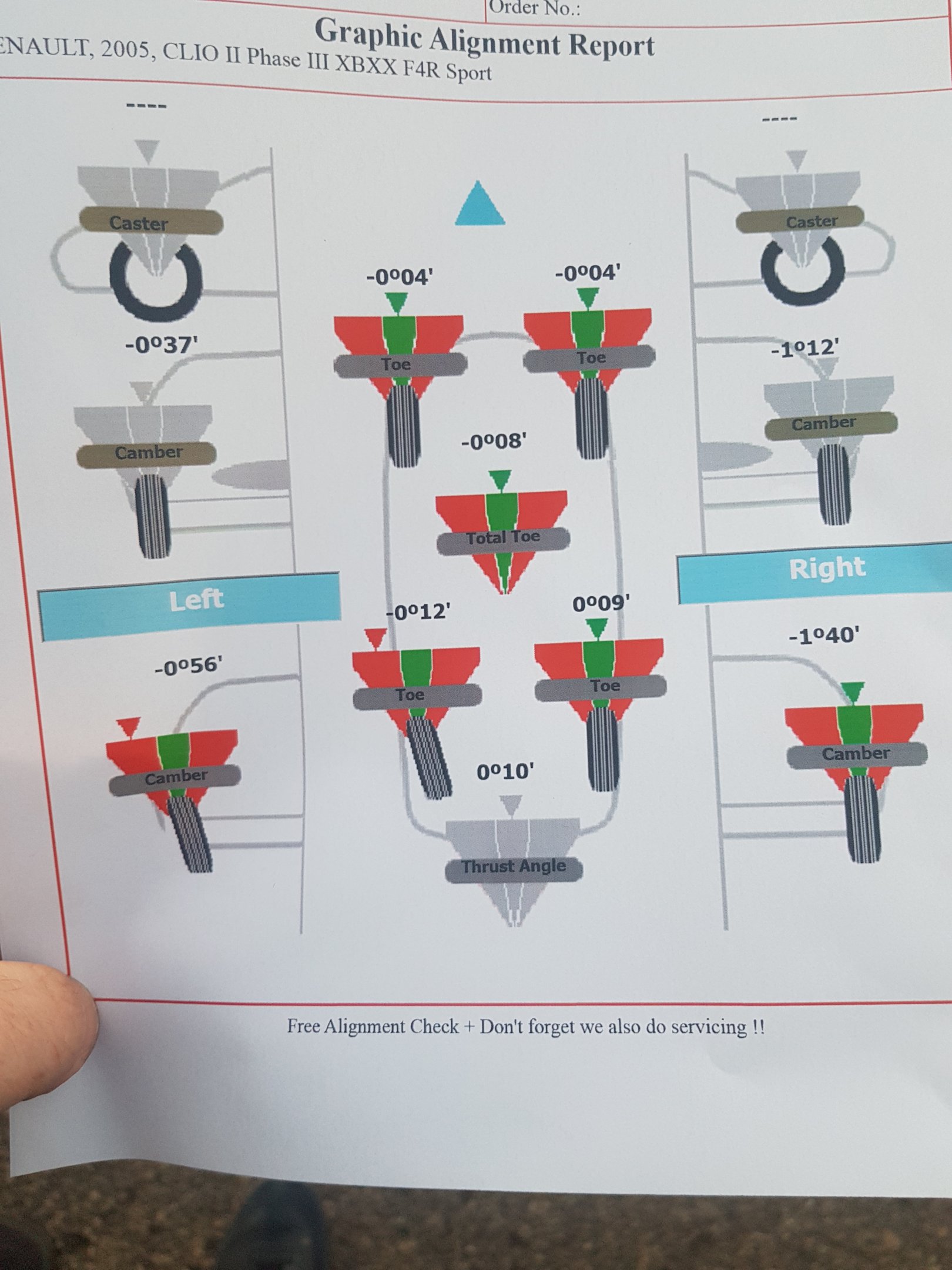

The main reason for posting a thread is; I have just had new tyres fitted and at the same time had my tracking sorted out, the readout I got is worrying me a little bit so thought it a good idea to post a picture of it on here and see if anyone can cast any thoughts on it, the car drives spot on and tracks straight when I hold the wheel straight, although when I let go it will go off to the left. I know the front left caliper slider is semi seized which I will be replacing in the next few weeks, all I ask is that someone cast a bit of info on the readout if at all possible.

thank you for your time in reading this

Mike.





JamesBryan

ClioSport Club Member
  Titanium 182
Front camber needs sorting, some Eibach camber bolts will take care of that.

Could they not get the front toe a bit more even? Say 0°06' each side?

Rear left is toeing out too, not uncommon with the rear beams on these being known to be bent. Ideally want toe in on the rear. Would require shims on the stub axle to fix that. A 0°20' (20 minute) shim would be ideal.

  Clio 182 FF
Front camber needs sorting, some Eibach camber bolts will take care of that.

Could they not get the front toe a bit more even? Say 0°06' each side?

Rear left is toeing out too, not uncommon with the rear beams on these being known to be bent. Ideally want toe in on the rear. Would require shims on the stub axle to fix that. A 0°20' (20 minute) shim would be ideal.
Thanks for your reply,

I will get camber bolts for front. Do I just swap bolt with the upper bolt which passes through shock/hub and leave the bottom standard

Also, would I be correct saying with the rear it would then put it to +11 so that would sort it toeing out and the total toe will more or else be bang on?

Will I require just the one shim for that side and not touch the other? It won't make that side wider would it, sorry for all questions

Thanks

Mike


JamesBryan

ClioSport Club Member
  Titanium 182
Thanks for your reply,

I will get camber bolts for front. Do I just swap bolt with the upper bolt which passes through shock/hub and leave the bottom standard

Also, would I be correct saying with the rear it would then put it to +11 so that would sort it toeing out and the total toe will more or else be bang on?

Will I require just the one shim for that side and not touch the other? It won't make that side wider would it, sorry for all questions

Thanks

Mike
Yeah the camber bolts replace the top bolt, leaving the bottom one standard.

Yeah, the 20 minute shim would take it to 0°11' on the left side, so practically bang on with the other side yeah. It won't affect the right side no.

Shims available here: https://www.pure-motorsport.co.uk/c...182-suspension/clio-2-rs-camber-toe-shim.html

Worth getting these stub axle bolts too, as yours will probably be a bit rusty: https://www.pure-motorsport.co.uk/c...ub-axle-bolt-and-nut-set-standard-length.html

  Clio 182 FF
Yeah the camber bolts replace the top bolt, leaving the bottom one standard.

Yeah, the 20 minute shim would take it to 0°11' on the left side, so practically bang on with the other side yeah. It won't affect the right side no.

Shims available here: https://www.pure-motorsport.co.uk/c...182-suspension/clio-2-rs-camber-toe-shim.html

Worth getting these stub axle bolts too, as yours will probably be a bit rusty: https://www.pure-motorsport.co.uk/c...ub-axle-bolt-and-nut-set-standard-length.html
Great,

Thanks for clearing that up. So the shim won't make that wheel noticeably stick out.

I've had a quick look on the internet and found puremotorsport, will it be ok to buy from these guys


JamesBryan

ClioSport Club Member
  Titanium 182
Great,

Thanks for clearing that up. So the shim won't make that wheel noticeably stick out.

I've had a quick look on the internet and found puremotorsport, will it be ok to buy from these guys
No the wheel won't stick out much more, the shims are only quite thin. Won't be noticeable.

Yeah Pure Motorsport are great, i've had loads of bits from them (yesterday actually lol).

  Clio 182 FF
No the wheel won't stick out much more, the shims are only quite thin. Won't be noticeable.

Yeah Pure Motorsport are great, i've had loads of bits from them (yesterday actually lol).
Will I be able to use the existing bolts or will I need the longer ones they sell

Reckon I'll be a returning customer, didn't realise they sold as much as they do, the Mrs will be pleased!


JamesBryan

ClioSport Club Member
  Titanium 182
Will I be able to use the existing bolts or will I need the longer ones they sell

Reckon I'll be a returning customer, didn't realise they sold as much as they do, the Mrs will be pleased!
You can reuse your ones if they come off ok.

The ones i linked are standard length ones, maybe worth getting just as a precaution in case one of yours decides to shear off or play up when you're removing them.

  Clio 182 FF
You can reuse your ones if they come off ok.

The ones i linked are standard length ones, maybe worth getting just as a precaution in case one of yours decides to shear off or play up when you're removing them.
I will get some of them on order, is there anyway I can sort out the front caster and/or the rear camber?
I'm not sure if the front caster is set up like that from the factor as they're both pretty much the same

  PH2 172
Looking at the front caster, I`d hazard a guess that the front wishbones have been replaced with some eBay items to the Ph1/std Ph2 172 configuration,

6000073511/2 & not the revised 172 Cup/182 items 8200257956/7 at some time.


bloke

ClioSport Club Member
  dan's cast offs.
Only got a far as looking at front camber, bet that's awful to drive!!!!

  Clio 182 FF
Looking at the front caster, I`d hazard a guess that the front wishbones have been replaced with some eBay items to the Ph1/std Ph2 172 configuration,

6000073511/2 & not the revised 172 Cup/182 items 8200257956/7 at some time.
Hi Steve,

I have replace the front passenger wishbone with a genuine renault item which came with ball joint pressed in, I made sure it was for a 182 with cup suspension although haven't don't drivers side


Attachments

  Clio 182 FF
Only got a far as looking at front camber, bet that's awful to drive!!!!
To me it drives ok! Haven't driven another 172/182 though so I am probably wrong. This is why I started this thread as I would like to get this all sorted out

Mike


JamesBryan

ClioSport Club Member
  Titanium 182
Looking at the front caster, I`d hazard a guess that the front wishbones have been replaced with some eBay items to the Ph1/std Ph2 172 configuration,

6000073511/2 & not the revised 172 Cup/182 items 8200257956/7 at some time.
What's wrong with the castor?

Edit: Oh you're right, it's 1 degree out ?

  Clio 182 FF
Hi Steve,

I have replace the front passenger wishbone with a genuine renault item which came with ball joint pressed in, I made sure it was for a 182 with cup suspension although haven't don't drivers side
I have double checked and the wishbone is definitely 8200257956


JamesBryan

ClioSport Club Member
  Titanium 182
Could be the place that's done the alignment though.

I've got 2 print outs from 2 different places that have the caster as 2°30 and 3°30 with no changes made to it lol.

I'd leave it tbh, it's more important for it to be equal rather than big numbers.


bloke

ClioSport Club Member
  dan's cast offs.
Will probably be good in a straight line even at silly speeds but it must be bloody heavy on the steering in fast sweeping bends.

Guessing you might get a fair bit of wheel spin in the wet if you get your foot down.

Good set up transforms them.

2 deg camber and 1mm out on the front.


JamesBryan

ClioSport Club Member
  Titanium 182
Will probably be good in a straight line even at silly speeds but it must be bloody heavy on the steering in fast sweeping bends.

Guessing you might get a fair bit of wheel spin in the wet if you get your foot down.

Good set up transforms them.

2 deg camber and 1mm out on the front.
1mm total i'm guessing ?

  Clio 182 FF
Will probably be good in a straight line even at silly speeds but it must be bloody heavy on the steering in fast sweeping bends.

Guessing you might get a fair bit of wheel spin in the wet if you get your foot down.

Good set up transforms them.

2 deg camber and 1mm out on the front.
Seems ok to drive in straight like and now you mention it steering does feel heavy.

How can I go about sorting this out please

  Clio 182 FF
Camber will sort that.



1mm total is fine, it's pretty much factory.

1mm either side, so 2mm total would be very aggressive for a road car.
Right, if I get camber bolts that will sort out heavy steering, shim for the rear to sort out the toe.

How do I fix the front caster, in English please ?

  PH2 172
Could be the place that's done the alignment though.

I've got 2 print outs from 2 different places that have the caster as 2°30 and 3°30 with no changes made to it lol.

I'd leave it tbh, it's more important for it to be equal rather than big numbers.
Have you got solid top mounts?


JamesBryan

ClioSport Club Member
  Titanium 182
Right, if I get camber bolts that will sort out heavy steering, shim for the rear to sort out the toe.

How do I fix the front caster, in English please ?
I'd leave the caster tbh, it could just be like i said. The guys at kwik fit may have not set it up right.

The easiest way to add more caster is with adjustable top mounts.

  Clio 182 FF

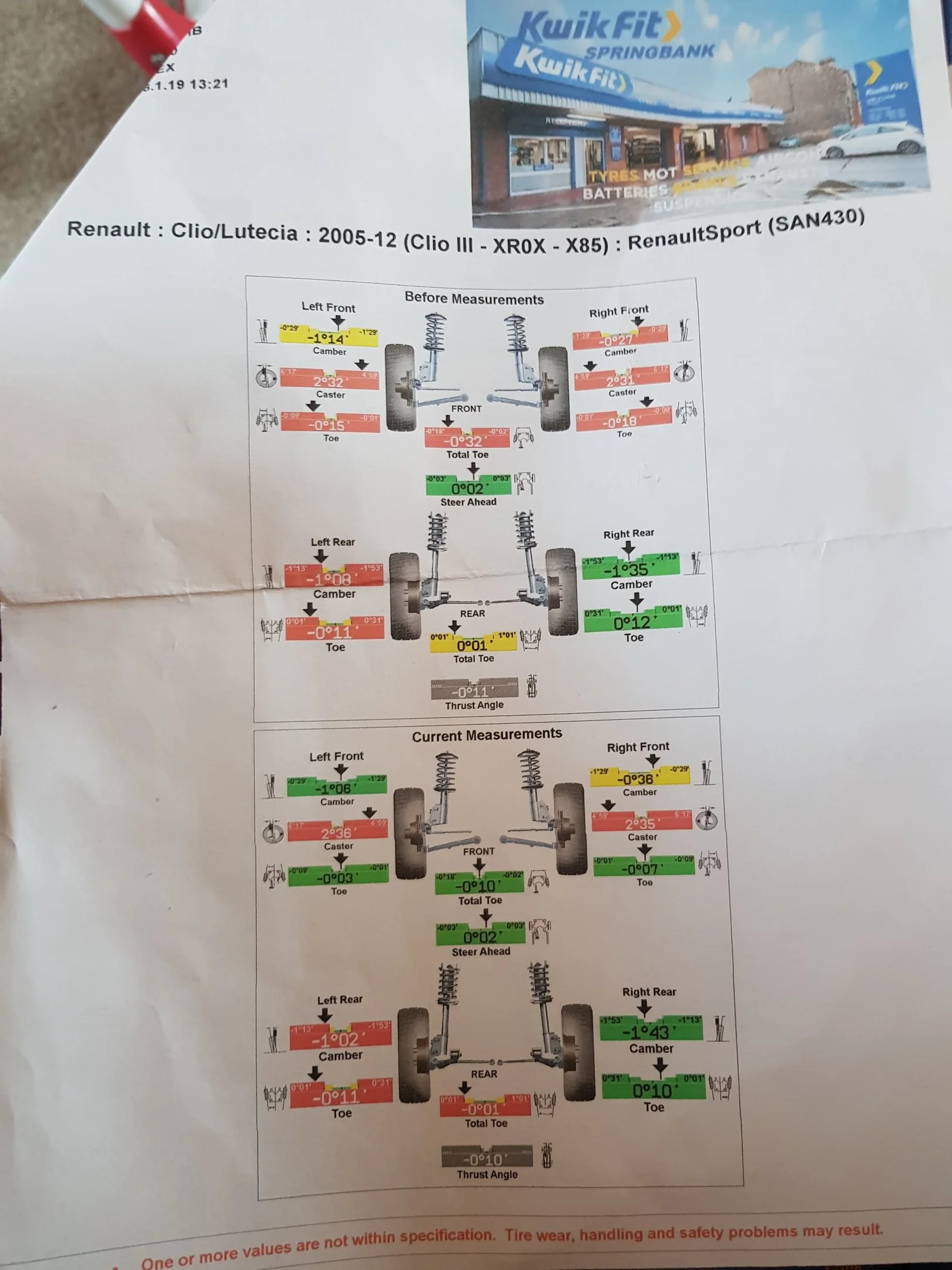

Just to make things more interesting, I have just been to HIQ to check what kwikfit had done and I have this readout


bloke

ClioSport Club Member
  dan's cast offs.
Tried to get in with Adam at Clear Motorsport for my setup, but he's only doing kit car stuff now.

Used Richard at tuned UK by Chester a few times now, he's sound. Worth the trip there and he's pretty easy to get in with as well. Normally get stuff within a couple of days.


ZachB

ClioSport Club Member
  182
I wouldnt wanna drive another clio without increased castor, the gains are just too good


JamesBryan

ClioSport Club Member
  Titanium 182
Used Richard at tuned UK by Chester a few times now, he's sound. Worth the trip there and he's pretty easy to get in with as well. Normally get stuff within a couple of days.
Yeah i've heard him mentioned. I'm booked in with Grinspeed now, Adam actually recommended him.

  Clio 182 FF
Either the Kwikfit guy needs to go on a course, or you have some play in steering gear or ball joints.
I believe it may be the first option! They said they will check it again on their machine for free later today so will see how that comes out. Failing that I think I will go to someone who knows what they're doing, any suggestions?


Filters

Wales - South
ClioSport Area Rep
Well, for a start...the first tracking job done....Clio 3 -2005 - 2012...is where part of your problem lies as the wheelbase on that model that they've set it for is totally different to the wheelbase of a 182. So you will not get an accurate read out in any scenario there. Total different geometry between models.


JamesBryan

ClioSport Club Member
  Titanium 182
Well, for a start...the first tracking job done....Clio 3 -2005 - 2012...is where part of your problem lies as the wheelbase on that model that they've set it for is totally different to the wheelbase of a 182. So you will not get an accurate read out in any scenario there. Total different geometry between models.
Well spotted! ?

Yeah those kwik fit numbers mean naff all then.

  Clio 182 FF

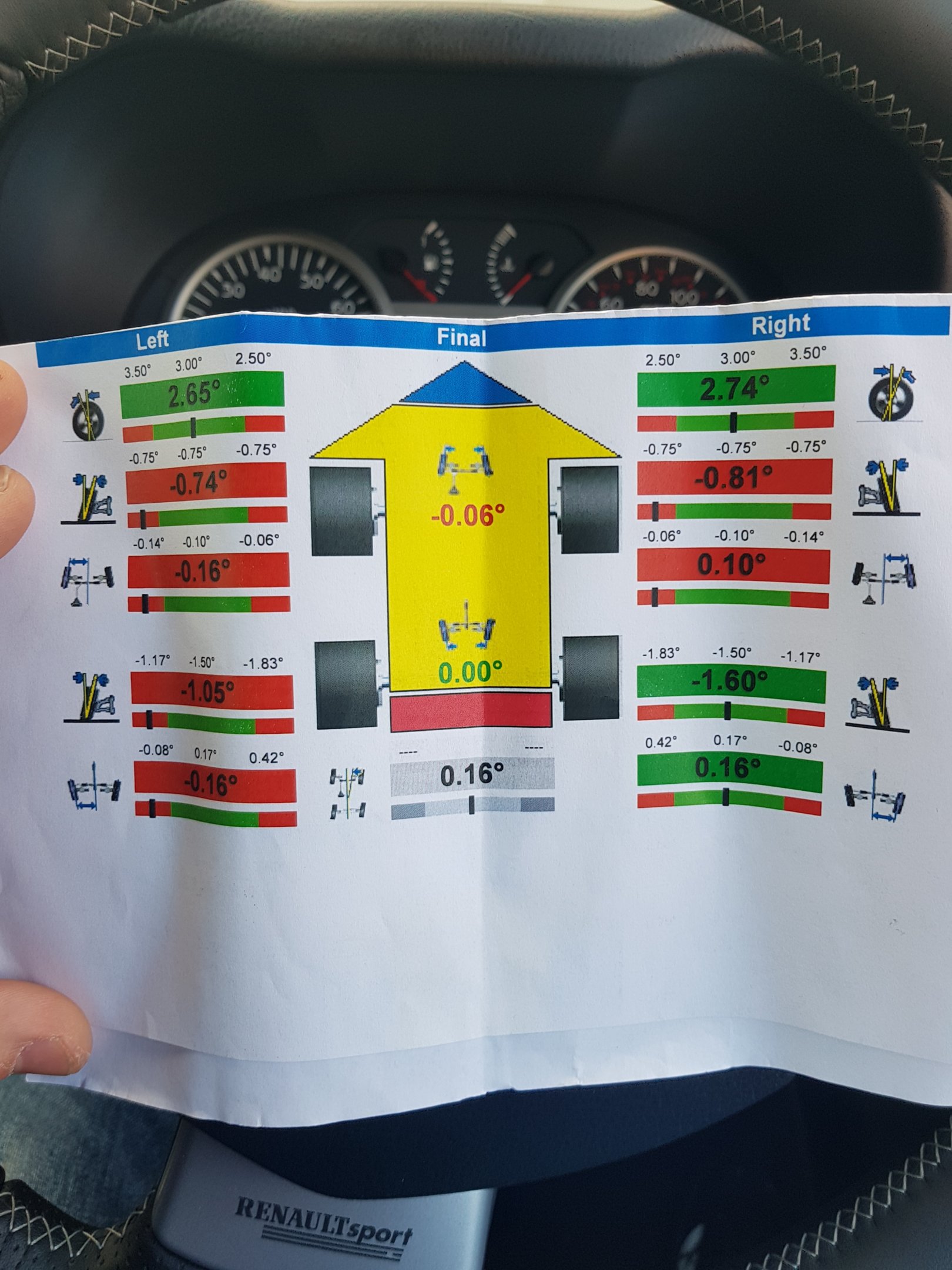

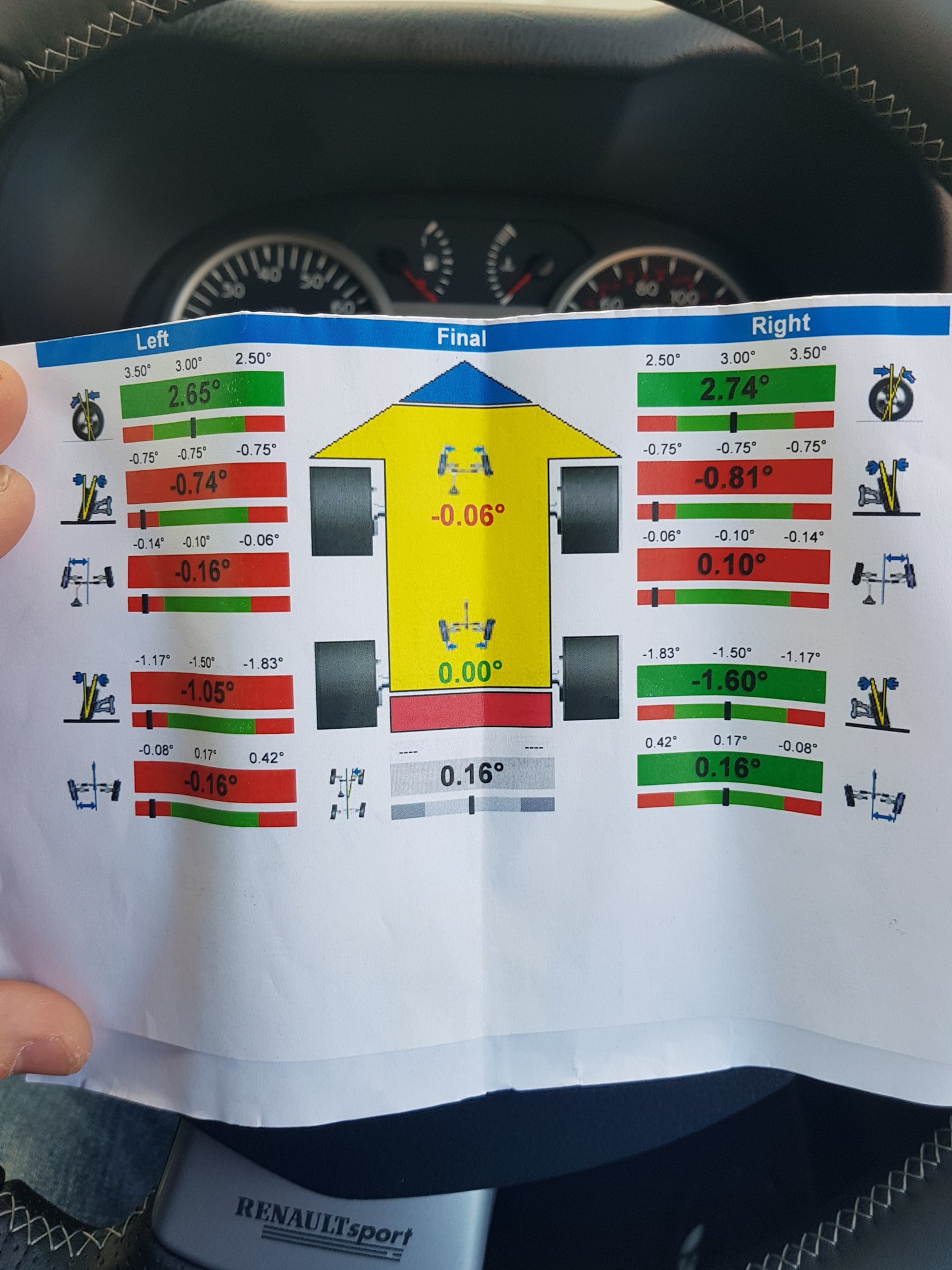

Right, I've had it checked again at a cost of £65! Didn't want to go back to kwikfit! Does this readout look ok? Anything wrong?
