Riggers' Track Fiesta ZS...

[jamie rigby]

i want my car back :dapprove: lol

be worth the wait, jon still hasnt had a look at the head yet to see if it needs skimming or not, hope not tbh then i should be getting it back tmoz with abit of luck



[jamie rigby]

it doesnt need skimming and jons swapping the bottom ends over now as i speak...

bad news is that demontweeks said that the hoses take 4-6weeks to arrive and i only ordered them 3 weeks ago thinkin that they would be next day delivery lol, so now im expecting them in around 2 weeks...



[Gaz.]

No car for a fortnight then? Or are you just going to use the old hoses for the time being?



[jamie rigby]

No car for a fortnight then? Or are you just going to use the old hoses for the time being?

nah leaving the hoses on till i get the new ones...

doesnt look its gonna be ready for tonight



[jamie rigby]

Booked it at mikeanics for 10am next friday

...

so yeh picked it up last night and to drive it feels exactly the same, so shouldnt need tweaking to much next friday when its getting mapped again...

just to brag here's the current spec which its at now -

• Re-built Zetec SE 1.6 blacktop (new head gasket, cam belt, valve clearences, oil and filter lol)
• Jenvey DTM 40mm throttle bodies, with 45mm trumpets (soon to have 20mm spacers on them when they arrive from jenvey);
• Vauxhall c20xe injectors
• Omex 600 ECU;
• Big valve head;
• Shawspeed SS4 cams;
• HD ARP big end bolts;
• HD Piper valve springs;
• Shawspeed Baffled sump;
• Webber 3.5bar fuel regulator;
• Magnecor 8.5mm HT leads;
• Denso iridium spark plugs;
• Samco coolant hoses;
• Milltek 4-2-1 manifold;
• De-cat;
• Piper cat back with no mid-silencer;
• FRP gearbox (new gearbox oil and new slave cylinder);
• Helix organic clutch;
• Shawspeed lightened Flywheel.

Think thats everything lol



[Greeny.]

Sweet spec out of interest how comes this compare vs a stripped and lightly modded 172/182 around the track?



[f0xy]

a standard ZS was keeping up round track because of its better suspension at mallory, lol

172/182 would pull away out of corners IMO, quite a bit more torque + power



[Greeny.]

Not trying to put a downer on it coz the car is mint, but seems like alot of work and money has gone into it when you can pickup a ph1 172 for like 2-3k?



[Guppy]

a standard ZS was keeping up round track because of its better suspension at mallory, lol

172/182 would pull away out of corners IMO, quite a bit more torque + power

How doe's it compare to your's, Jord?



[f0xy]

there is quite a bit of difference, lol, specially considering he has to rev it to 8k to make peak power



[jamie rigby]

Not trying to put a downer on it coz the car is mint, but seems like alot of work and money has gone into it when you can pickup a ph1 172 for like 2-3k?

This car is completely different to a standard 172, faster acceleration and yes might have less torque but it didnt seem that way at mallory...

there is quite a bit of difference, lol, specially considering he has to rev it to 8k to make peak power

yes there is a difference, peak power wont be at 8k anymore , we'll see next friday what the exact figures are etc... just lovin the car again atm, been out with a mate all afternoon, went to oulton park then to a skatepark in huxley, then on the way back about 5 miles form oulton park my lower engine mount bolt fell out, so me and my mate went out on our bikes looking for it, lukily we found it so i just put it in hand tight till we got back to my mates then all tightened up now...

used about a 3rd of a tank and done around 120miles since i picked it up last night



[jamie rigby]

new id forget something, nothing that will gain bhp tho lol

• Mocal Oil catch tank;
• Pipercross 600 series filter;
• Vibra technics lower engine mount...

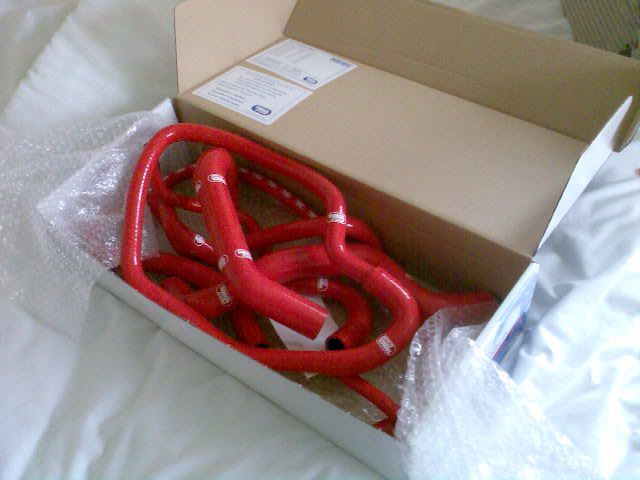

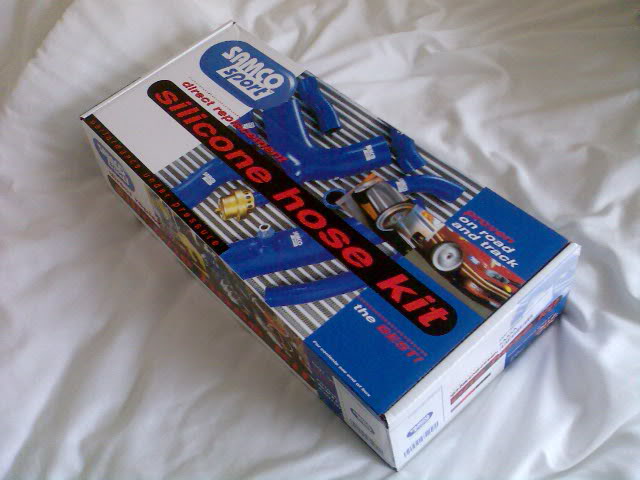

These arrived today aswell sooner than i thought as tweeks told me they'll be here in like 2 weeks lol -

wil be getting fitted tmoz hopefully



[Greeny.]

I had that exact kit, looks great on



[jamie rigby]

yeh cant wait to get them fitted with help from f0xy tmoz



[Grantek]

Not trying to put a downer on it coz the car is mint, but seems like alot of work and money has gone into it when you can pickup a ph1 172 for like 2-3k?

Not getting at you, but mentioning this cos i think this car is stunning for a fiesta. But i hate how someone always says when an other is spending a bit of money on a car that aint same spec as a RS like this or people that say bout non sports why dont you just buy an RS because you can get it for 'X' amount of money don't understand it. Apologize for spam. Rad car mate!!



[jamie rigby]

Not getting at you, but mentioning this cos i think this car is stunning for a fiesta. But i hate how someone always says when an other is spending a bit of money on a car that aint same spec as a RS like this or people that say bout non sports why dont you just buy an RS because you can get it for 'X' amount of money don't understand it. Apologize for spam. Rad car mate!!

no worries, couldnt agree with you more tbh mate!



[jamie rigby]

couple more pics trhat f0xy found, try and ignore the small lettering lol -

when i get the CD in the post ill upload ALOT more lol



[Whiteley]

Coming to Marham in October with Jord/Adam?



[jamie rigby]

mayyyyybe



[jamie rigby]

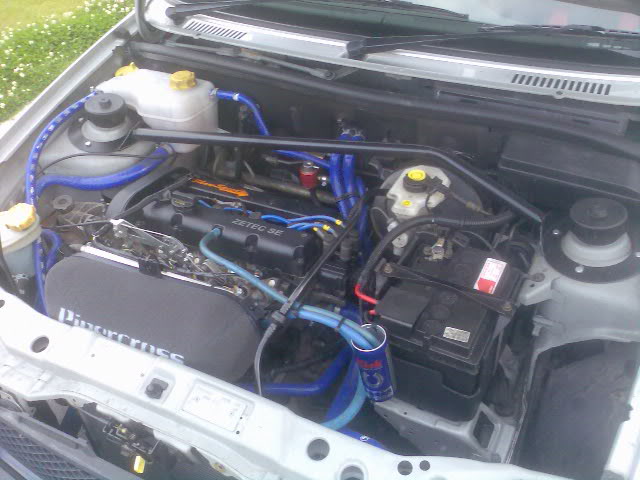

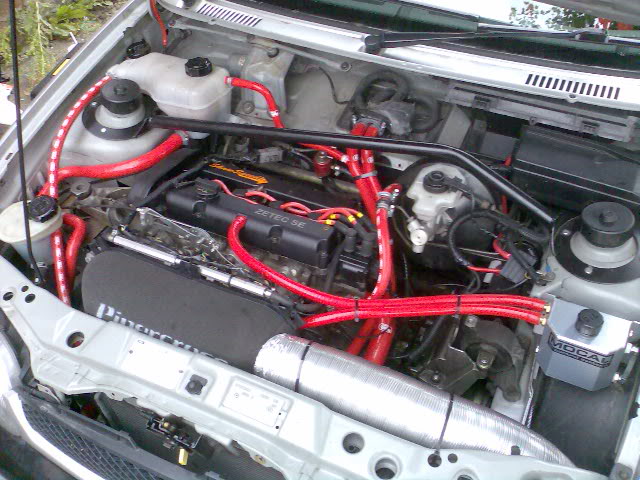

how much of a mess it was when i got the car and fitted the bodge catch tank and filter -

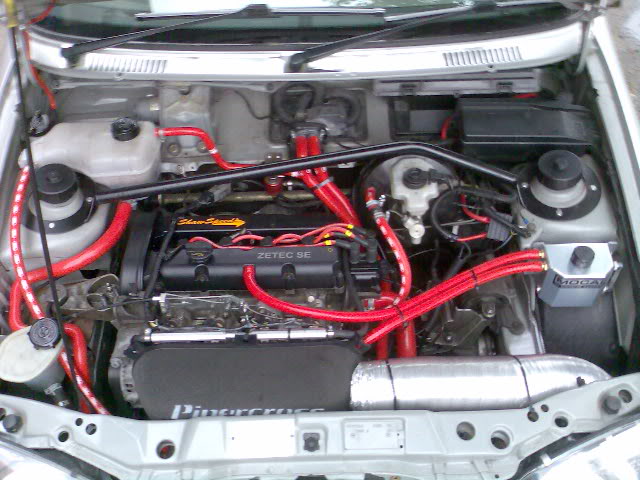

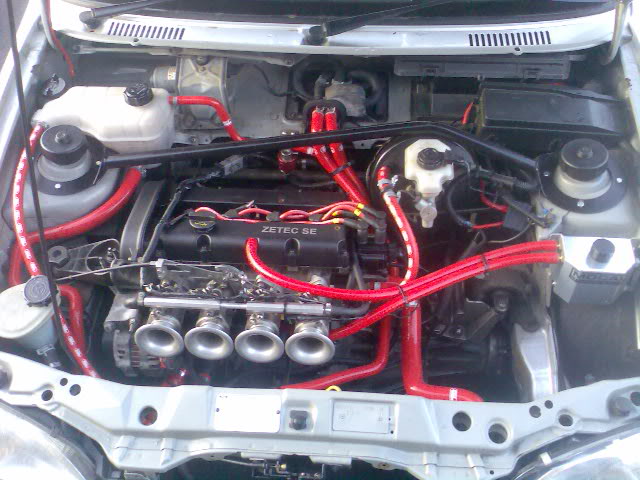

and nowwwww

the only thing thats left to do engine/engine bay wise now is to fit the trumpet sapacers when they arrive hopefully tmoz, then mapping next friday (done around 250 running-in miles so far, 250 to go lol) then thats it! for now anyways



[f0xy]

yawn yawn yawn...when did you get air-con installed?

PM Daz your details then......NOW



[kie1an]

much better , you have transformed the engine bay .



[superbenji88]

Looks super dooper with the red hoses in



[jamie rigby]

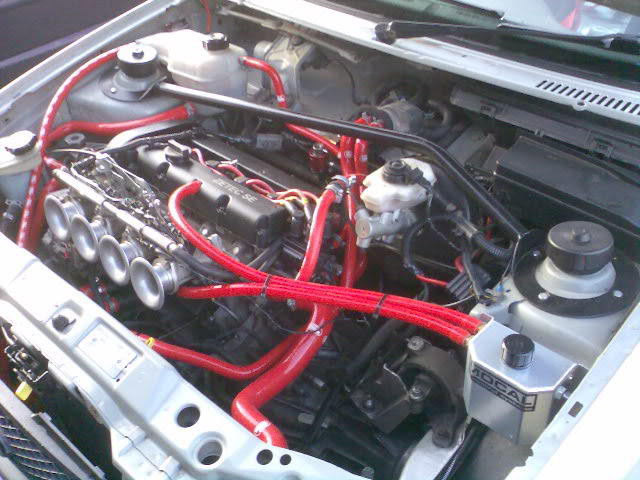

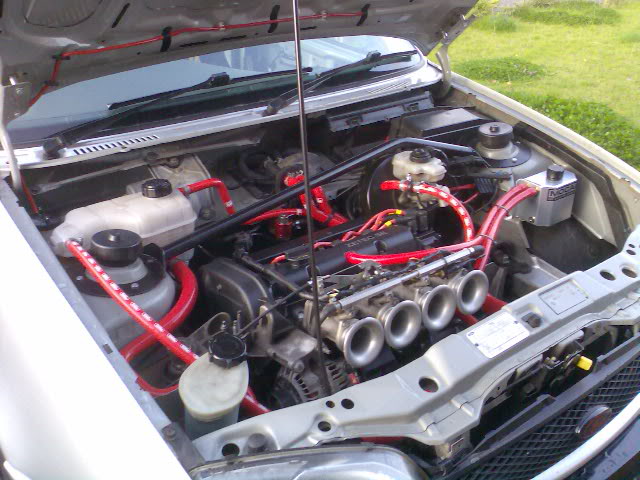

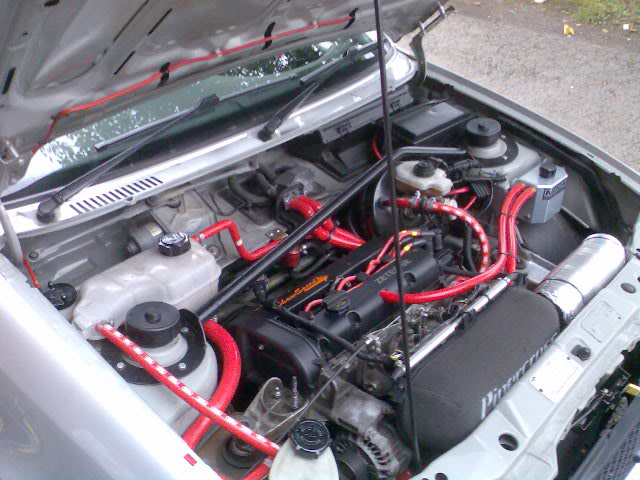

just got rid of that horrid aircon ducting and took the filter oiff to clean inside the bodies, and took the shwaspeed sticker off and will hopefully get a couple of new ones of jon in the week - more pictures of the bay

love it!



[Alexander]

Nice!



[jamie rigby]

ordered a piece of roll cage tube to make into a welded in rear strut barce yesturday... hopefully itll be here wednesday along with the trumpet spacers...

gonna order some polybushes tmoz...



[snick01]

loooookin goooood mr riggerzzz

glad them hoses finally turned up lol.



[jamie rigby]

running in miles complete last night...

just changed the oil and filter ready for mapping on friday :approve:



[jamie rigby]

not long now lol...

trumpet spacers still aint arrived so looks like itll be getting mapped twice lol



[adamlewis01]

im sure i spotted this up at the red lion in penketh about 2 weeks ago.



[jamie rigby]

im sure i spotted this up at the red lion in penketh about 2 weeks ago.

wasnt me...



[Gally]

You got a lower strut brace Jamie? They are a great cheap mod.



[jamie rigby]

anyways mapping done... needed a new tps aswell so got one of them... and had the idle set to 900rpm as it was at 1100rpm previously...

so figures...

155.1 bhp @ 7260rpm... 118.9 lbs ft. @ 6451rpm...

also had the limiter moved down from 8k to 7.8k to be on the safe side... so now got 500rpm in the peak range now unlike last time when i had to hit the limiter to get peak power as it was at 8k lol



[jamie rigby]

You got a lower strut brace Jamie? They are a great cheap mod.

yep :approve:



[Gally]

Nice, I put one on the puma and was amazed at the difference for the price.



[Russ_16v]

anyways mapping done... needed a new tps aswell so got one of them... and had the idle set to 900rpm as it was at 1100rpm previously...

so figures...

155.1 bhp @ 7260rpm... 118.9 lbs ft. @ 6451rpm...

also had the limiter moved down from 8k to 7.8k to be on the safe side... so now got 500rpm in the peak range now unlike last time when i had to hit the limiter to get peak power as it was at 8k lol

Nice mate, you happy with that? whats the power at the wheels?

is it all top end power, or does it pull well low revs too?



[snick01]

he wasnt happy when the figures were 140 odd bhp lol

nahh think hes chuffed tbh, i got some vids ill put up tomorrow if i get chance



[jamie rigby]

Nice mate, you happy with that? whats the power at the wheels?

is it all top end power, or does it pull well low revs too?

very happy tbh feels exact;y the same as the slighlty more torque makes up for the slightly less power so yeh... MINT! lol

nah its not all top end plus now that the peak power has moved down 750rpm means i dont need to rev it as much which is a plus



[snick01]

[youtube]FGtQzm3XphQ[/youtube]

shitty vid but it sounds awesome!



[jamie rigby]

cheers for that vid mate! alot bettan than what i thought...

lol at that van on the motorway haha
