If you zoom in there's a pen on the clamp for scale.

Big stuff!



[OssPoop]

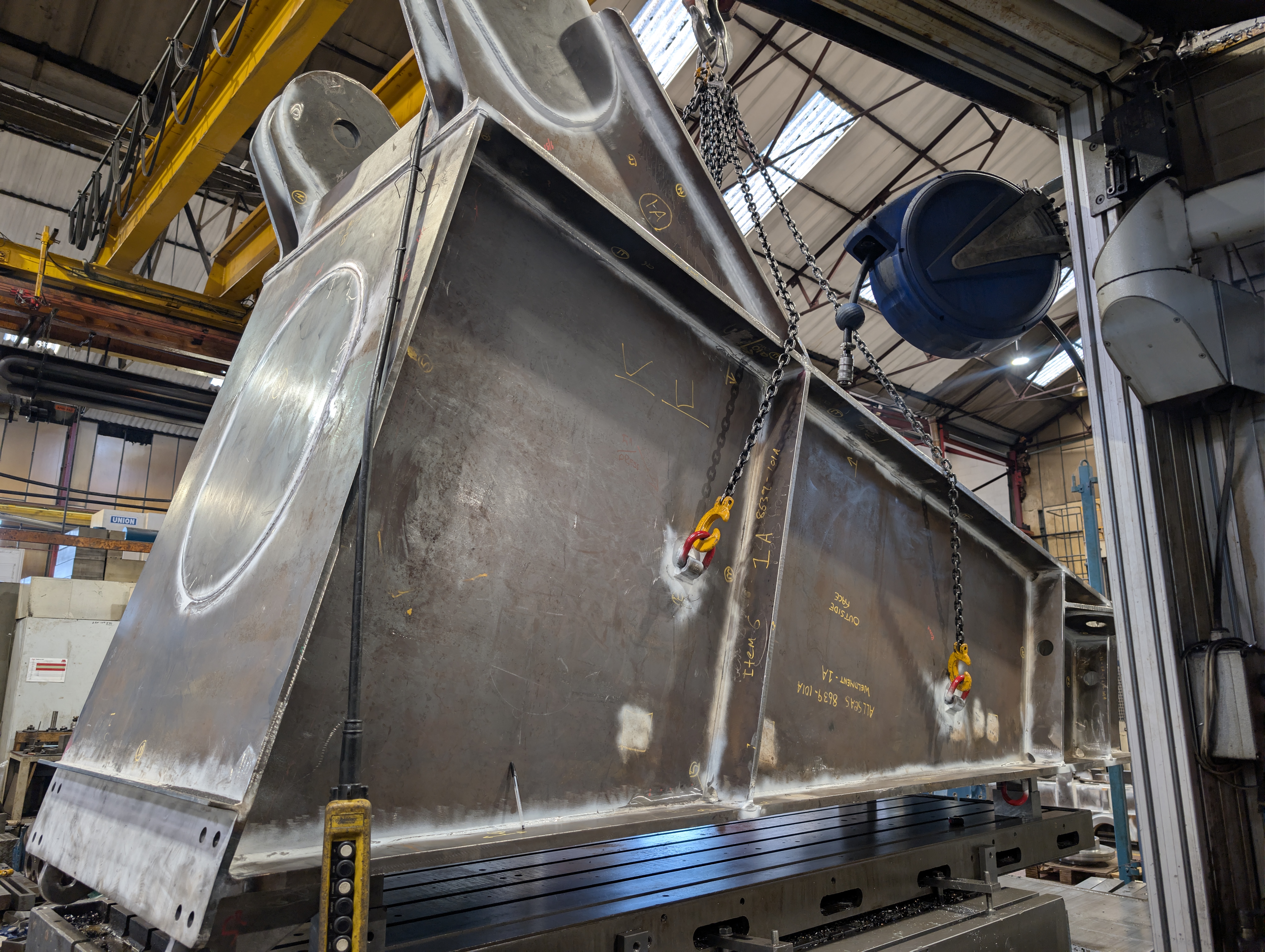

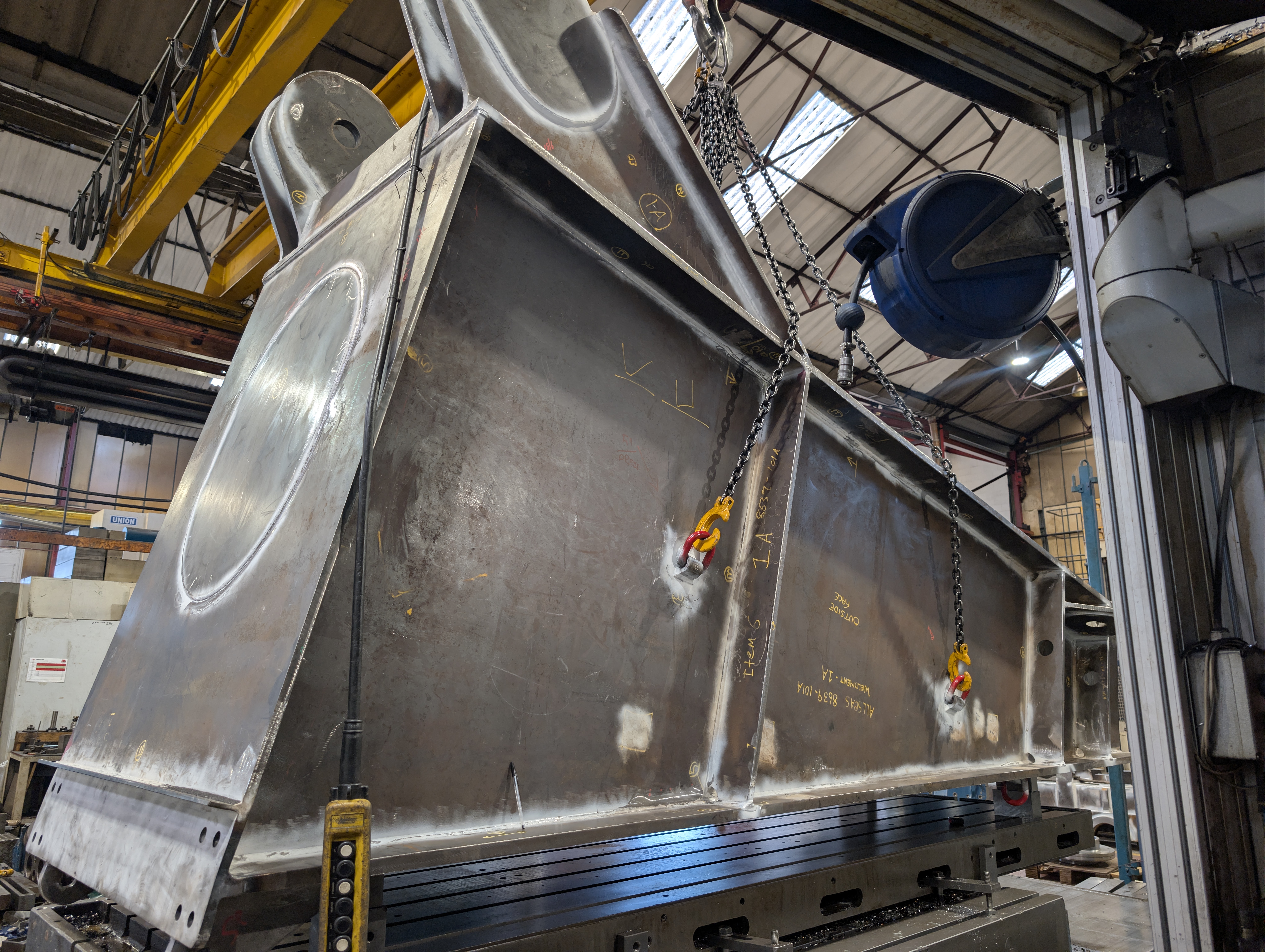

That's only half the job, it's a gearbox for a crane. The day spakka has already drilled some holes in the wrong place and we've not got onto any of the tight tolerance stuff yet 🙄😂.



[Flat Eric]

That's only half the job, it's a gearbox for a crane. The day spakka has already drilled some holes in the wrong place and we've not got onto any of the tight tolerance stuff yet 🙄😂.

Is all of the stuff you do manual tool changes or does it have automatic changes?



[OssPoop]

Is all of the stuff you do manual tool changes or does it have automatic changes?

The machine has a 60 pot carousel, 4m in x, 3 in y, 1.5 in z and 0.75 in w with rotary table with 12 tonne load capacity. I love big jobs 😁.



[Flat Eric]

The machine has a 60 pot carousel, 4m in x, 3 in y, 1.5 in z and 0.75 in w with rotary table with 12 tonne load capacity. I love big jobs 😁.

Thats amazing!
These MAGs have 42 on the carousel and then 36 or so on the chain.
No where near the XYZ size though! Thats crazy stuff.

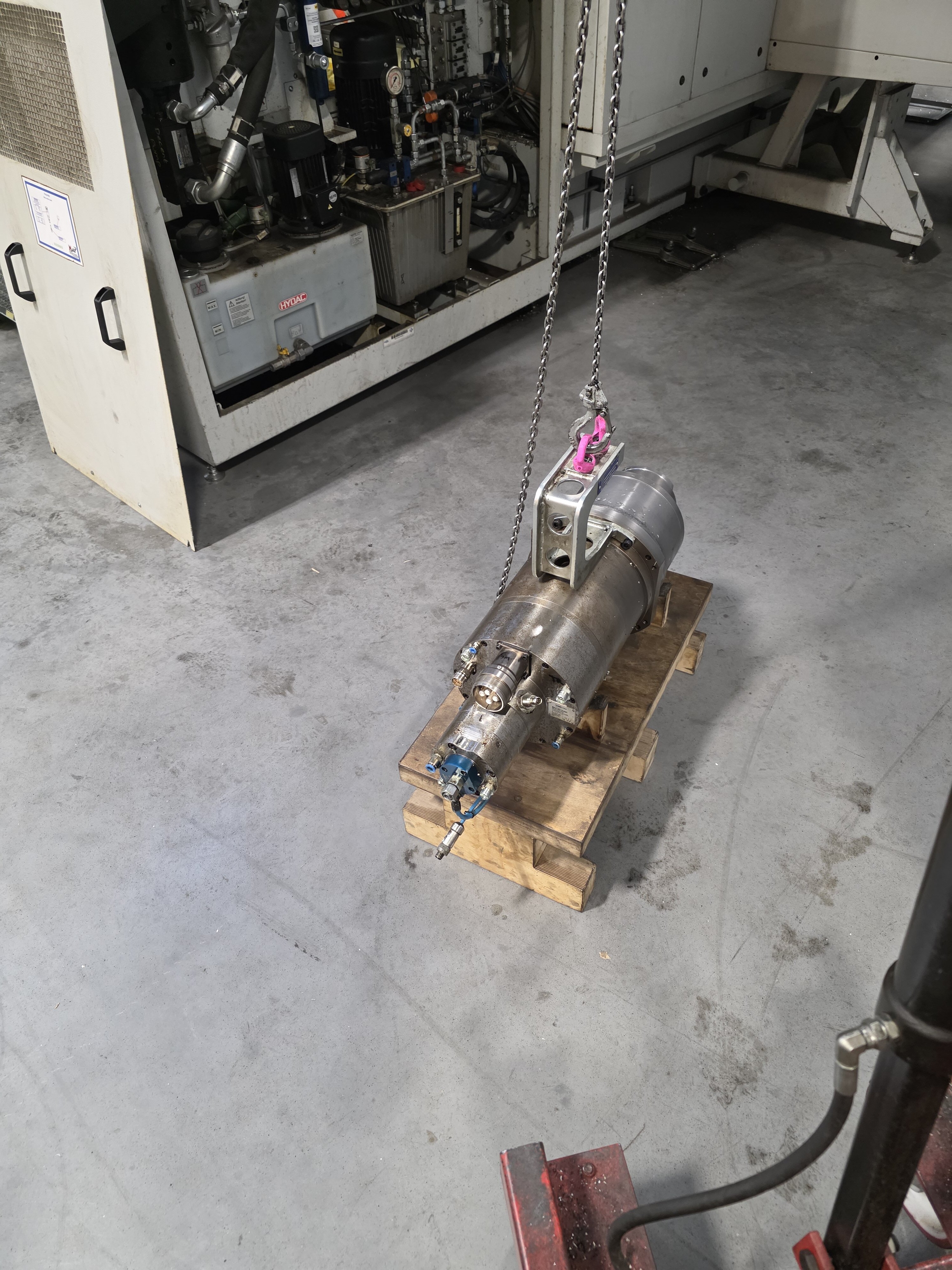

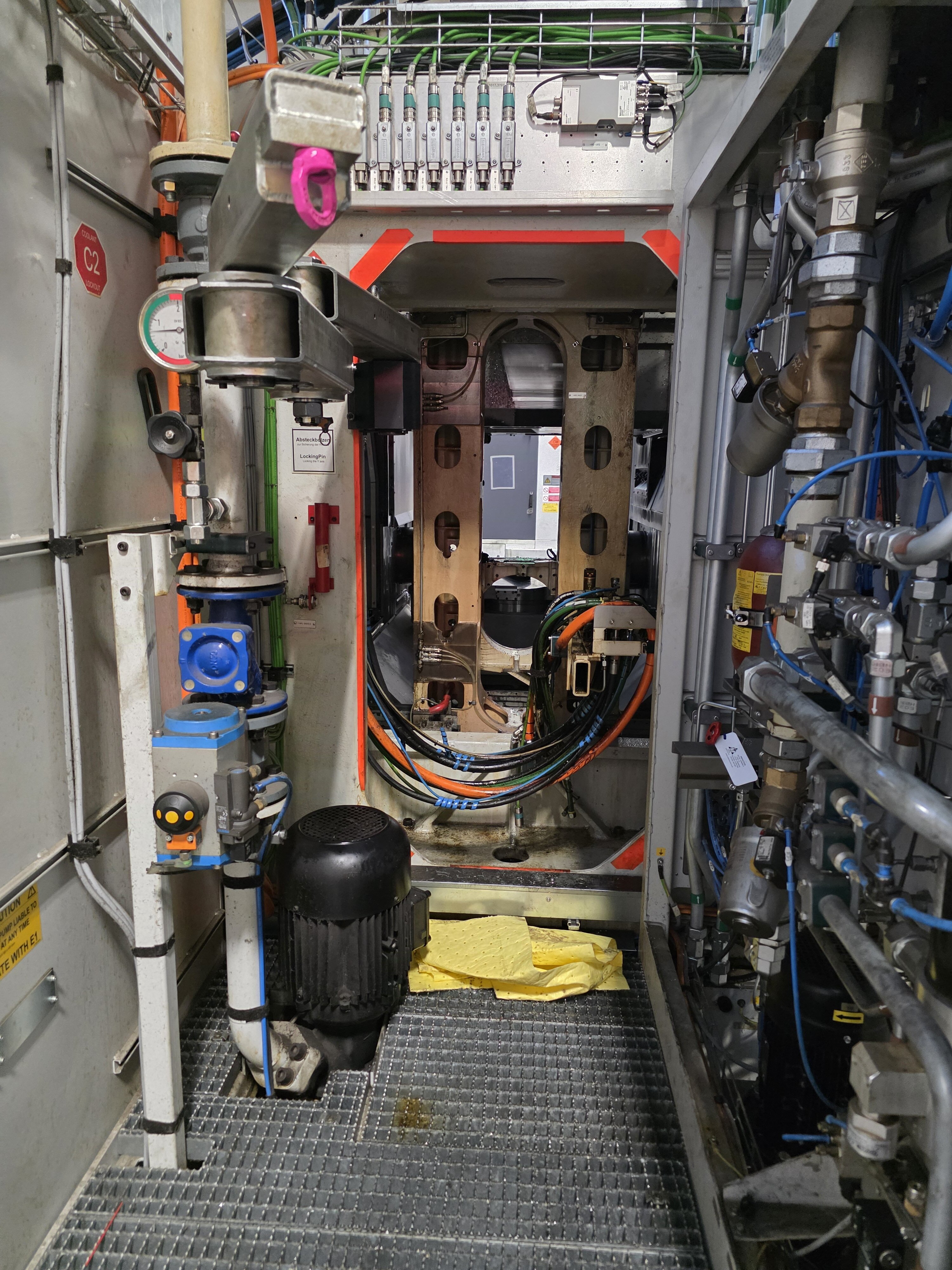

Not long changed the high pressure coolant pump on one tonight. It has lasted just under 10 years so not too bad, but getting to that age now with the constant use that things are failing
