***Pic request, 1.2 16v***

[Bailey_1260]

Not too hot on my way areound the 1.2 bay (mk2 ph2 1.2 16v)

Am looking for pictures that show me where the TDC sensor, Throttle Body and ECU cover all are.

Also if anyone has a photo of a renault cat that would be great.

Cheers Bailey



[Bailey_1260]

Up



[bmh.01]

If you can get a decent pic i'll lable it up. Haven't got any bay pics from my old 1.2.



[Da]

ECU is at the bulkhead on the passenger side of the bay.
TDC is located beneath the air intake low down above the gear box, again on the passenger side of the bay.
Throttle body is located top right hand of the engine.



[Da]

1.2 8v but the principal is the same I believe...

click pic for fullsize image.



[Bailey_1260]

Cheers guys, might be able to get down to this next week



[bmh.01]

The 8v is very different to the 16v btw.



[Bailey_1260]

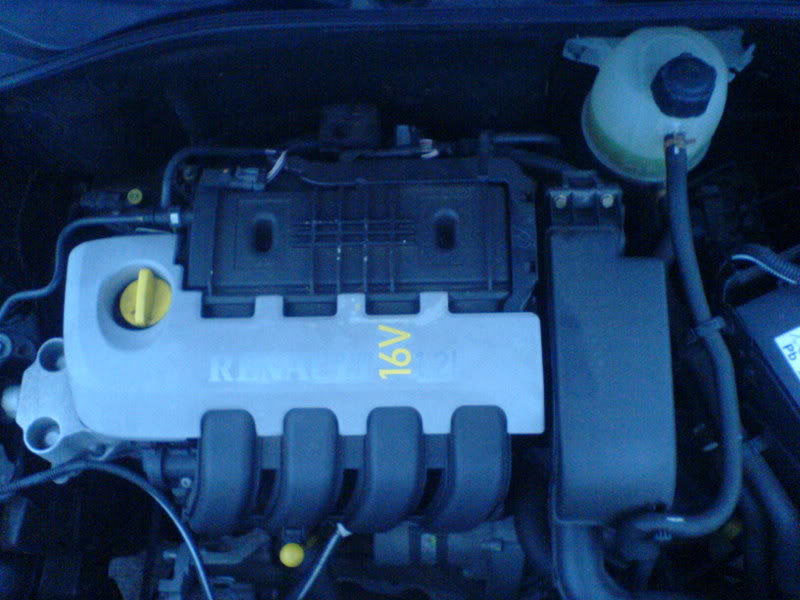

Can someone mark this one up just to clarify.

Cheers Bailey



[bmh.01]

Anything else you want and I'll add it on.



[Bailey_1260]

Thanks a lot for thst mate. is the metal cover on the ECU supposed to be as loose as a viatnamese hooker?



[bmh.01]

No, and i'd pull it off to stop if cutting through the loom anyway.
