Mk1 F4R/172'd Track Car Project [Year 3 - Engine and Chassis Rebuild]

[MetaliX]

Re: Mk1 Hybrid Project

Looks awesome that, how much hammerite has that taken so far?



[JD]

Re: Mk1 Hybrid Project

lol at nic being back

jords looks great mate, need to come over and see it some day if you are around this/next week?

jamie



[Christopher]

Re: Mk1 Hybrid Project

+1

Mini catch up meeting? A proper one this time?



[JD]

Re: Mk1 Hybrid Project

up for that, but then again i am employed again! so will have to be evening and weekends. hoping my job will be as easy as the gopher's since you are on here all the toime



[Christopher]

Re: Mk1 Hybrid Project

hi



[f0xy]

Re: Mk1 Hybrid Project

Looks awesome that, how much hammerite has that taken so far?

not much really, ive got a massive tin its done nearly everything and hubs/brakes loads more stuff, still over half left

lol at nic being back

jords looks great mate, need to come over and see it some day if you are around this/next week?

jamie

+1

Mini catch up meeting? A proper one this time?

yeah sure.....where/when?



[Savi]

Re: Mk1 Hybrid Project

Just had a catch up (last i read was when you had the old lump, and everything was breaking, i.e. bolts, screws etc.)

Looking really good now though mate! Cant wait till its finished!!



[f0xy]

Re: Mk1 Hybrid Project

Day 162

Only a few bits sorted tonight...Needed something to block off the pipe from the head that would usually go to the carbon canistor (sp). Geesus69 used a bung from Demon Tweeks, but I thought id try to 'make do'...

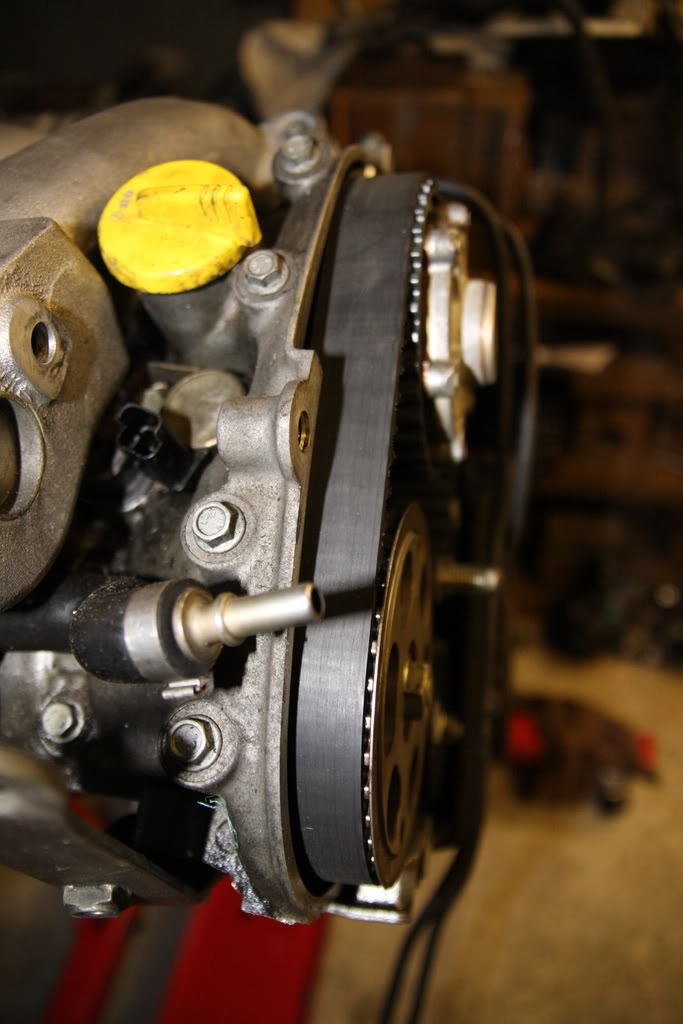

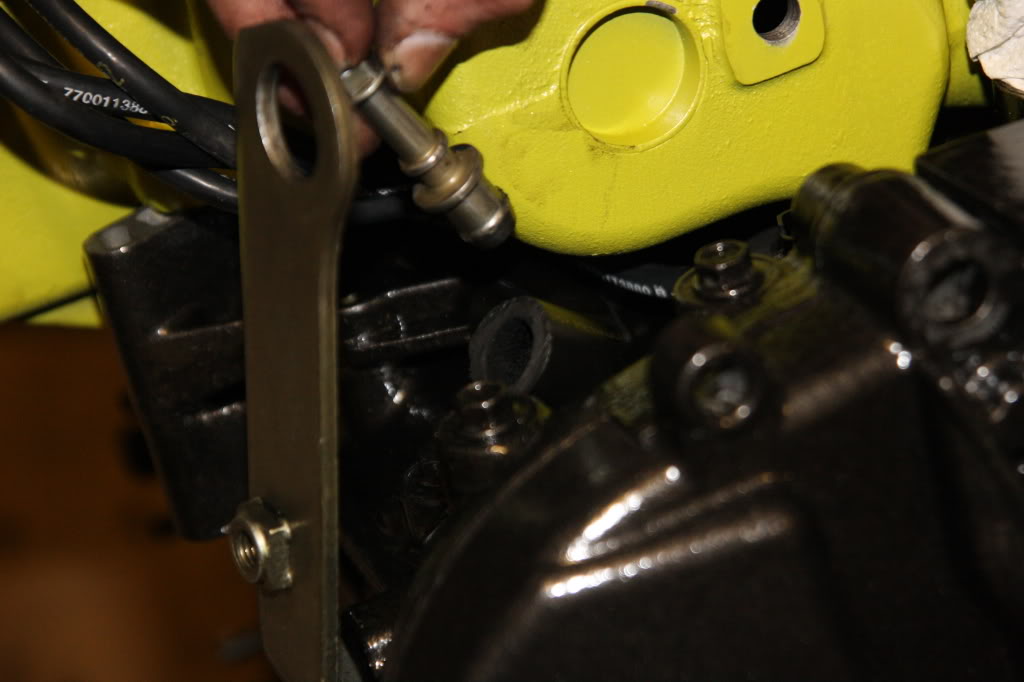

This is the original pipe sticking out...

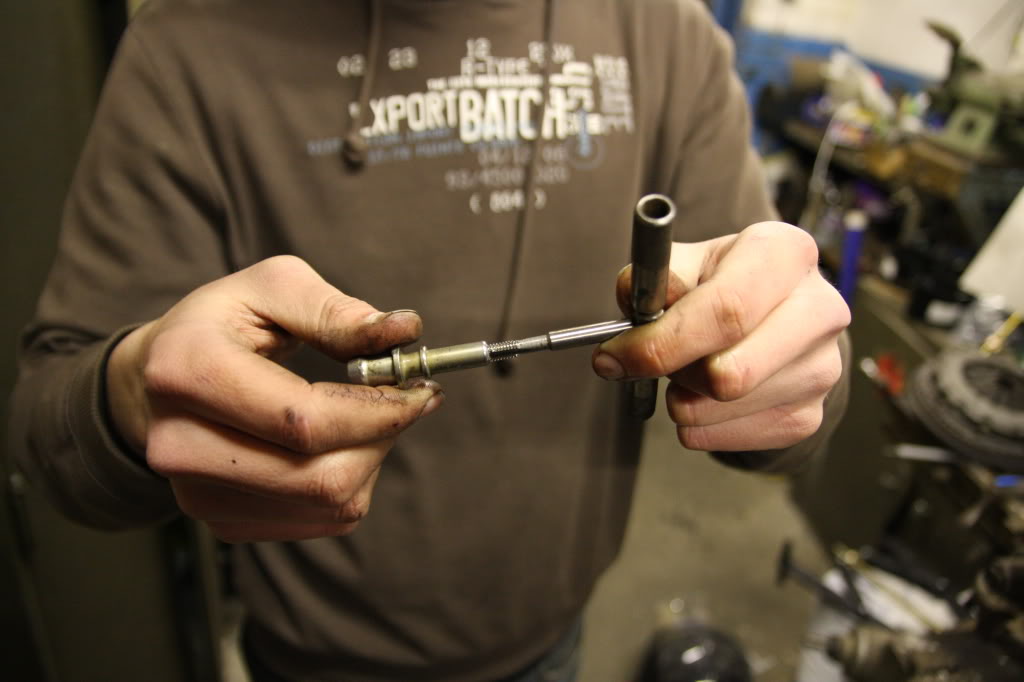

Got the tap out...

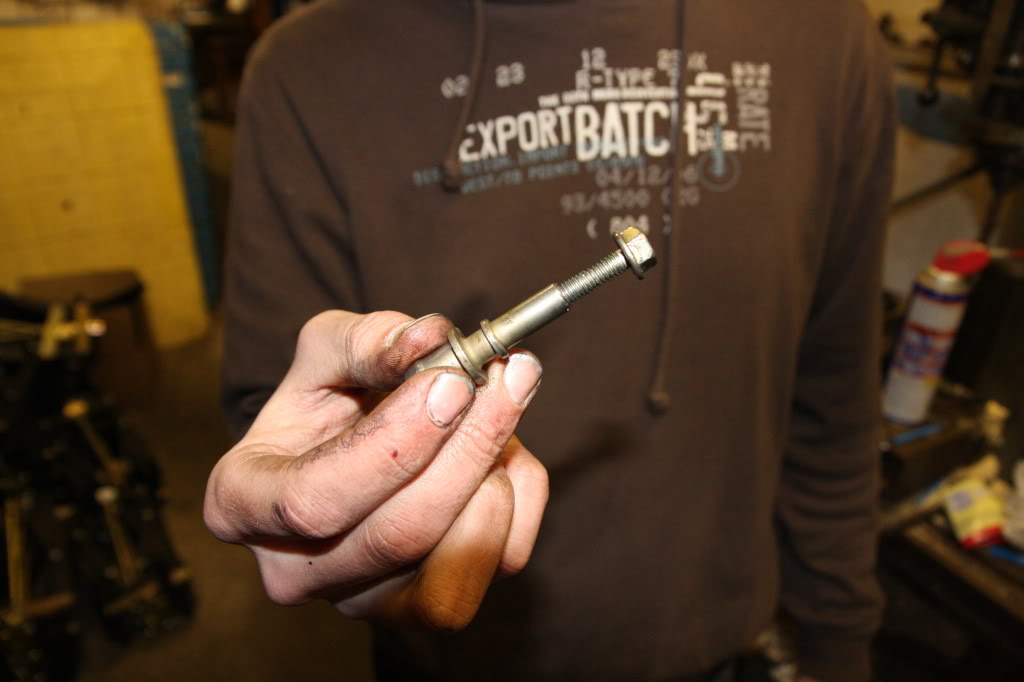

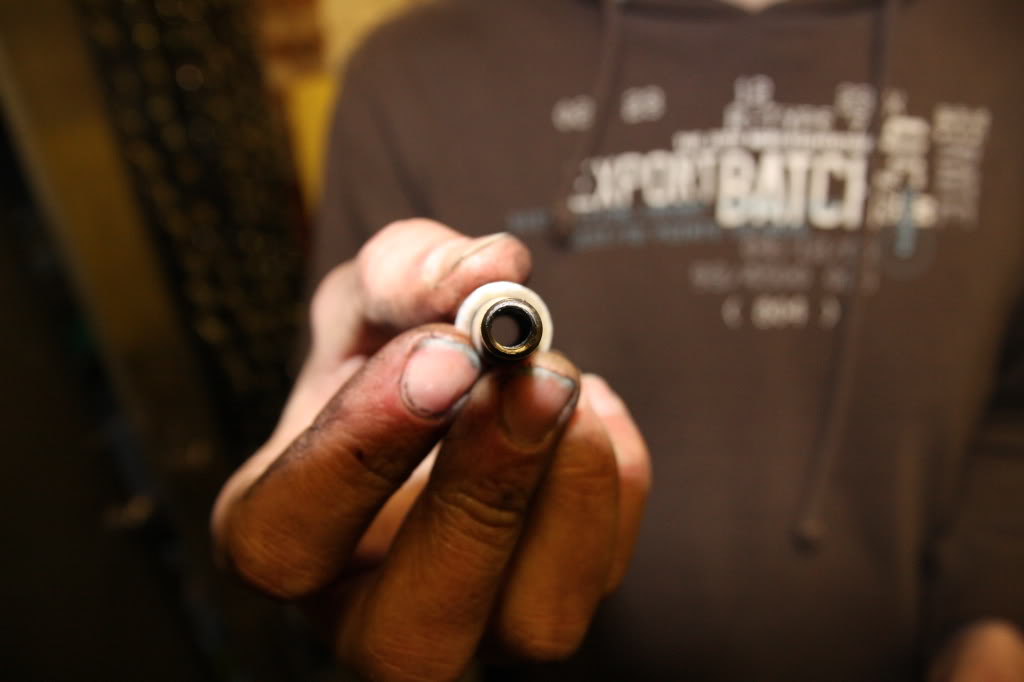

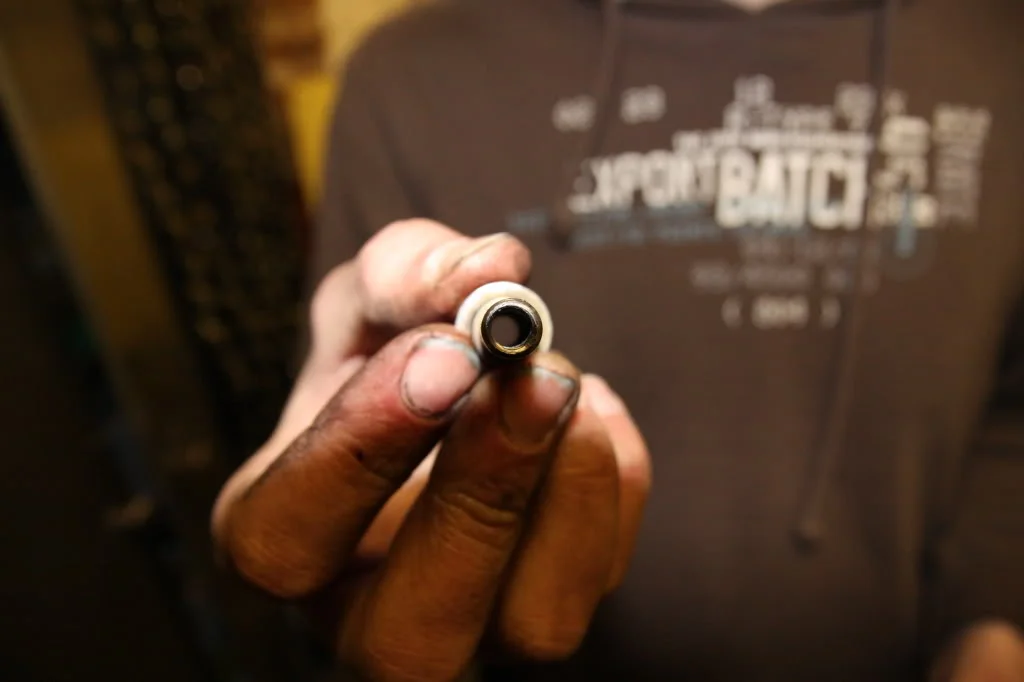

Bolt threaded in nicely...

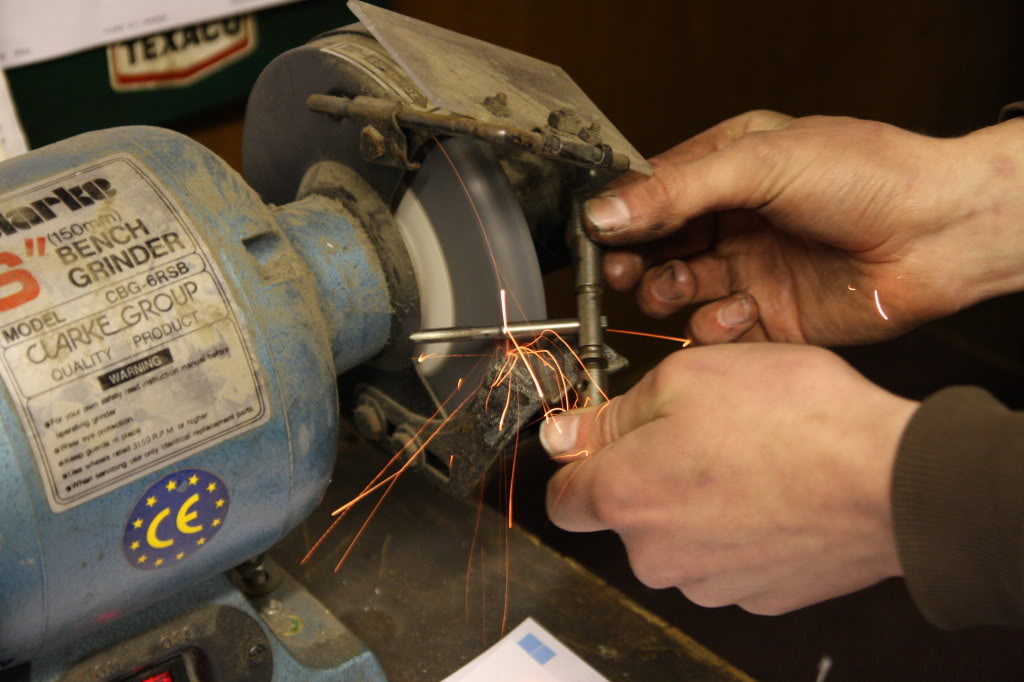

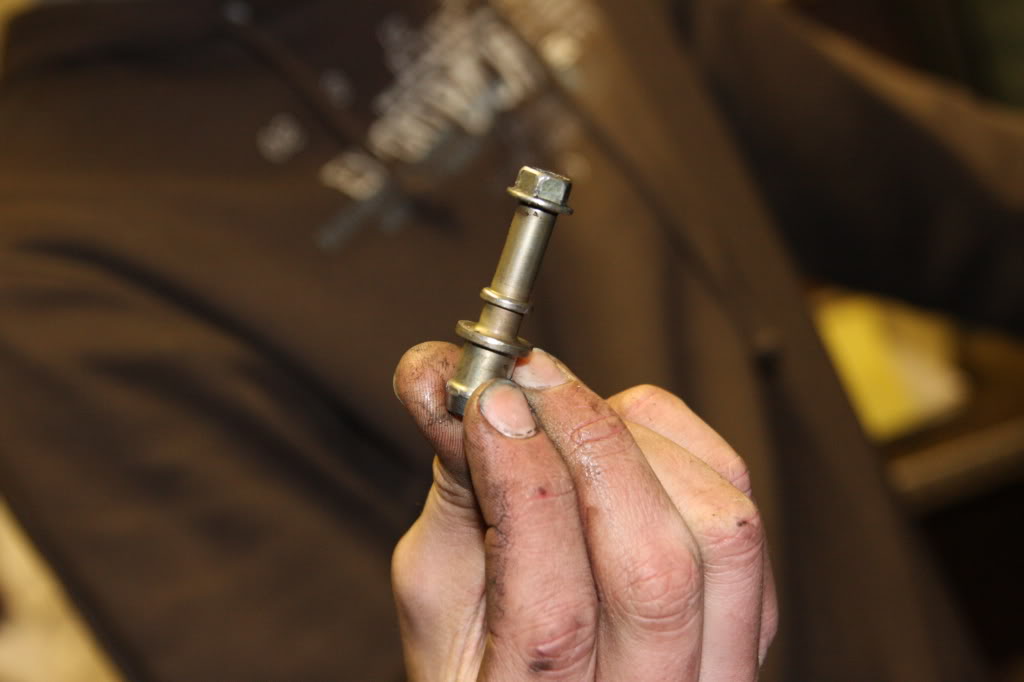

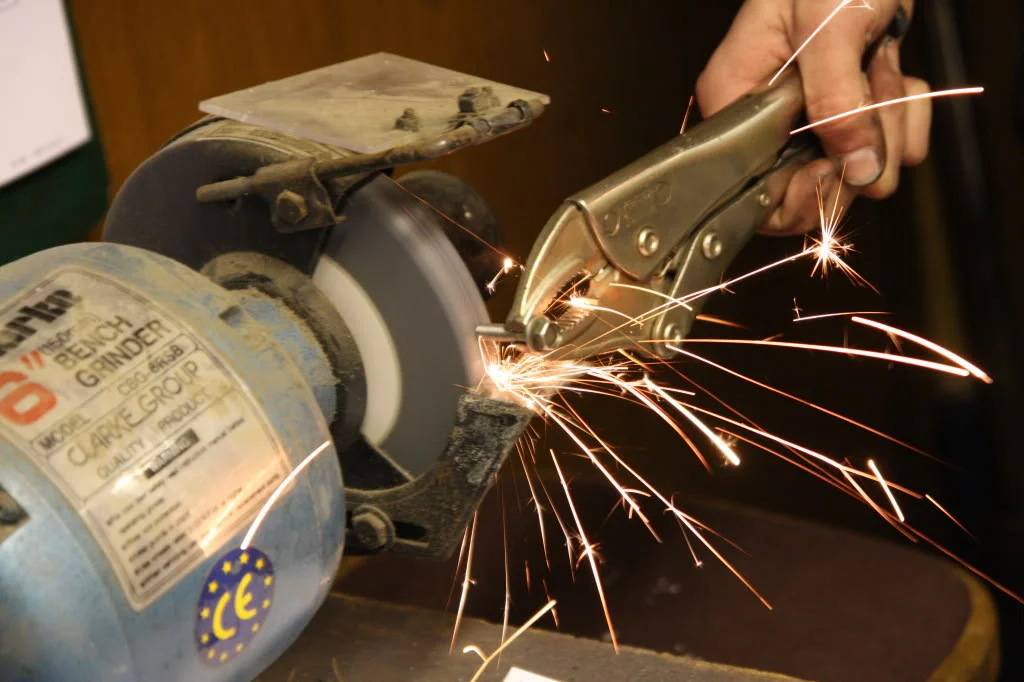

But it seemed the tap wouldnt go all the way through...so instead of thinking 'oh lets shorten the bolt', I carried on and ground the tap down lol

But even then, it wouldnt go in far enough, so Jams was the one who reminded me to shorten the bolt instead, lol..

Then screwed it all the way in with a bit of sealant...

Finally, cut the pipe down slightly, just need a jubliee clip now to hold it in place...

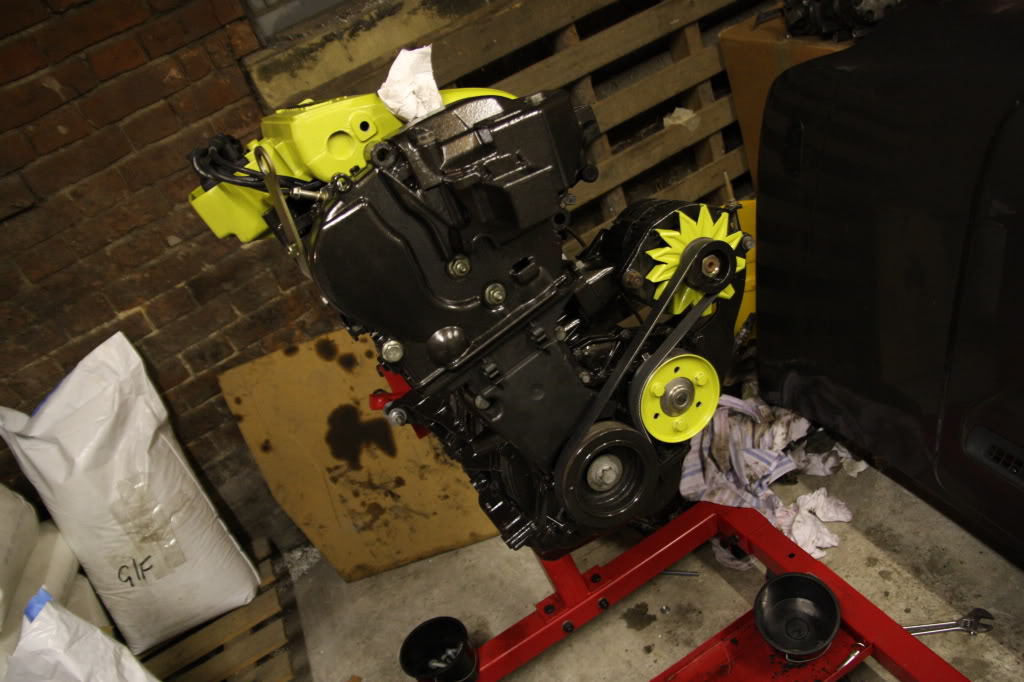

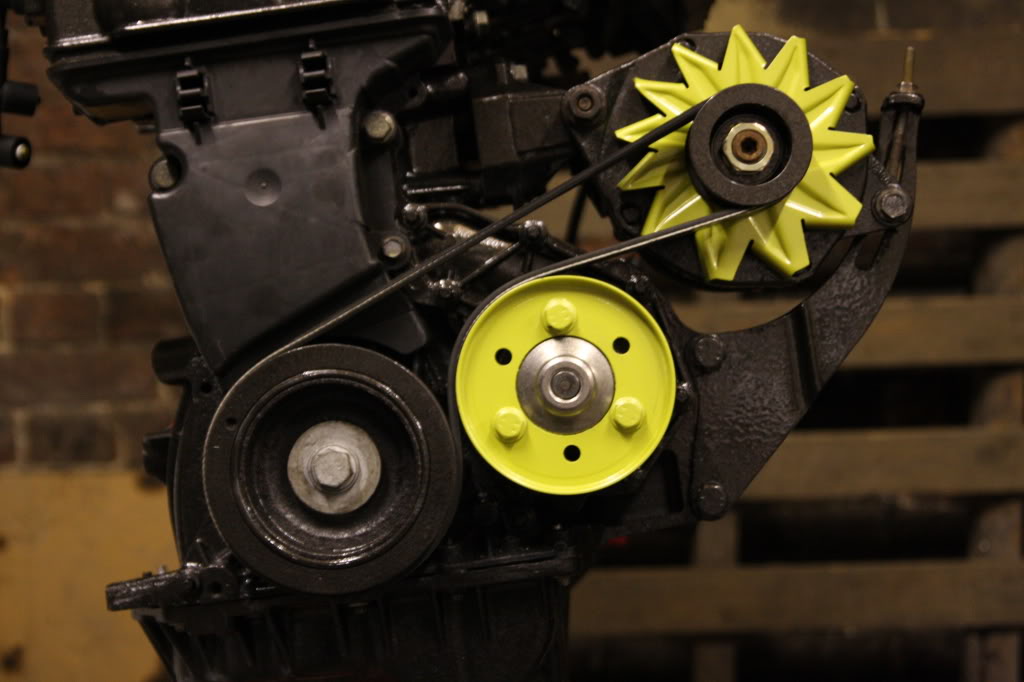

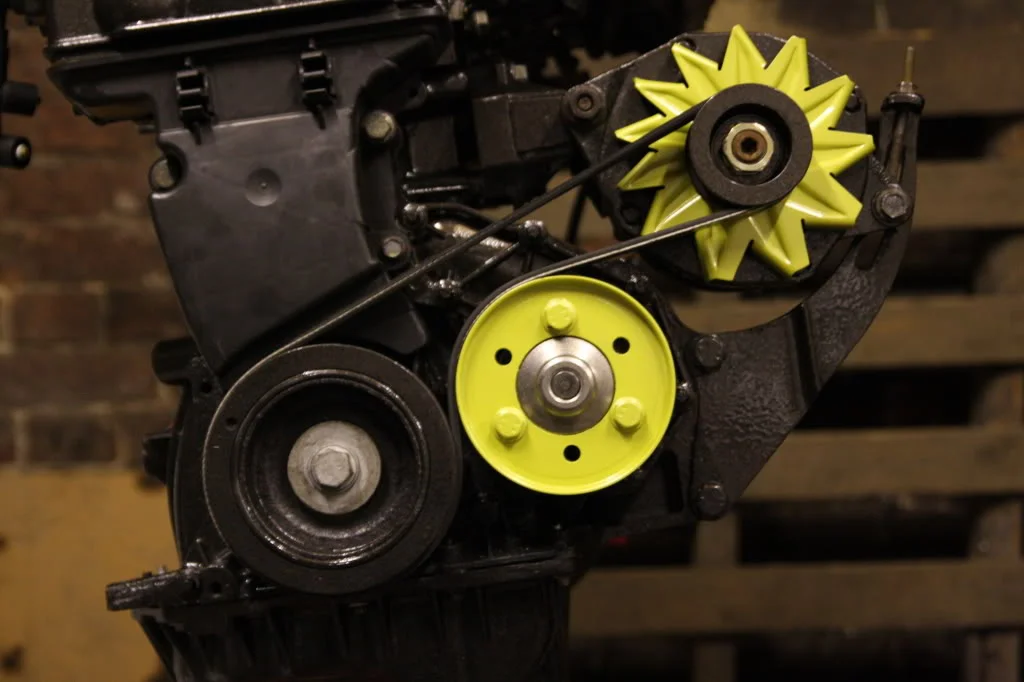

That was that sorted :approve: Then went onto fit the Aux belt I picked up yesterday, cheers Winston

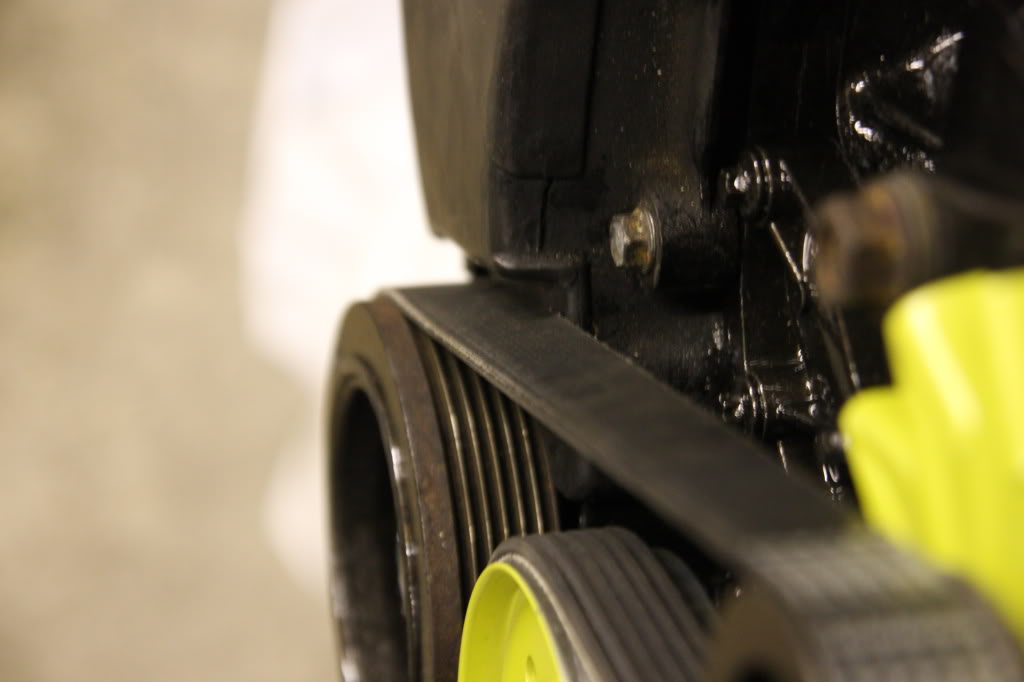

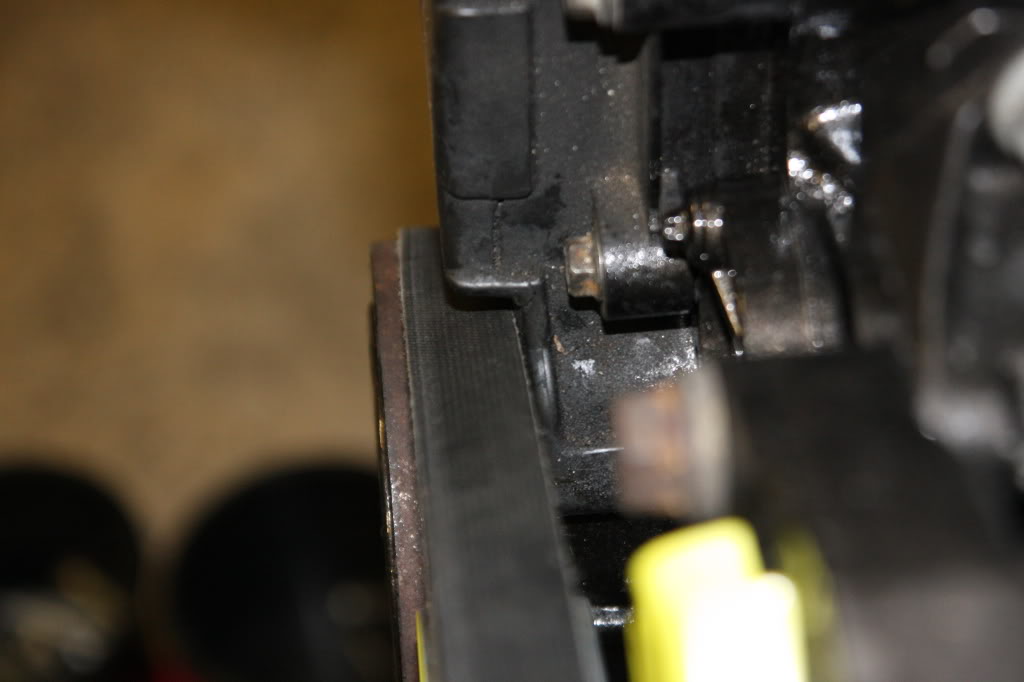

But hit a problem when I realised it was rubbing on the cambelt cover somehow, not sure why yet!

More soon!



[Limca]

Re: Mk1 Hybrid Project

good work jord.. fix or rather rig up that rubbing.... x



[Brett]

Re: Mk1 Hybrid Project

Its realy coming on now, when will it be ready to go into the car?

Happy Birthday Jord, good old facebook reminded me.



[fuel_slut]

Re: Mk1 Hybrid Project

LOL @ not just cutting the bolt, its all about the learning process!

I hope the engine goes as good as it looks anyway!



[snick01]

Re: Mk1 Hybrid Project

loving the engine colour scheme!



[geesus69]

Re: Mk1 Hybrid Project

you need a 5 ribbed belt mate

known issue with the 6 ribbed rubbing on the cambelt cover



[Christopher]

Re: Mk1 Hybrid Project

It seems a shame that that engine will be hidden away! It looks epic



[f0xy]

Re: Mk1 Hybrid Project

you need a 5 ribbed belt mate

known issue with the 6 ribbed rubbing on the cambelt cover

why is there 6 ribs on the pullies then? lol



[BRUN]

Re: Mk1 Hybrid Project

yup, as above, use a 5 rib, we have to do it at work sometimes



[f0xy]

Re: Mk1 Hybrid Project

thats well odd...will it not matter on a 6 rib pulley?

Brun do you keep them in at you're place? 5x850mm?



[f0xy]

Re: Mk1 Hybrid Project

Its realy coming on now, when will it be ready to go into the car?

Happy Birthday Jord, good old facebook reminded me.

pretty soon, getting subframe and other bits back tommorow from the powdercoaters



[JD]

Re: Mk1 Hybrid Project

looking great lad, i know fook all about engines, but presume unpainted wheel thingy lol is on the right way around? ie if you turn it around where would be more space between the belt and the cambelt cover?



[BRUN]

Re: Mk1 Hybrid Project

thats well odd...will it not matter on a 6 rib pulley?

Brun do you keep them in at you're place? 5x850mm?

ill have a look tomorrow



[bmh.01]

Re: Mk1 Hybrid Project

looking great lad, i know fook all about engines, but presume unpainted wheel thingy lol is on the right way around? ie if you turn it around where would be more space between the belt and the cambelt cover?

Yes thats 100% on the right way round. It won't turn if you put it on backwards.



[f0xy]

Re: Mk1 Hybrid Project

il get hold of a 5 rib belt then, should sort it.


Day 163

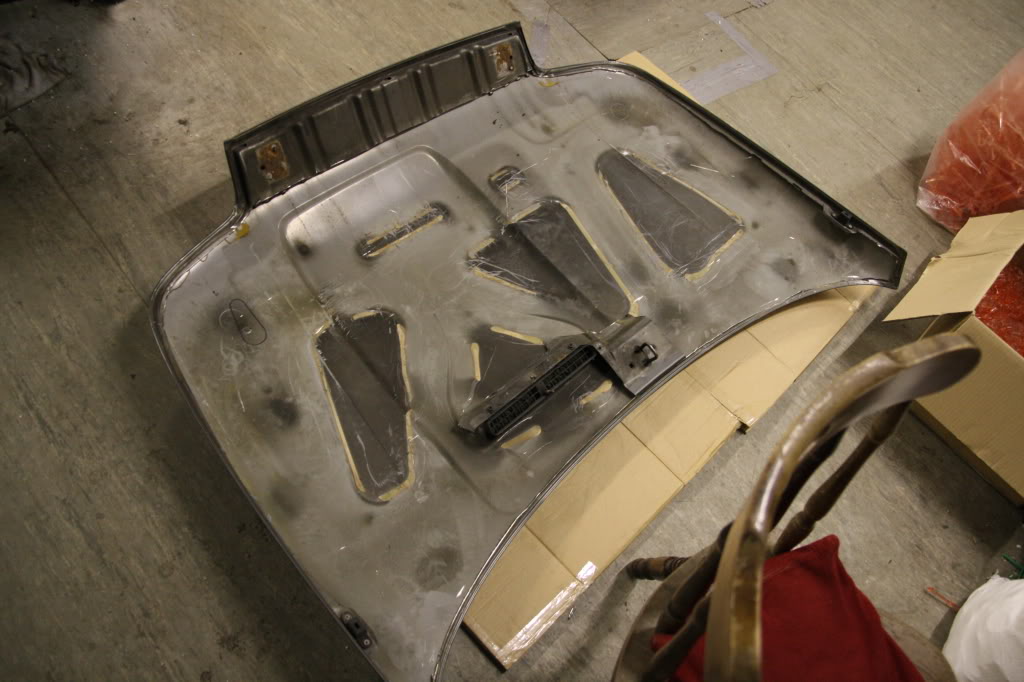

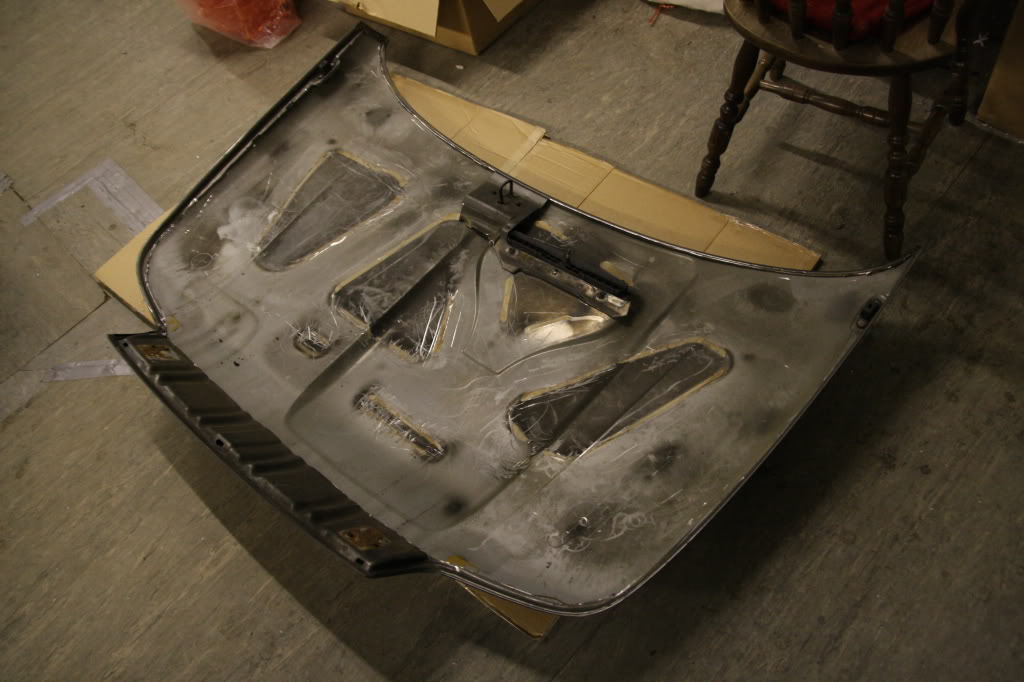

Got a bit done this evening, cut up the bonnet more, and got all the tar/adheasive off, got it how I wanted...

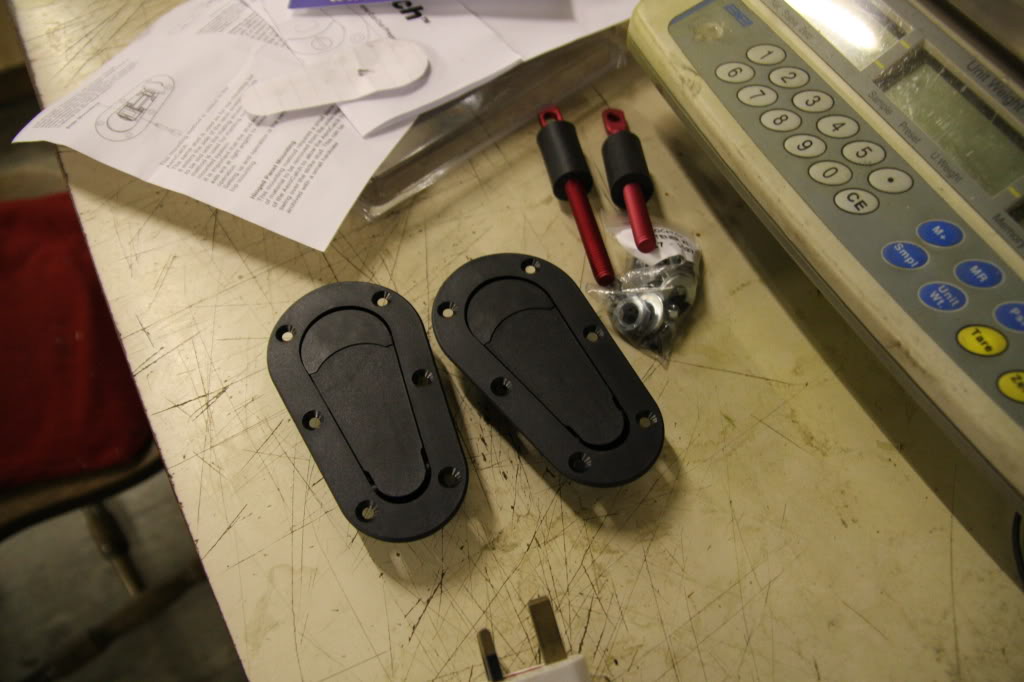

And started marking out the fitments for these...

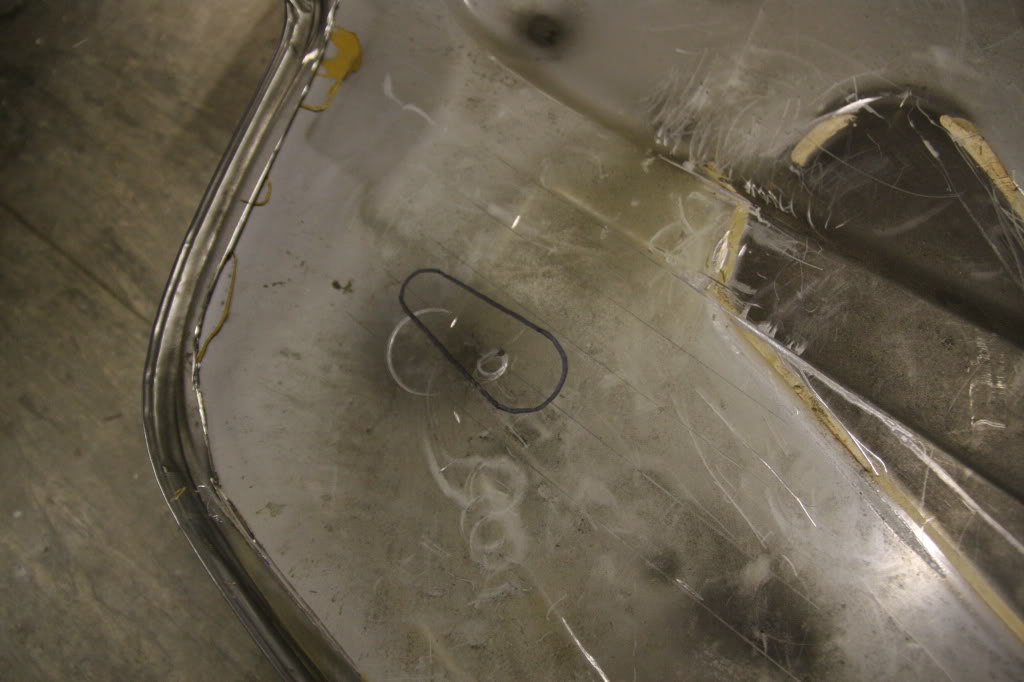

Took a while to work out where to position them, refering back to the car as to where the pins could go, got there in the end with my own 'DIY' template...

Then used a holesaw to drill the bulk of the metal out, and then a grinder on an air line to shape...

Will post pics when they are fully fitted tommorow. The bonnet is going to have to be fully sanded and sprayed, as the laquer has gone funny in quite a few places where the tar/adheasive was removed from the back, and the hole needs sorting!

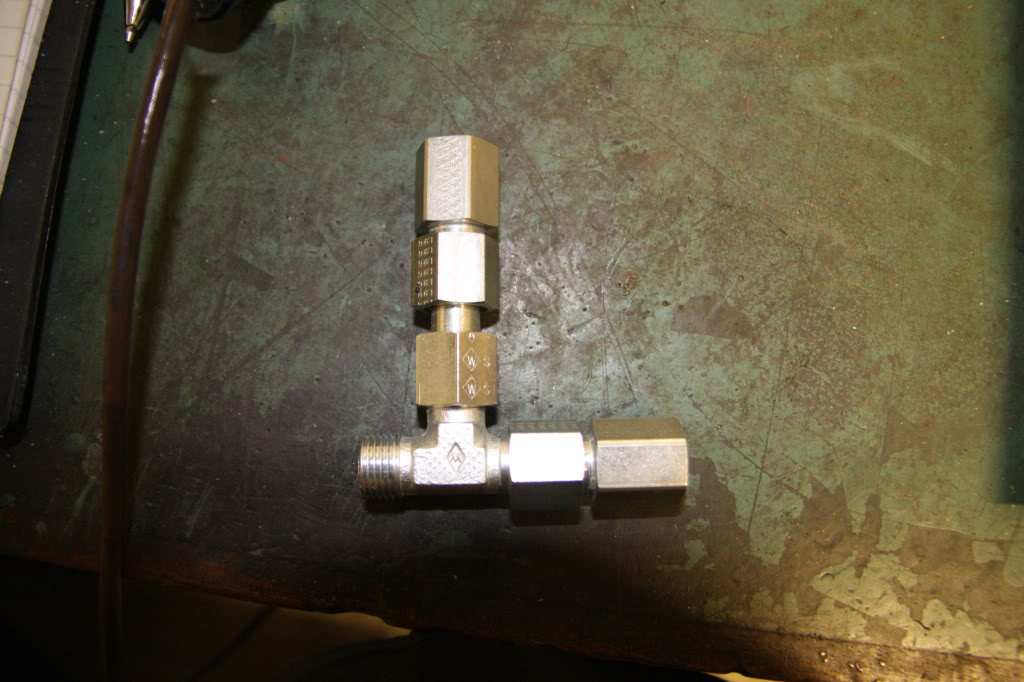

Also picked up the long awaited T-piece for the oil pressure sensor and sender, seems to be a right nightmare to get hold of, but all fits fine...

More soon...



[BRUN]

Re: Mk1 Hybrid Project

your gasket should be in today mate all being well



[Mark One]

Re: Mk1 Hybrid Project

are the catches going to be the only thing holding the bonnet down? Those are going to be quite near the hinge for that i'd have thought mate?
Nice progress, Like the idea of the single skin bonnet



[Nafoff]

Re: Mk1 Hybrid Project

brilliant work again mate



[Limca]

Re: Mk1 Hybrid Project

Nice.



[f0xy]

Re: Mk1 Hybrid Project

are the catches going to be the only thing holding the bonnet down? Those are going to be quite near the hinge for that i'd have thought mate?
Nice progress, Like the idea of the single skin bonnet

there are no hinges, been angle ground off.....the catch remains, two pins at the front, original catch at the back

the original hinges pissed me off so bad, nightmare to remove the bonnet to work on the car, etc...this way its easy :approve:



[Mark One]

Re: Mk1 Hybrid Project

there are no hinges, been angle ground off.....the catch remains, two pins at the front, original catch at the back

the original hinges pissed me off so bad, nightmare to remove the bonnet to work on the car, etc...this way its easy :approve:

me likes very nice.



[Christopher]

Re: Mk1 Hybrid Project

Good work as always dude!



[Ali]

Re: Mk1 Hybrid Project

Cool! Whats the script with the motor? Is it std, so 172 brake in a car that weight 900? holy moly! Hold on tight.



[Guppy]

Re: Mk1 Hybrid Project

Awesome job on the T-piece!



[jams]

Re: Mk1 Hybrid Project

Looking good jord. What was that unit like that you went to look at yesterday just down the lancs? Any good?



[f0xy]

Re: Mk1 Hybrid Project

Cool! Whats the script with the motor? Is it std, so 172 brake in a car that weight 900? holy moly! Hold on tight.

standard motor, for now.......hoping for less than 900, 850's the target with the cage in

Looking good jord. What was that unit like that you went to look at yesterday just down the lancs? Any good?

yeah it was ideal size like, no electric though, in the ghetto of eccles lol



[f0xy]

Re: Mk1 Hybrid Project

Day 164

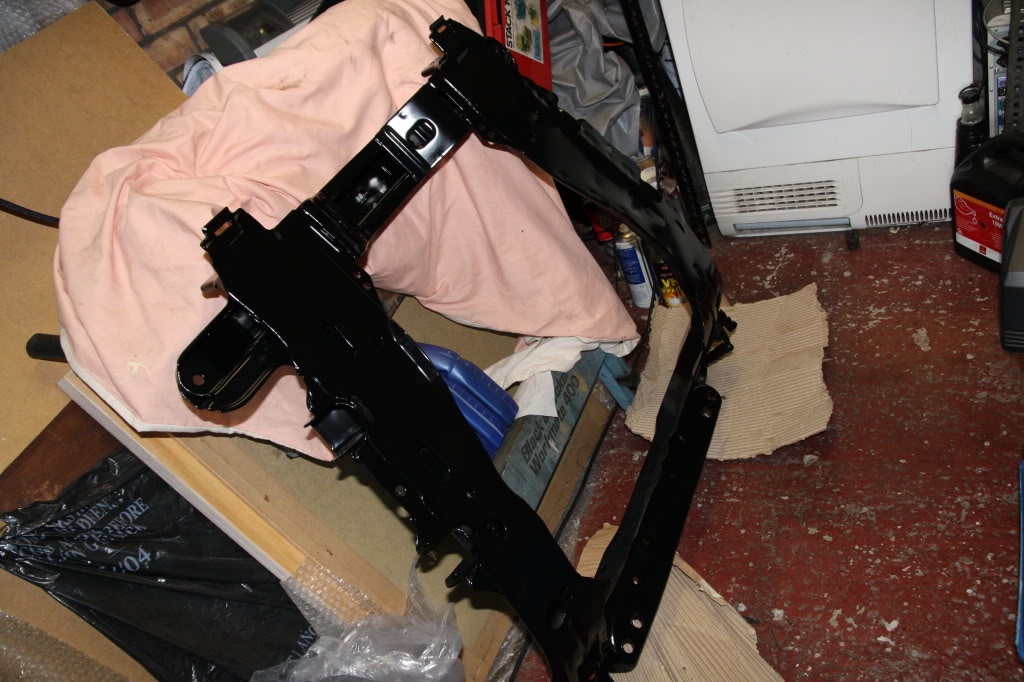

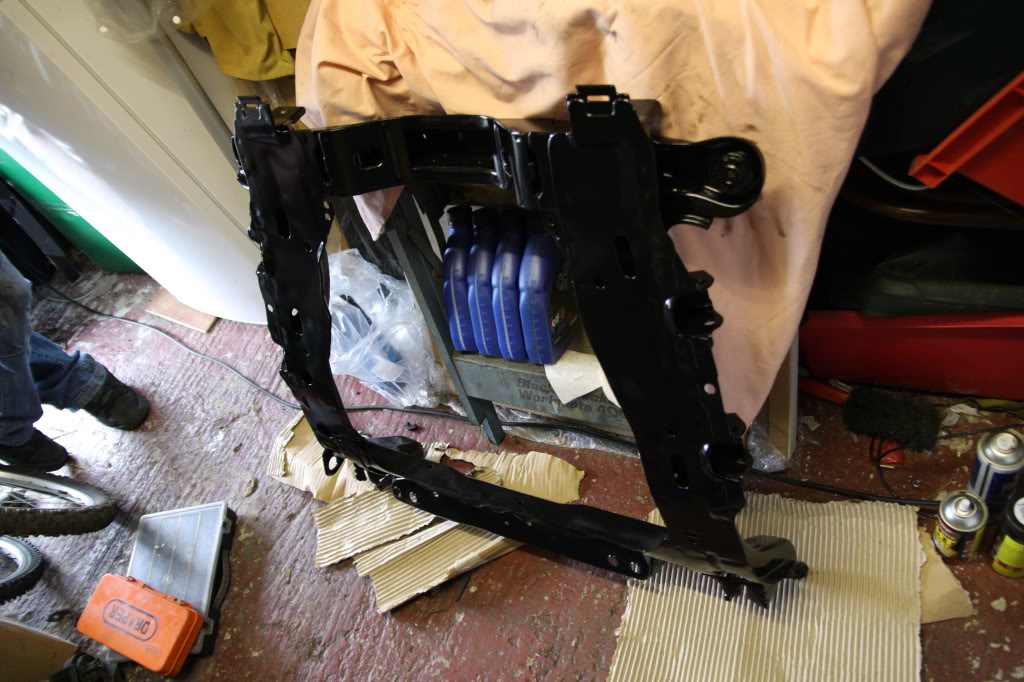

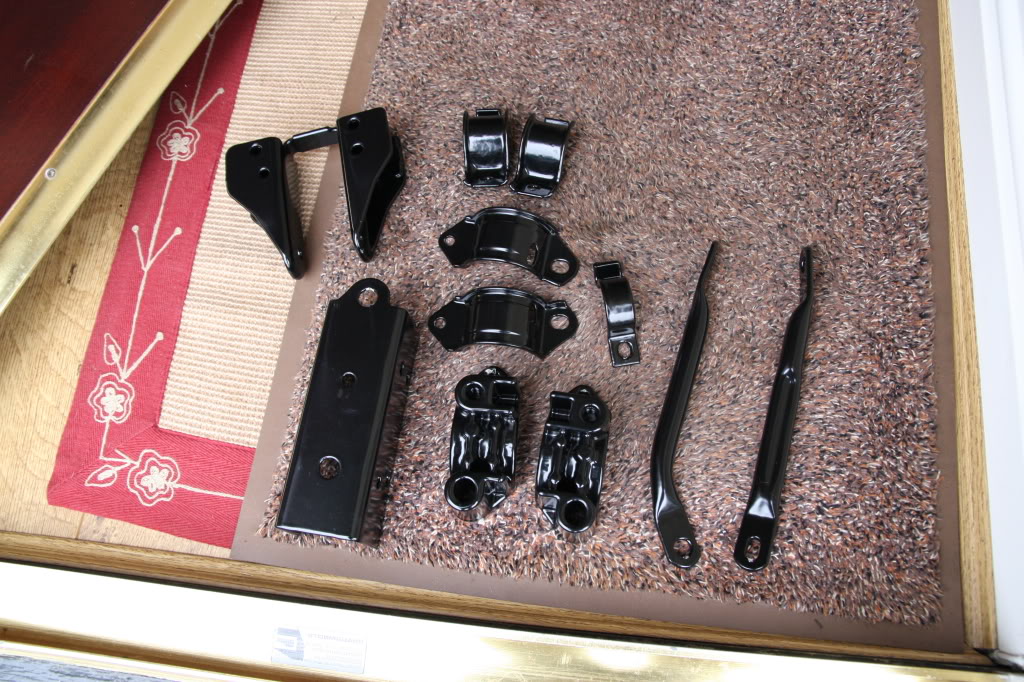

Picked up the subframe + brackets from the powdercoaters today, bargin for £25...

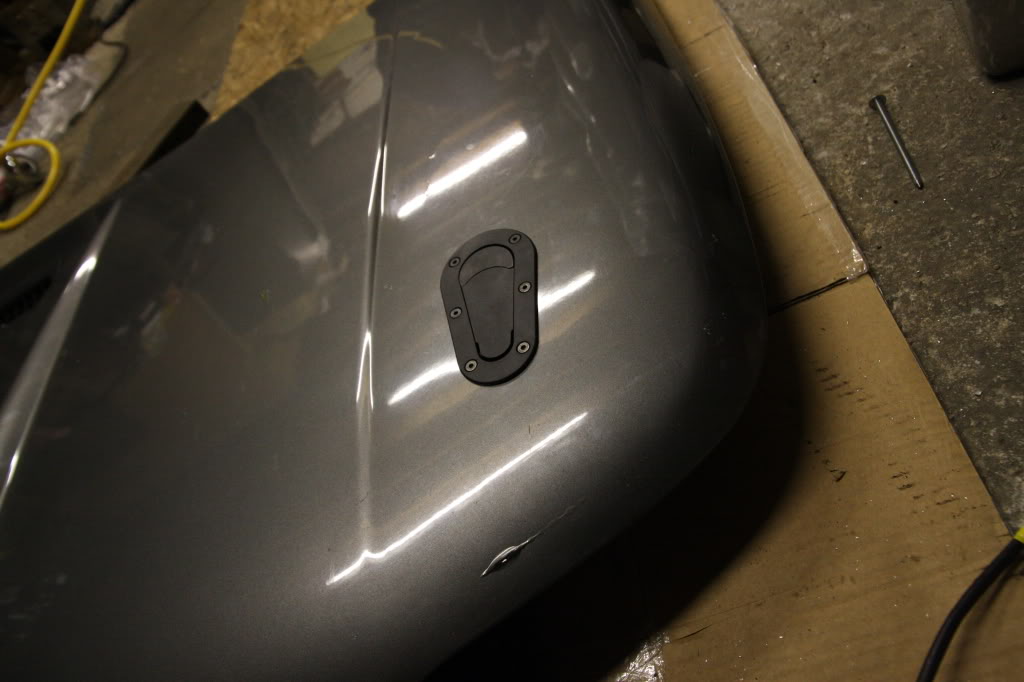

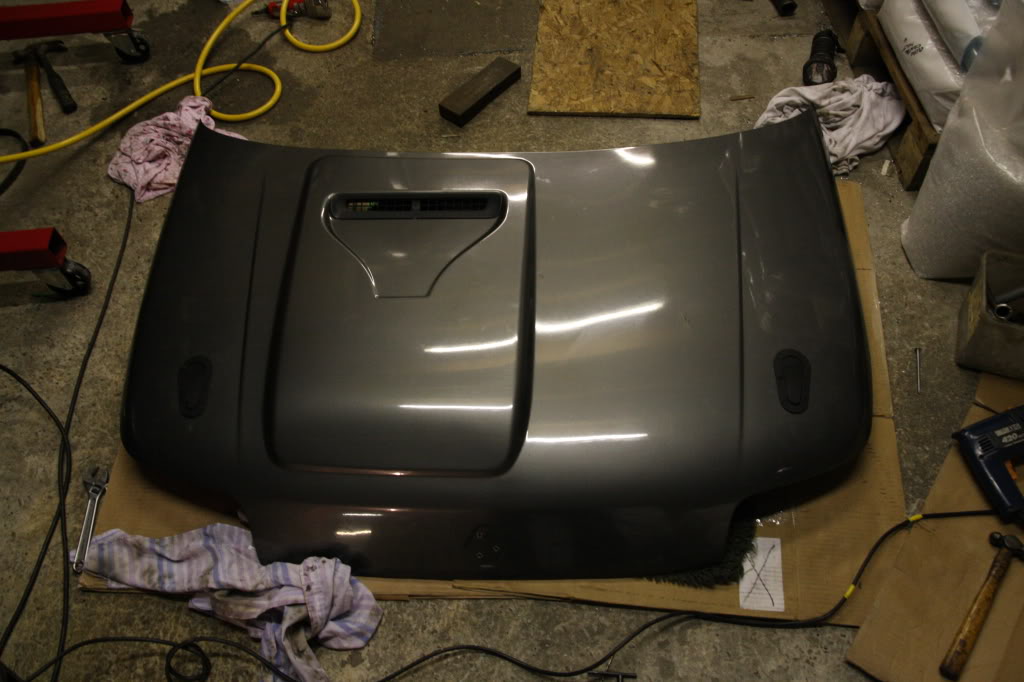

Next finished the bonnet off, both catches test fitted, fit fine as do the bolts...battle scars can be seen in the second picture, lol! Catches will obviously be coming back out to get the holes sorted and then the bonnet sprayed...

Here are a few more pics of the T-piece, the other pic was a bit crap...

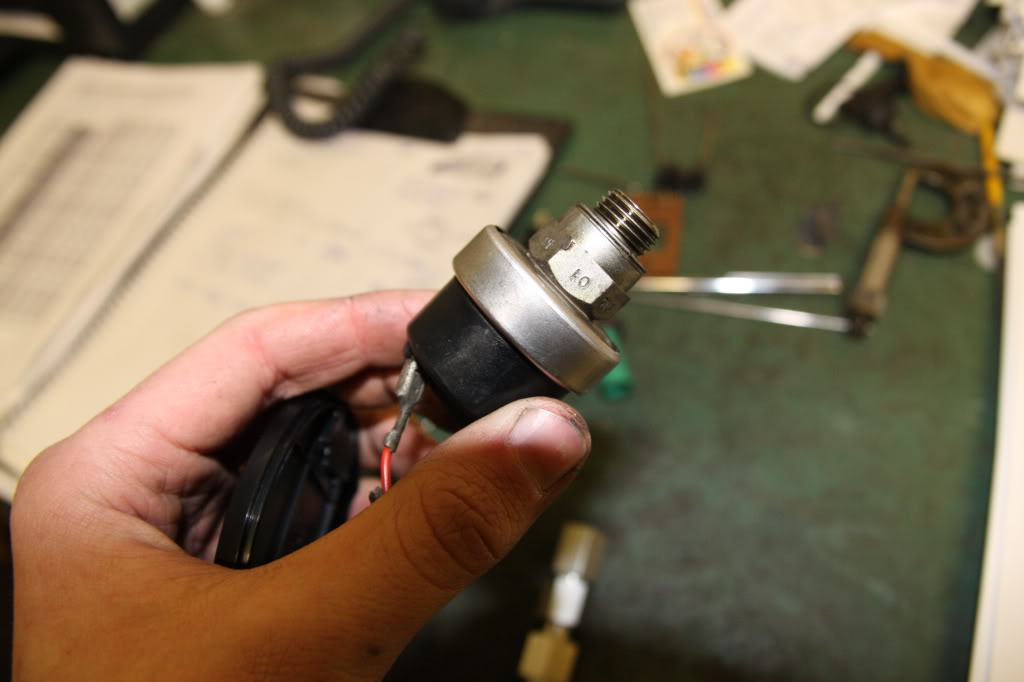

Oil pressure sender...

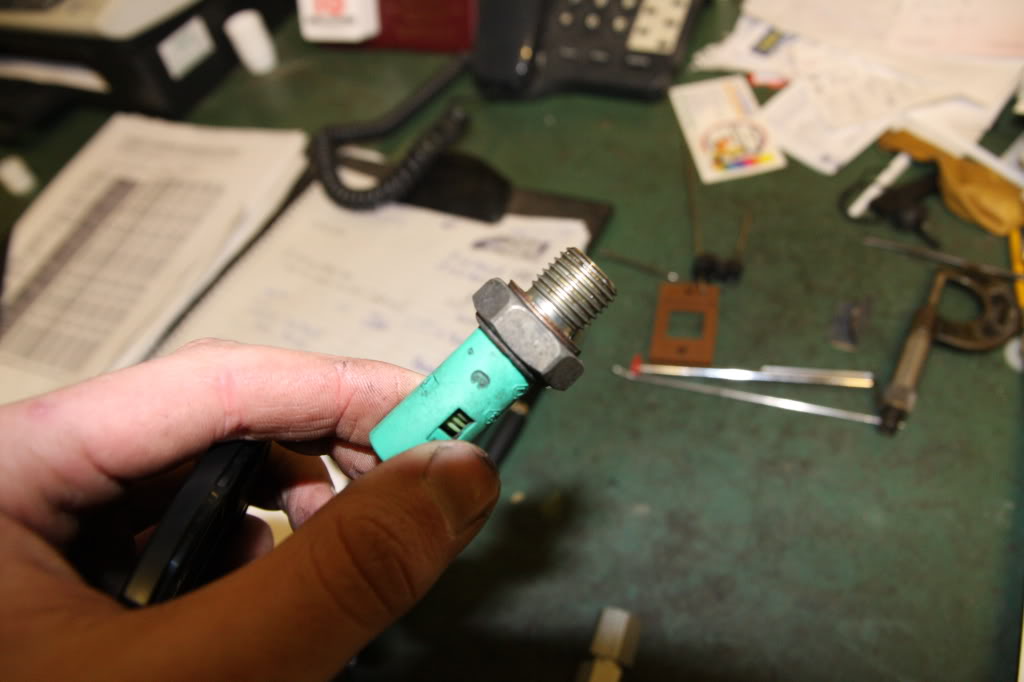

Oil pressure sensor...

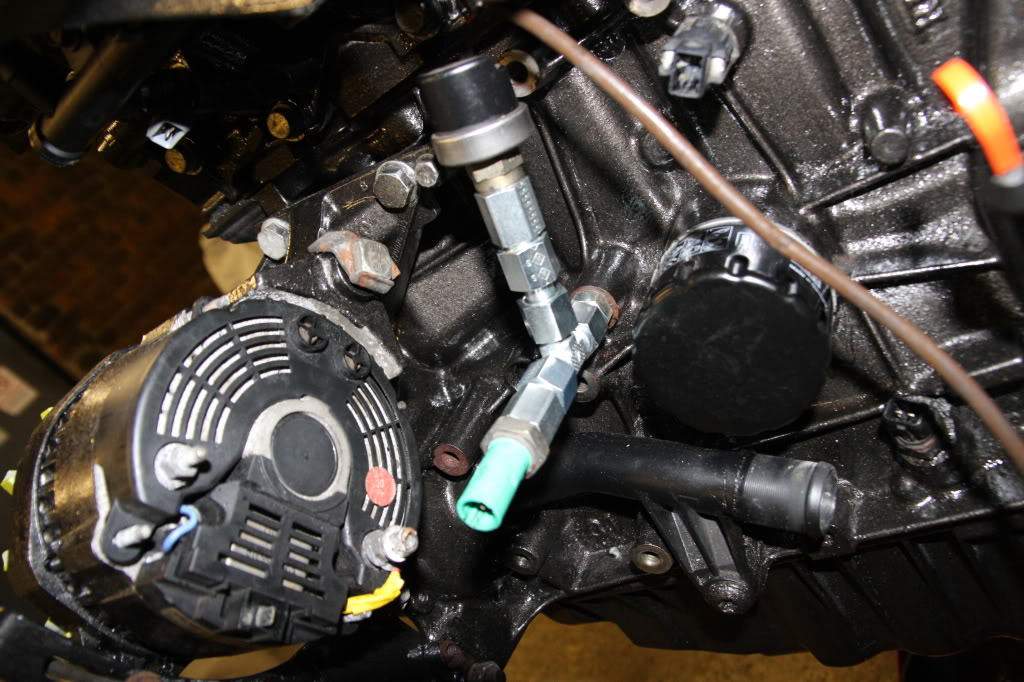

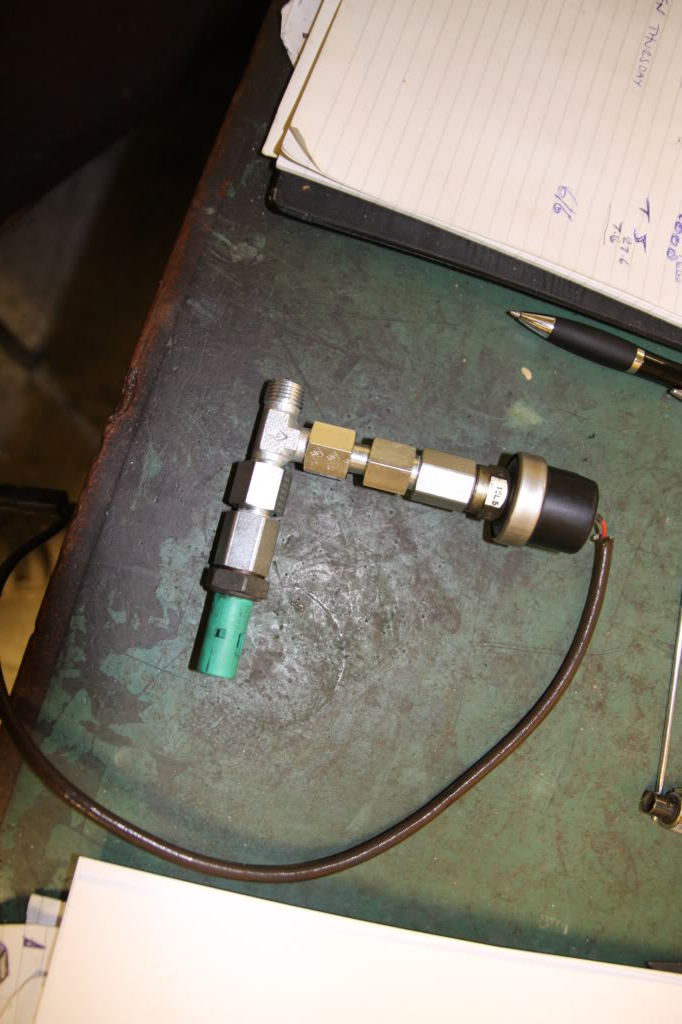

Assembled...

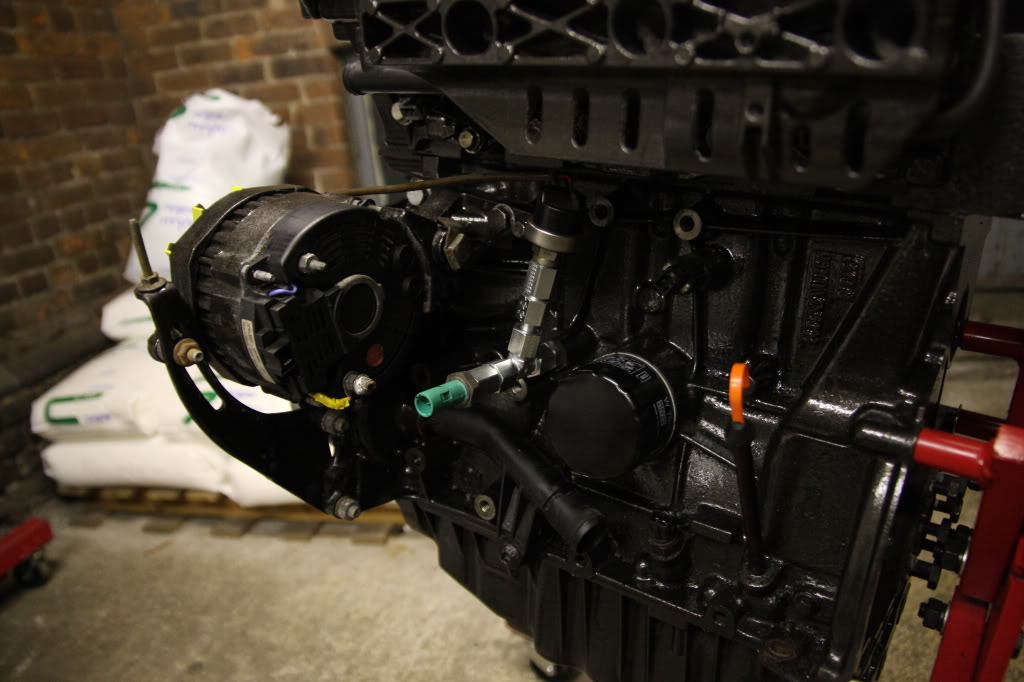

Fitted to the block...

Also picked up a 5 rib aux belt today, fits fine now...another thing off the list...

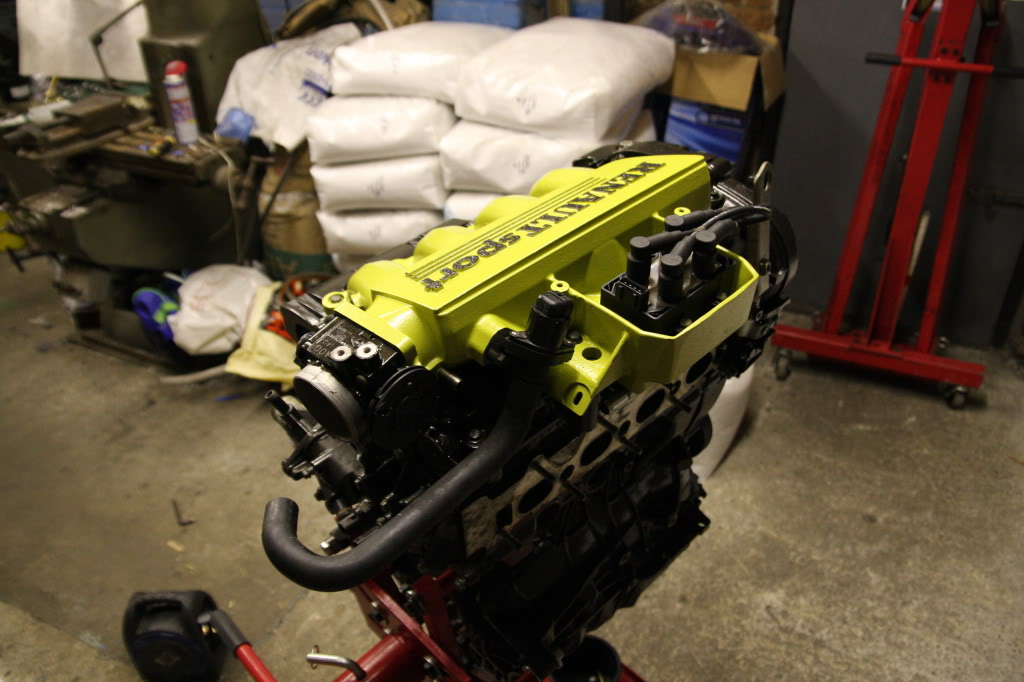

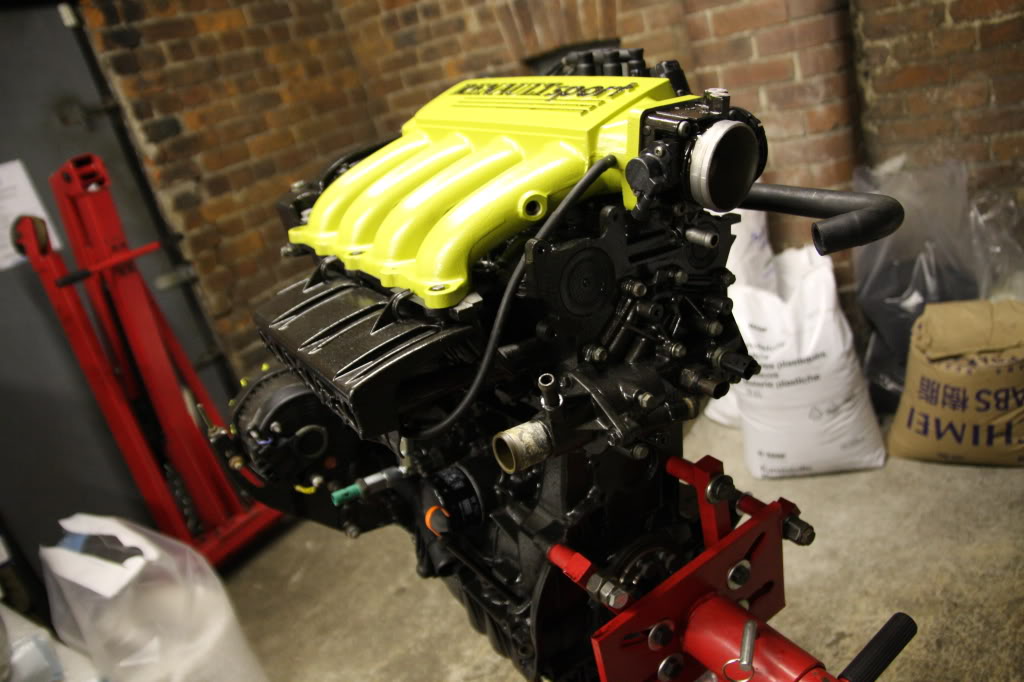

Finally fitted the Inlet manifold properly, along with the coilpack, throttle body with new gasket, etc..

More soon...



[Bluebeard]

Re: Mk1 Hybrid Project

Any more pics of that subframe Jord?



[mini-valver]

Re: Mk1 Hybrid Project

T-peice and sensors.....Where from?

Subframe looks mint dude! If I didnt need my car, I'd have it done when I do the clutch this weekend!



[bendee]

Re: Mk1 Hybrid Project

looks awsome mate very good work, i take it you took the skin off and just pinned it down? whats it weight?



[f0xy]

Re: Mk1 Hybrid Project

Any more pics of that subframe Jord?

Uploading right now

T-peice and sensors.....Where from?

Subframe looks mint dude! If I didnt need my car, I'd have it done when I do the clutch this weekend!

T piece and fittings from Pirtek, sensors: sender=mk1, green sensor=172

looks awsome mate very good work, i take it you took the skin off and just pinned it down? whats it weight?

yeah, skin is fully off, then made template for the pins, the pins themselves are through a hole near the headlight mount...will be more pics of that soon..

it weighs 9.5kg now, not sure what standard is just yet, trying to find out!



[bendee]

Re: Mk1 Hybrid Project

cool i was thinking of doing something along the same lines but wasnt sure defo want pins right pain in the arse these bonnets its hard enough squeezing your hand in tight spots without the bonnet stopping you get in the front lol.



[f0xy]

Re: Mk1 Hybrid Project

Yeah, i got so pissed off trying to get the bonnet on and off to work on it on my own...two pins and the original catch, no weight at all and its off easy
