Day 176

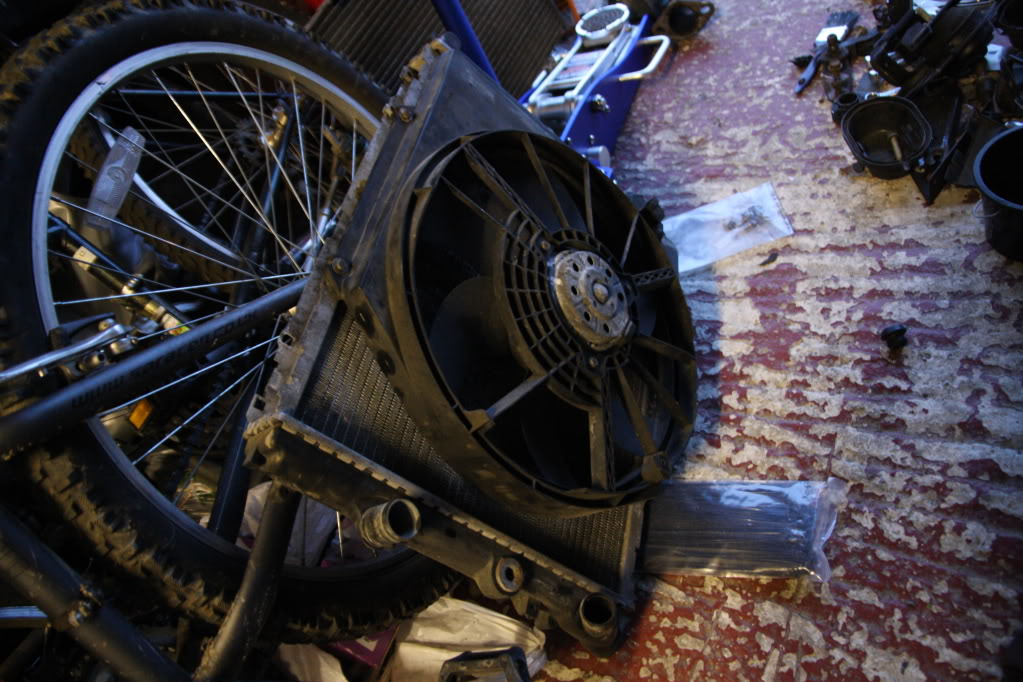

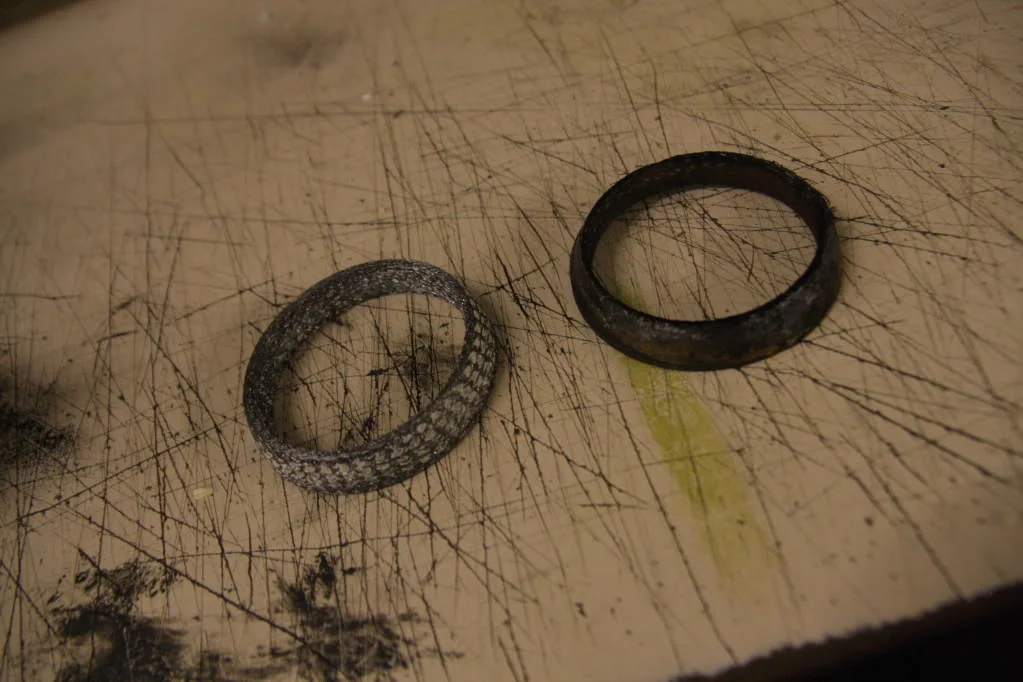

Drove over to ClioSpares today, to pick up the last part of the engine bay puzzle, a 172 Radiator + Fan...

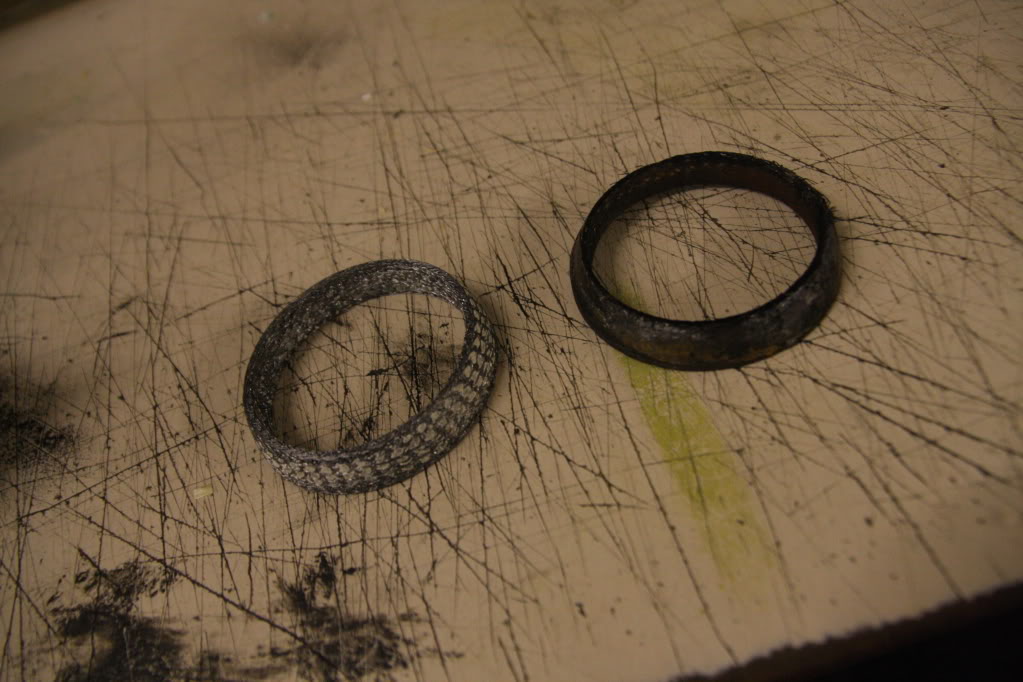

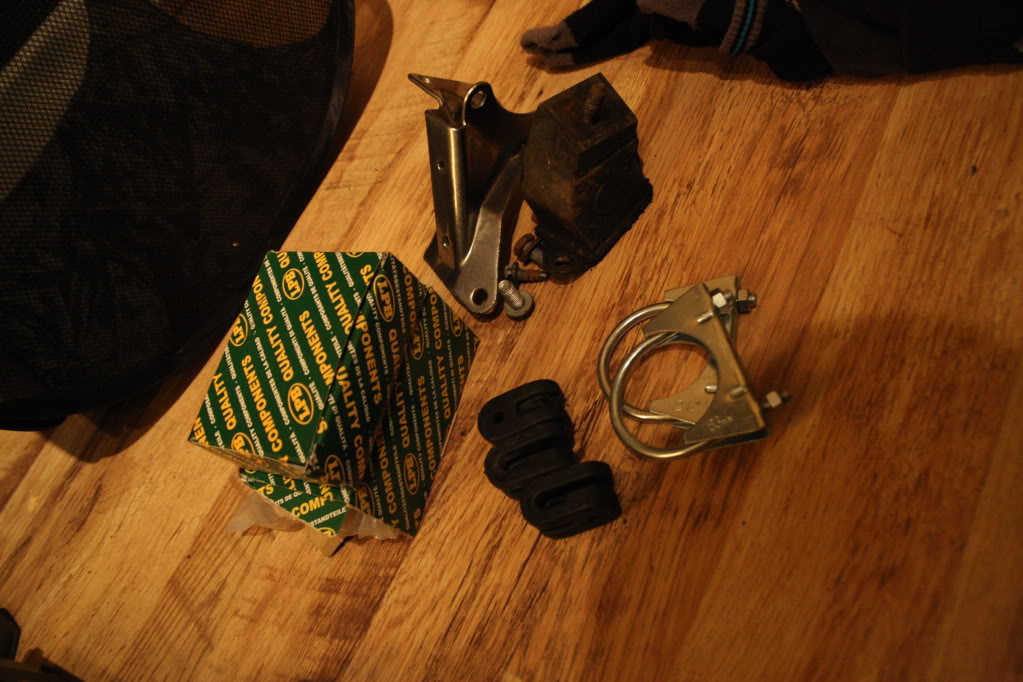

Then also picked up a few more parts...172 Exhaust manifold-to-downpipe gasket, a pair of balljoints, new exhaust clamps, new exhaust rubbers and a 4th/front gearbox mount off Winston :approve:





Ive been making a downpipe over the past few days, as you need a 'custom' one to go through the gap between the subframe and bulkhead, which is unlike a standard 16v/williams that goes under the subframe....

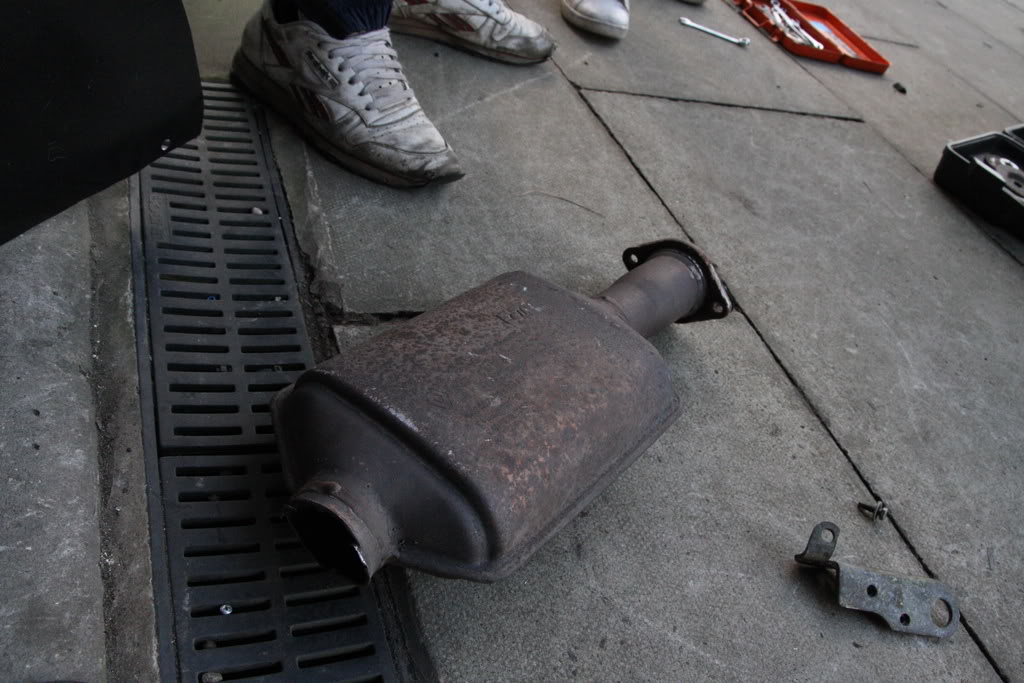

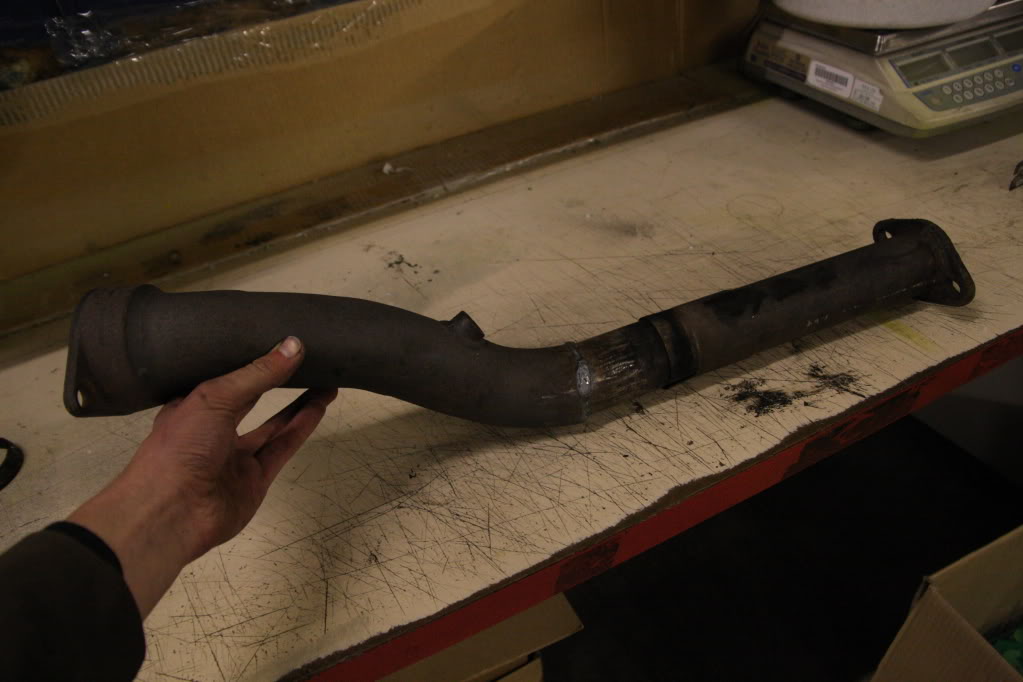

It started with cutting the 'down' part off a standard 172 Cat...

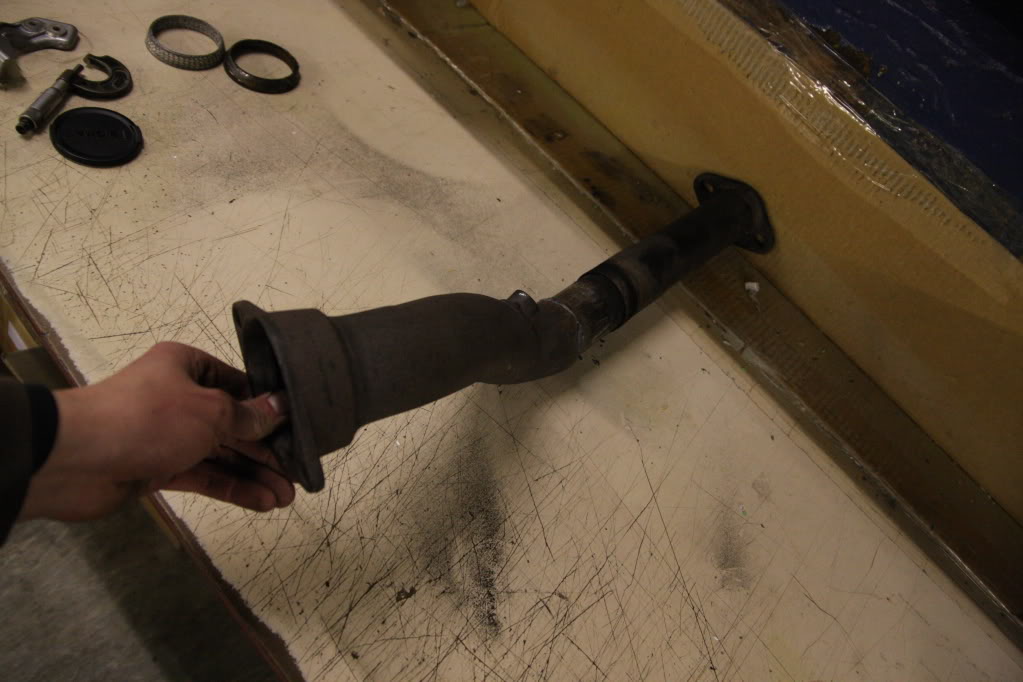

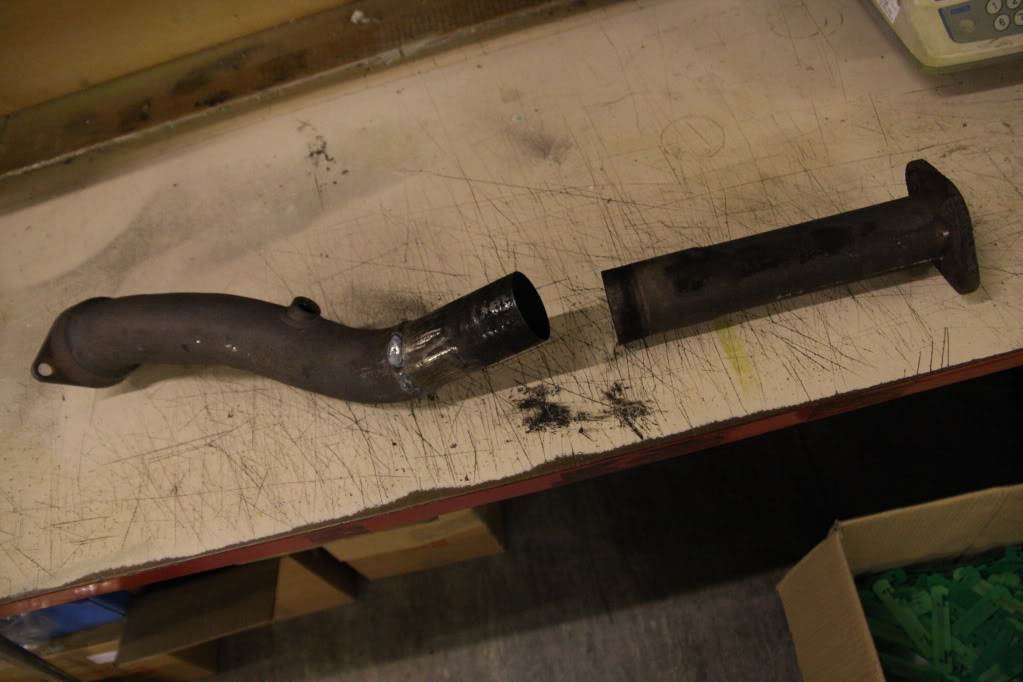

Then cutting one flange off an adjustable valver/williams BB Tuning decat...

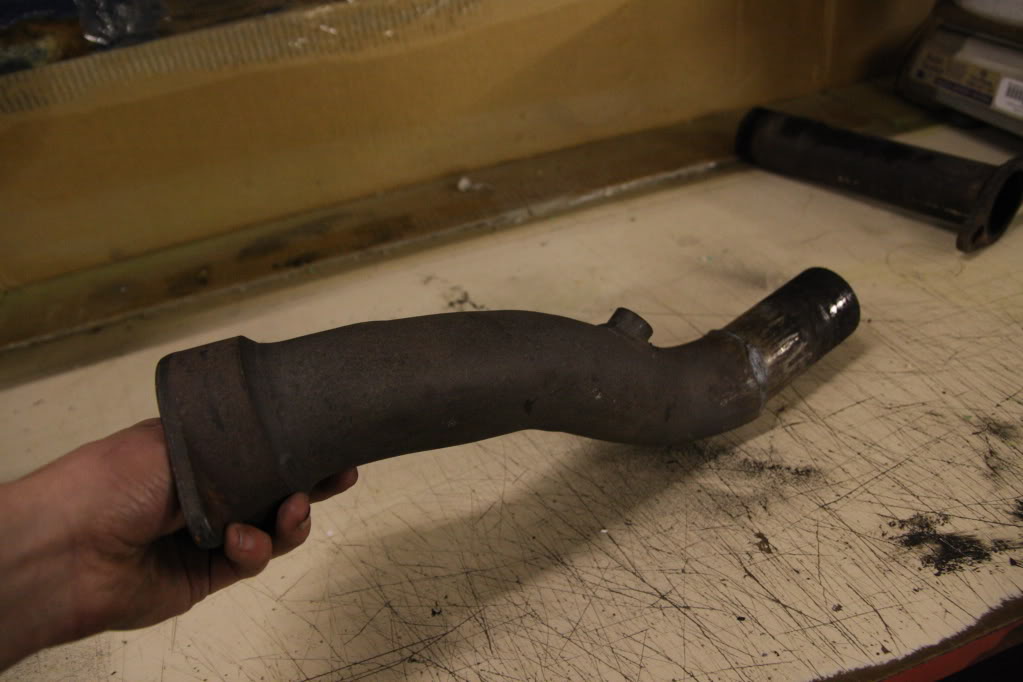

Next, i held the bit from the cat upto the manifold which is fitted to the engine, and worked out what angle I needed to get the pipe welded on at...After this I tacked it in place, and double checked...

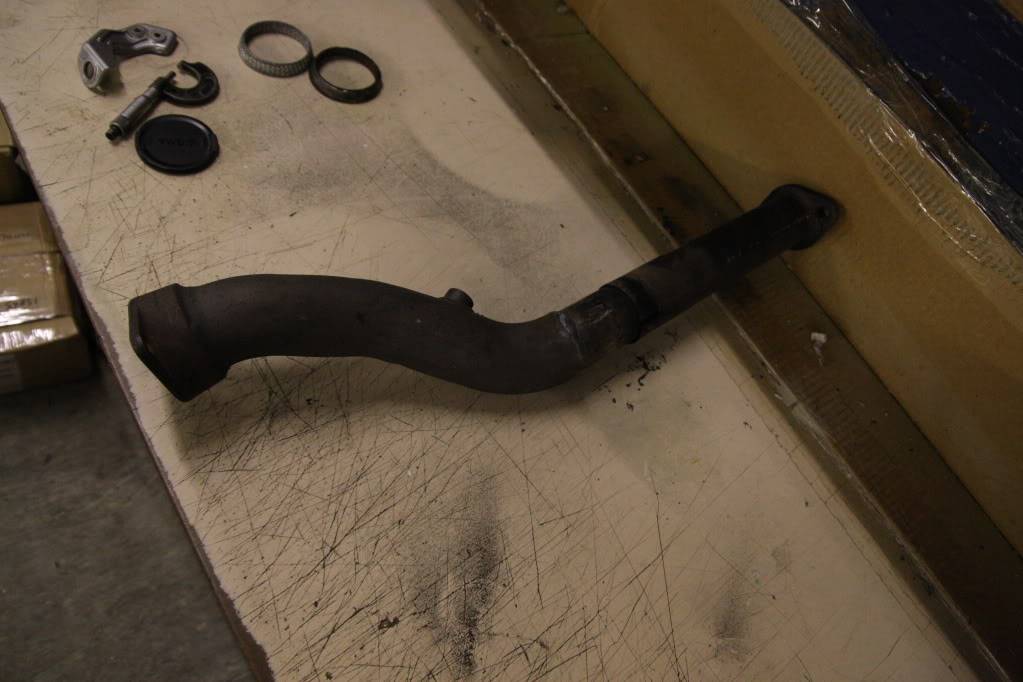

I was happy with it, so had it properly welded...





Now, ive left the other part 'adjustable' for now, as I already know its sort of the right length to perfectly meet the standard Mk1 center section flange, which was the original idea. After I have fitted the exhaust tommorow, and triple checked the length is correct, il get the 'adjustable' bit welded up, so its a fixed downpipe :cool:









Another job off the list...not far off firing it up now :evil:

Ian

Ian

  Focus TDCi
Re: Mk1 Hybrid Project

Roadworthy for the weekend mate? Looking forward to having a nosy round lol

F

f0xy

Re: Mk1 Hybrid Project

nah be a while yet, missing suspension bits and bobs at the moment, il be happy if i can get it running thats about it lol...

Got the valver to come in at the weekend :p

fuel_slut

fuel_slut

  Sunflower & Golf Mk6 BMT
Re: Mk1 Hybrid Project

Really hope you get this to the Saturday meet, but for the love of God dont rush anything!!!

Bring the other valver if she's not ready.

F

f0xy

Re: Mk1 Hybrid Project

no chance itl be ready dude, drivetrain or anything on, waiting on getting solid top mounts, and its got no tax/insurance....if its on the road (legally lol) by the end of the month, all done with cage and interior sorted too, il be happy :)

jams

jams

  Track valver + Ibiza FR
Re: Mk1 Hybrid Project

Nice to see you got the downpipe sorted, afta my incorrect measuring :quiet:. Nicely done

F

f0xy

Re: Mk1 Hybrid Project

Day 177

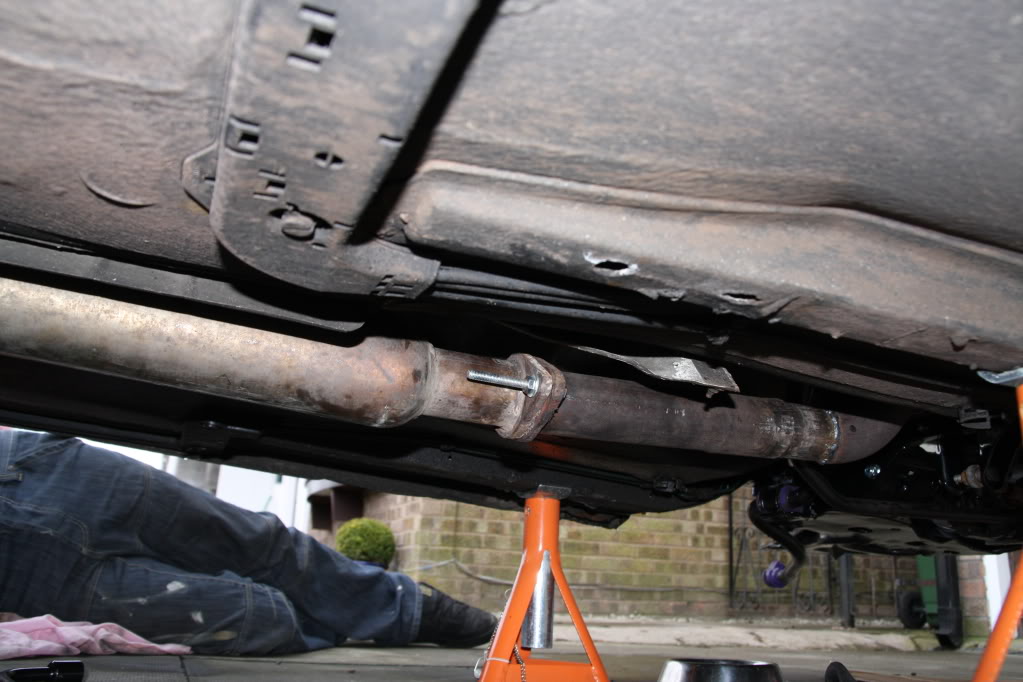

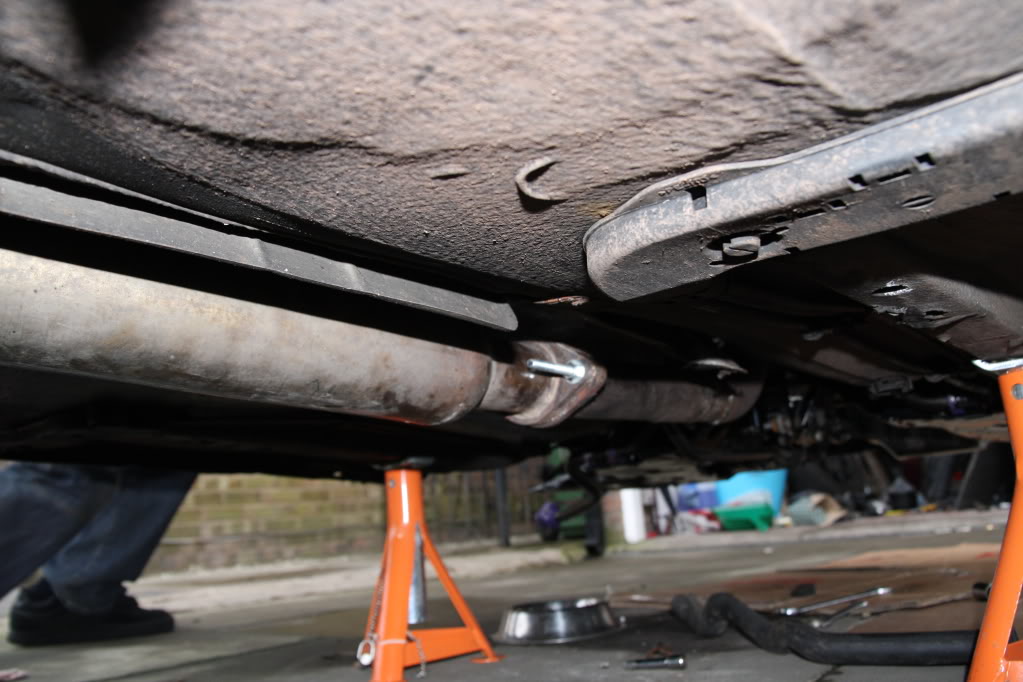

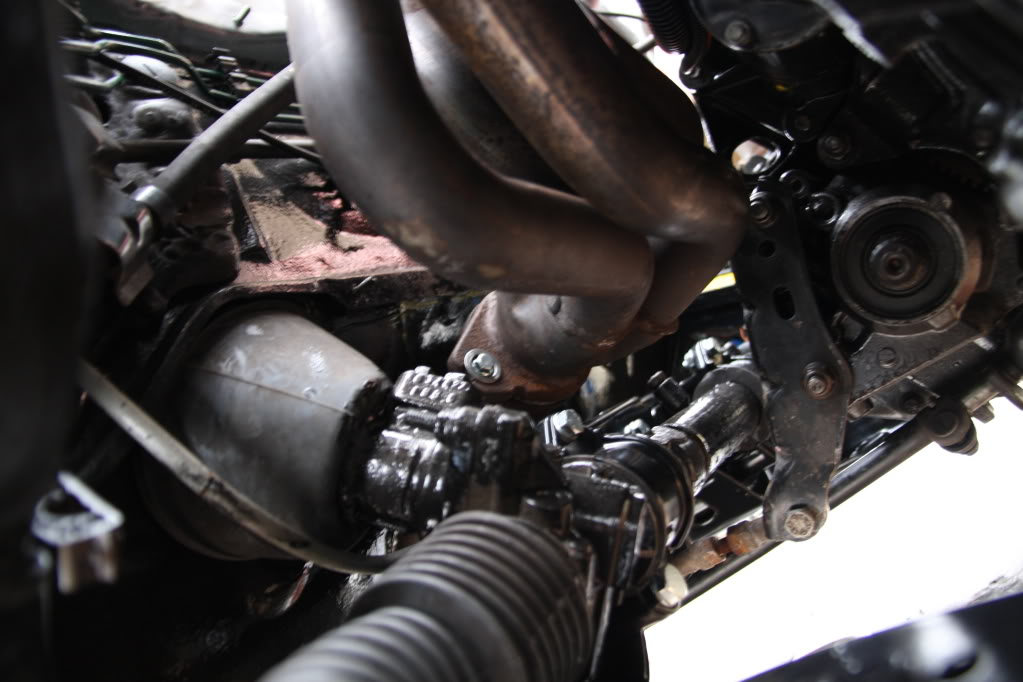

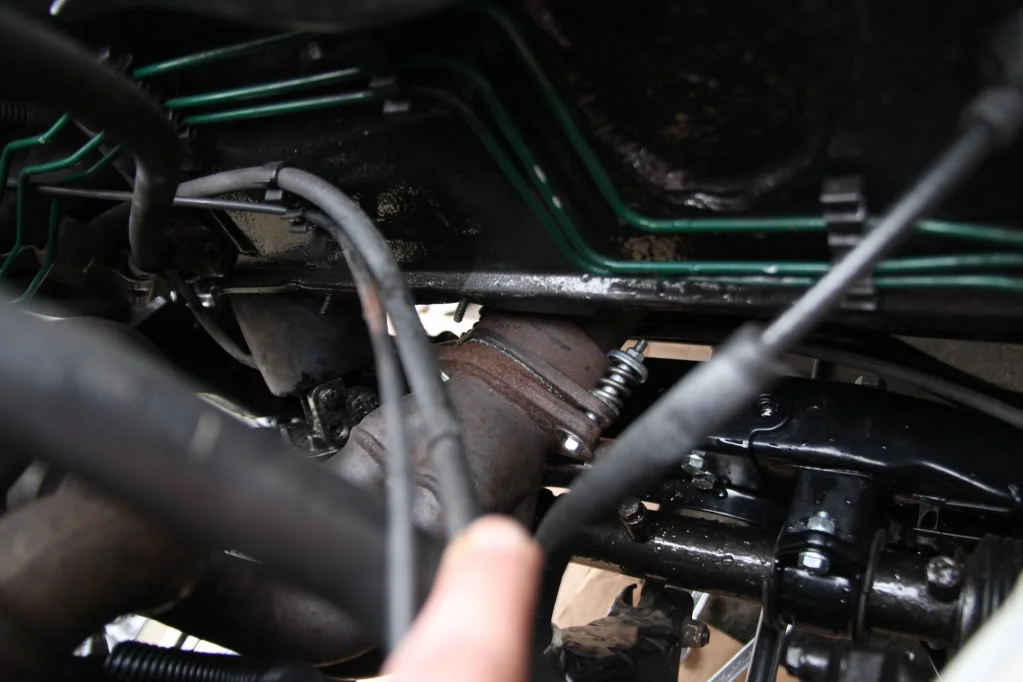

not much today, rain stopped play...downpipe + exhaust fully fitted. Adjusted the downpipe length so the exhaust fitted nicely, the downpipe fits through the subframe/bulkhead with room to spare both sides, and meets straight up with the exhaust.

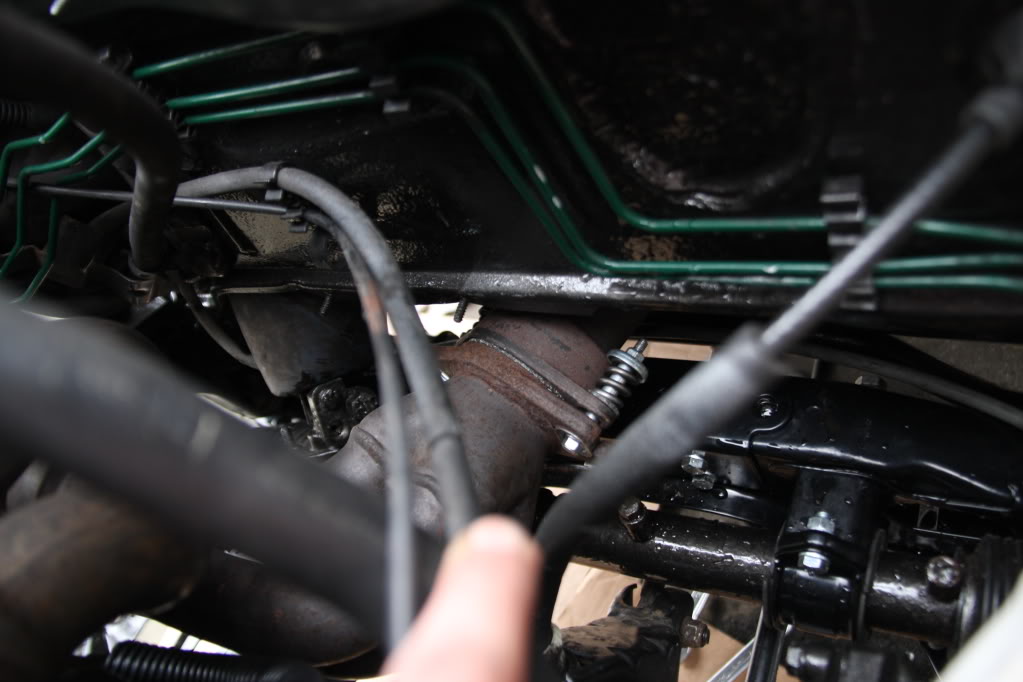

All that needs doing is the downpipe removing, and the sleeved part welding up, so its a solid one piece downpipe...Engine bay side:

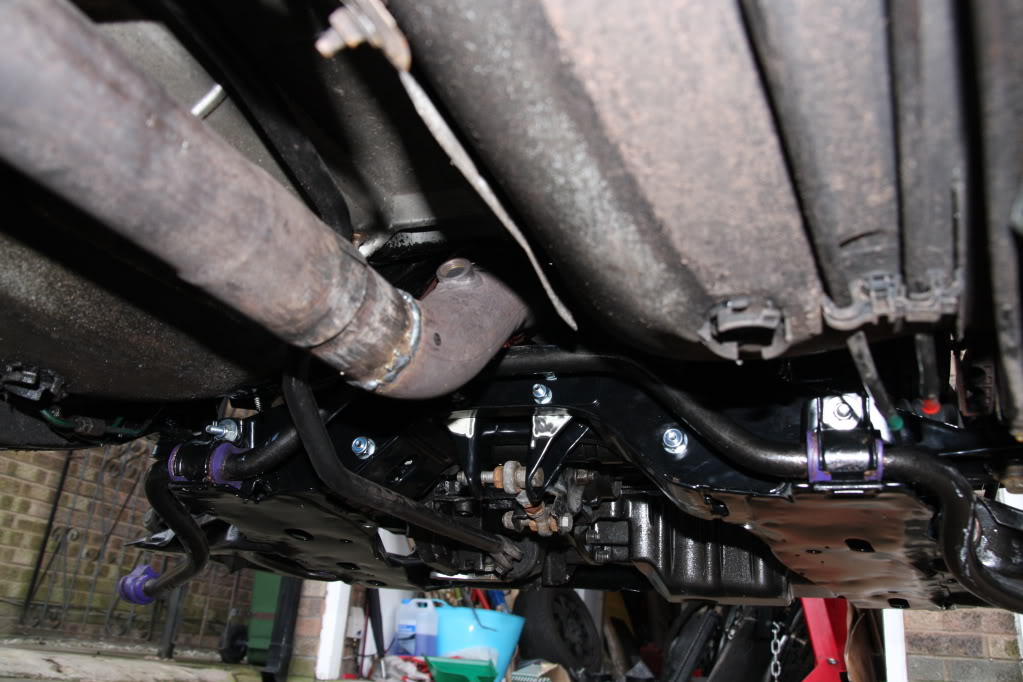

As it comes through...

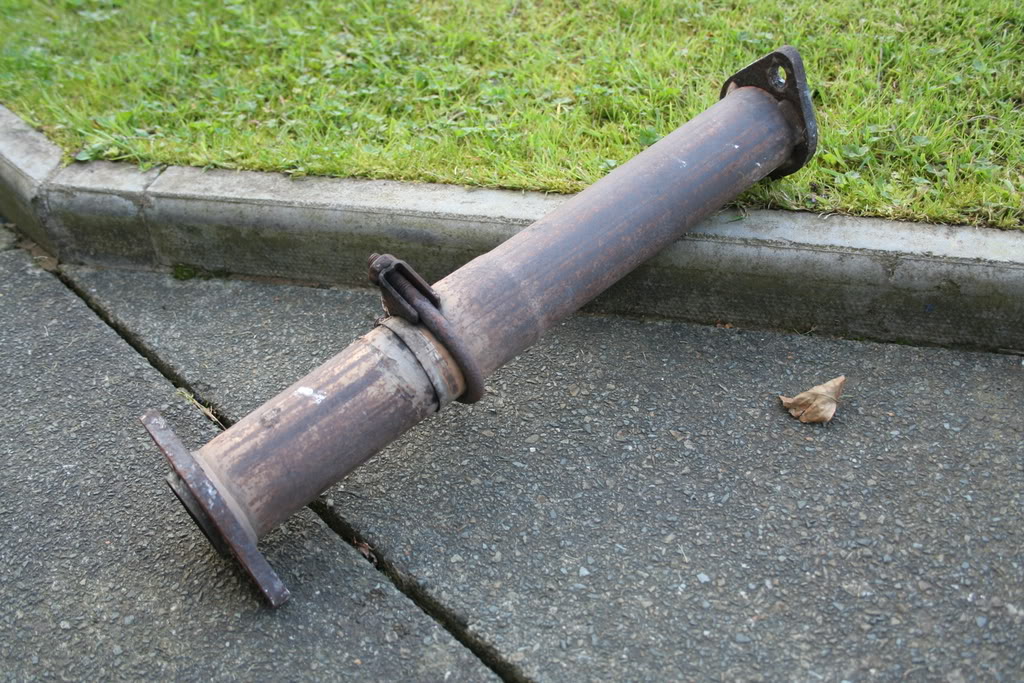

Joint is in the standard Mk1 exhaust position, so any Mk1 exhaust would fit straight on..





That was it really, not much else done, might try tidy up the wiring tommorow and try and start it....I hope anyway!

bendee

bendee

  Rb182cup+s2 rallye
Re: Mk1 Hybrid Project

more good work, you seem to get alot done in a short time you work short hours or not in a job?

Bluebeard

Bluebeard

ClioSport Moderator
  Whichever has fuel
Re: Mk1 Hybrid Project

Jordan my love, you got any pice of the manifold/downpipe un fitted???

Pweeese???

Bluebeard

Bluebeard

ClioSport Moderator
  Whichever has fuel
Re: Mk1 Hybrid Project

I seen that!! I just wanted to see.

Was it just made up of bits from a 172 mani??

F

f0xy

Re: Mk1 Hybrid Project

172 manifold was left as standard, then i cut the downpipe off the standard 172 cat (ph2 cat though iirc, ph1 has two seperate cats or something?)

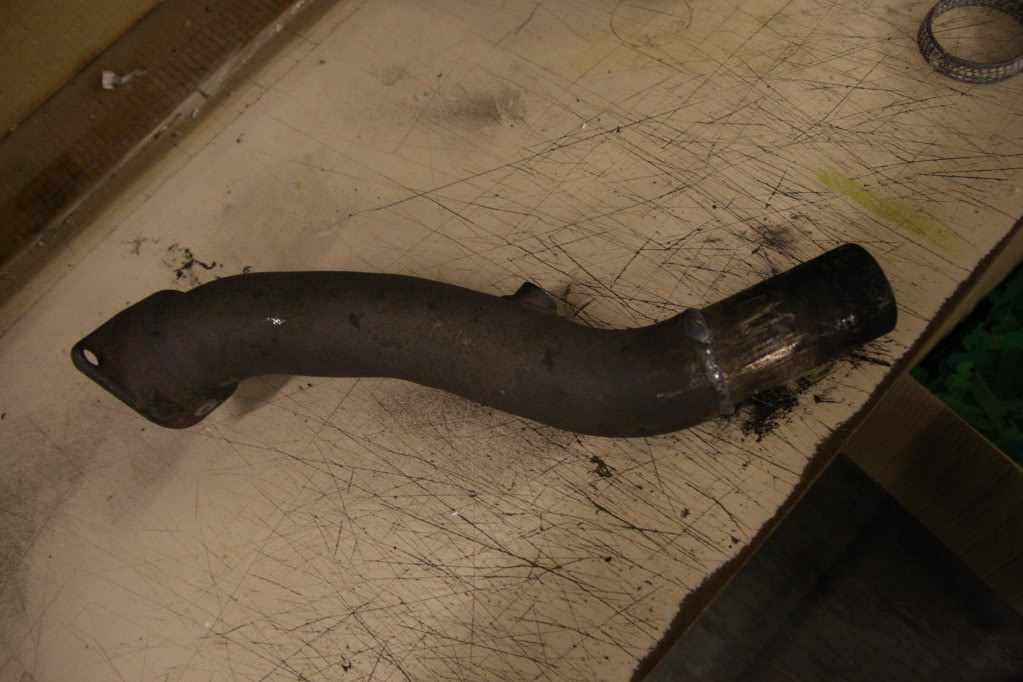

then got a 2.5" bore decat (same as downpipe bore) and cut one flange off....then welded a short piece on, in the correct direction...

fitted to the car, slid the other piece over, checked length with the exhaust fitted, then welded that up, so now its a solid downpipe :)

Christopher

Christopher

ClioSport Club Member
  Z4M
Re: Mk1 Hybrid Project

You said that about the last one! ;)

Fingers crossed dude... will call you on my lunch

J

JD

Re: Mk1 Hybrid Project

mate tell me when you are firing this thing up, i need to get out and see it, i am away this weekend but must come round next week after work!

jamie
