  Stage 2 172 Turbo
Update time again, Had a few hours on the car today. plan was to see if we could get the engine to a point where it was ready to drop back in the car but couldn't find the torque settings for the flywheel bolts anywhere, this then meant we couldn't fit the clutch and gearbox:( .
Did get a fair amount done though and will only take about another 30 mins once I have fitted the flywheel.

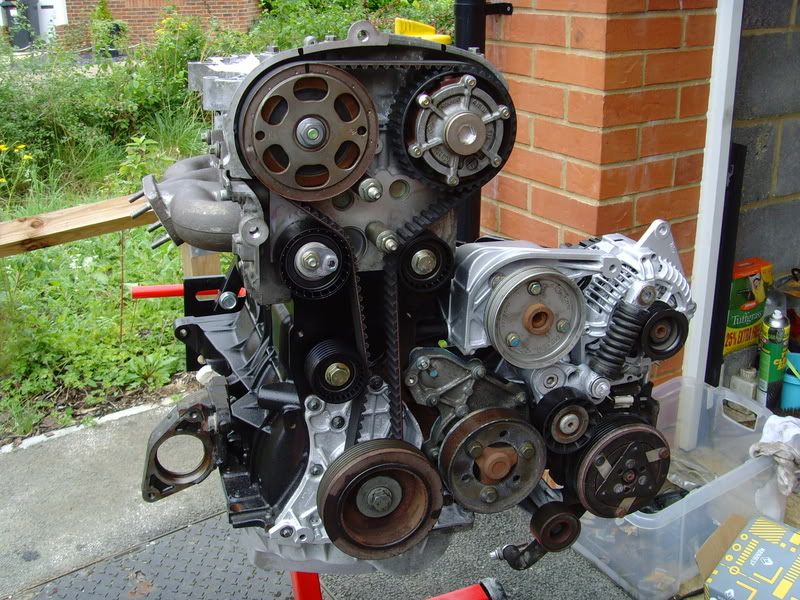

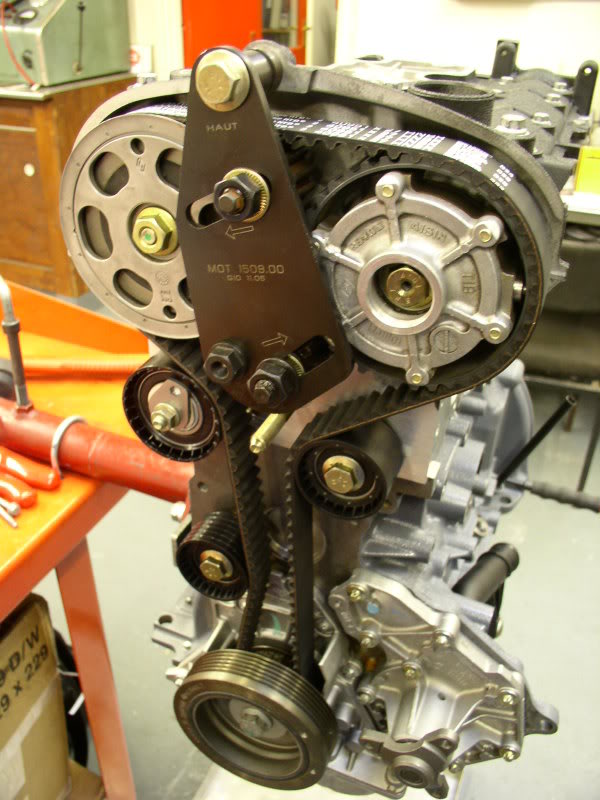

Started today by fitting the camshafts,new cam belt,cam cover and timing the whole engine up, hate doing timing but it all went smoothly.

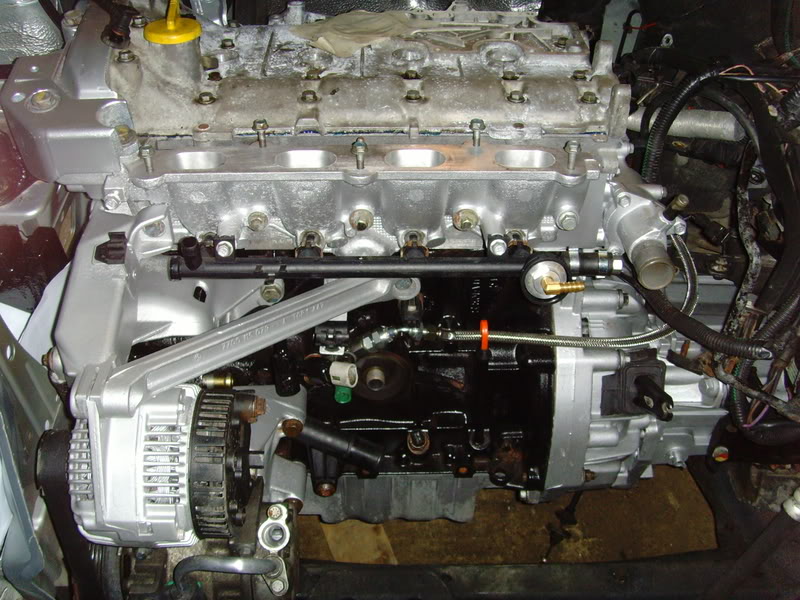

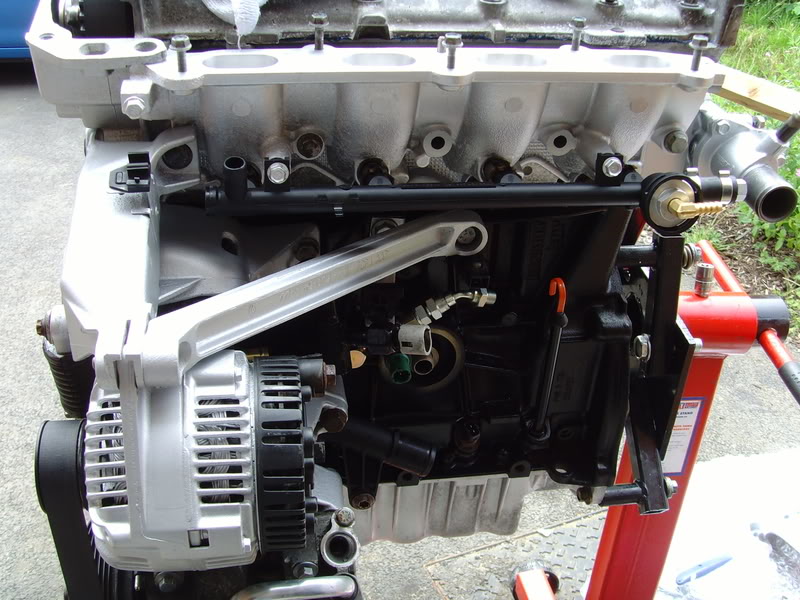

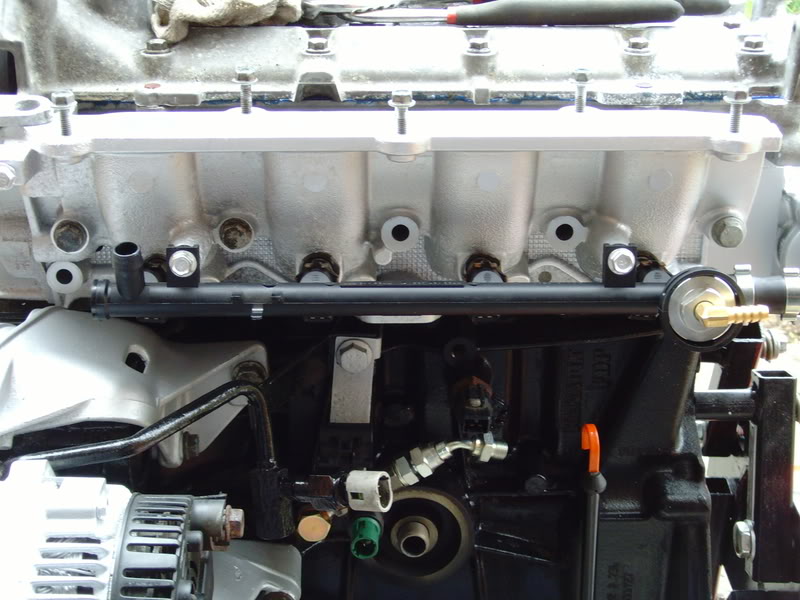

Once that was done I painted and fitted the lower inlet manifold with the modified fuel rail and uprated injectors

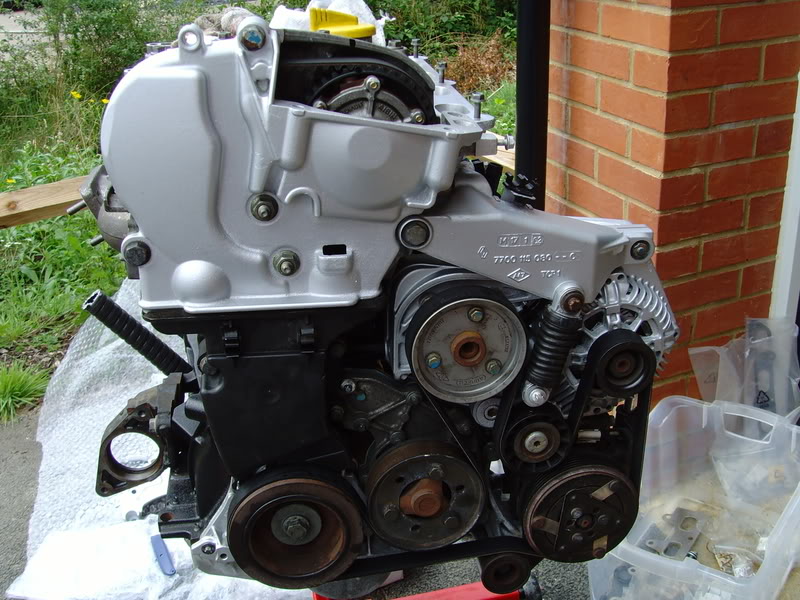

Next was the cambelt covers, alternator bracket and poly v belt

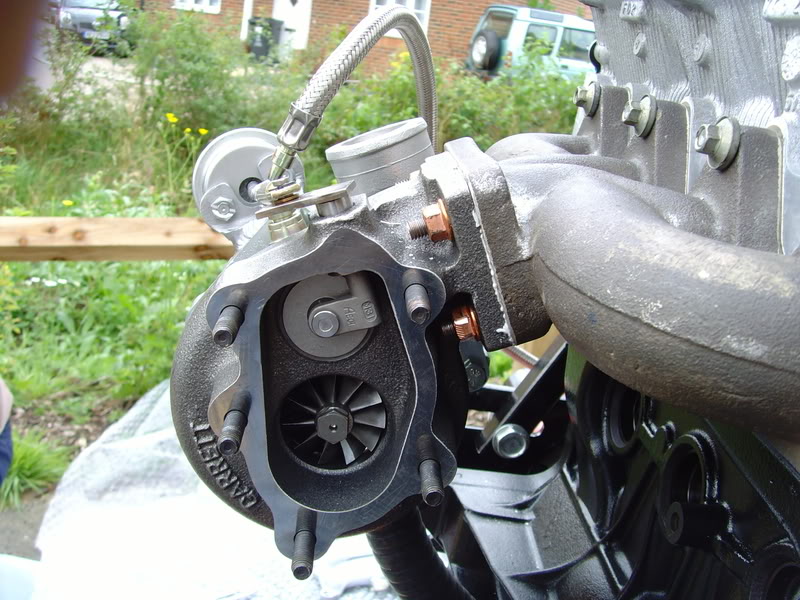

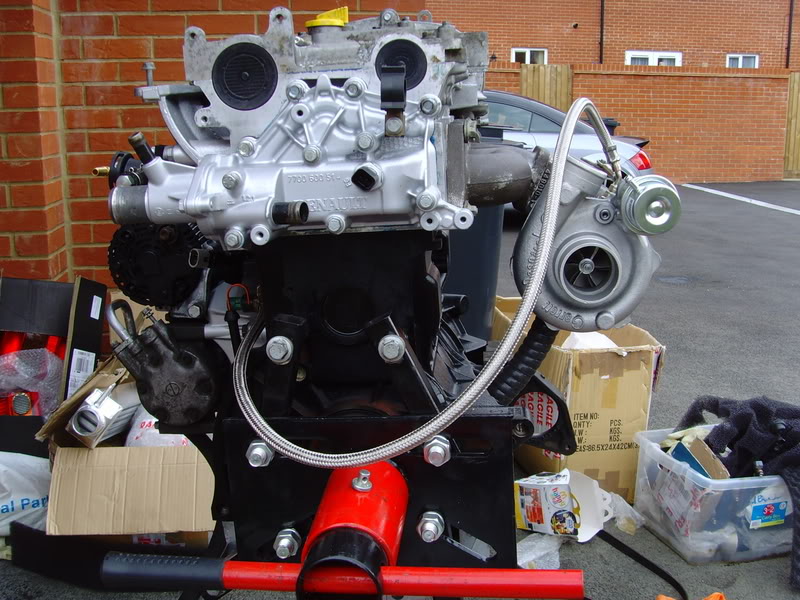

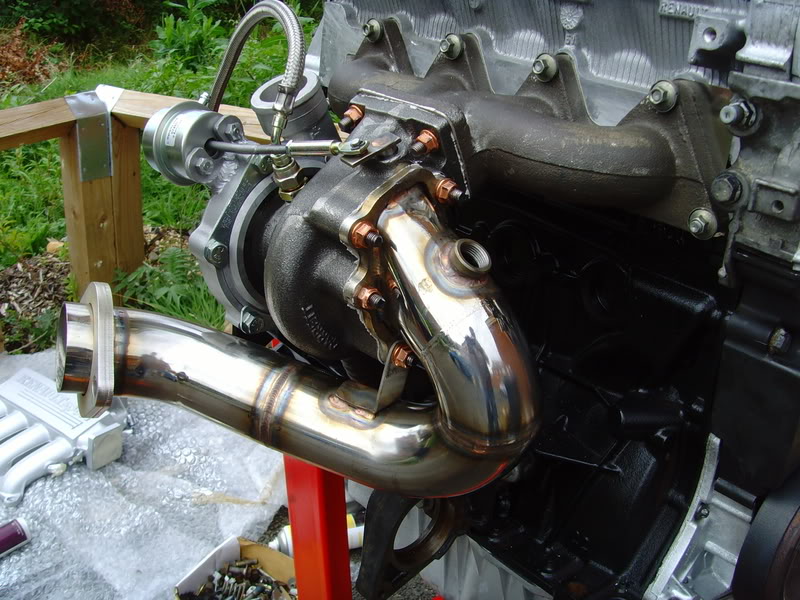

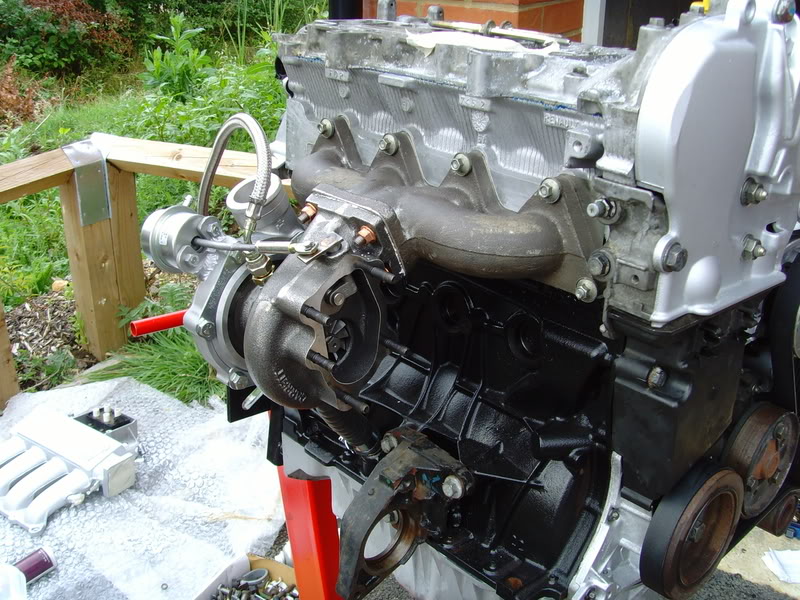

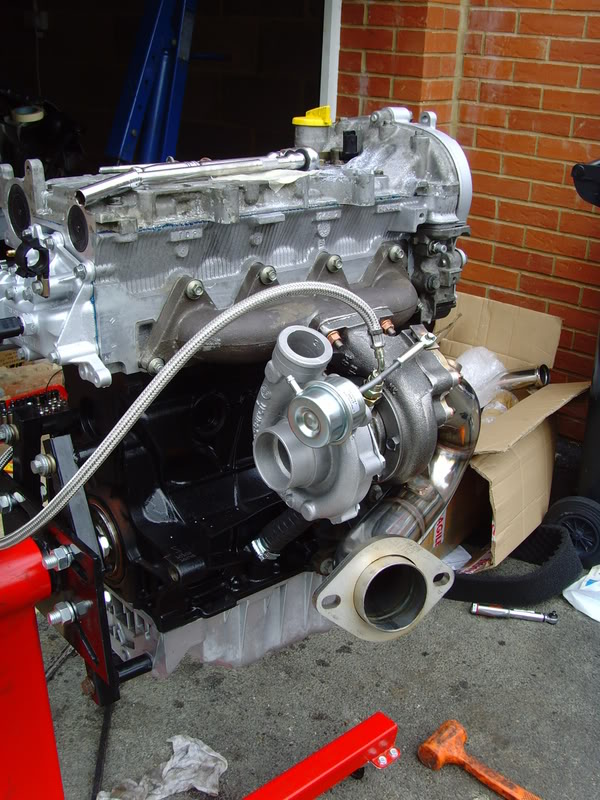

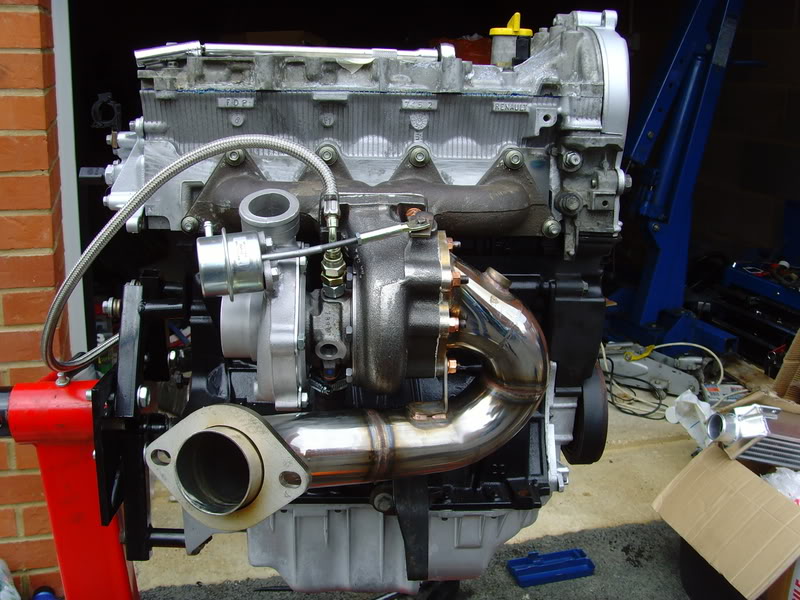

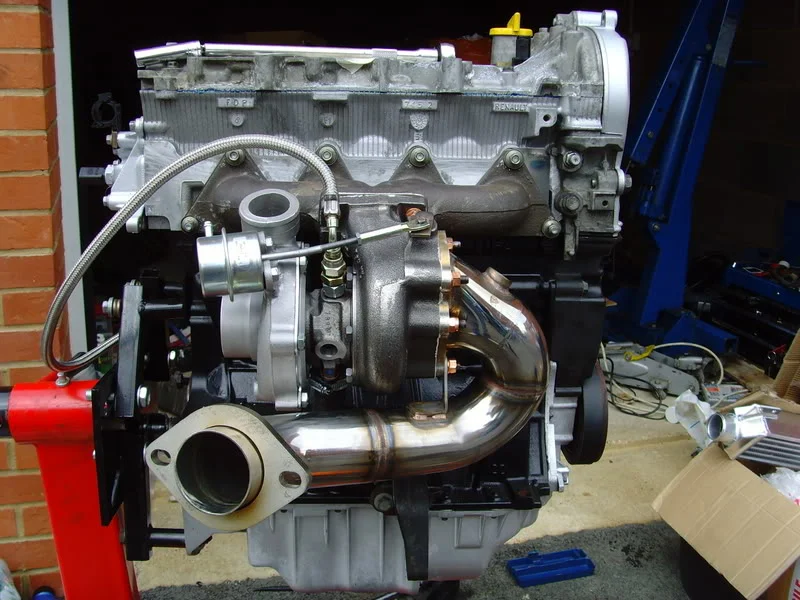

Saved the best bit til last, fitting the turbo and down pipe:cool:

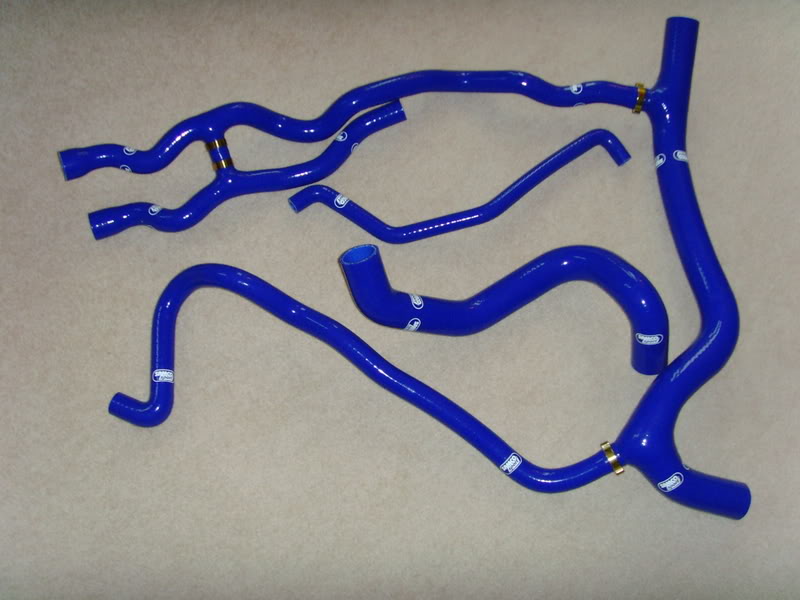

These turned up the other day too.



Hopefully will get over to work on the car again Friday night, will defo get the engine and gearbox built back up and finished and will try to at least get it back in the engine bay (famous last words!!):eek:

Thanks
Chris


Flat Eric

Sing Hosanna!!
ClioSport Club Member
  F31 35d, Berlingo Na
it dusnt look amazing, it looks lush!!!
get the dump valve on the go aswell, hehe
cnt believe the power ur clio will have when finished. lucky for some ey, heres me with me 1.2

  Qashcow
great project btw, keeping a close eye on it. love tubby applications on cars that they dont live on as standard

A

ashy_gtt

Looking good :)

Just a couple of q's, whats the clearance like between the downpipe and master cylinder? We were trying to manufacture a similar downpipe for a 225 engine in a R5 and the stock manifold was in a similar position but there was no clearance at all, maybe theres more room on the clio?

Also what injectors are you using there? Are they Pico's as you seem to be using the stock fuel rail? also did you buy the rail with the modified regulator or is it something you've sourced yourself?

Very interesting project tho, should go well :)

What sorta boost are you planning to run?


Darren S

ClioSport Club Member
Just spent my dinner-hour munching food and reading through this thread. Such a great read! That block looks so clean and pristine after the paint job, it's almost a shame to get it dirty again - lol!

Great work Chris - keep us all informed as to any updates. :)

Also, that Corsa looks none too shy either. Apart from the tell-tale I/C at the front, you'd never suspect that it was anything special. If it was mine, I'd try to hide/minimise the sight of the I/C - make it proper sleeper!

D.

  Clio 172 mk2
Great thread, the attention to detail is spot on

As above with the dump valve....re-circ FTW and catching out unsuspecting M3 drivers:D

  White Sti Hatch
No dump valves itll ruin it !!!

Looks like its going to be one mad machine once its all in place mate gd luck with it !


Ali

  V6, Trackhawk, GTS
Awesome. A few so called tuners on here should take notes on attention to detail!!!

  '51, 172
welll impressed with this thread, cant wait to see the finished product, keep up the good work!!!

  Golf GT TDI, IS220d
Top thread mate, love it! Carn't wait till the lumps in and running. Keep up the good work :)

  Stage 2 172 Turbo
Looking good :)

Just a couple of q's, whats the clearance like between the downpipe and master cylinder? We were trying to manufacture a similar downpipe for a 225 engine in a R5 and the stock manifold was in a similar position but there was no clearance at all, maybe theres more room on the clio?

Also what injectors are you using there? Are they Pico's as you seem to be using the stock fuel rail? also did you buy the rail with the modified regulator or is it something you've sourced yourself?

Very interesting project tho, should go well :)

What sorta boost are you planning to run?

Don't know about the master cylinder clearence until the engine is back in the car, will get some pics of it as soon as its in for you mate but think it will be fine.
Injectors are magnetti marelli one's supplied by k-tec as part of the conversion,unsure of the rating though, sorry:eek: . The fuel rail was also supplied by k-tec, it is a standard Renault part with the regulator adaptor fitted when I got it.

Hope this helps, if there's anything else you need let me know and I will get pics for you

  Stage 2 172 Turbo
No dump valve guys,
had one on my cossie 6 years ago and loved it but think it would do my head in now!! Also keeps it more of a sleeper which it what i'm after with this car

  MK3 D.Sport, 2.0 HDI Van
amazin, obviously i know nothing about engines but the detail you are putting into this car is amazin, cant wait to see it completed! keep up the good work!

  e92 + E46 M3 + Cup
This is looking ace mate, nice work on re-painting all the engine bits, your not going to be able to drive it when your finished, every thing looks so shiny & clean :eek: lol

  Stage 2 172 Turbo

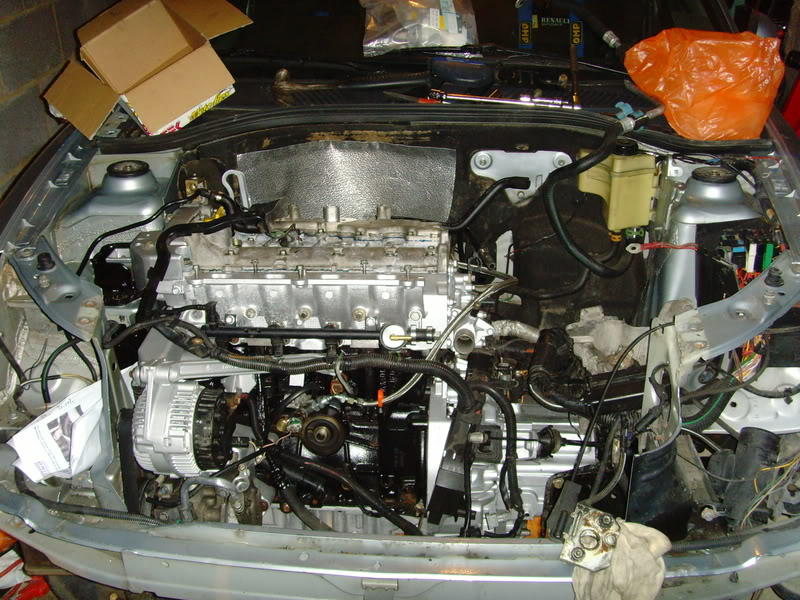

Finally got the engine back in the car on Friday night:D , been a long time coming but feels like we're getting there now.

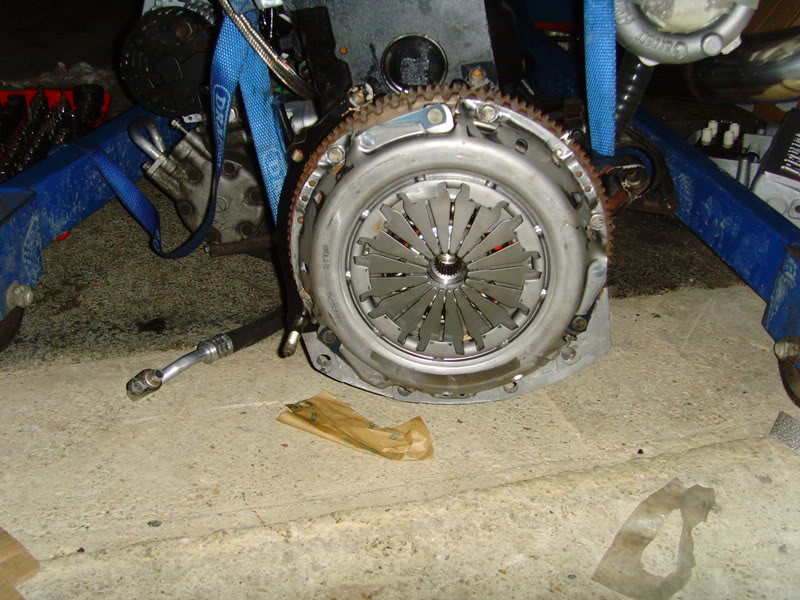

First up was fitting the lightened/balanced flywheel and paddle clutch after finding the tightening torques in the end!!

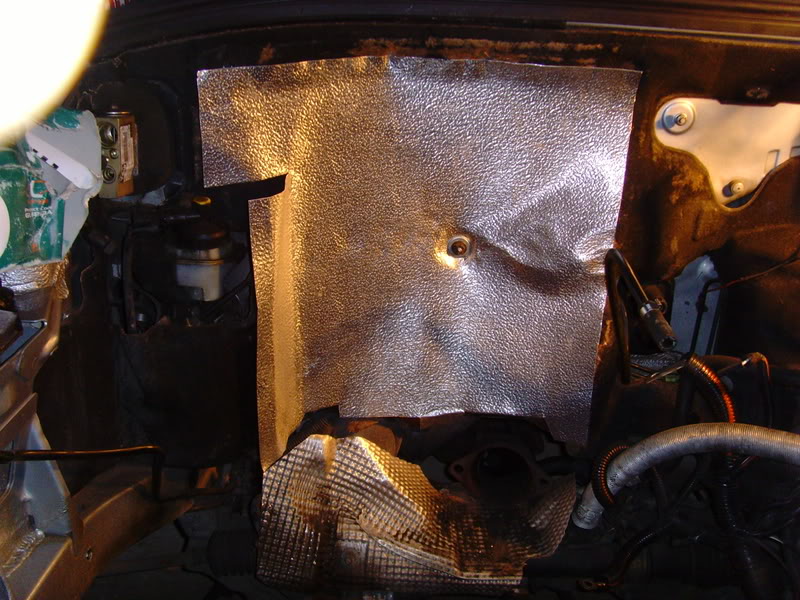

had to make a heat shield to protect the bulkhead and brake system, still needs a lot of tidying and finishing off but wanted to get it fixed before the engine went in.

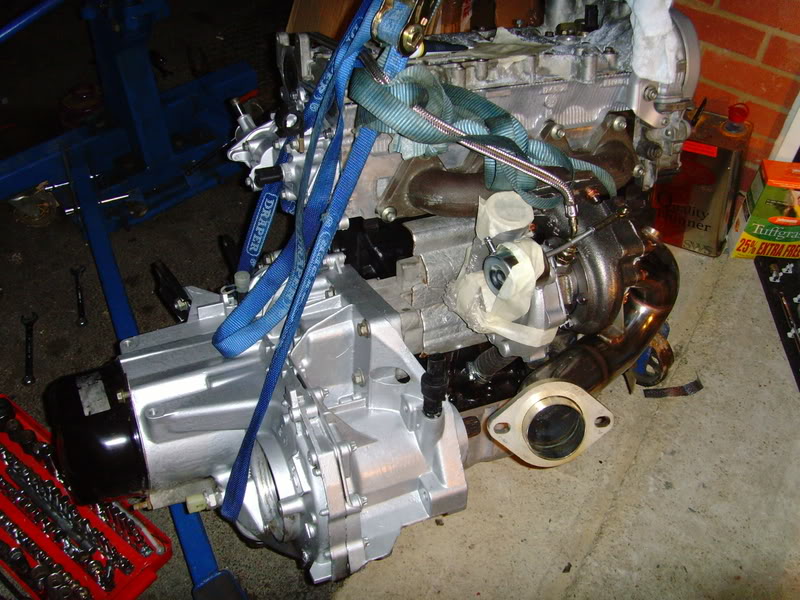

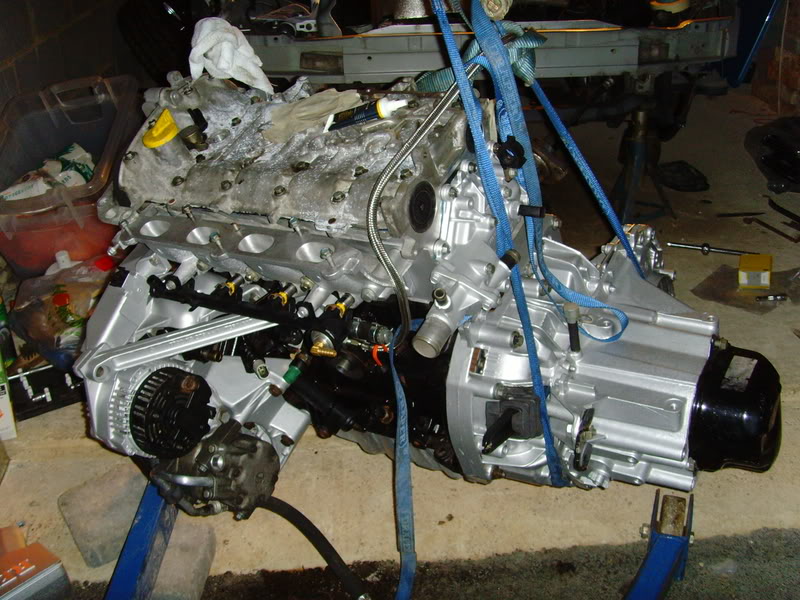

Last thing to do before dropping it back in the car was to fit the gearbox and starter motor. Excuse the tape and bubble wrap all over the turbo, it's all I could find to keep the dirt out:eek:





Then came the fun bit, it actually went quite well but did take a bit of persuasion to get the gearbox end casing past the chassis rail and pas pipe/wiring etc. Got there in the end ( at about midnight, mates neighbours must love us!!!)

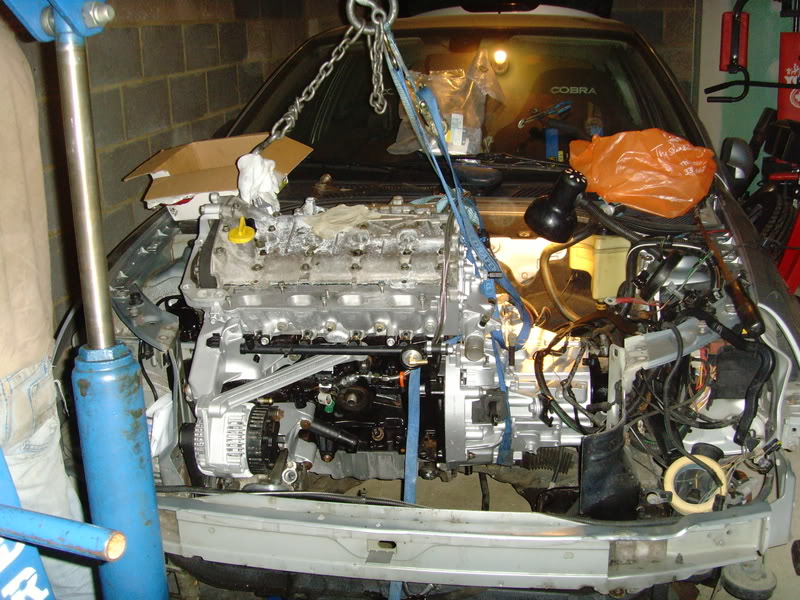

Going back in

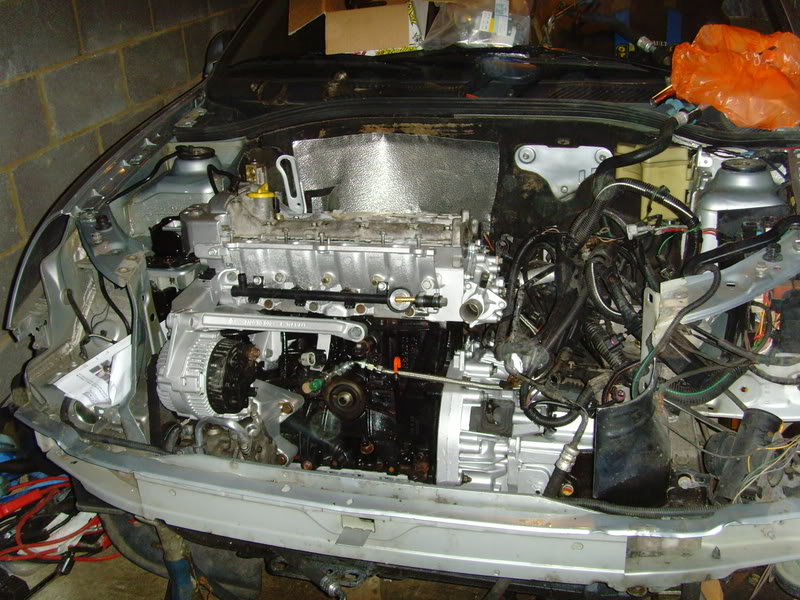

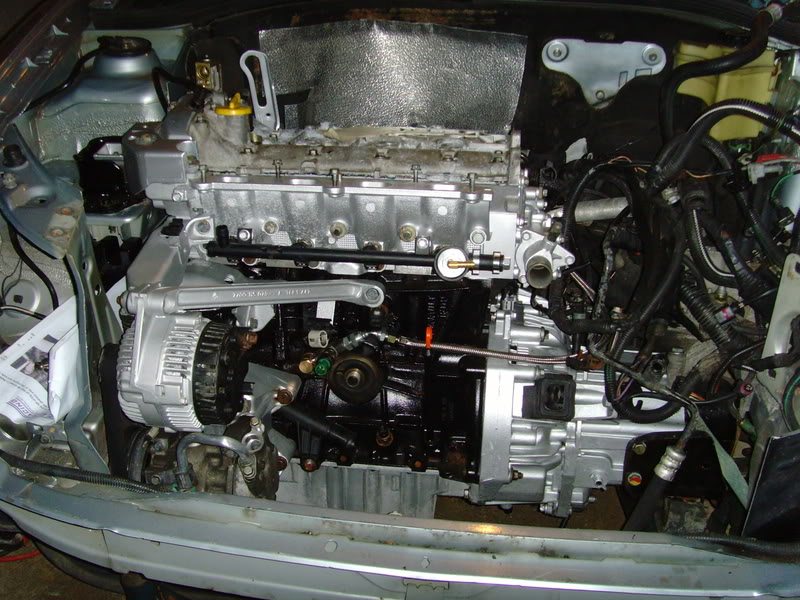

Back in the hole:clap:

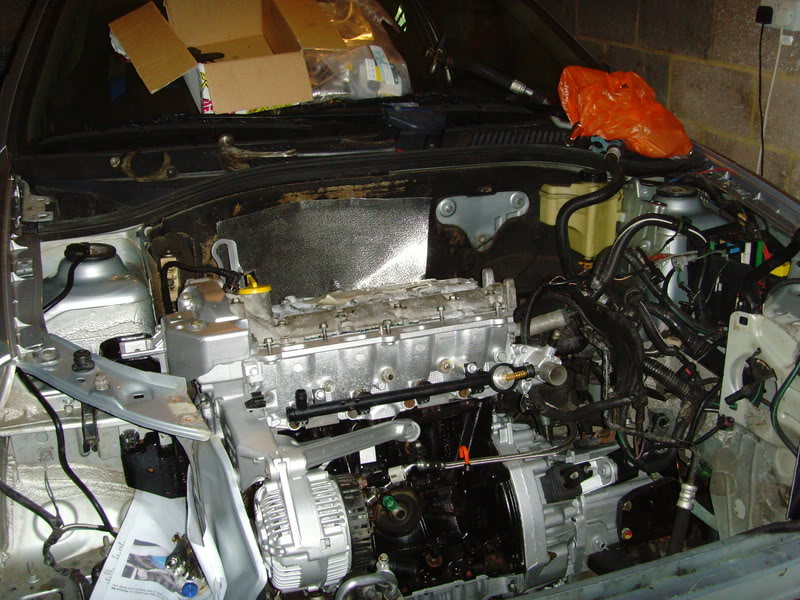

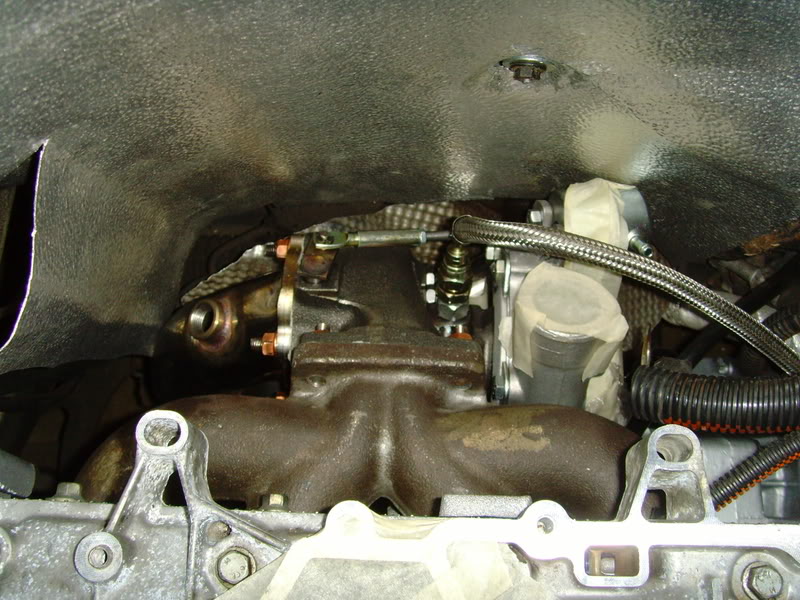

Can see how tight it is down the back now!!, heat shield will need tweeking to move it away from the wastegate actuator and downpipe but very pleased so far.
