Batesey's cup turbo



batesey

ClioSport Club Member
  172 Cup Turbo
Bullets from the group buy are here :)

Also bought a gt3076 turbo with internal wastegate ;)

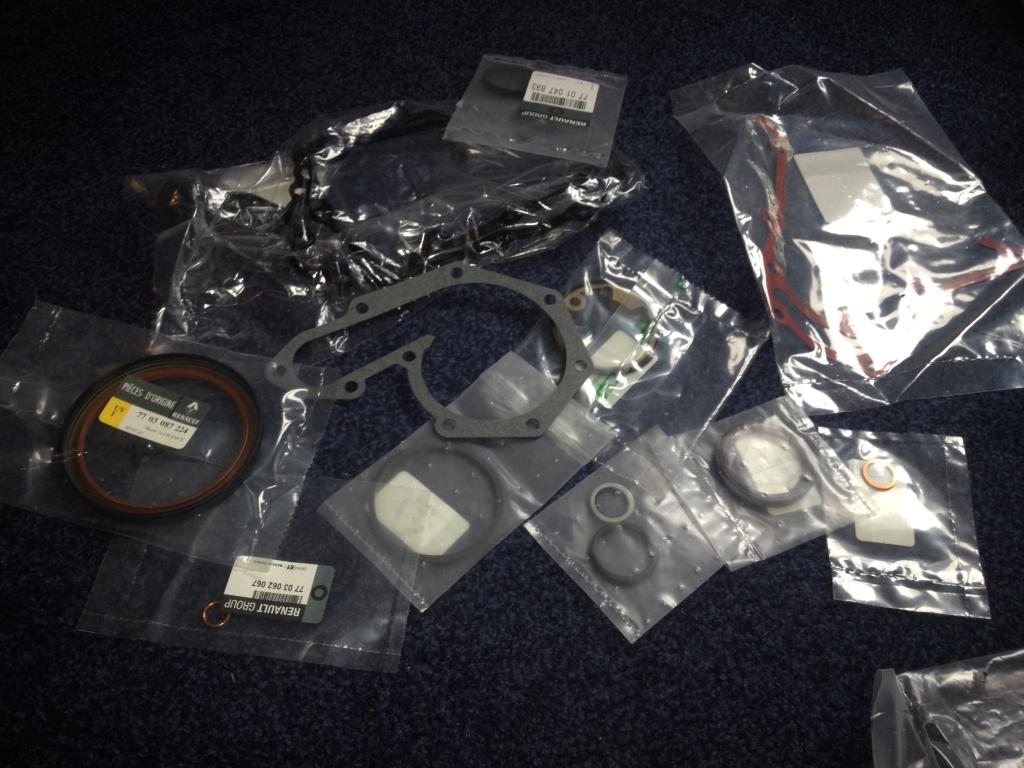

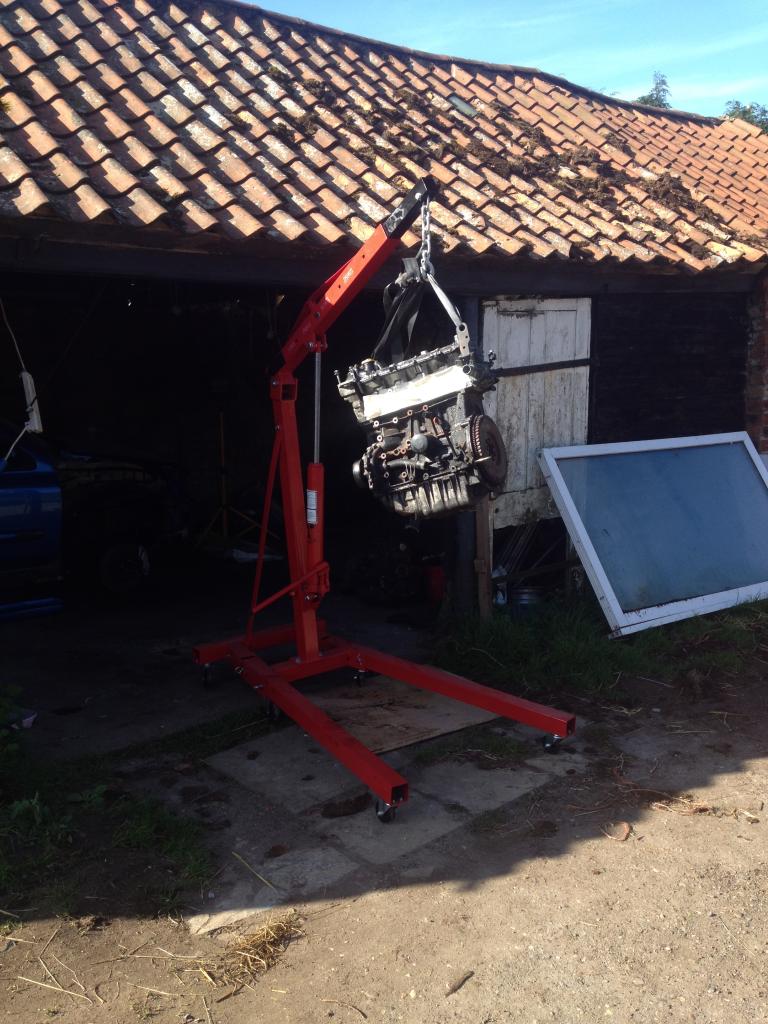

Head seal and gasket kit is here, and the engines coming to bits tomorrow to take out early next week :)


Bug

  Megane rs250
I love your clio mate, wish I could afford to turbo mine
Sounds epic, got any in car vids?


batesey

ClioSport Club Member
  172 Cup Turbo
I love your clio mate, wish I could afford to turbo mine
Sounds epic, got any in car vids?

Sadly I don't mate, the car is now off the road too, PS pump is whining, alternator is broken and I need to crack on.. when its done im going to have in car camera's :)

  Passat TDi
Really nice car mate Andyrg currently has my cup and is working his magic on it should be very similar spec engine wise when its done!


batesey

ClioSport Club Member
  172 Cup Turbo
Haha looked good on yours so had to do it :) yeah 350-400, it's a gt30 with gt28 exhaust housing so won't be massive power but I hope will reduce lag but at the same time have a big punch :)


batesey

ClioSport Club Member
  172 Cup Turbo
Lol I'll be fitted LSD with a circlip plate :) hopefully it will be ok if I don't launch it too much haha


batesey

ClioSport Club Member
  172 Cup Turbo
What difference does having a LSD diff and circlip have over a standard diff and box?

More grip basically, better around corners, I think less torque steer and less wheel spin, the circlip pops off easily and is a box off job so using a bolted in plate is the best idea

  Countryman JCW
More grip basically, better around corners, I think less torque steer and less wheel spin, the circlip pops off easily and is a box off job so using a bolted in plate is the best idea

I understand the benefits of a LSD from a performance point of view, but you made it sound like it might handle the power a little better and it last longer. I think at that power instead of spending your money on a diff for a JC5 box, I'd consider having the VAG box put on that Andyrg does... IMO of course

  Clio T 314hp c43 AMG
More grip basically, better around corners, I think less torque steer and less wheel spin, the circlip pops off easily and is a box off job so using a bolted in plate is the best idea

The circlip failure does not require the box to be removed, only the passenger driveshaft.


batesey

ClioSport Club Member
  172 Cup Turbo
Been working on her again today :)

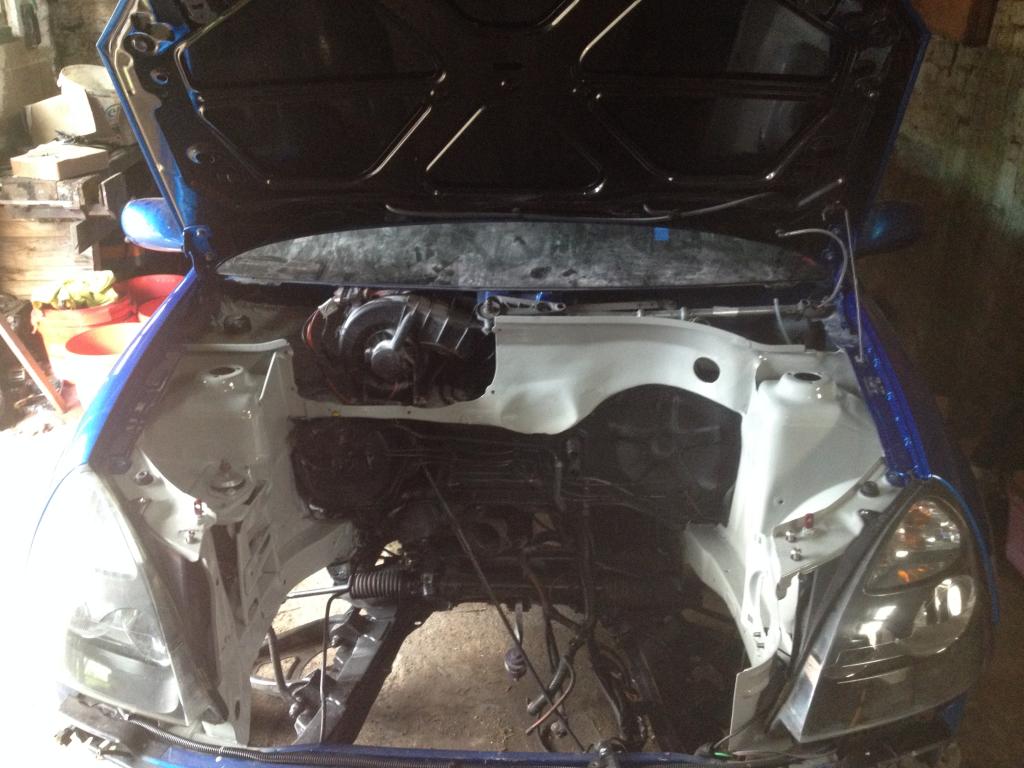

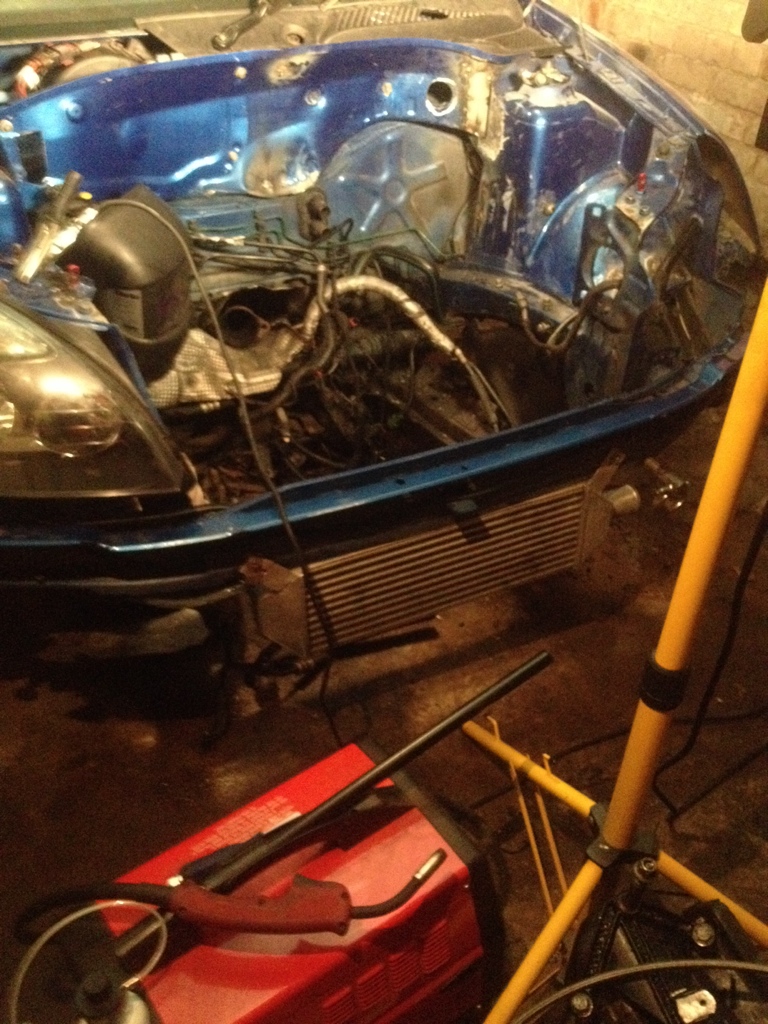

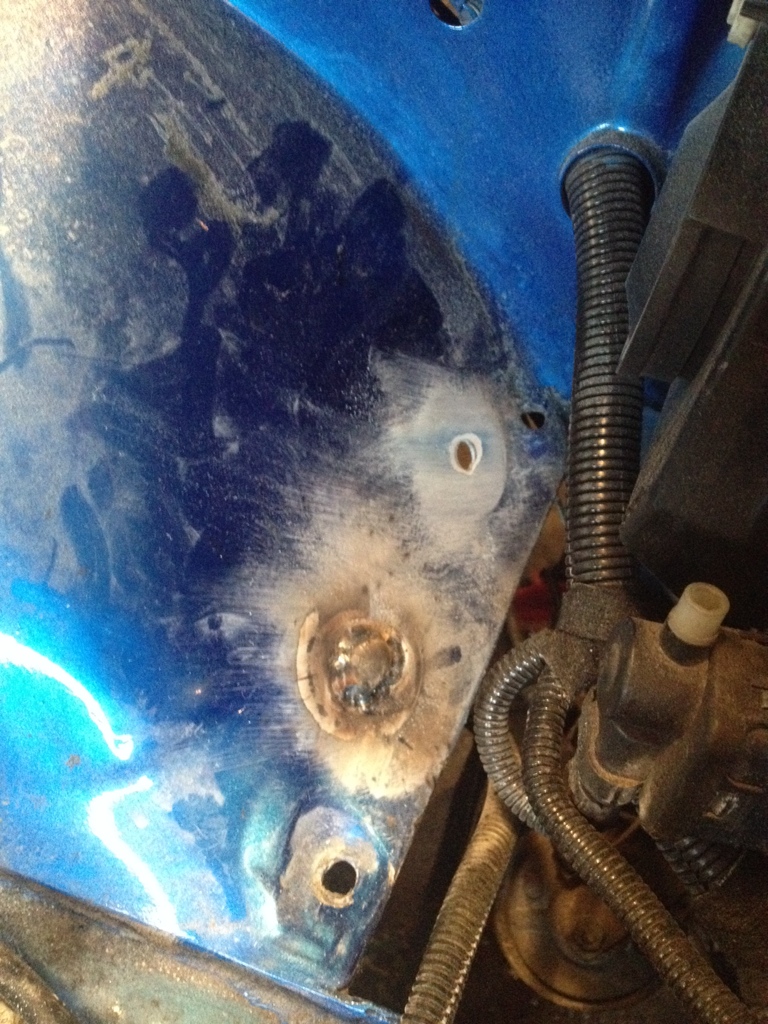

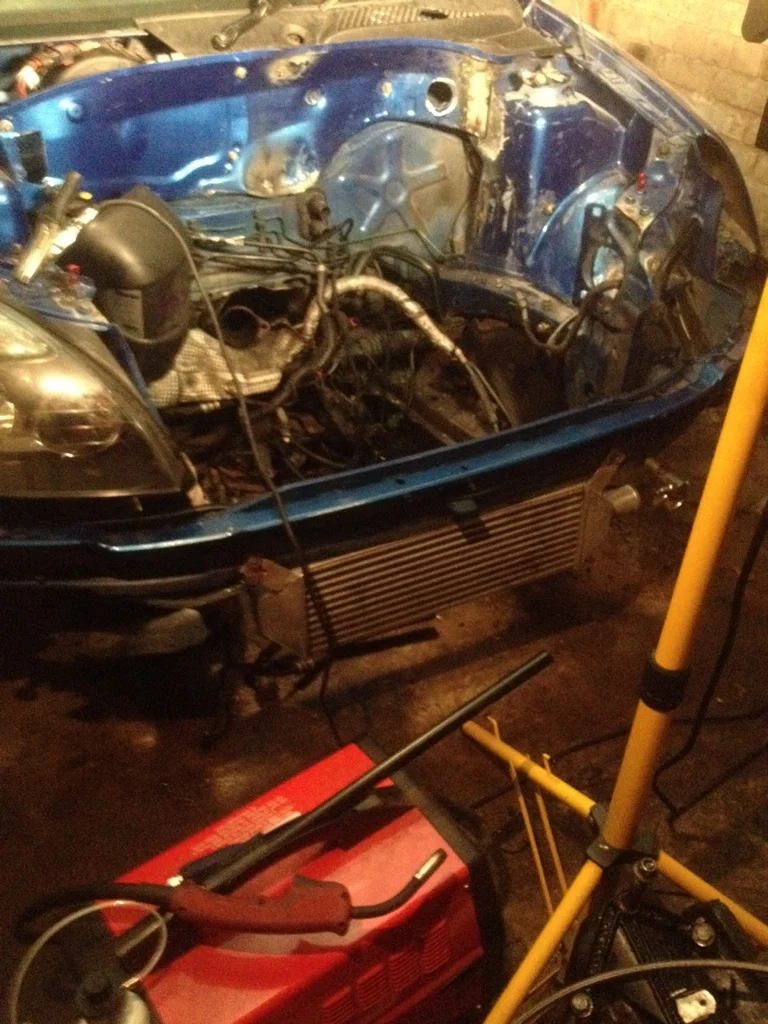

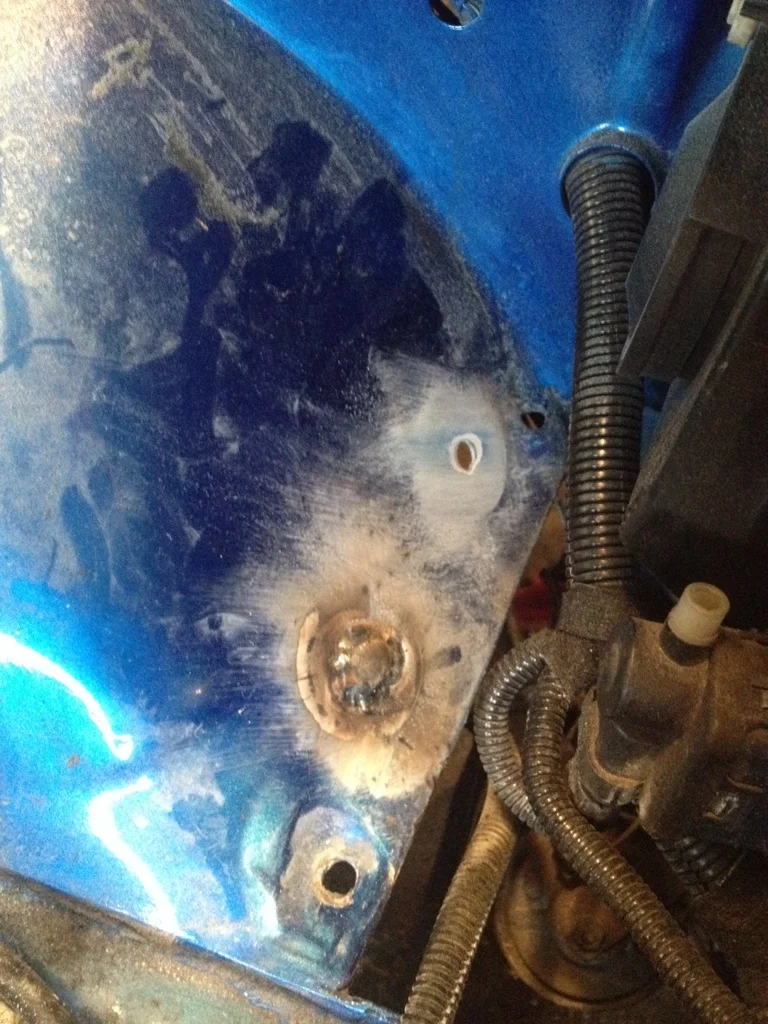

Welded up all the holes left in the bay I didn't want

Then carried on till gone 8 to get it done so I can start prep tomorrow ;)

More updates tomorrow :)


batesey

ClioSport Club Member
  172 Cup Turbo

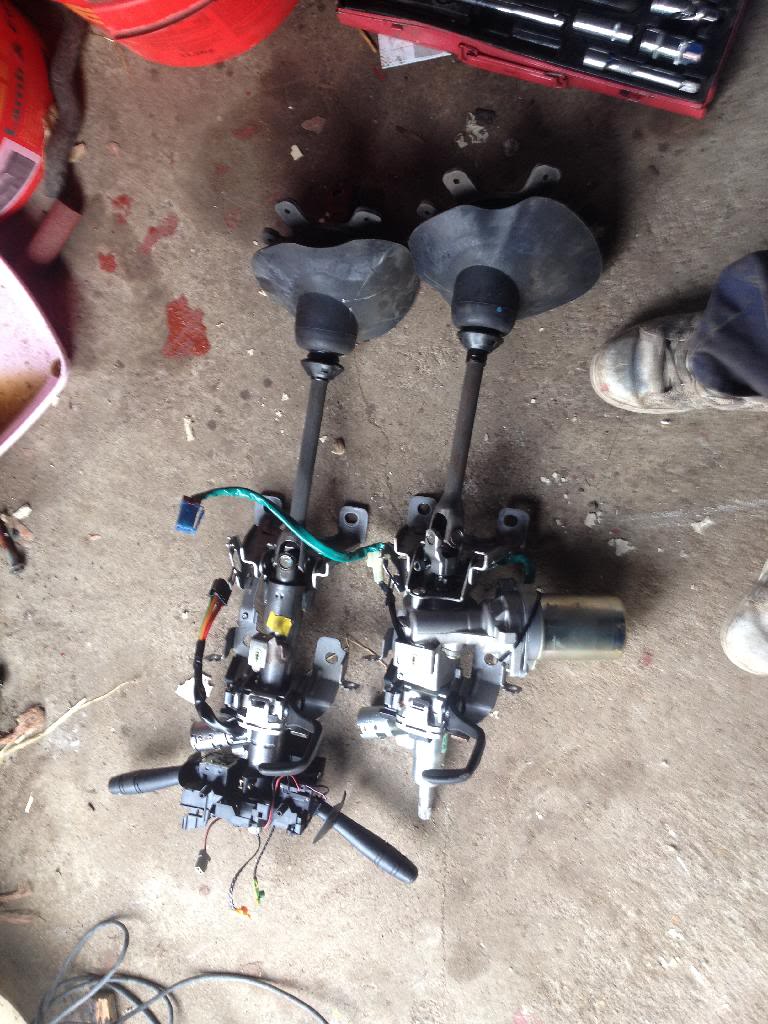

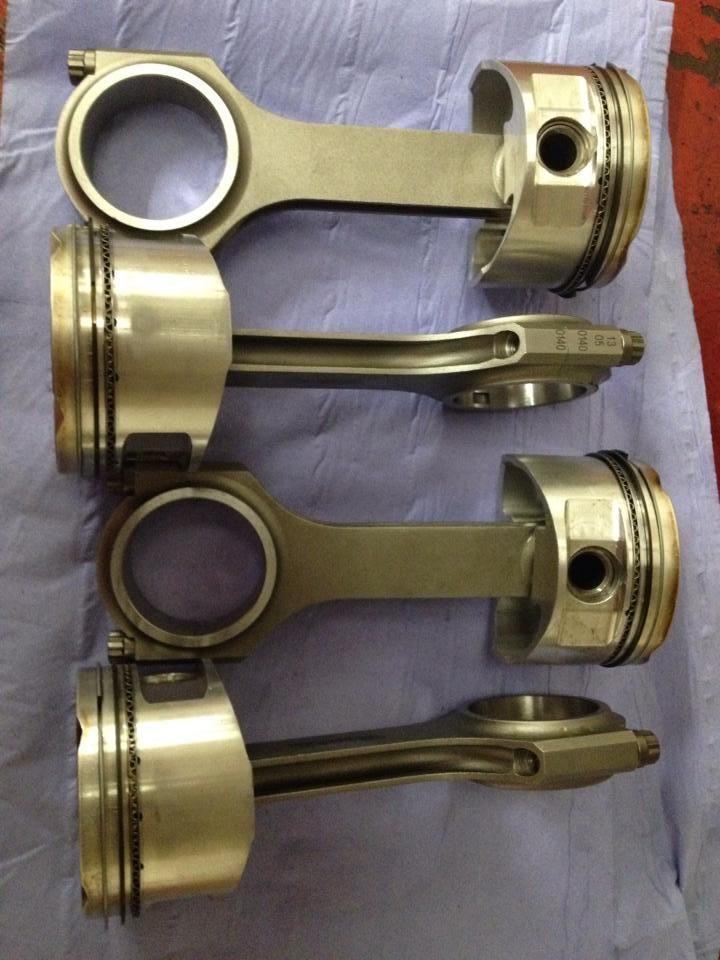

Not updated in a while, managed to get a few bits done but ive been working loads, started a new shift pattern at work and hopefully I will get more time now, mainly waiting on parts now too get the engine done...Its turning out to be quite a high spec engine,All seals, bearings, belts will be replaced, JE 9:5.1 piston, Forged rods, Paddle clutch, supertech valves and springs, looking forward to drive it now :DGot the EPAS column in place
Did the wiring today which is one thing I hate but I got there in the endAlso the bay is nearly ready for paint now
Going to spend a bit of time getting it ready for paint tomorrowAlso was in this months PFC again :)Not too many pictures as my photobucket is being gay :(


batesey

ClioSport Club Member
  172 Cup Turbo
Done a few more bits on cup,

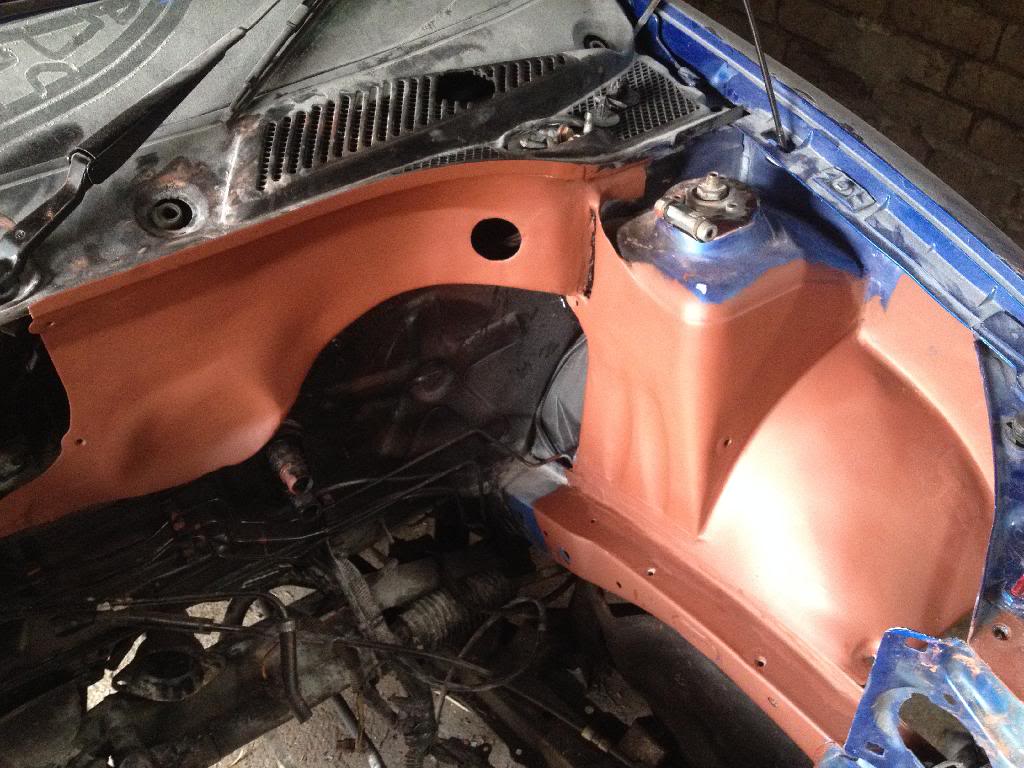

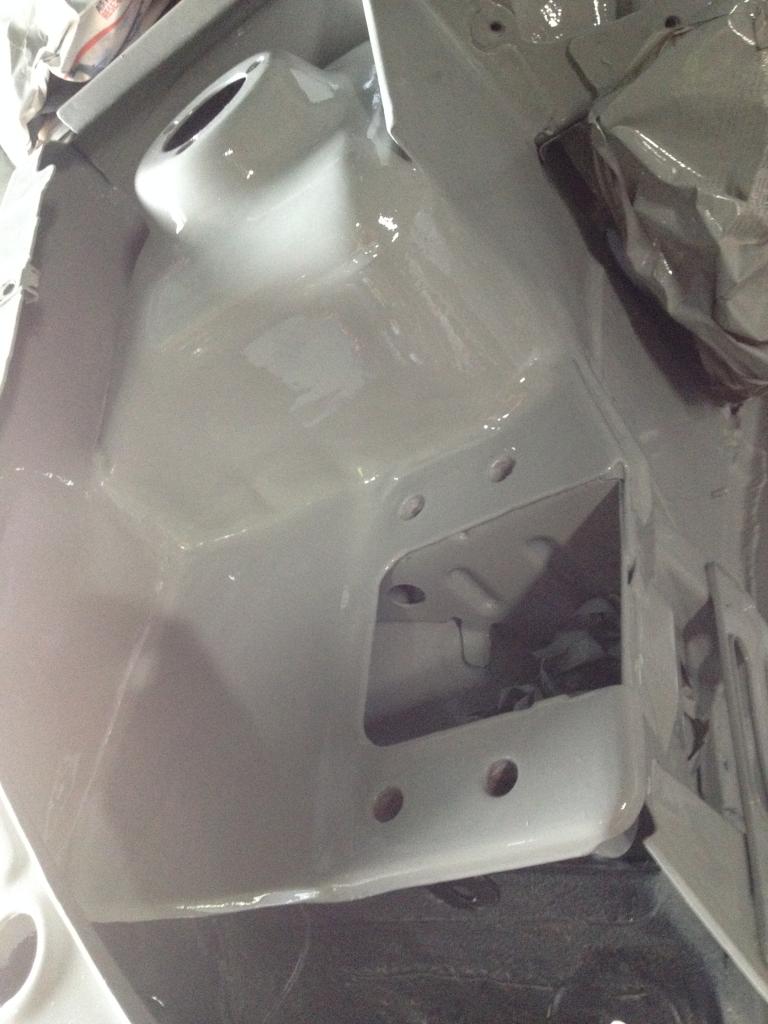

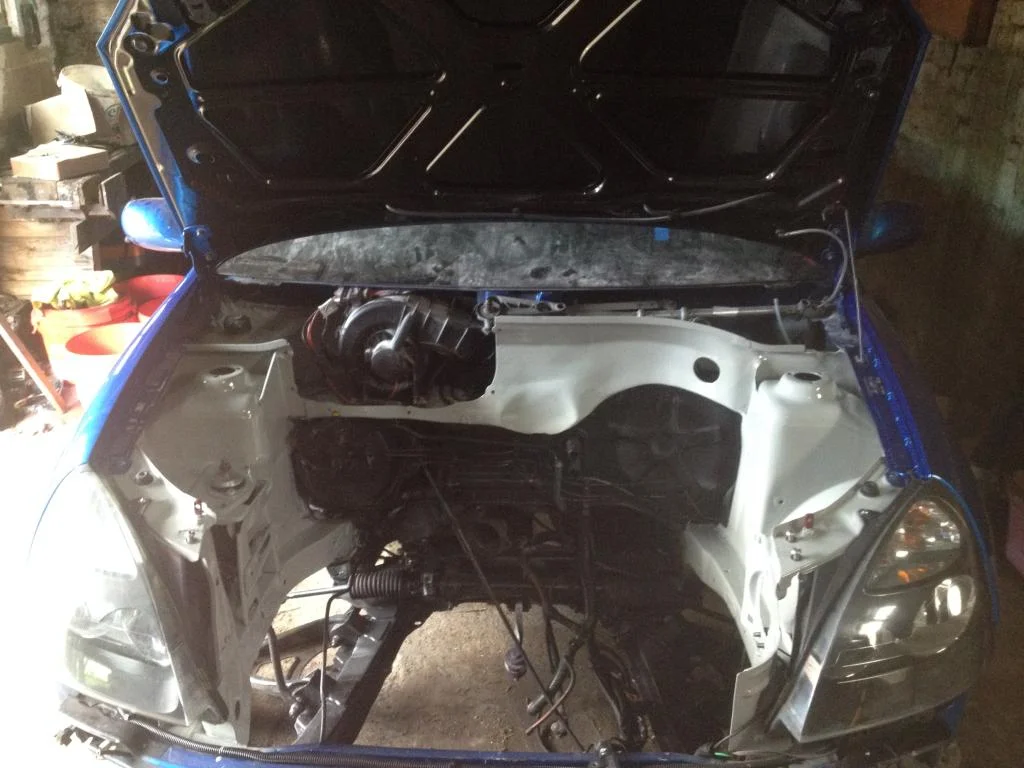

Prepped/smooth even more on the bay ;)

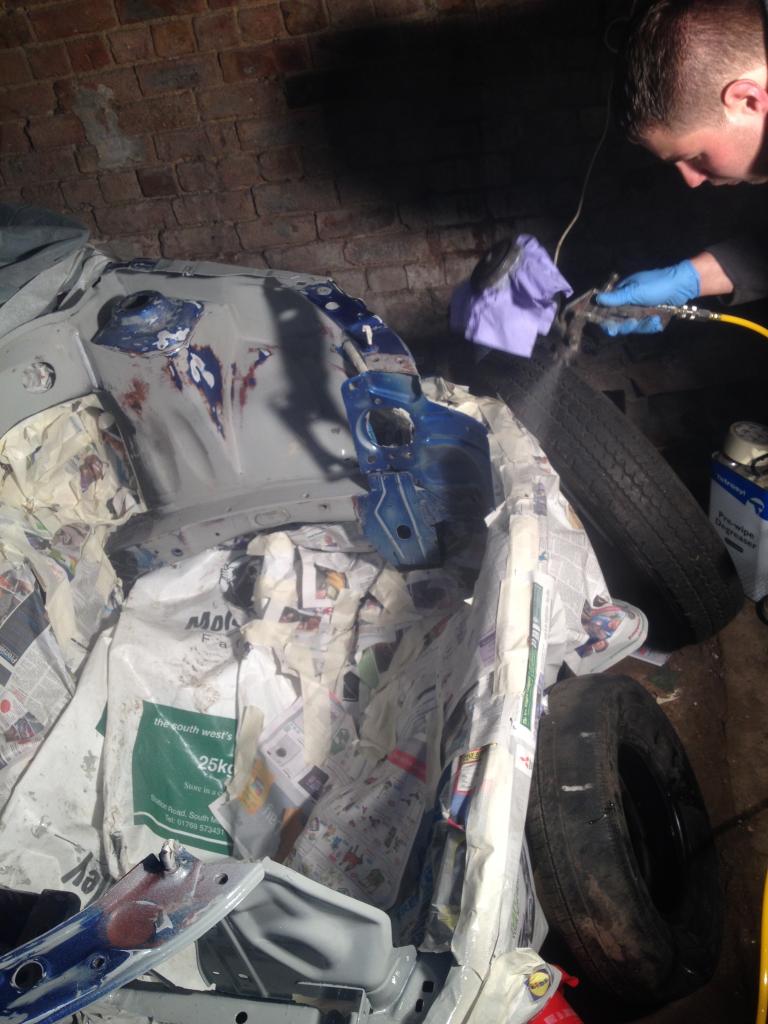

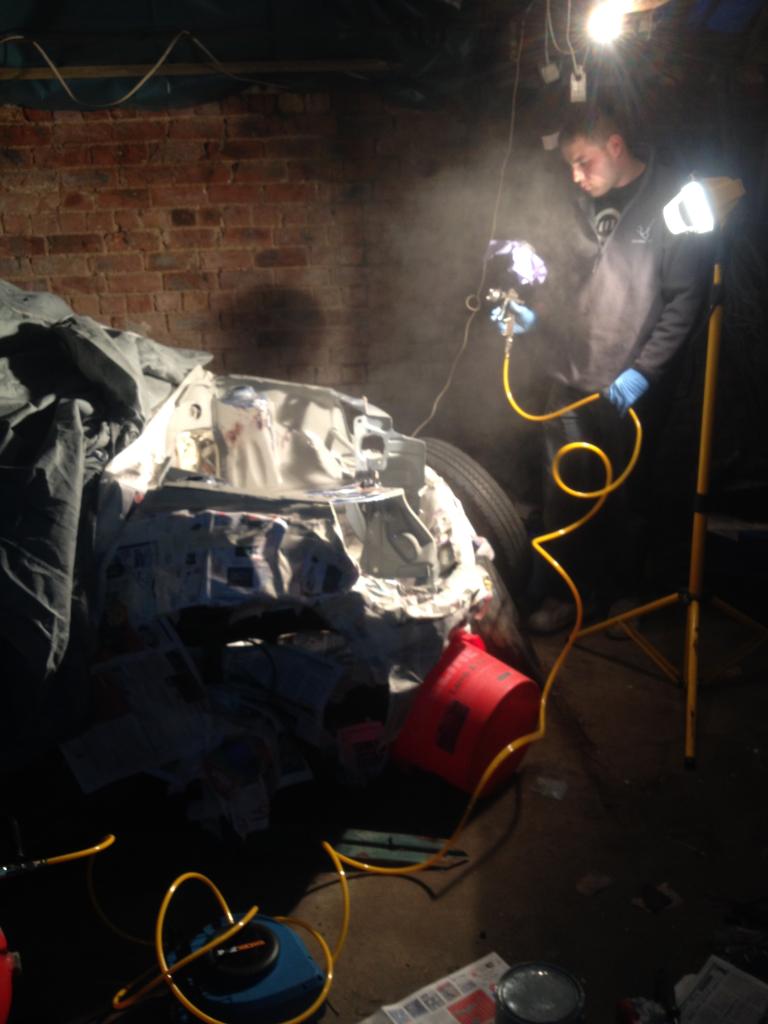

Then Tuesday night my mate came over to paint the bay at 8:30pm



Then finished at near on midnight...



Not bad for a direct gloss paint in an old open front shed, few niggles but will polish out :) very happy and better than the previous bodyshop's job :)

Parts all came just waiting on my supertec exhaust valves..

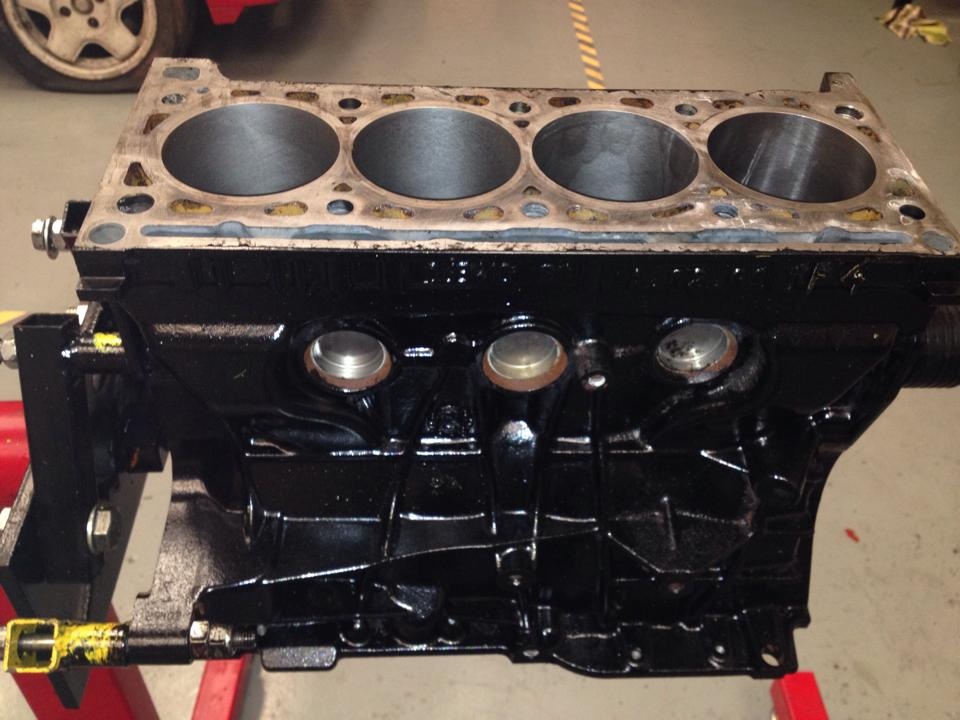

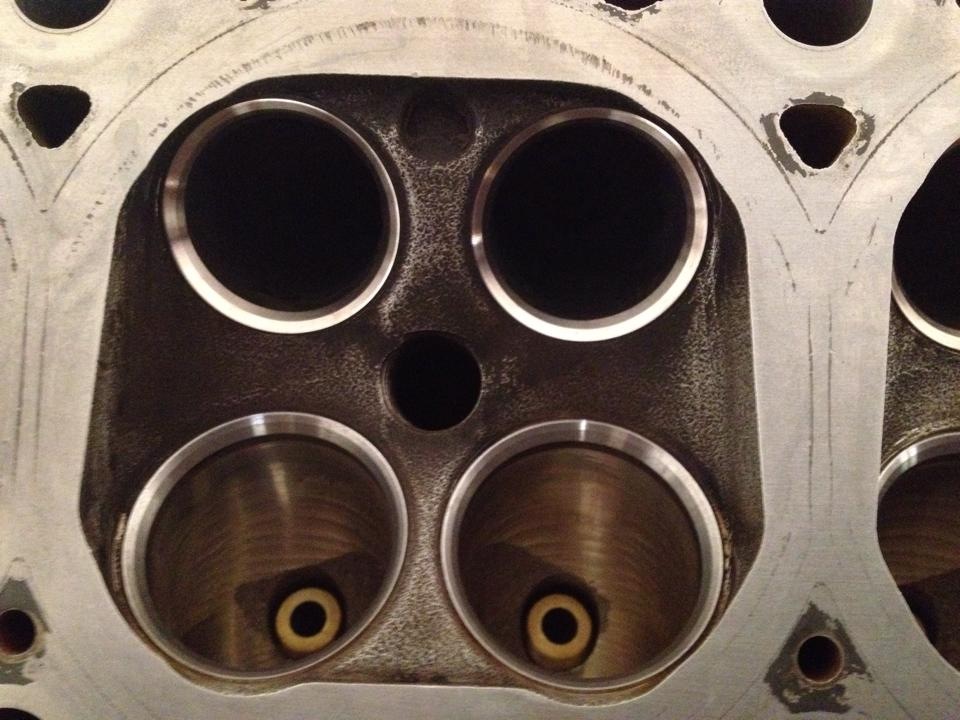

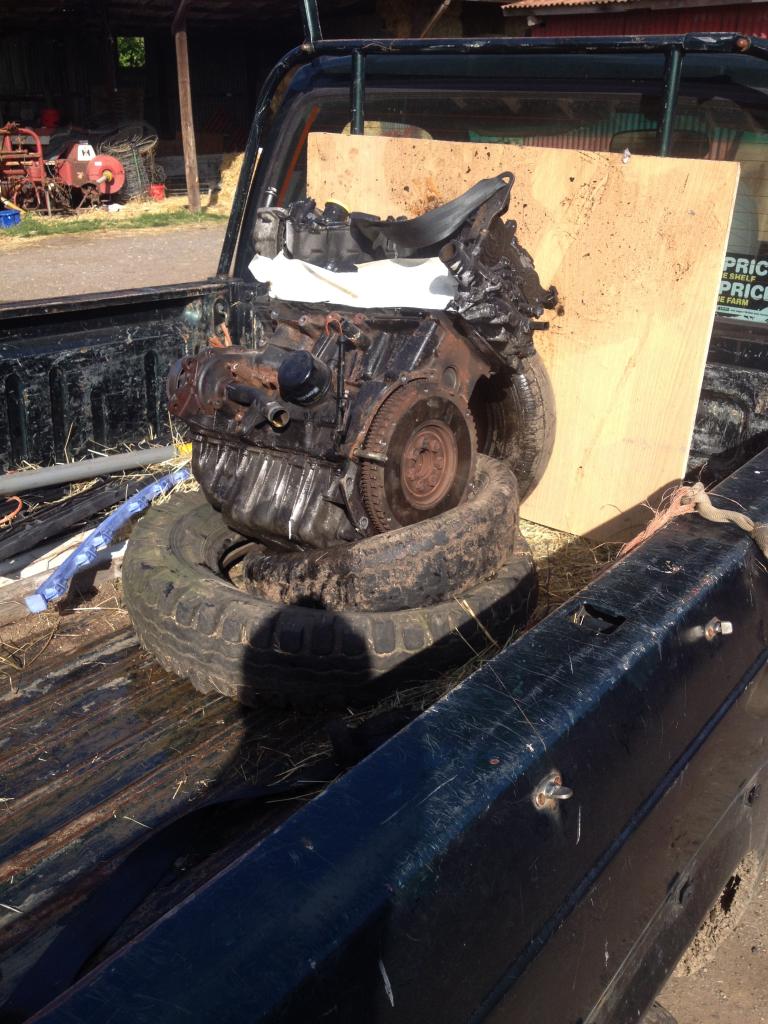

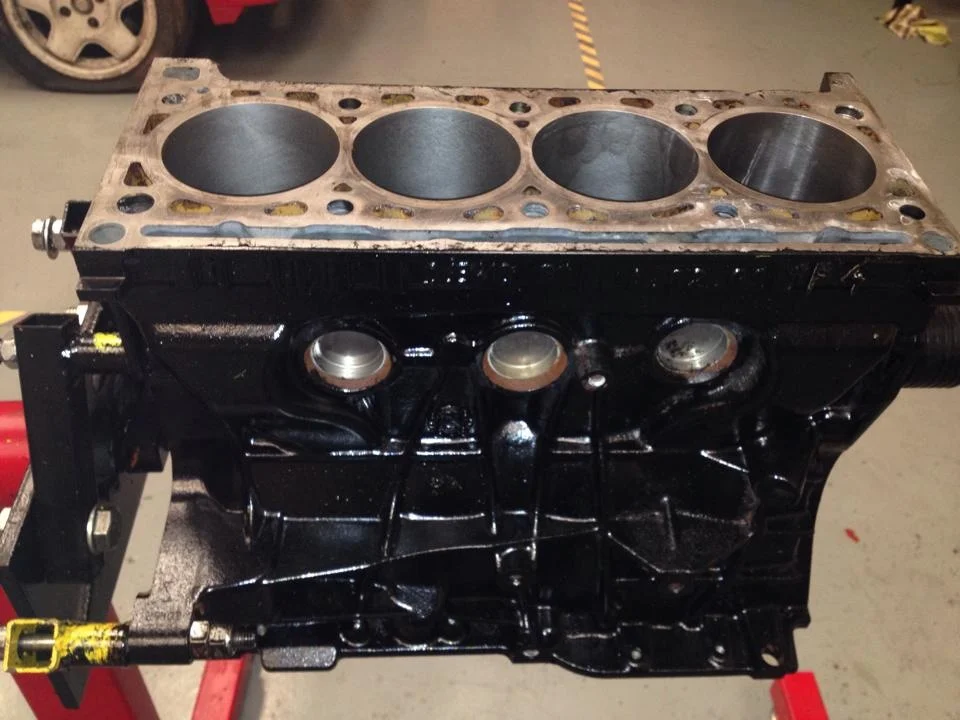

Never the less I took the engine to the builders to get started and ill send the valves over when they come for him to do the head :)

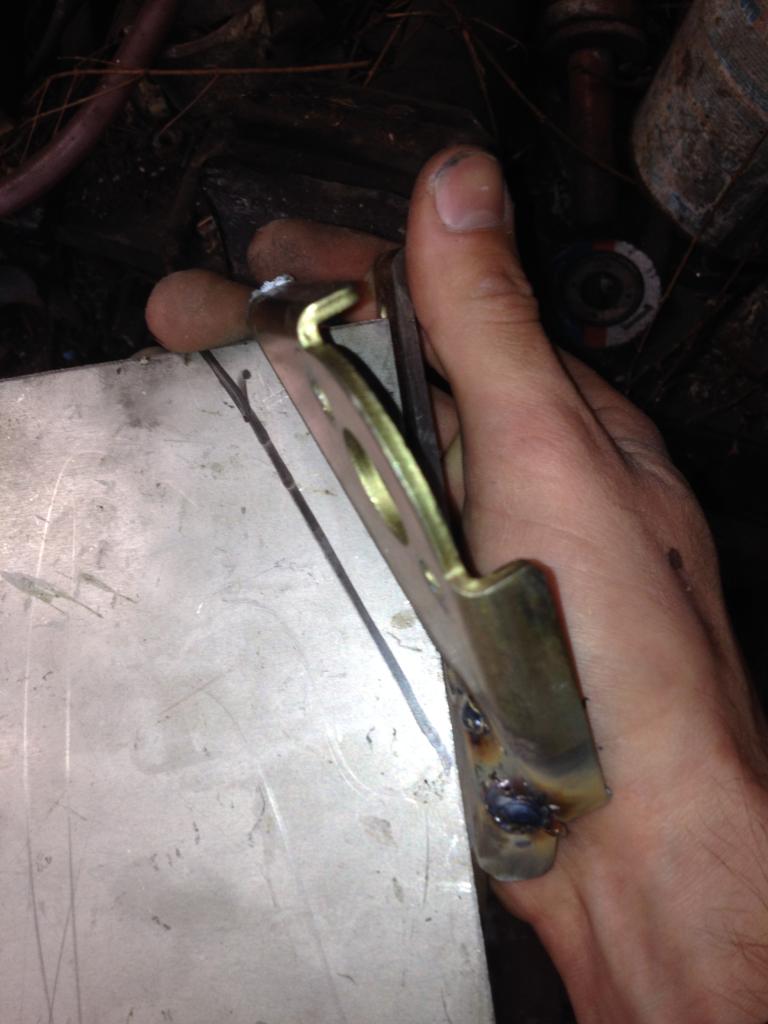

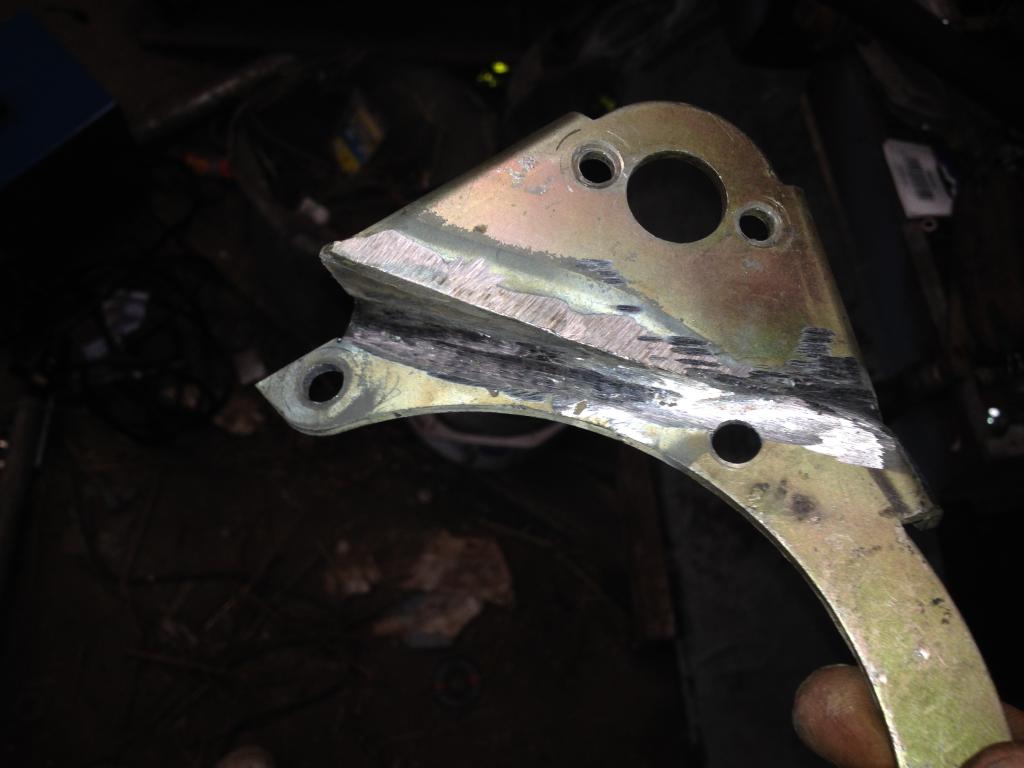

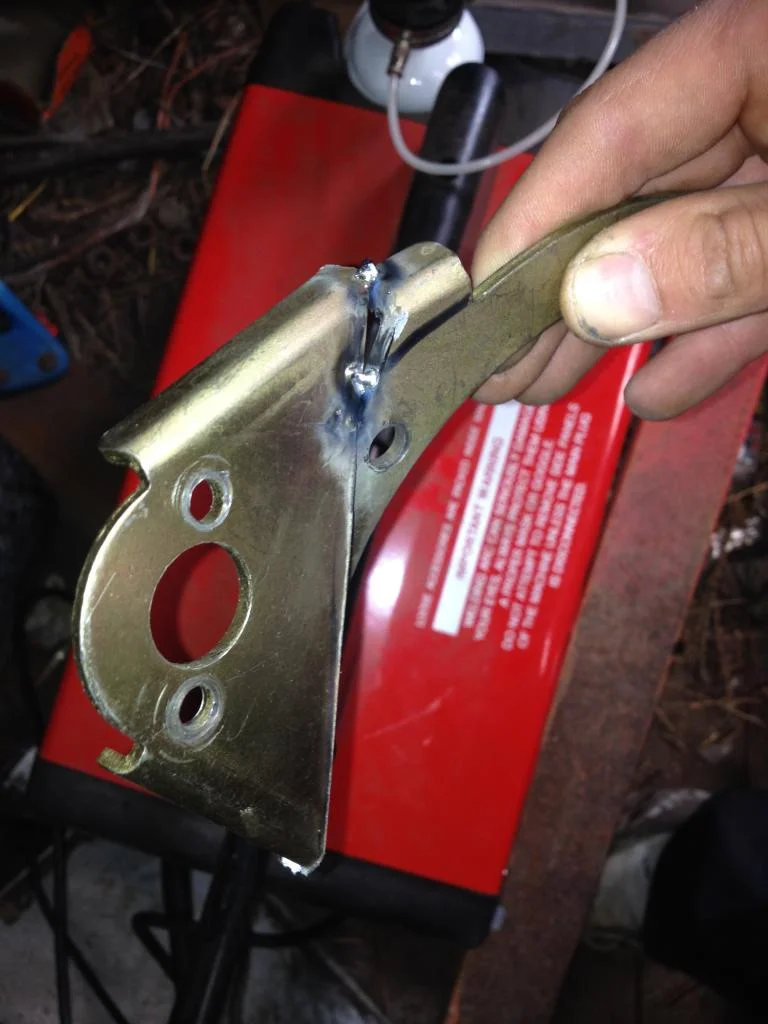

Then I had a spare day and once id rotated the new turbo housing the actuator bracket didn't fit :( sooo I got fabricating, my weldings not anything to shout about but its good enough for this sort of stuff :)




That's currently at the powder coaters with the newly smoothed inlet ;)

At this point I decided my nuts needed a clean....

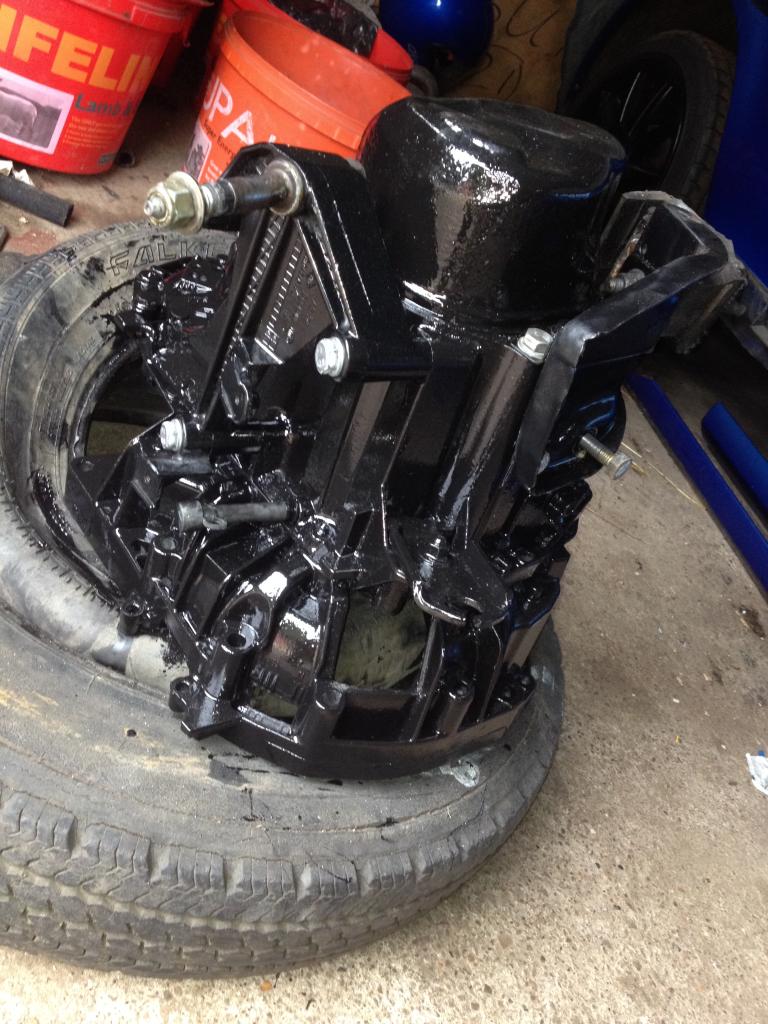

Then the gearbox a snazz up, decided to stick with stock at the moment until I collect parts for O2M


Then finally I found a cup alternator setup to replace the PMS kit, the PMS is a great bit of kit but I needed a new alternator and you cant just run a shorter belt on it and with me binning off the PAS I wanted to do that :)


Got a new shorter Gates belt to run with it, once it arrived I'll tart it up because i'm a ..well a tart haha

More pictures coming soon :)

  172 cup, Impreza P1
Nice spray job in the bay. Something I wanted to do to mine but HATE painting. Not got the patience for the prep and am dreading spraying my interior.

Fancy a job?? Lol


batesey

ClioSport Club Member
  172 Cup Turbo
If you was closer mate i'd pop over and prep it for u, sure my mate would do it for beers too lol

  172 cup, Impreza P1
If you was closer mate i'd pop over and prep it for u, sure my mate would do it for beers too lol

Cheers for the offer, might just drop it off at yours then. Lol

Can you take a pic of your actuator bracket in situ? Why did you need such an angle? Could you not just rotate the bracket?


batesey

ClioSport Club Member
  172 Cup Turbo
No I needed a large angle for the rod the line up with the gate , I'll take a pic when I have it all back together :)


batesey

ClioSport Club Member
  172 Cup Turbo
Been busy today...

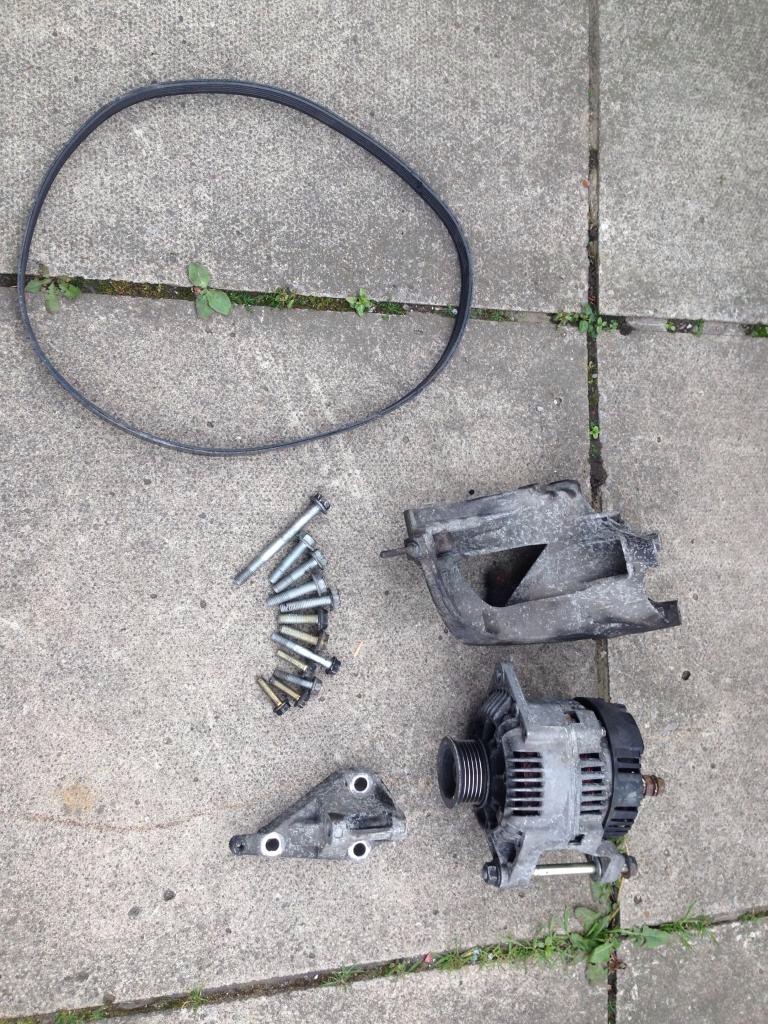

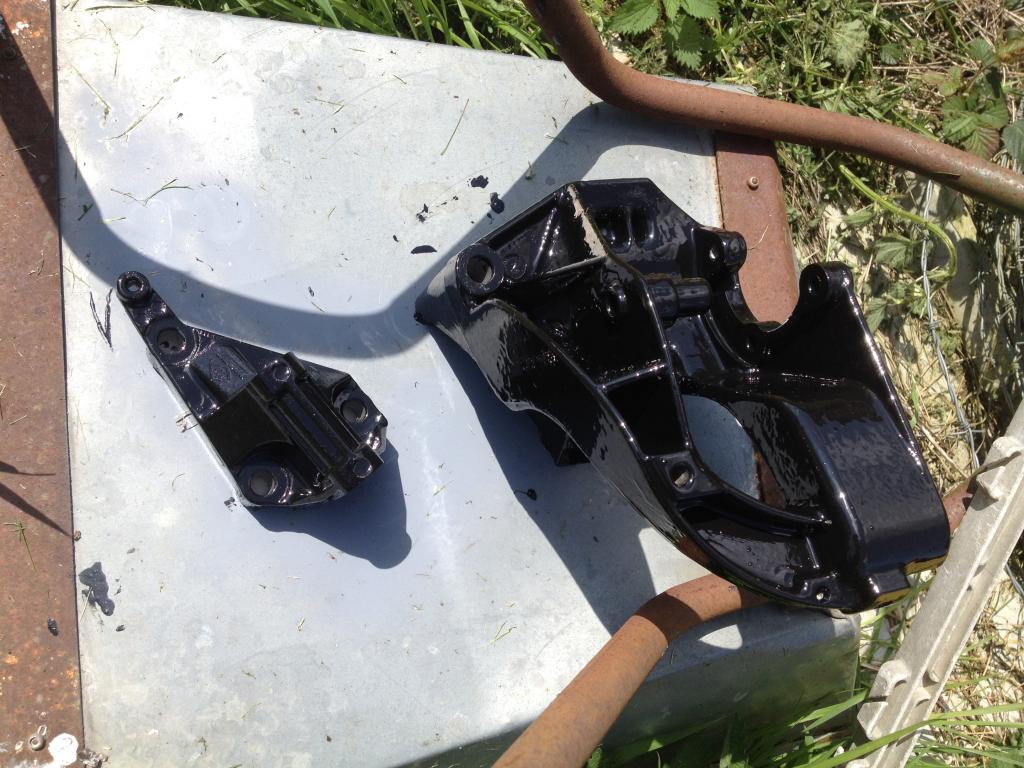

Cleaned up the alternator / brackets

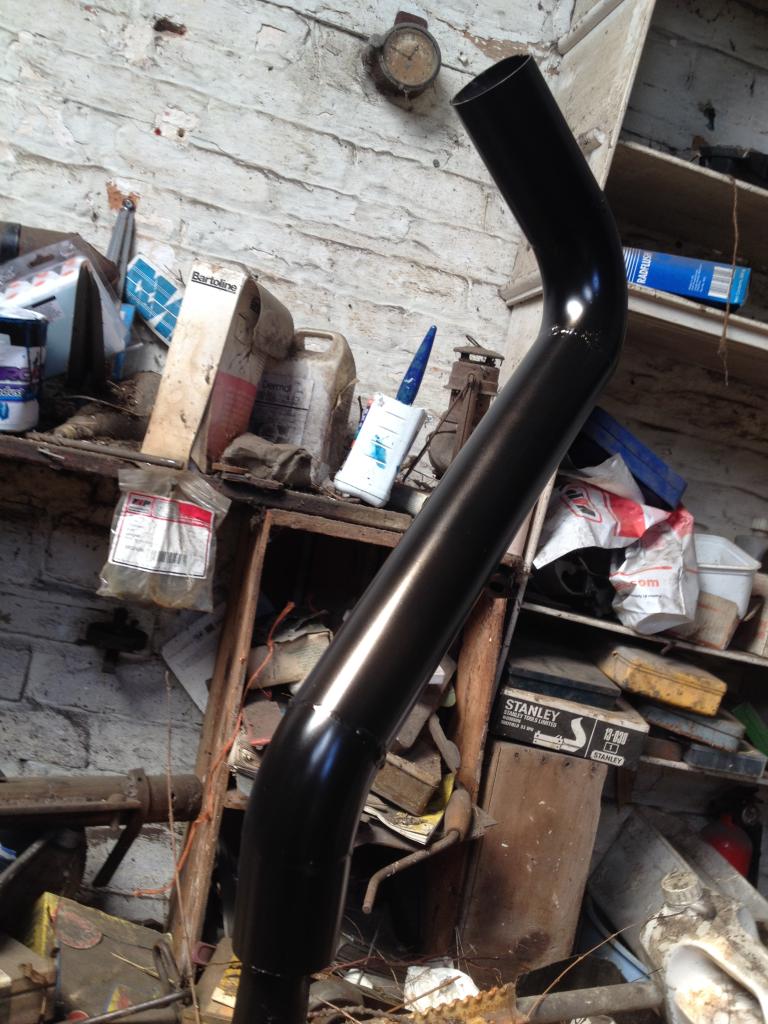

Painted boost pipe :)


Fitted it


Took the wheels off

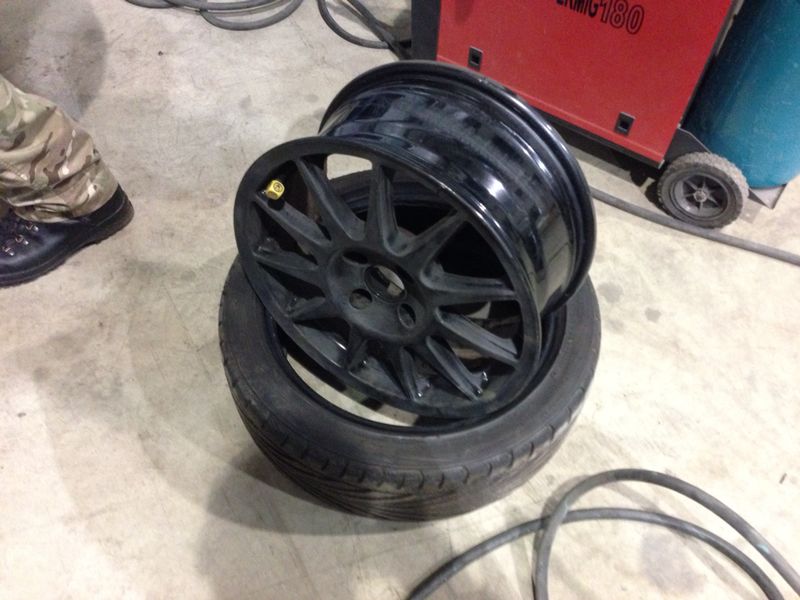

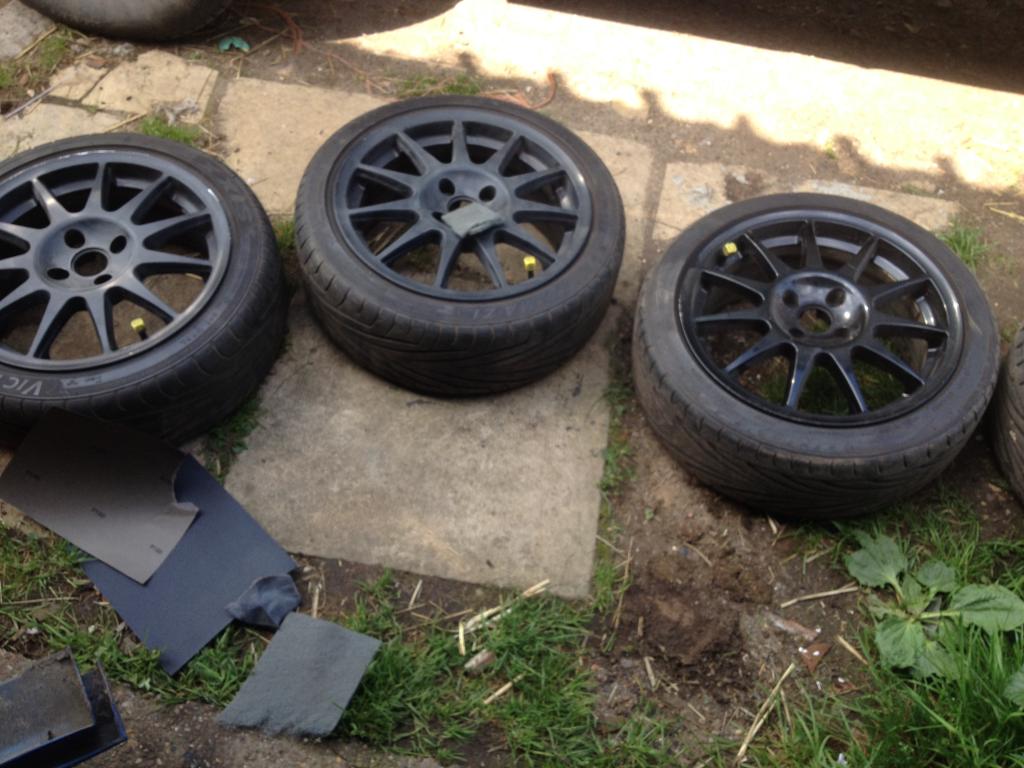

Refurbing them as they have been done 3 years ago and starting to look tatty, got some R888 for the fronts :)

More updates next week as im working the weekend :(


batesey

ClioSport Club Member
  172 Cup Turbo
Few updates, still no engine though :(

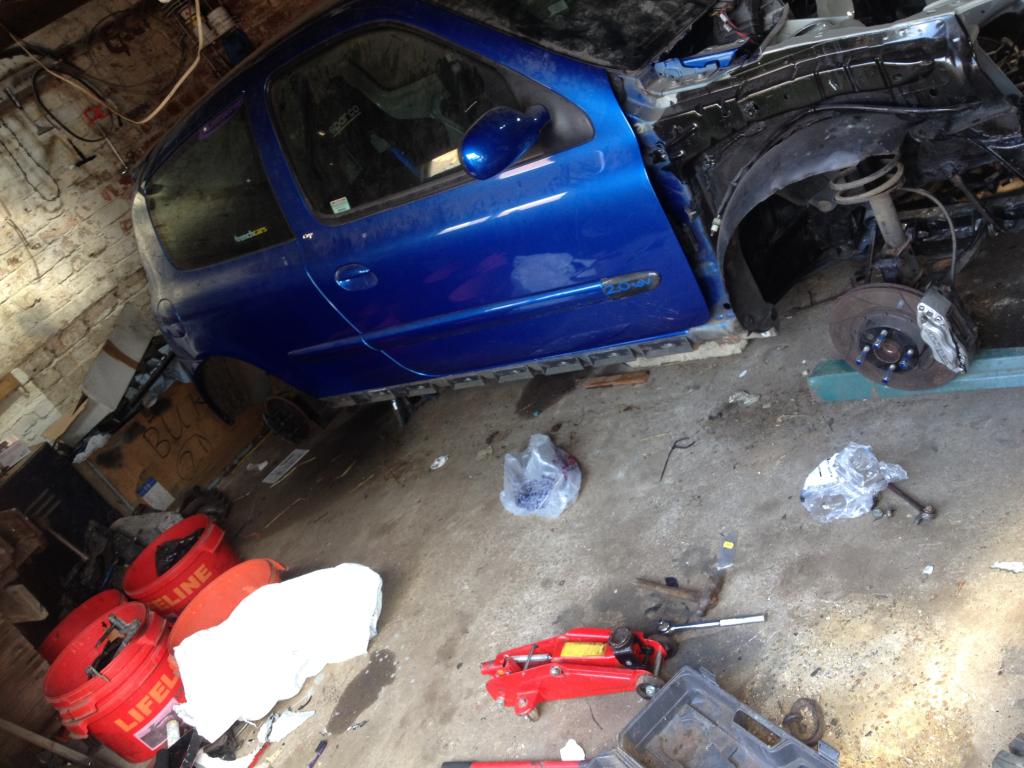

Tyres off the wheels

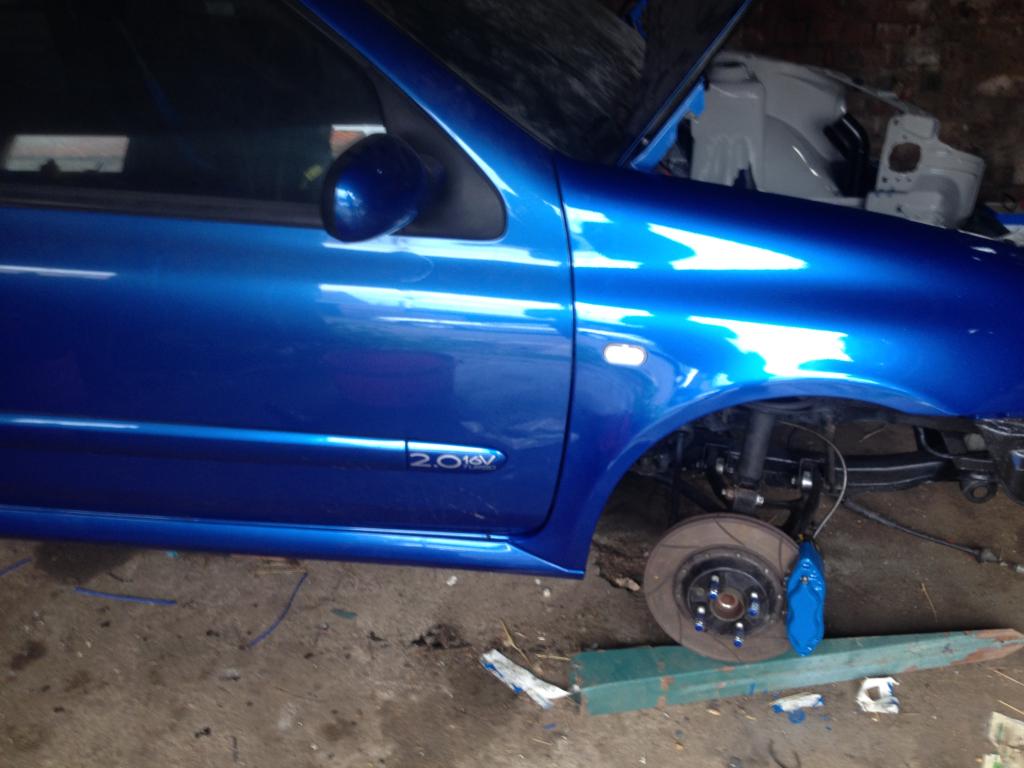

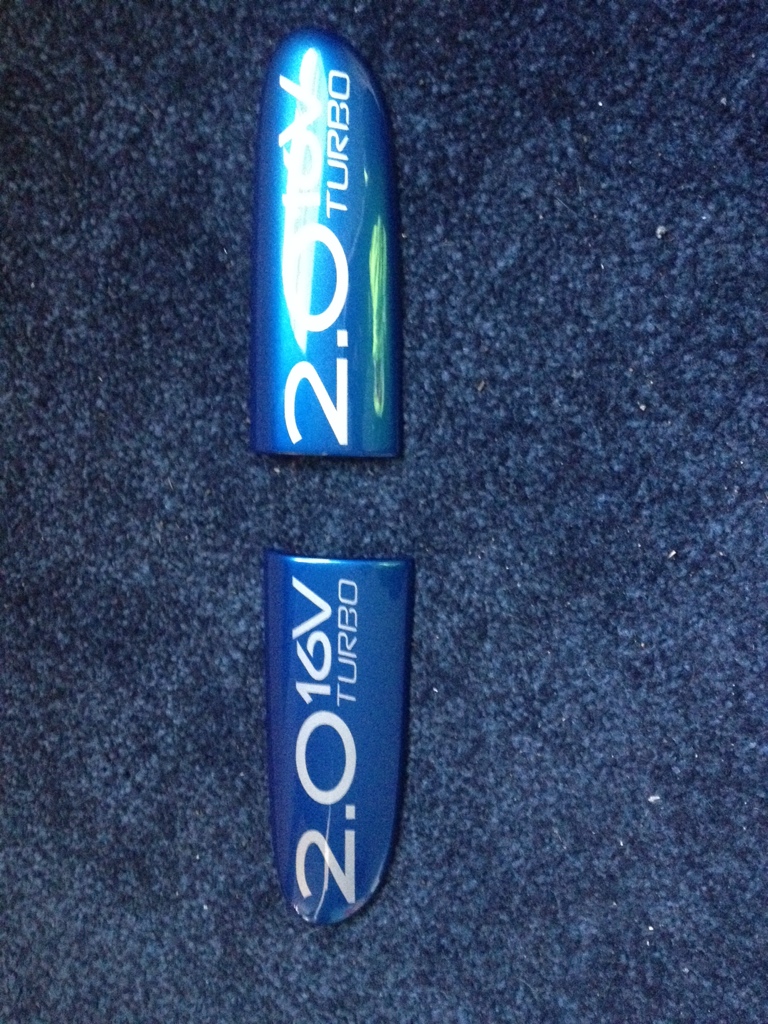

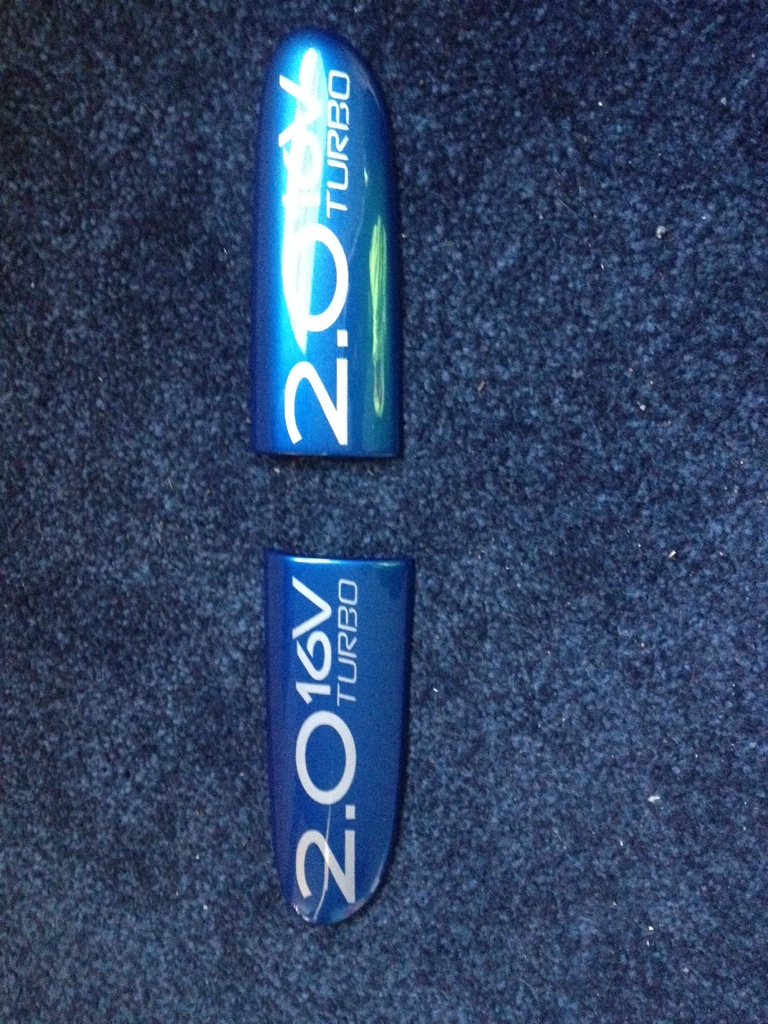

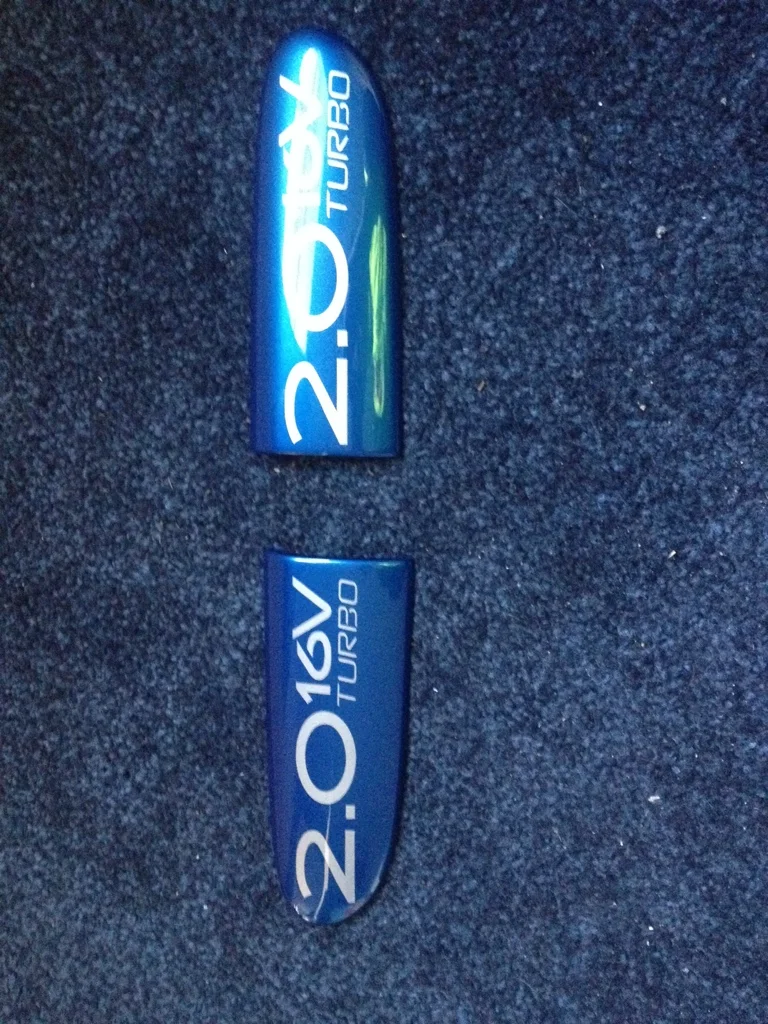

Picked up my resprayed wings earlier so I fitted them and finally fitted the bullets sprayshack made in a group buy :)

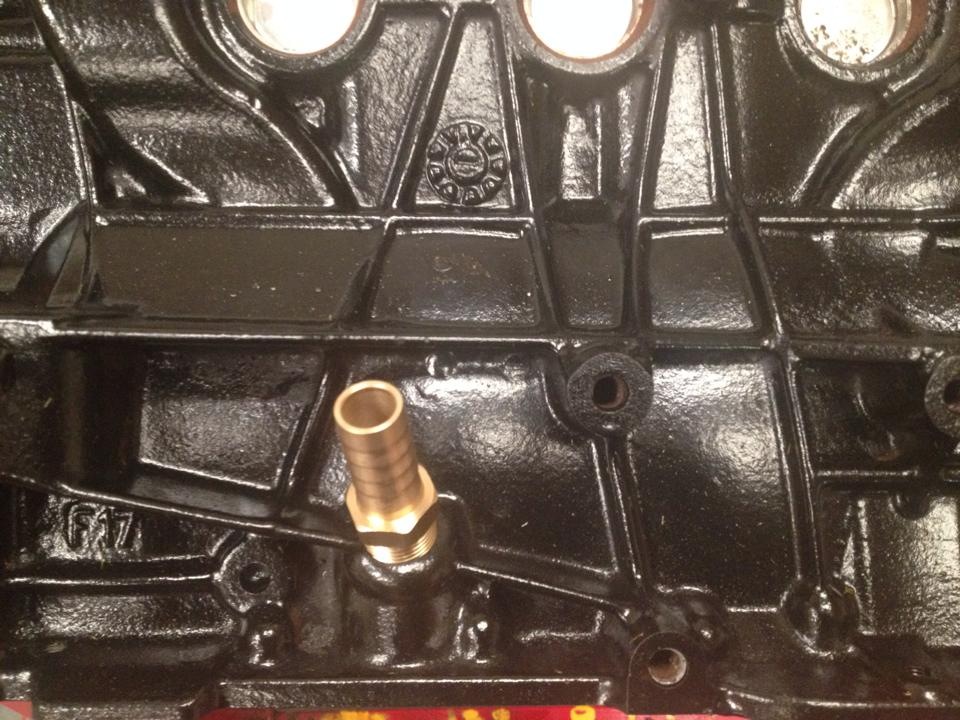

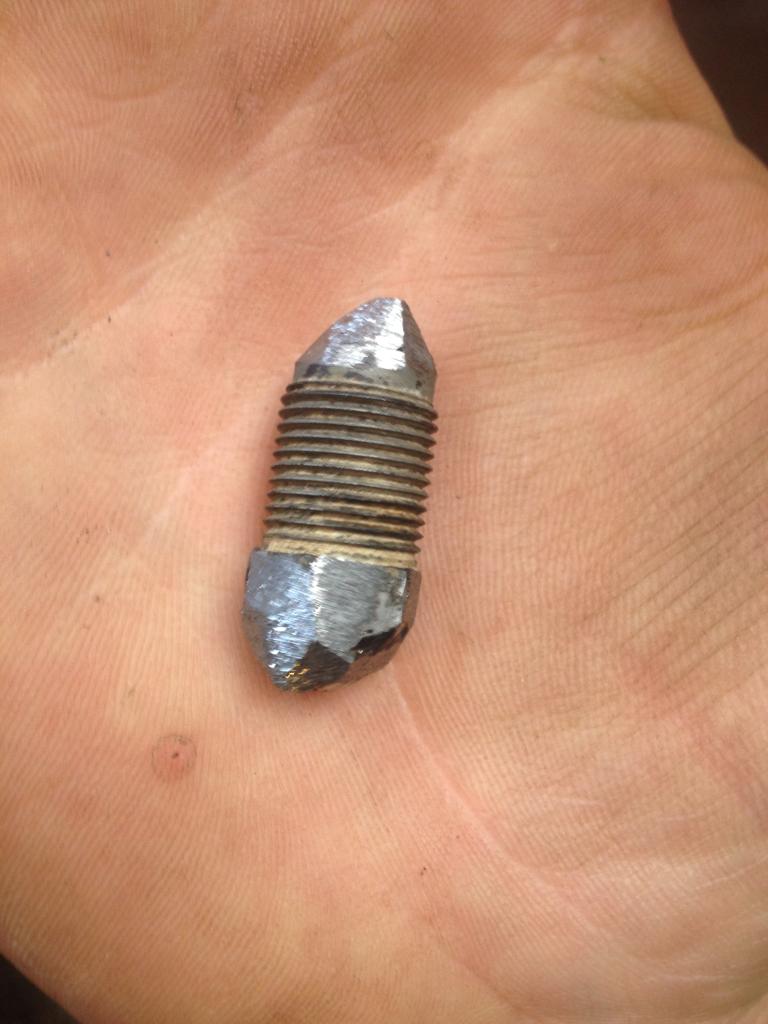

Was also having issues with the liquid metal bungs I made for the EPAS conversion, I couldn't get hold of any M12 x 1.0 bolts so I welded up the holes on my brass fittings which went quite well, then I cleaned them up on the grinder




Also started to fit the headlights with new stainless bolts

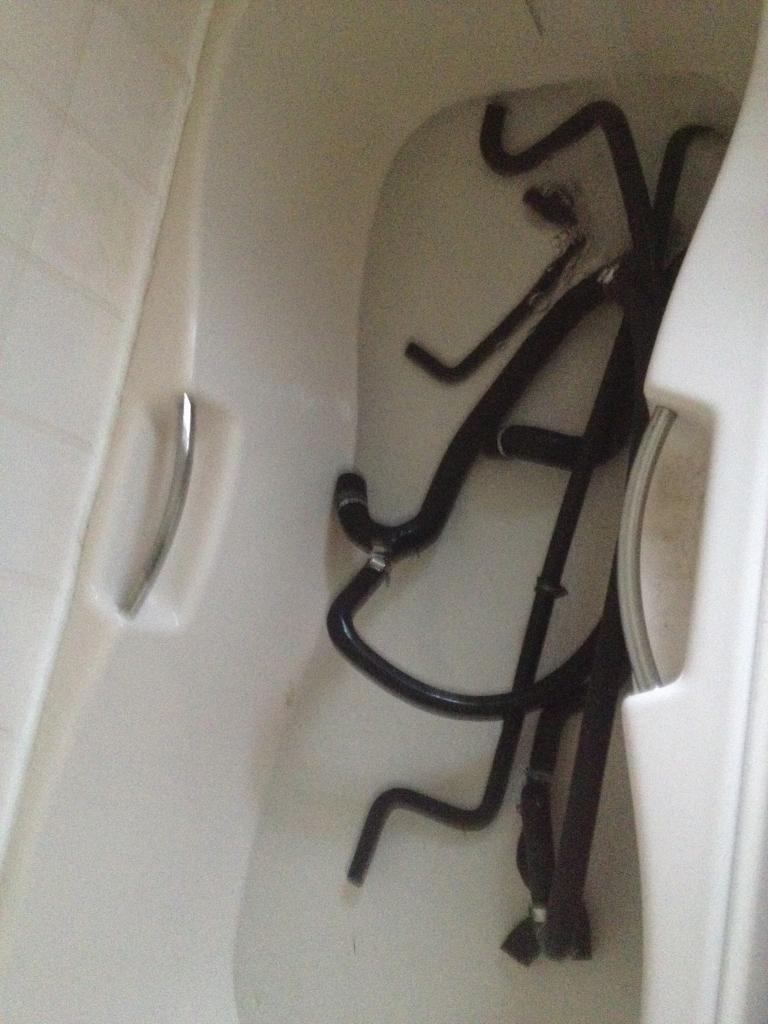

Then decided to clean the hoses in the bath :)



Hoping the engine will be back soon as im really missing driving the thing now :(


batesey

ClioSport Club Member
  172 Cup Turbo
Few pics from last few days :)











And shes now back..
I've built a bit up tonight will do more over next few days :)



batesey

ClioSport Club Member
  172 Cup Turbo
Been at it a bit more the last week...

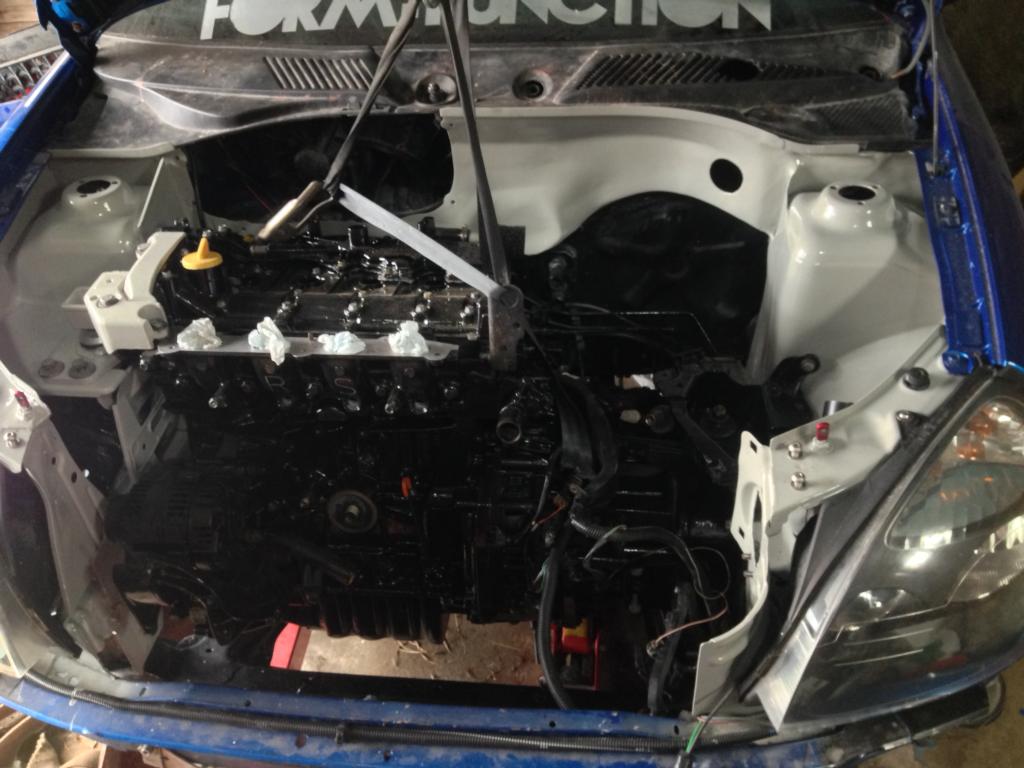

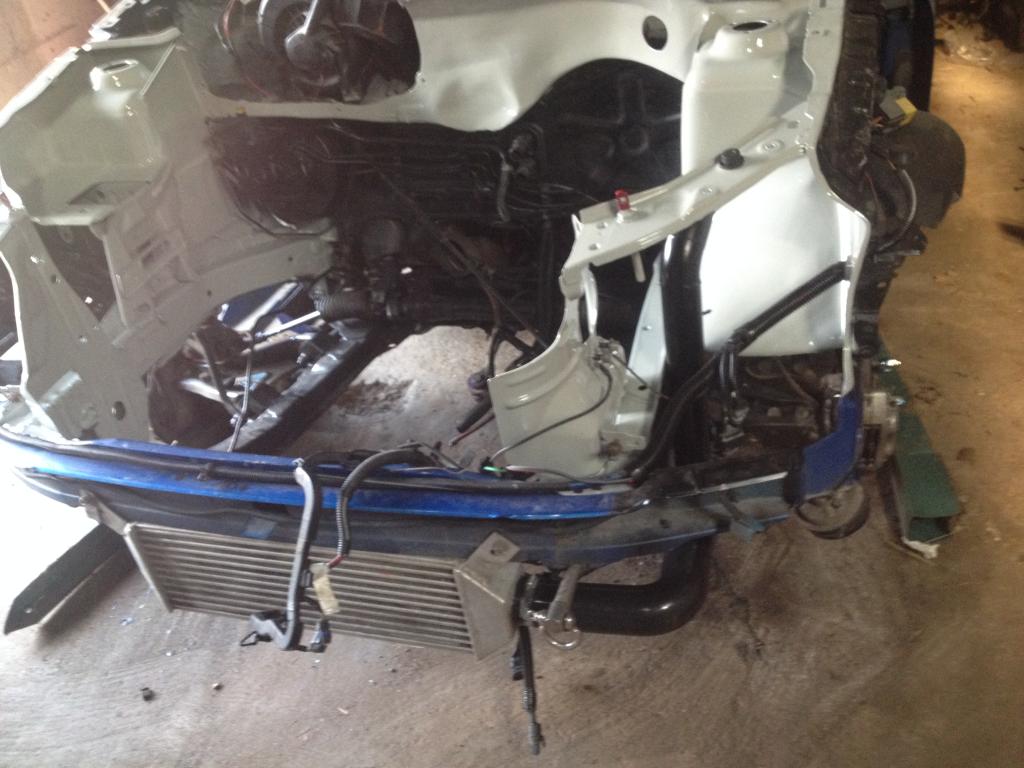

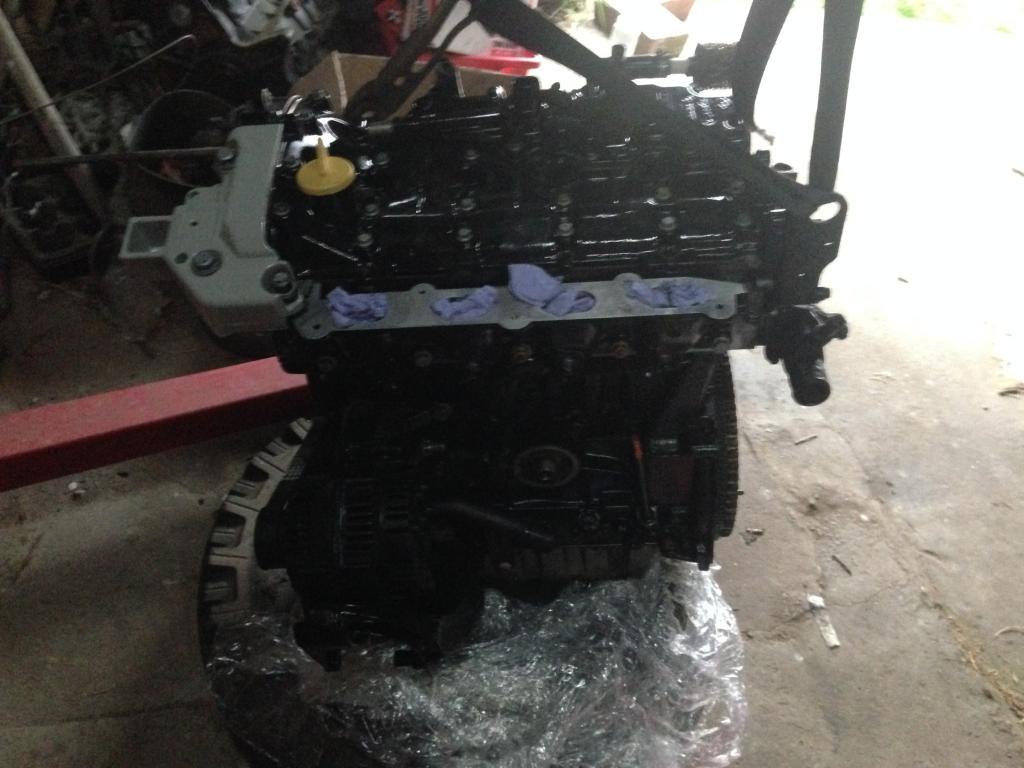

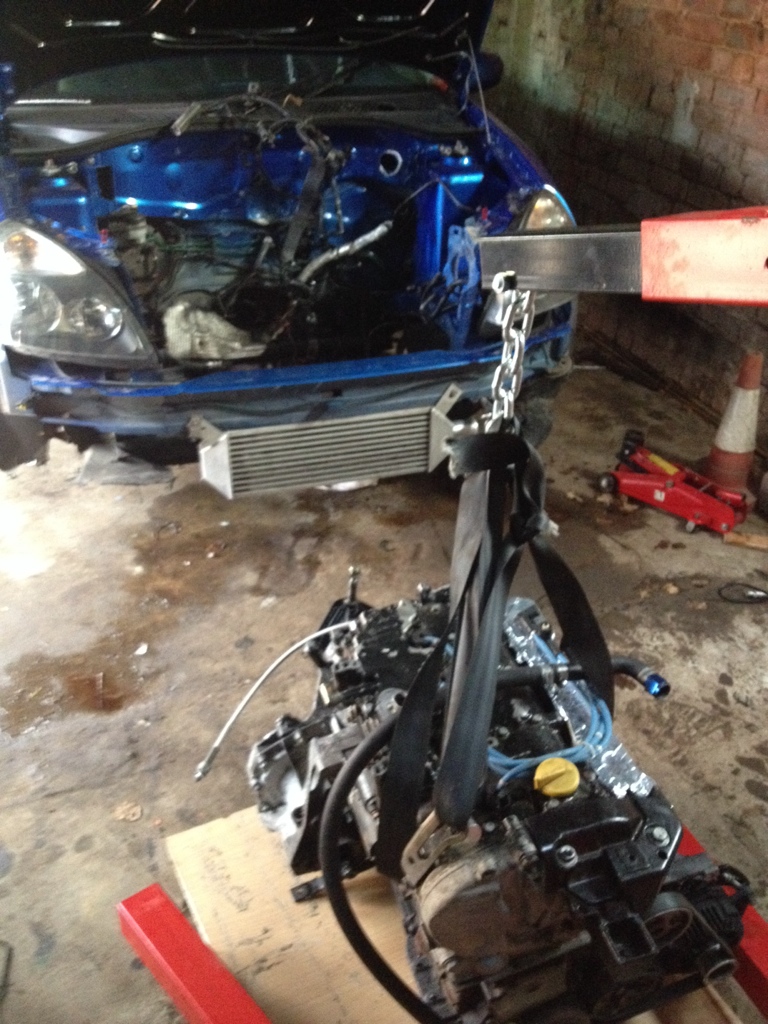

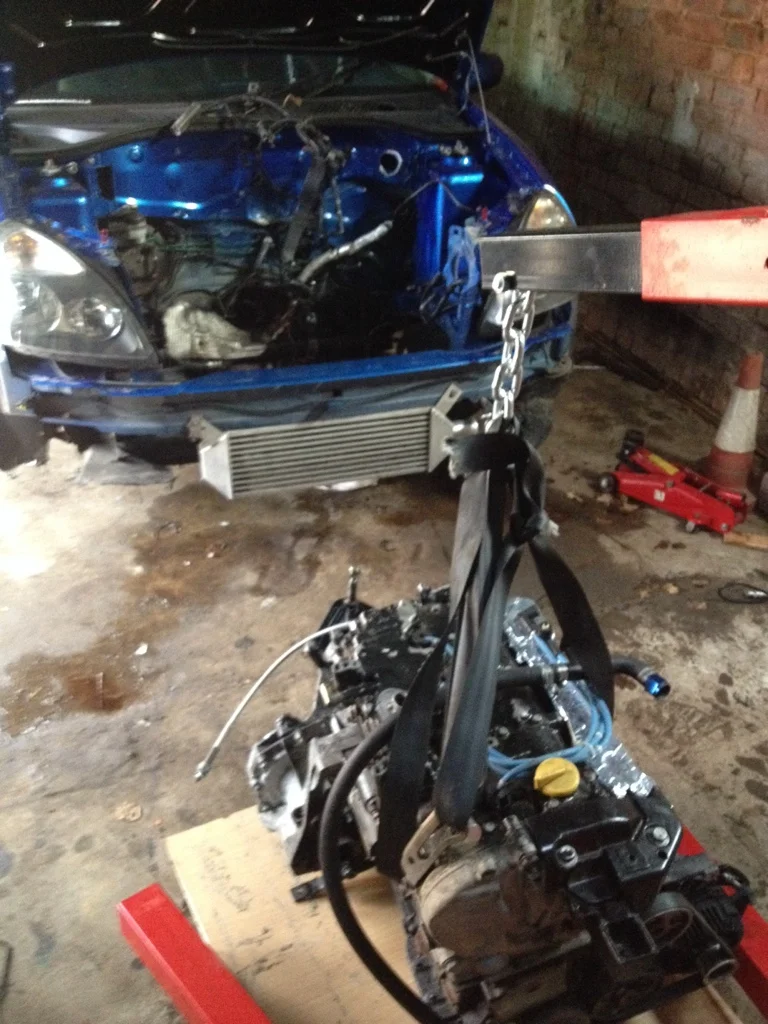

Last friday i go the engine in

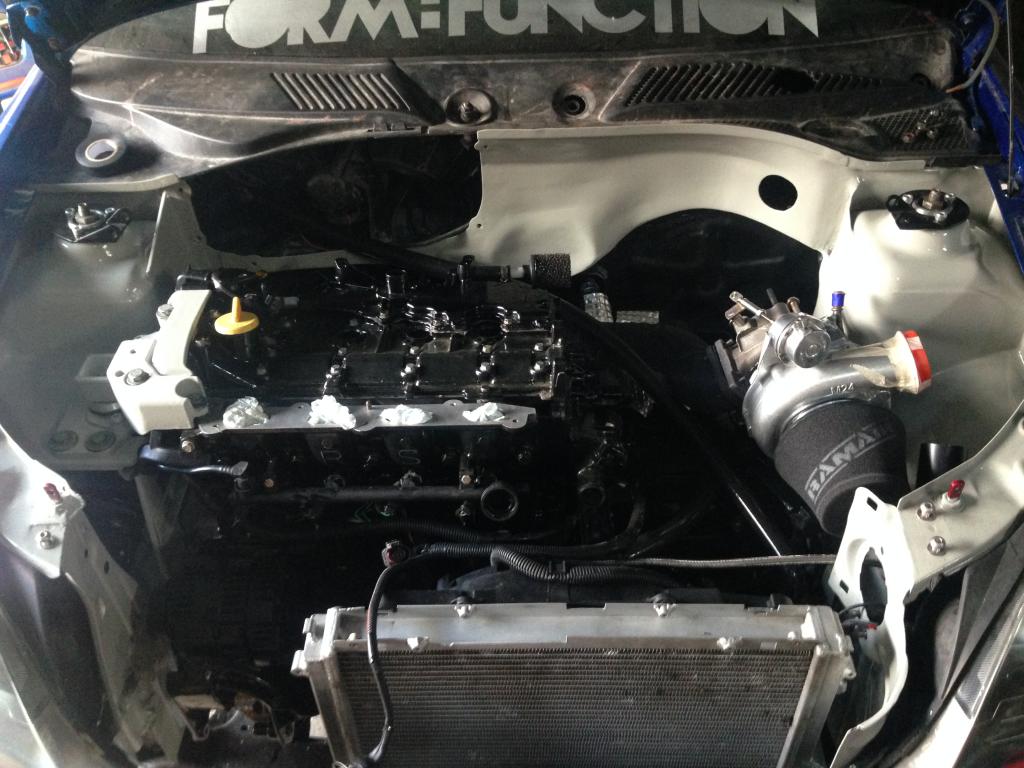

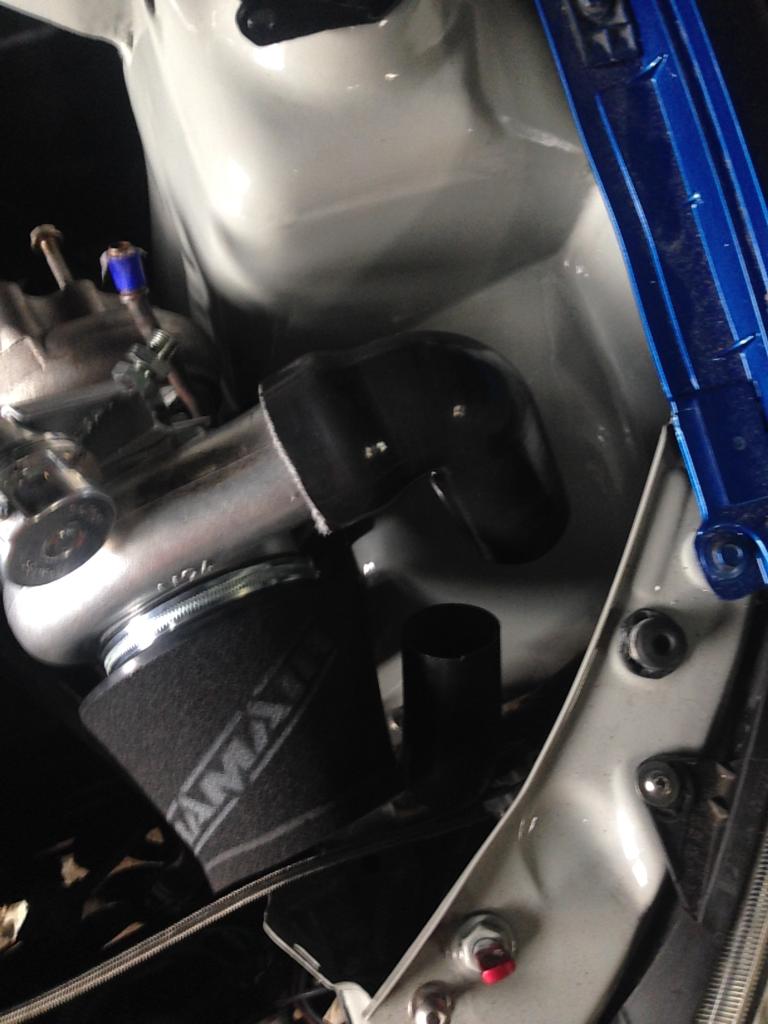

Turbo on :)

Slight issue, bigger turbo and few things had altered :(

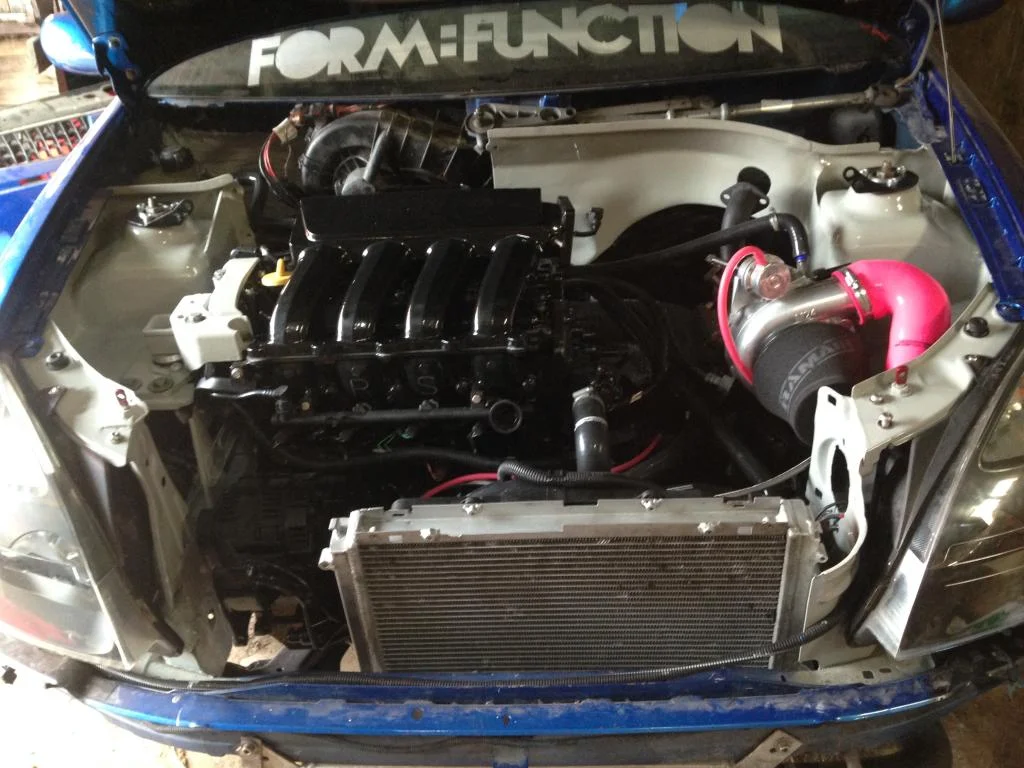

So Jsperformance to the rescue again, been toying with pink boost hoses for a while :p



Just got downpipe to fit, inlet to fit properly, restof coolant pipes then modify the screamer pipe as its altered slightly,

Will hopefully get it ran in soon :)
