#16.5

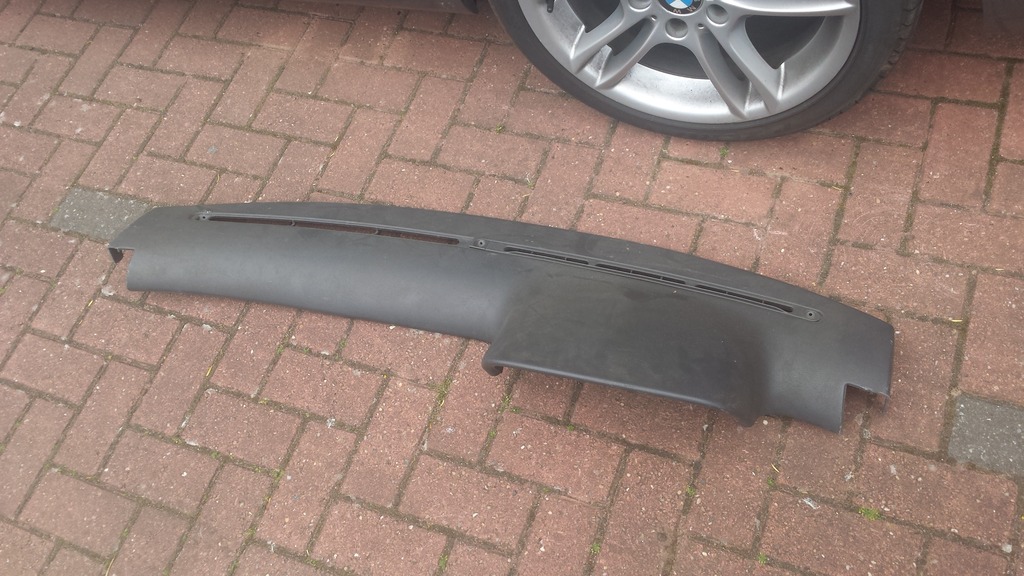

Went over to see my good mate @chrispy.clio the other weekend and ended up coming home with his old Mk1 dash......

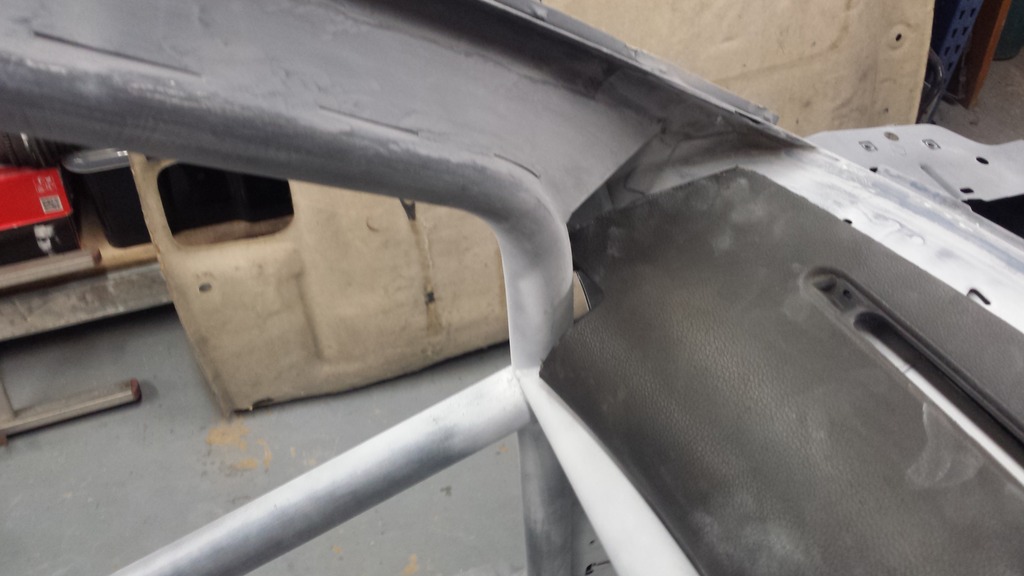

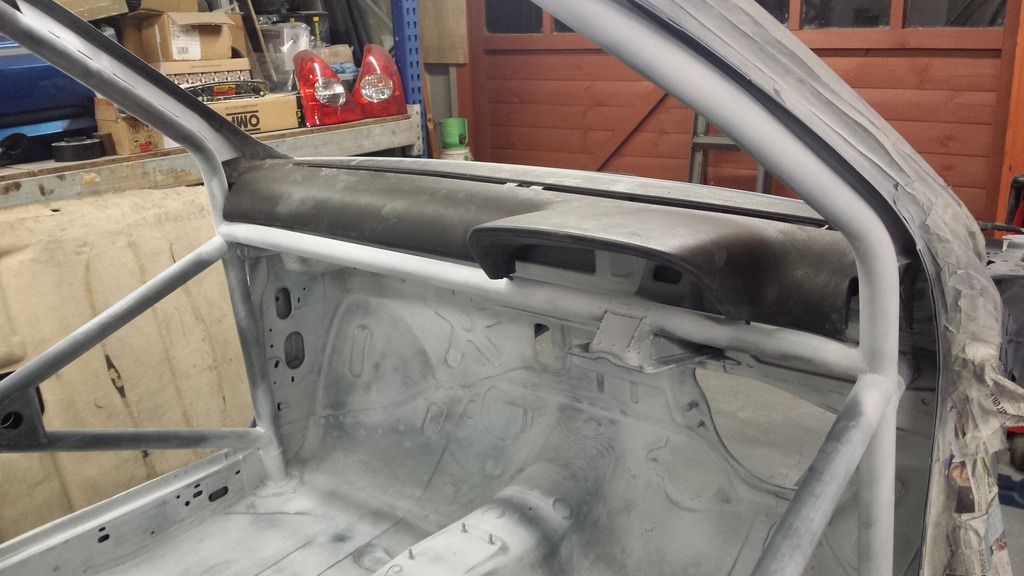

It was as if I had thought about it and set the dash bar height for this dash :smirk:

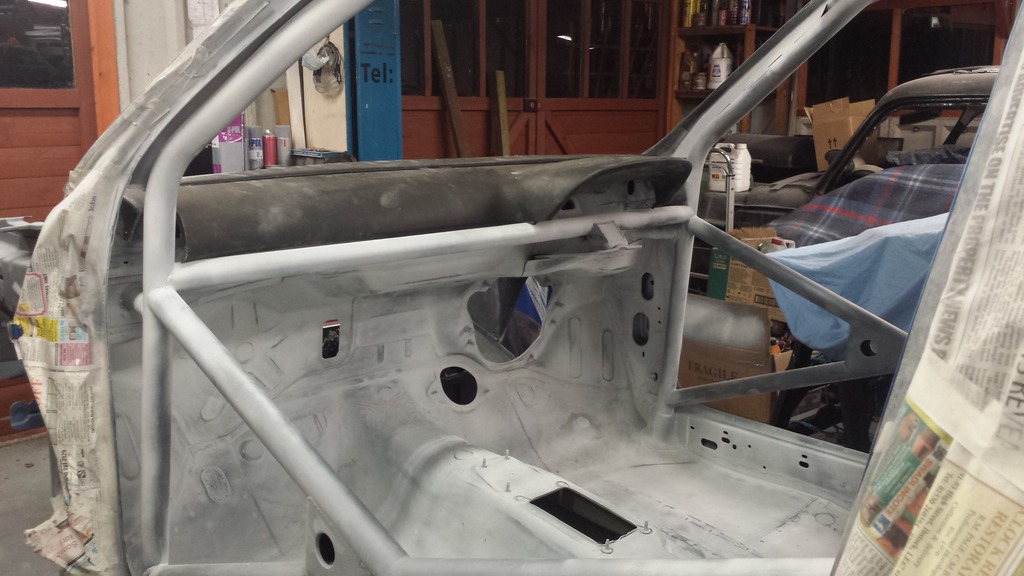

Even the front leg cut outs are a perfect fit!

Just needs a clean up, some mount tabs fitting and a good 'flocking' , JD
I'm pretty happy with the fit and the look of it.. I wanted to get rid of the Mk2 'cumbersome' dash.

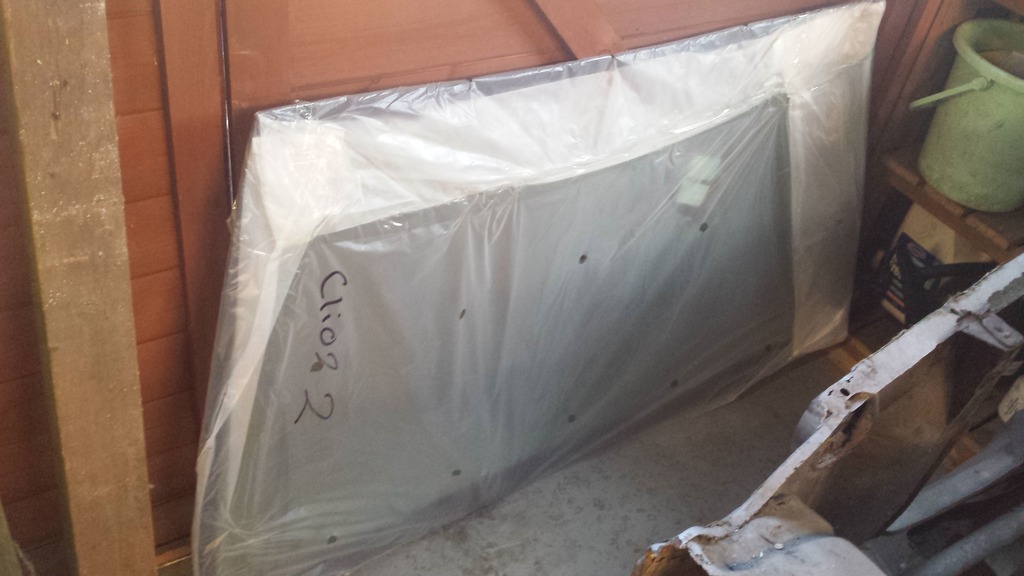

Also went to pick up the new heated screen from: Ricky Evans Motorsport
http://www.heatedwindscreen.com/acatalog/renault-clio-2-green-heated-windscreen.html#SID=519
Ideal as we don't want to run a blower and have removed the heater unit... It's a dual circuit, laminated screen.
Need to weigh the standard one and see if there is any weight difference. Long way off fitting it, just need to make sure it stays in one piece until then haha



[Jamie86]

I decided against a heated screen 3 a year would cost a fair bit :/



[Tomotek]

I decided against a heated screen 3 a year would cost a fair bit :/

Cracking from stones thrown up on track?



[Tony Hunter]

Yep, I got through 3 in one season!



[Tomotek]

Yep, I got through 3 in one season!

We were always going through them on the race cars at my old work too.. Do you just run an electric blower in the cockpit on yours?

If we do do some racing (with is propably inevitable) and we get fed up of buying new screens will have to look into different options.
Either that or just have to stay infront of the pack :wink:



[Tony Hunter]

I kept the heater in, just chopped the box so that it just onto the screen.



[Tomotek]

Fair enough, nice little mod.. have to see how we get on and if my wallet can keep up



[Tomotek]

#17

Now the cage is finished I turned my attention to the front subframe and rear axle (the last pieces left on the suspension job list)
I sandblasted the front subframe at work and seam welded up the wishbone brackets and main plates to help strengthen the frame up (not shown in pic).. I plan to convert the wishbones to spherical bearings later on so didn't go crazy modifying this frame, just want to get the car built and enjoy it.

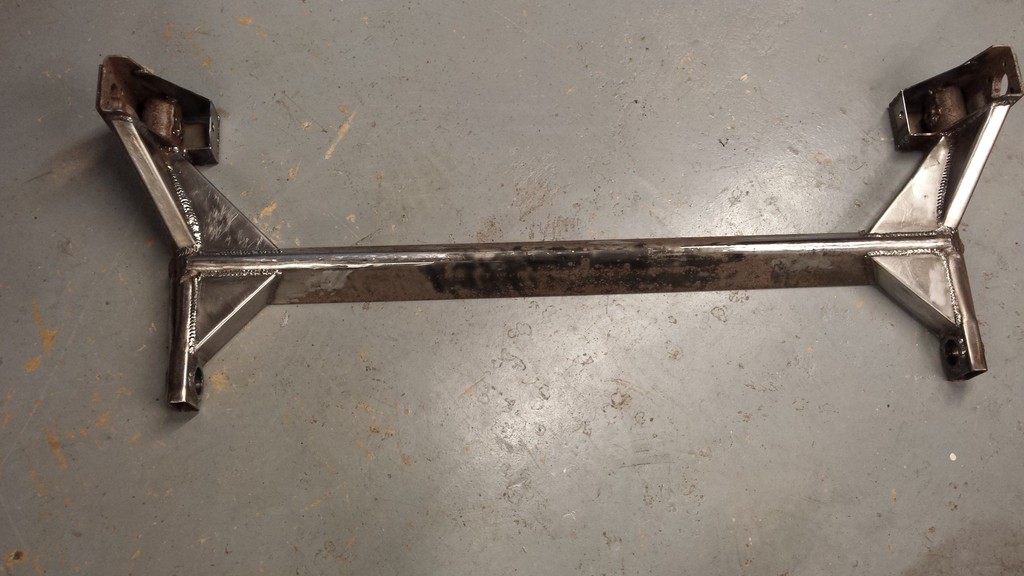

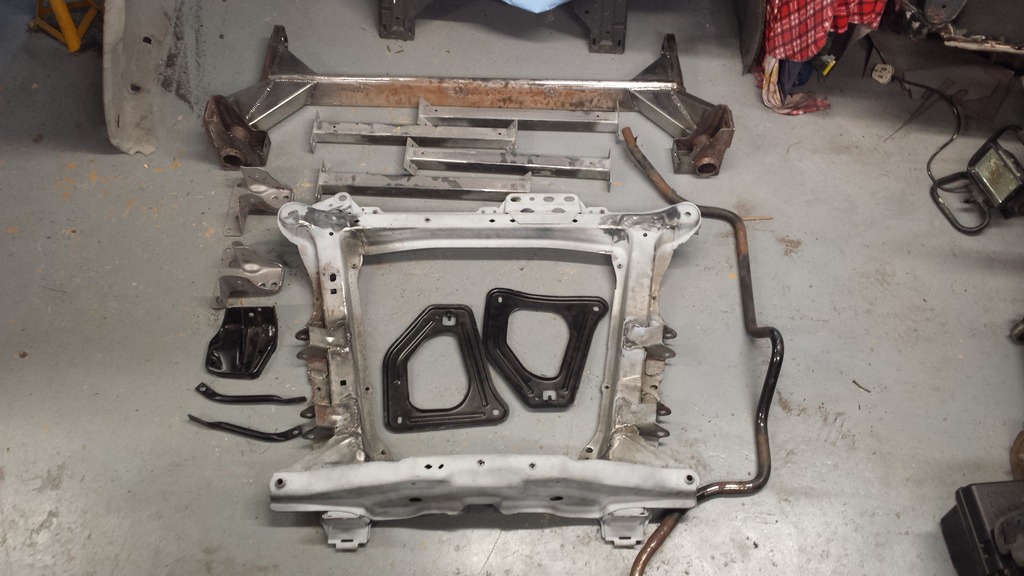

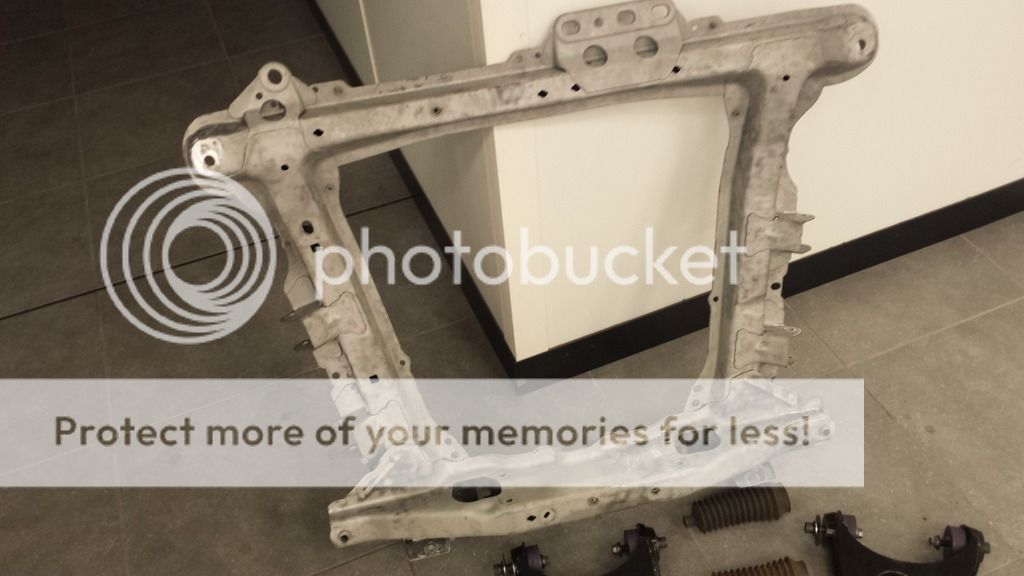

FRONT SUBFRAME - Sand blasted

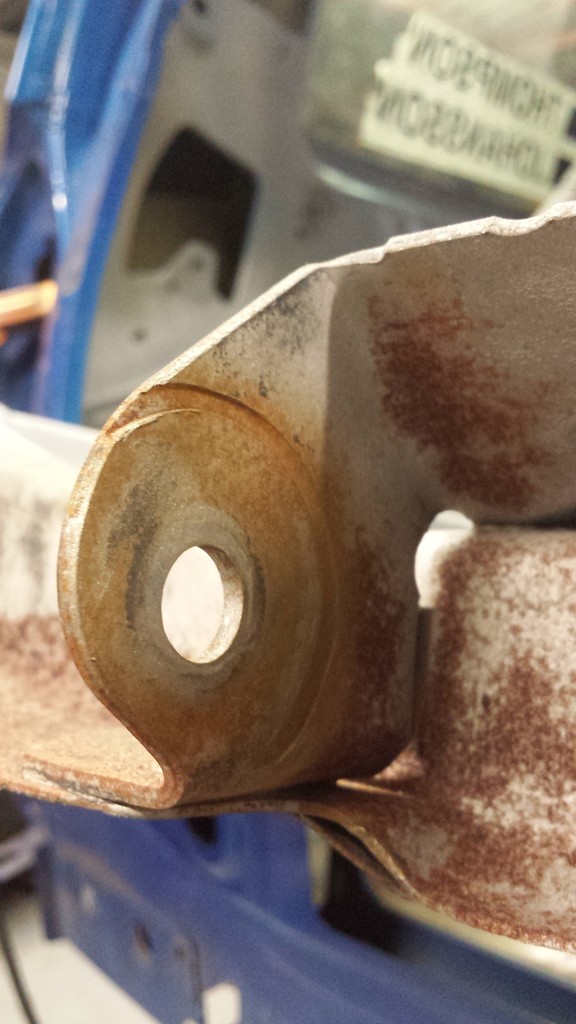

Grooves on the front face of the front wishbone brackets (as a result of the original powerflex steel sleeves I replaced eating into it during braking and cornering)... I have TIG'd these grooves up and filed the brackets flat again. (no pic)

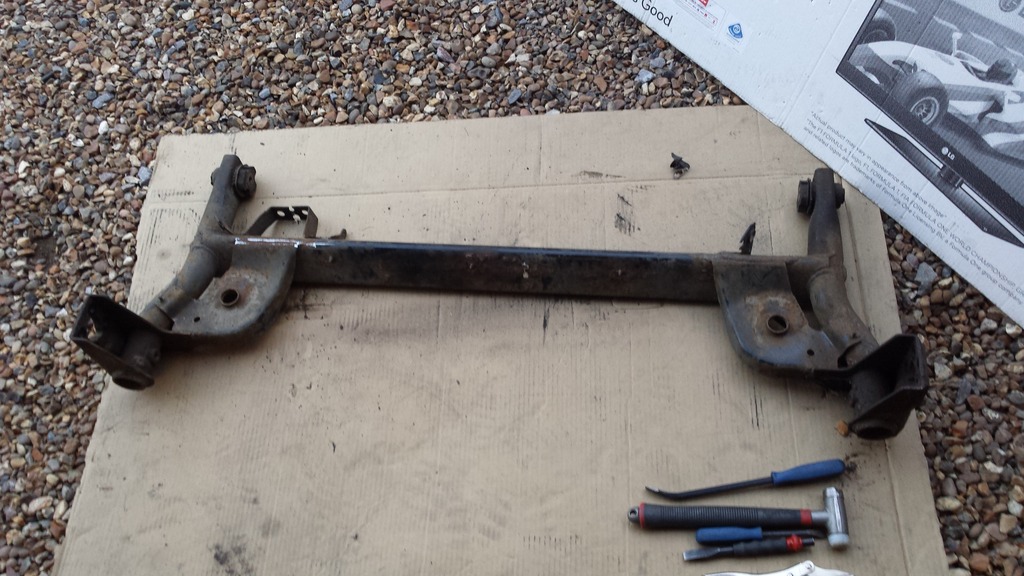

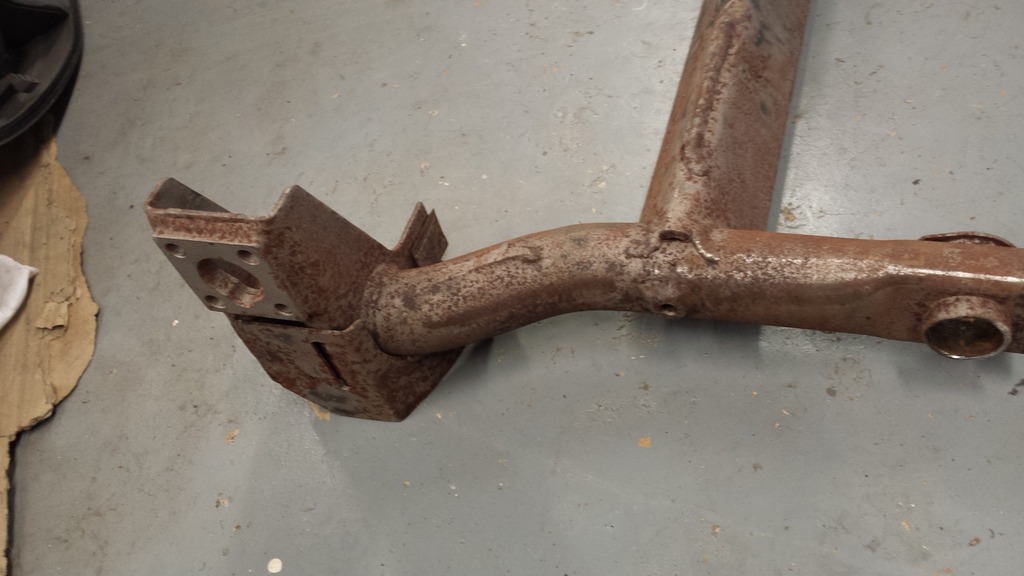

REAR AXLE as taken off the car last year some time, ready for modifying to fit the Pure Motorsport Stiffening and bearing conversion kits.

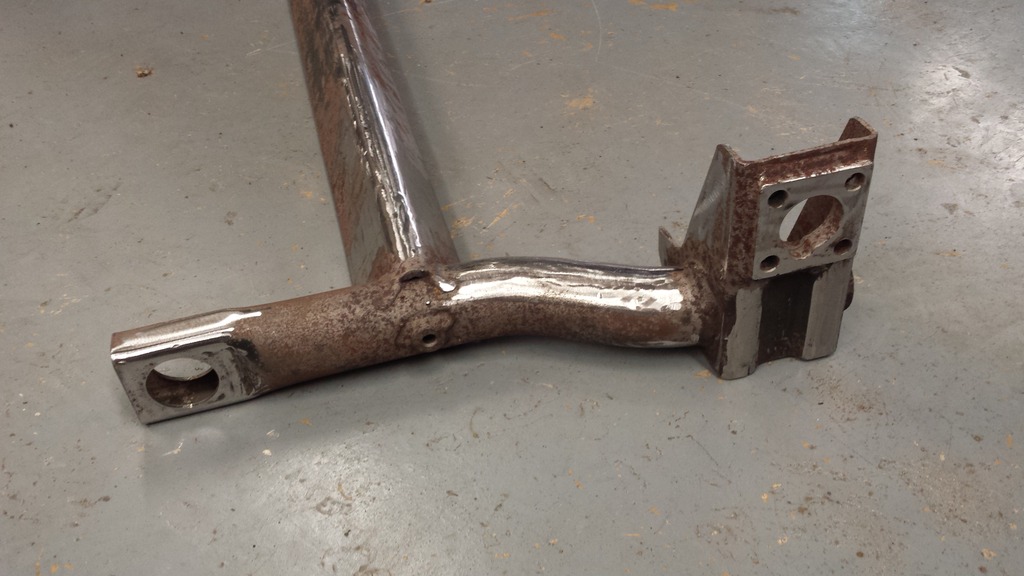

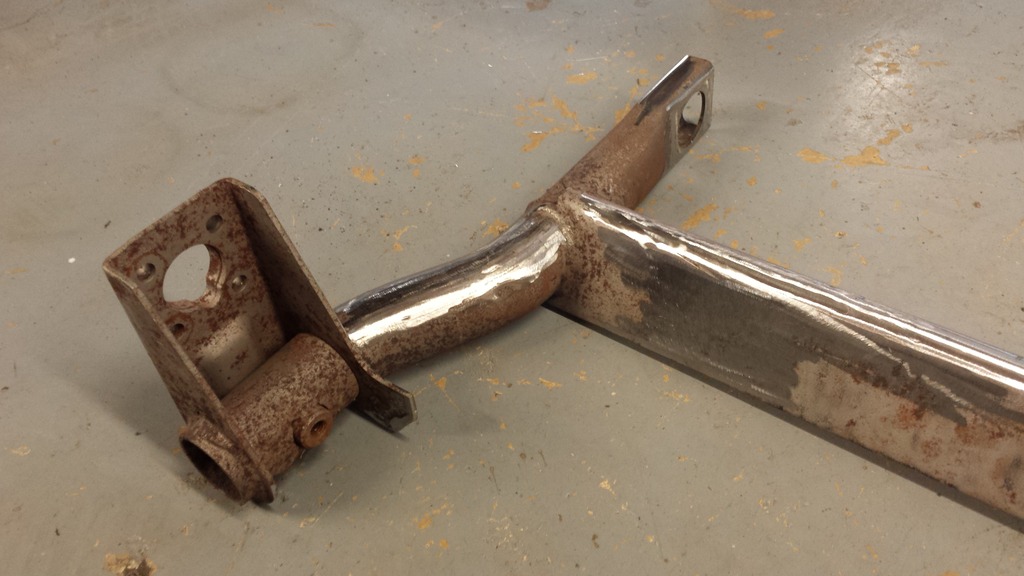

I cut off the spring pans due to buying the coilovers. (I sandblasted it a few months ago, hence the surface rust coming back)

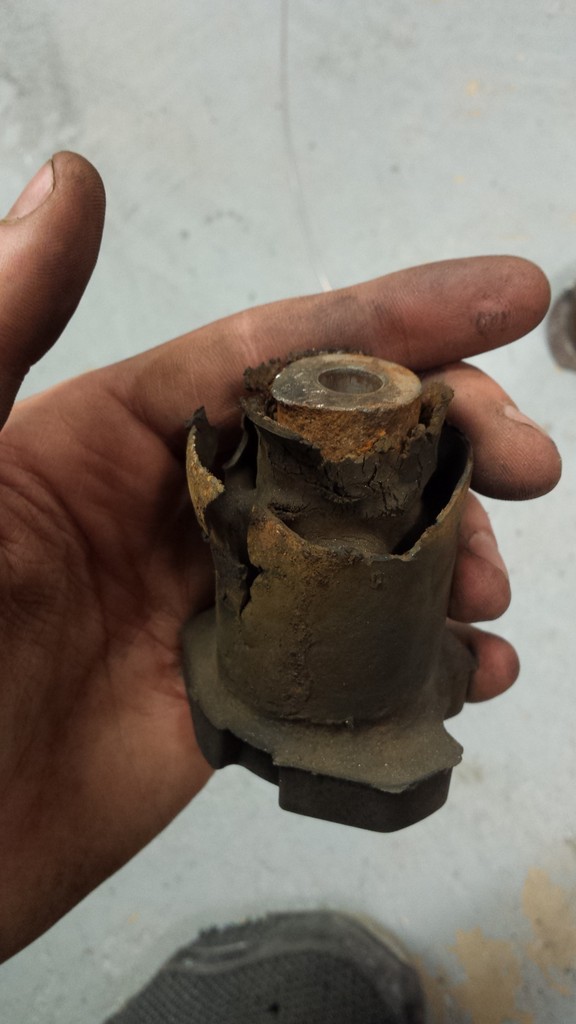

Bushed pretty much fell out after a tap with the hammer.. 100K+ they've not done too bad. (Beat having to burn them out!!)

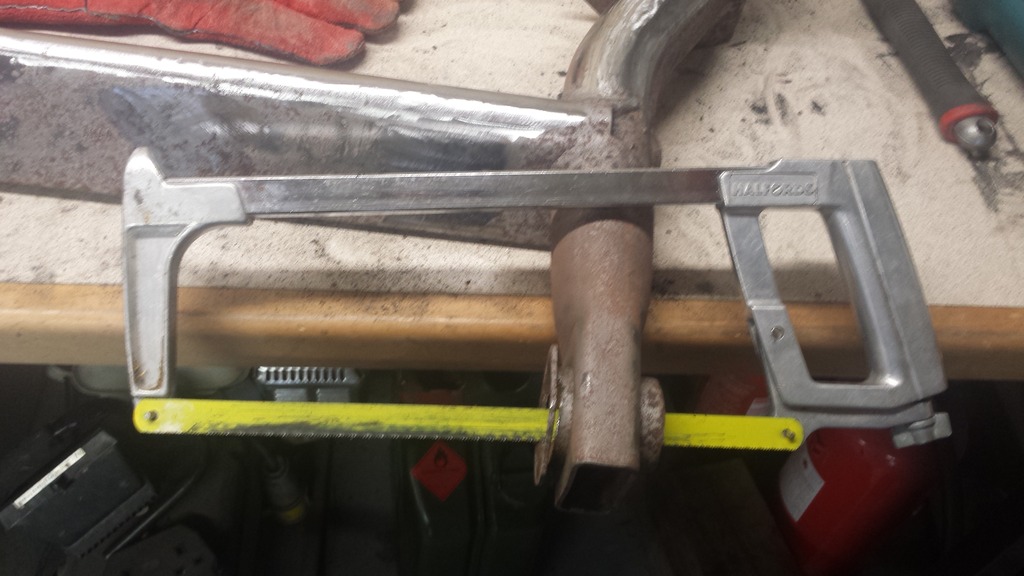

Cutting a groove in the sleeves for easy removal.

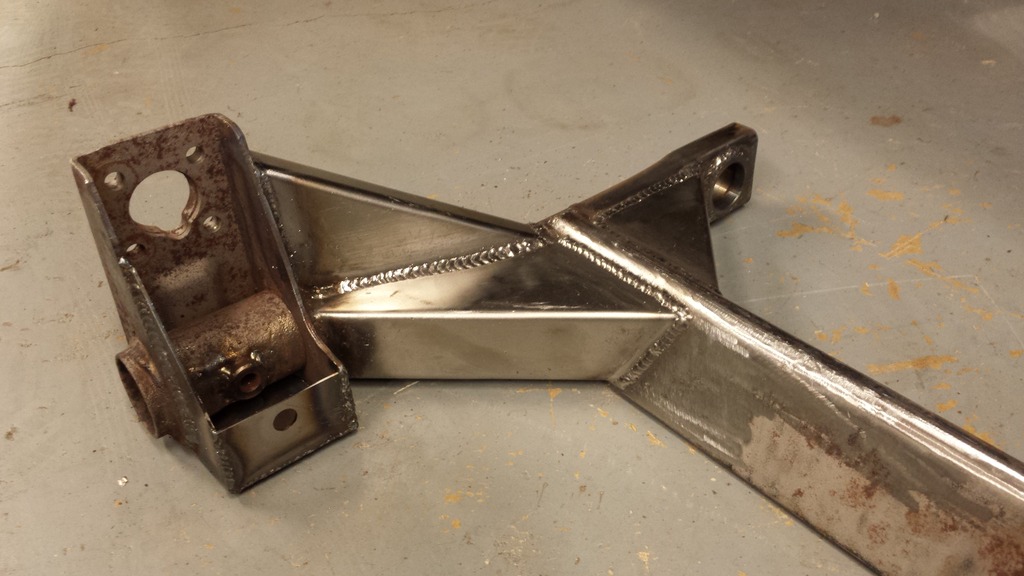

Then set about removing the rest of the unnecessary brackets and welds and prepping the surface for welding.

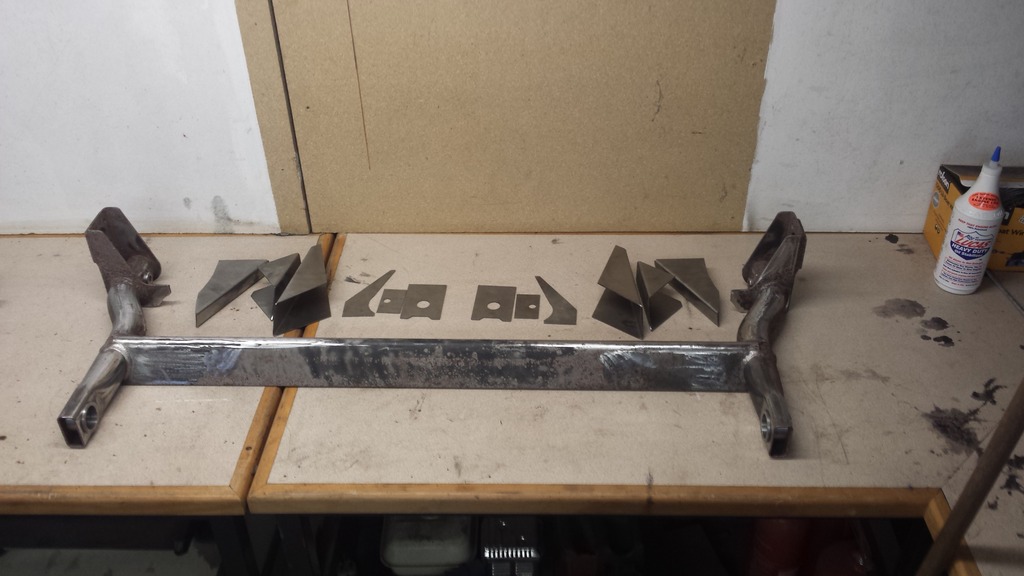

PMS stiffening kit and bearing kits ready for welding

PMS Bearing replacement for the standard bushes

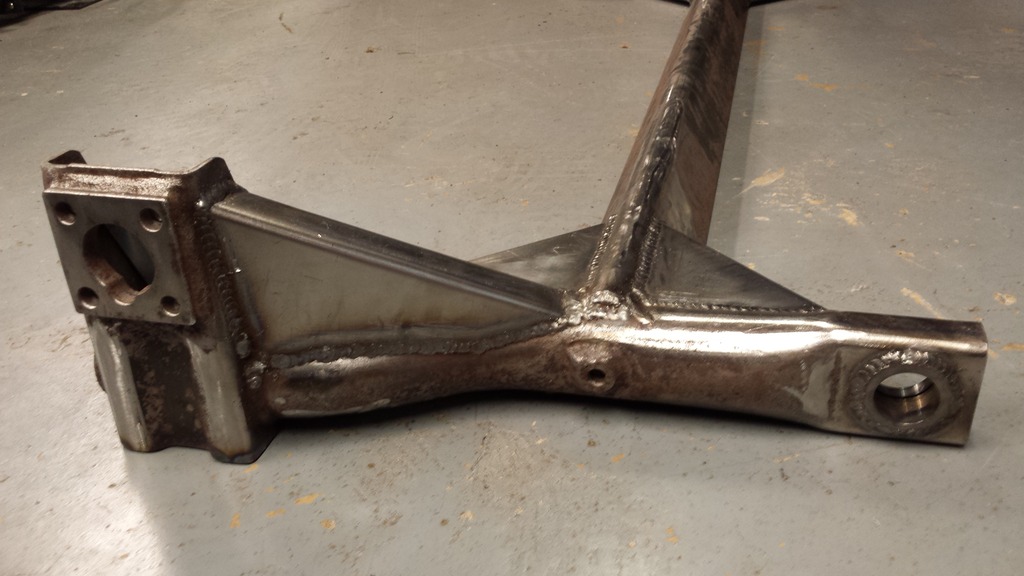

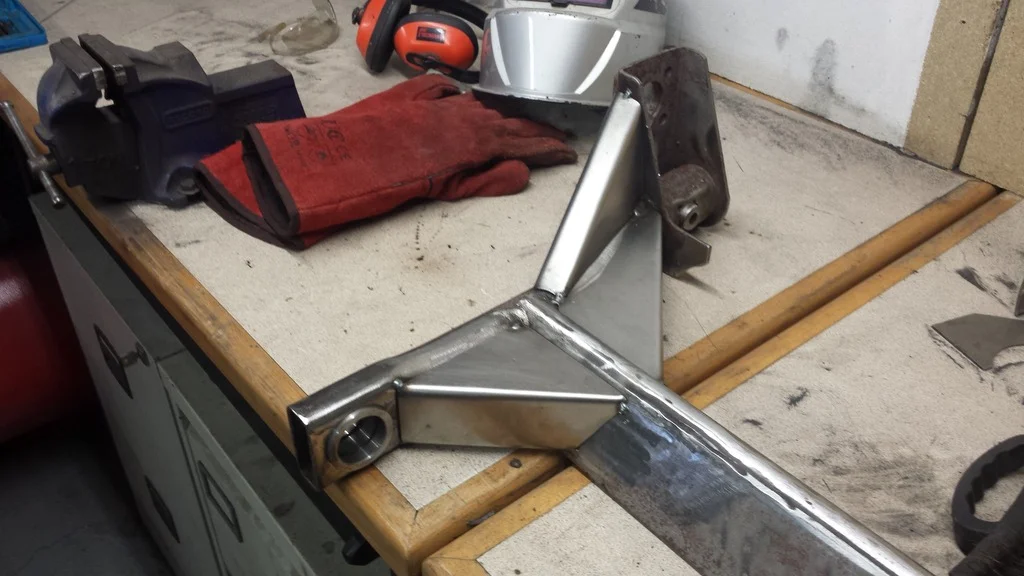

A bit of fettling with the grinder later I had all the main pieces tacked it place.
Unfortunately the guy I borrowed the TIG welder from to do the cage needed it back so I had to do with my MIG welder to do the rear axle.. Not a massive issue as it sits out of view under the car anyway.. Just the 'OCD' side of me wasn't too happy haha!

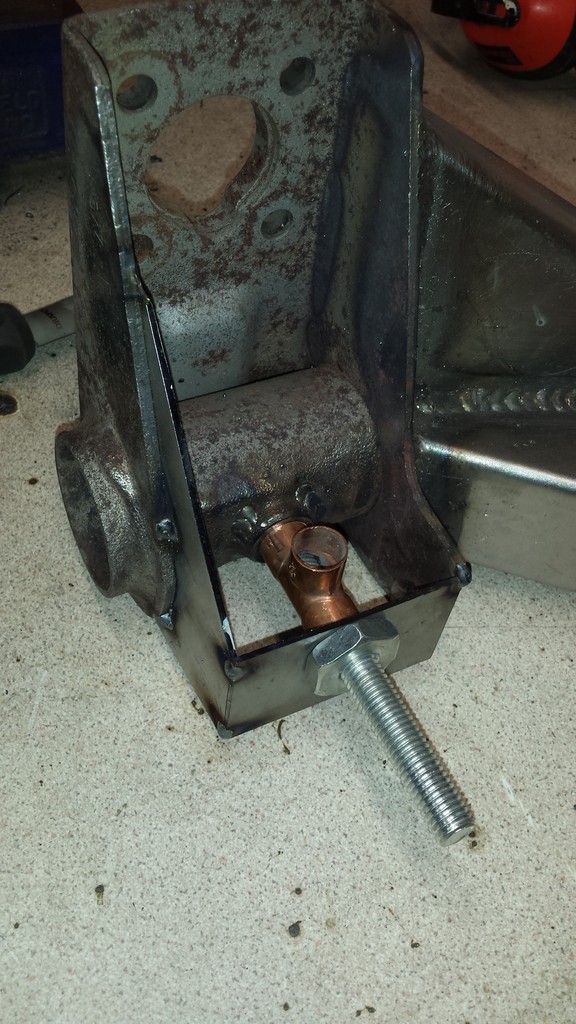

I mocked up the AST lower bush width using a copper pipe fitting that I filled down to size to jig the 'double shear' plates

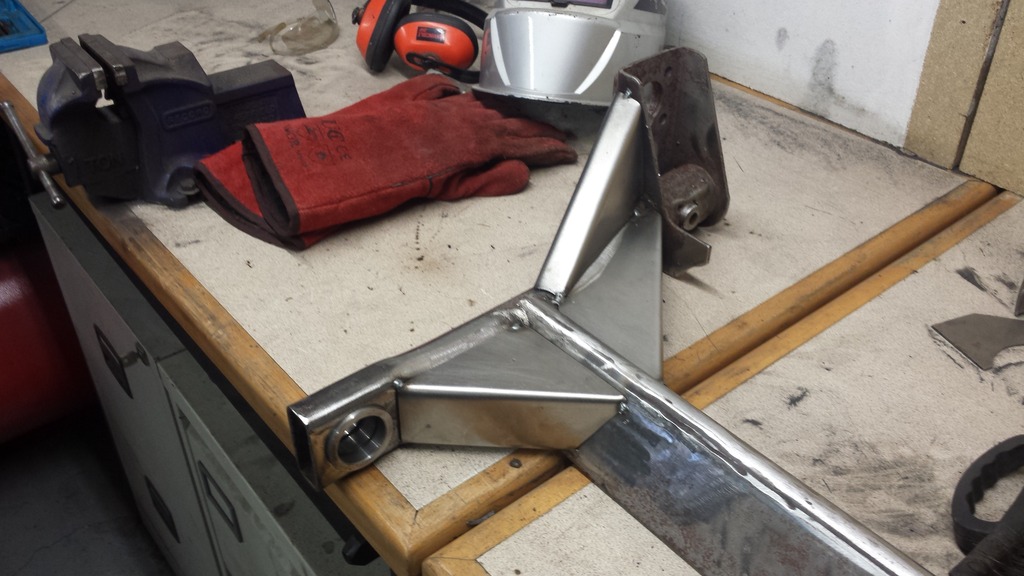

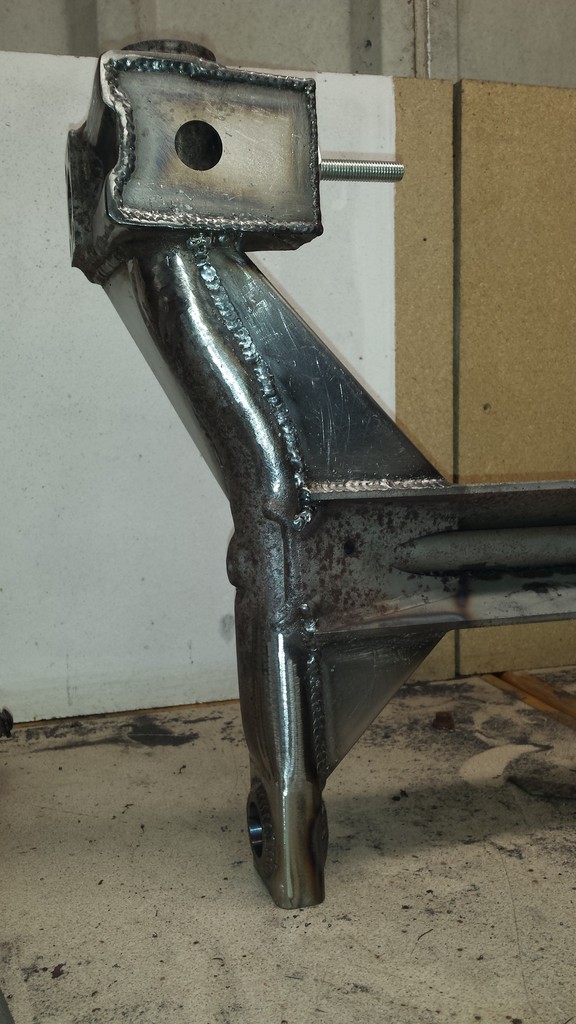

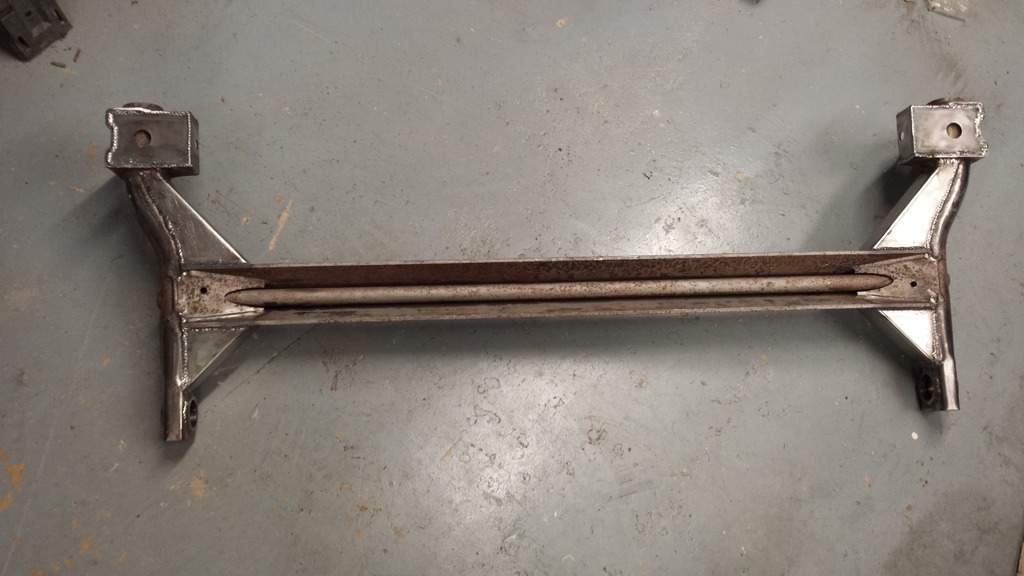

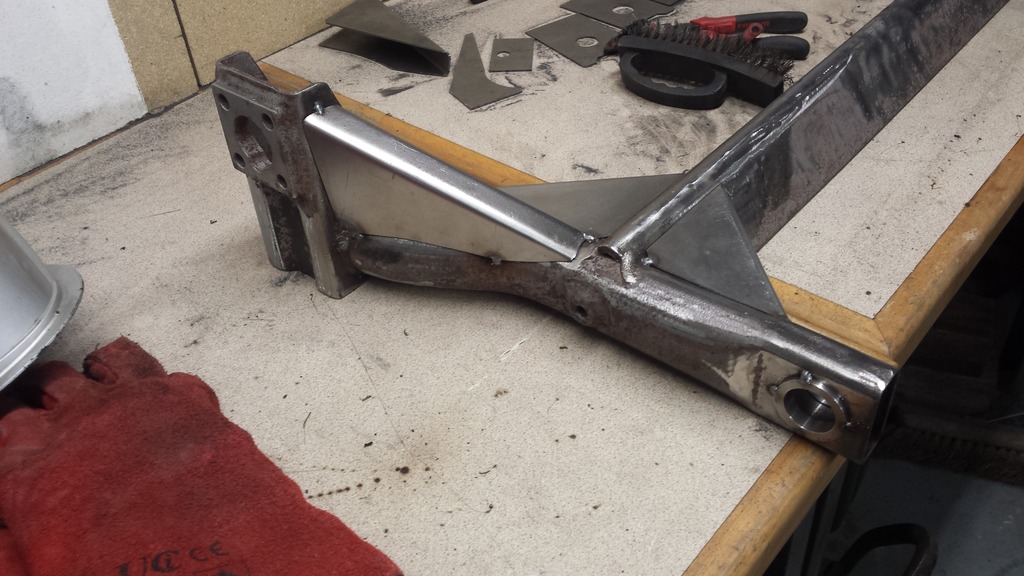

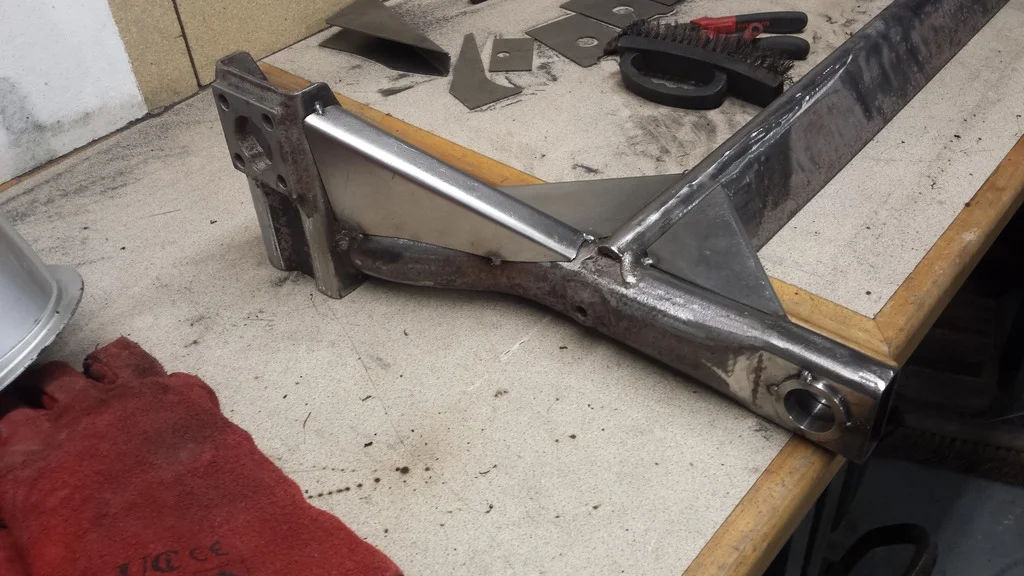

I then fully welded all the plates. I welded them in sequence to ensure minimal distortion to the axle. (Ideally I would have liked to have made a jig to align and mount the axle on before welding to ensure it was straight, I'll just have to use the custom shims on either side to adjust toe/camber as per usual anyway)

Pretty pleased with how it came out to be honest. Will do the job

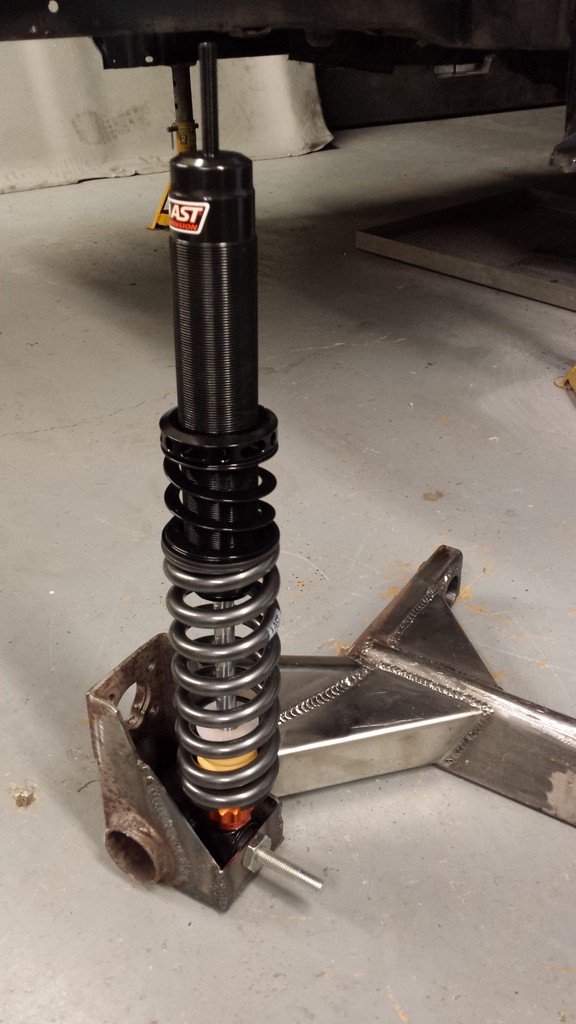

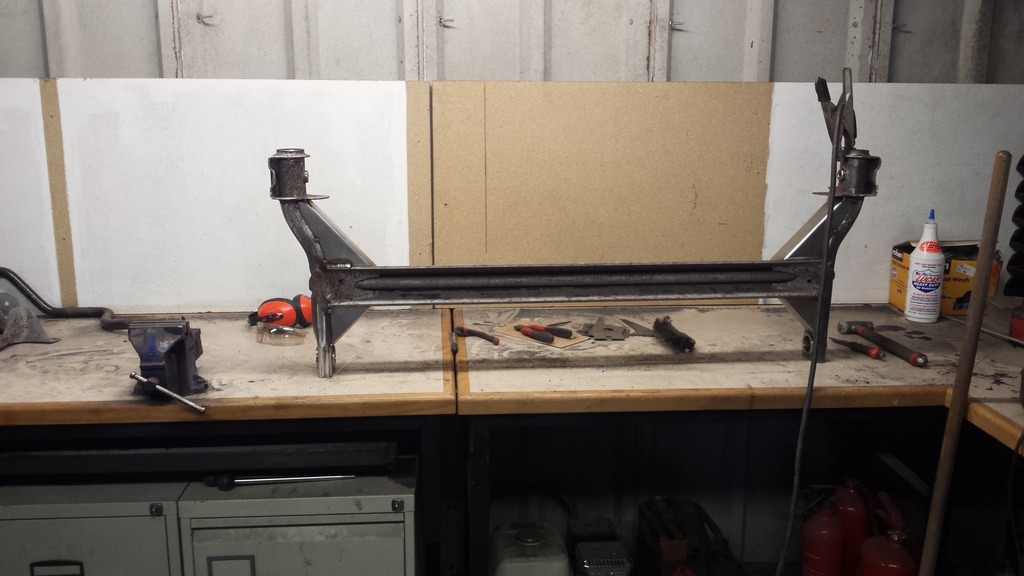

Test fitted the rear damper.

Another couple of jobs ticked off!..
That's pretty much all the chassis components finished... will be another milestone in the build when all these bits get sent off for sand blasting and powder coating!



[Tony Hunter]

Nice, but a tin of black hammering will save time and money.



[sonny172cup]

Great job there mate



[bozothenutter]

god so jealous of your skills! :up:



[Apg100]

That really is a talent. Well done



[Tomotek]

Nice, but a tin of black hammering will save time and money.

Great job there mate

god so jealous of your skills! :up:

That really is a talent. Well done

Thanks gents! :laughing: .. I think I need to pop down to a race and meet everyone at the TARC, check out all your cars in person, will be good to get some ideas and inspiration and say hi



[@Josh]

@Tomotek cone down/up to Oulton in October I thinks it's the 3rd me and @Scottty4eva are going down to meet the team as we are hoping to join the championship next year!



[Tony Hunter]

Yes, come on down.



[Tomotek]

Hopefully I can get up to see u boys fight it out!
@Josh, yeah I saw the new thread, was speaking the Scott the other day about cages.

Grid numbers are on the up which is good to see Tony



[Tony Hunter]

Yep.
Hopefully we will have an all French grid next year.
So we need more people. ☺☺



[Tomotek]

#18

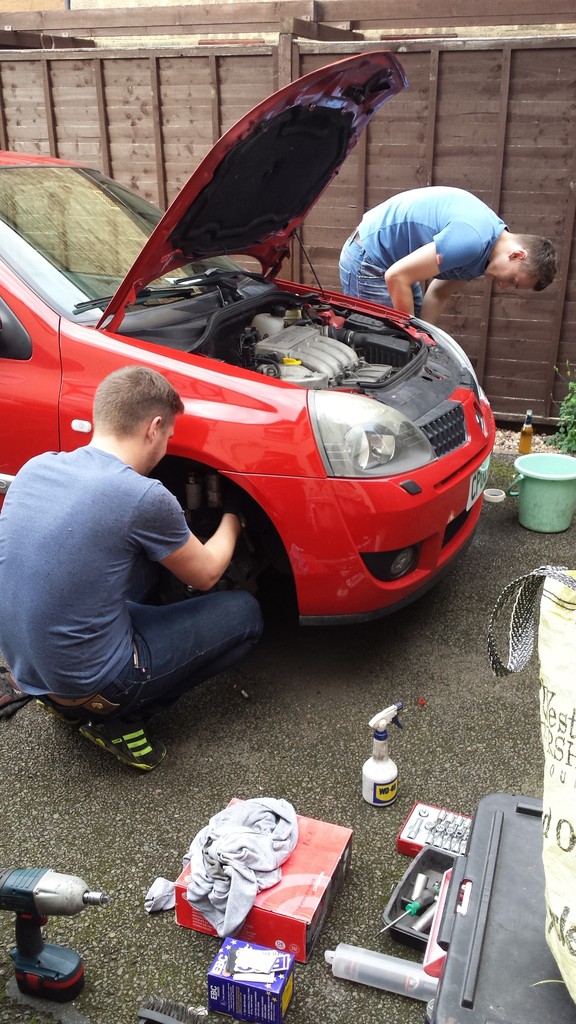

Managed a few hours on the car this weekend.. The lads were down so we all went to watch a round of the MSVR championship (GT Cup/Team Trophy/Mini Challenge) at donington (10mins down the road).. saw a few clios in the paddock, one in particular was holding its own and even beat an Audi S3 2 classes above the clio .. We also fitted some new Brembo HC discs, EBC Yellow stuff pads, and braided lines to my mates Trophy ready for a track day at Blyton in 2 weeks. The Trophy is my mate Ben's daily runner, he is going halfs on this project too. We also gave the lights a well needed refurb too.

With the spare time I had on Sunday I decided to get the single wiper motor bracket fabricated and welded to the shell.. The last thing to do before I can paint the shell... I modelled up a simple bracket at work and set to it..

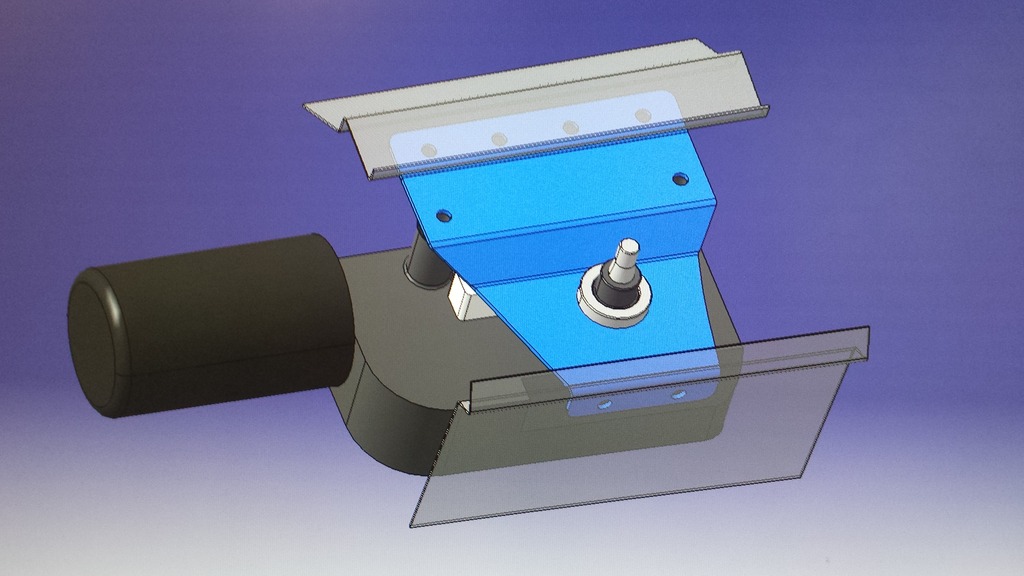

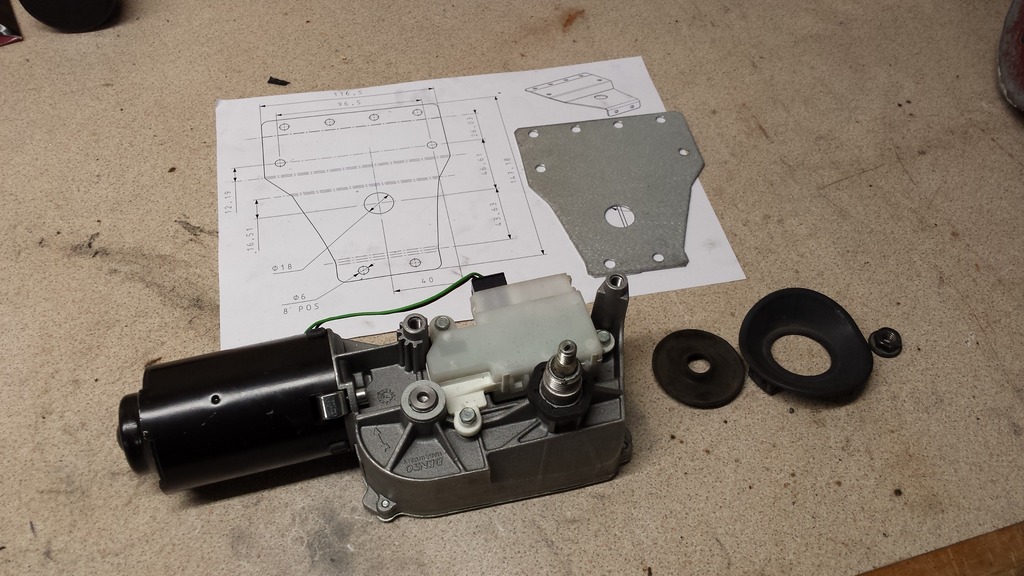

The full set of parts needed... Plate cut and drilled, ready for bending

Plate Bent and Bolted to the wiper ready for clamping into position

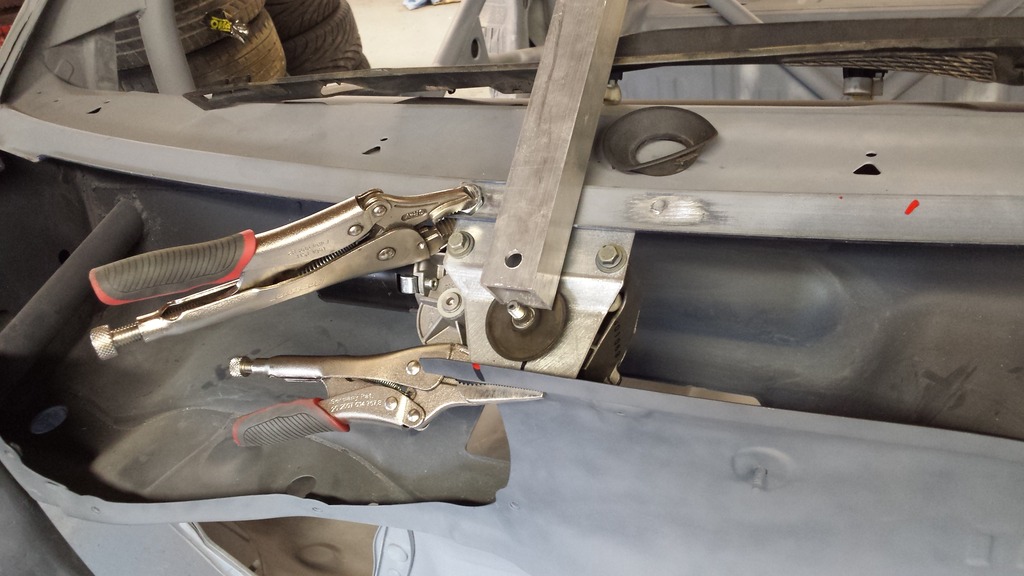

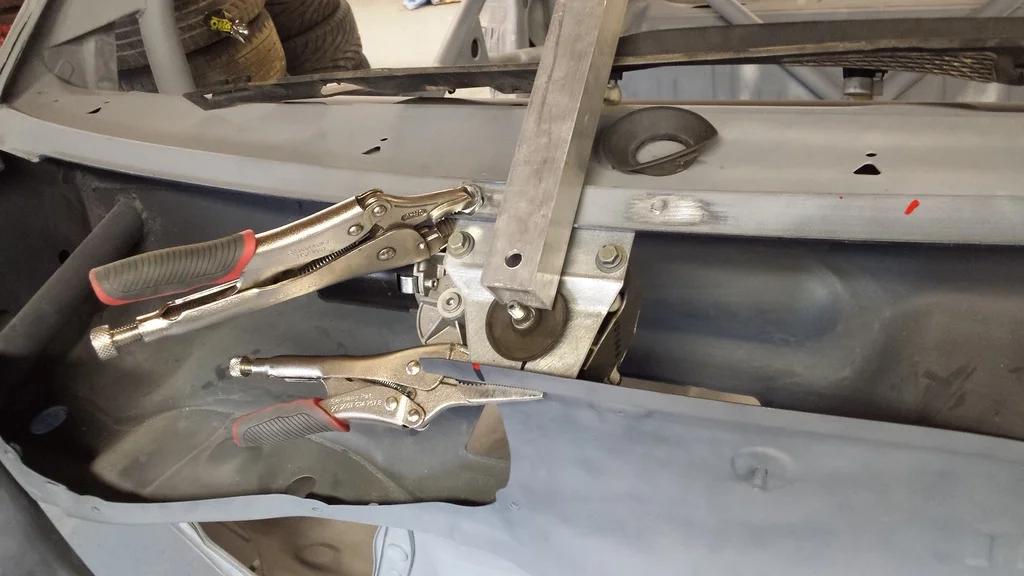

Wiper motor bracket clamped in place before tacking the bracket and unbolting the motor.. Then 'Plug' welding through the holes to the shell

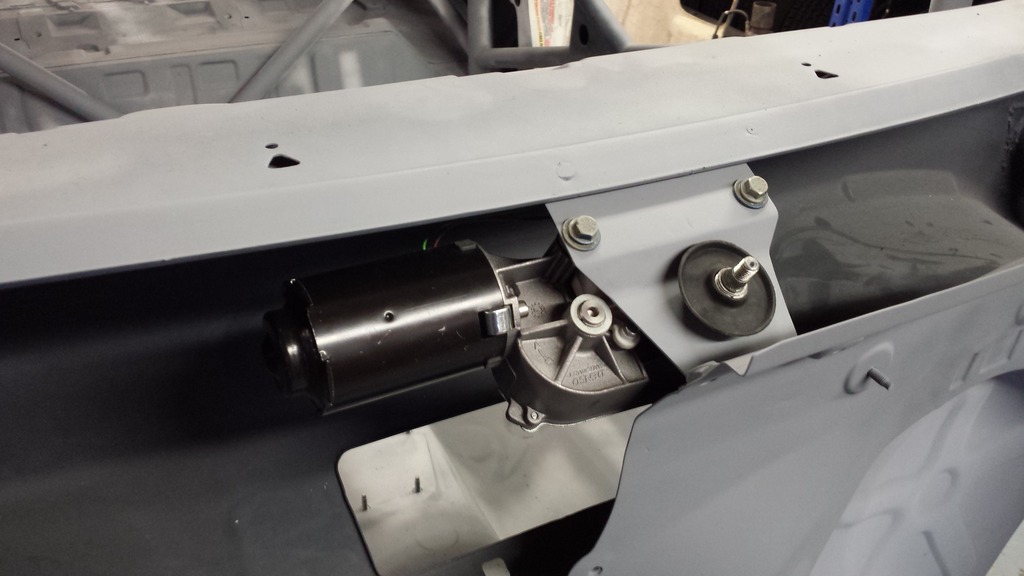

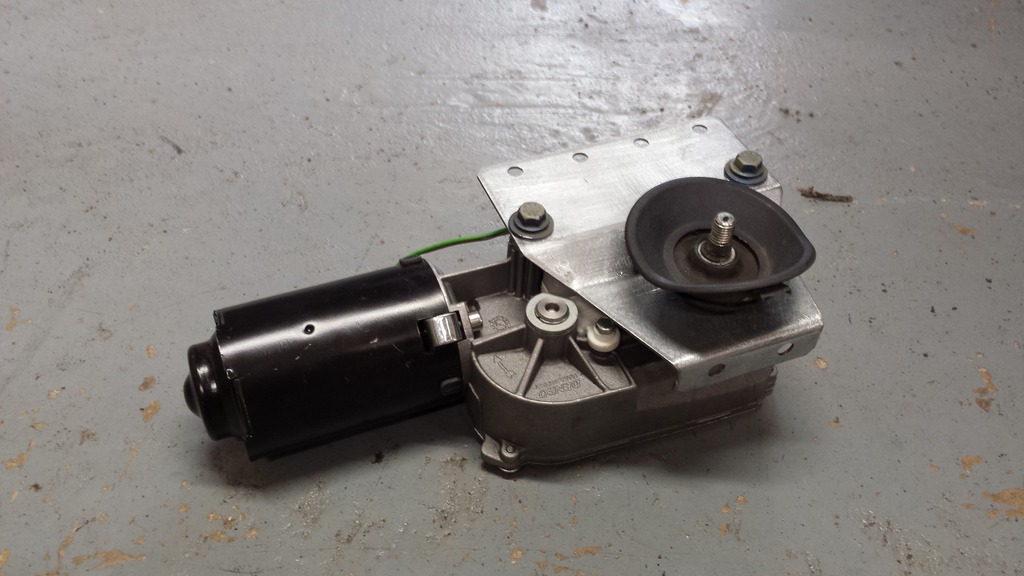

Motor bracket welded on and primed... Motor bolted on for a final check.. all looking good!

Next Job... Paint the interior and engine bay.. then the build can get some real momentum!
