Time for another update I think!....

I decided I would tackle the Front Lower Wishbones next. Earlier in the thread I mentioned that when I picked up the car that it had a strange dead spot to the steering, and once I started to remove the suspension I noticed that the lower ball joint was excessively warn. What I forgot to mention was that the lower wishbones had had the PowerFlex bush upgrade. Upon removal of the RH side it became quite clear that there was another issue. Whoever had attached the last steel sleeves had only 'poorly' tacked them in 2 places (this was not substantial enough) These tacks on the forward leg had cracked off and the sleeve was rattling around in the wishbone body... See video below (it was a late night and I think i was going crazy.. so excuse the random noises I made! haha)



I thought I would keep the poly bushes as they were in good condition. However I wanted to improve on the way the steel sleeves mount to the wishbone.

I took a few measurements of the wishbone and bushes and designed a new steel sleeve to spread the load better. I then took to the lathe and turned a set up ready to weld onto the wishbones which I had sandblasted. I also wanted to stiffen the wishbone body itself as the car will be used on track. I saw that there are a few kits online for wishbones with stiffening plates. I decided I would design and fabricate my own plates to increase the stiffness even more than the plate available.

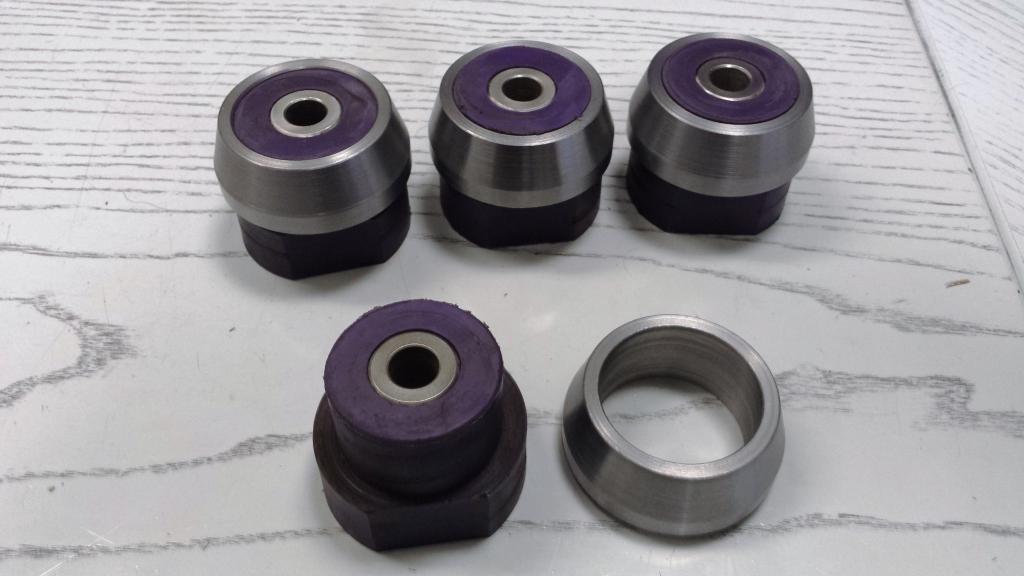

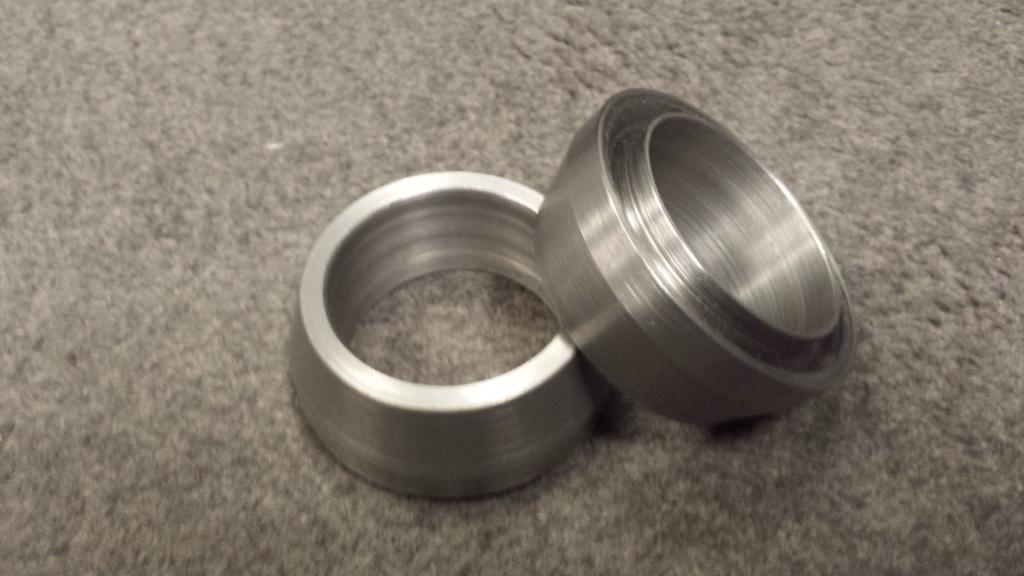

STEEL SLEEVES - To house the bushes

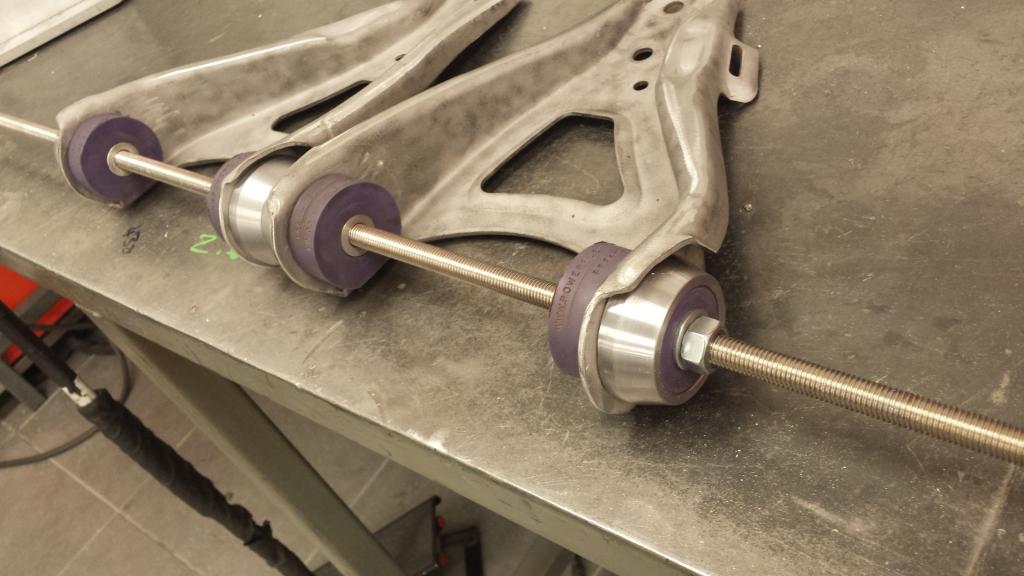

SLEEVES ON BUSHES

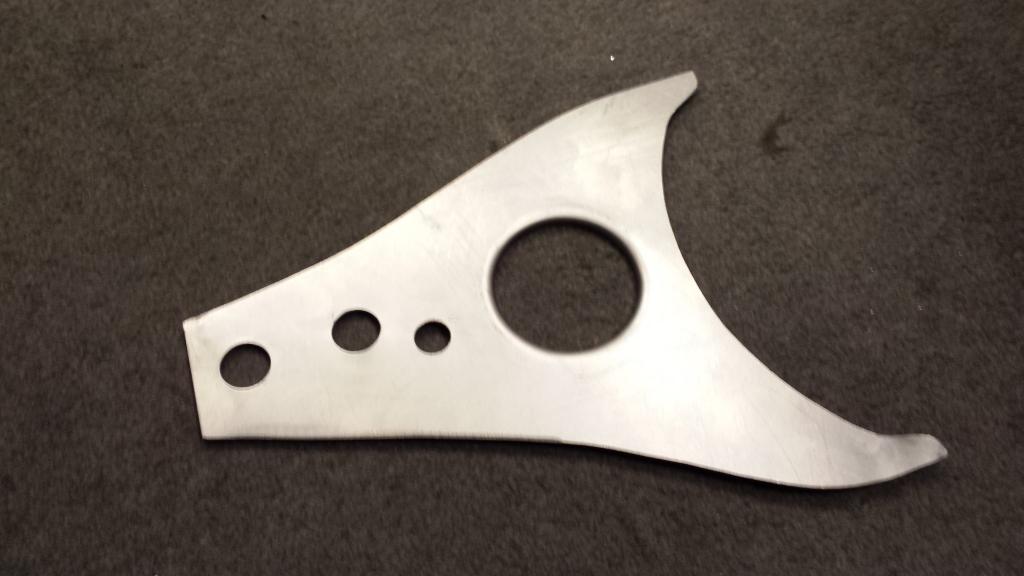

STIFFENING PLATE - With swaged hole for increased stiffness

I then took all the bits down into the fabrication department at work and set about jigging the sleeves onto the wishbones and TIG welding them together. I used a threaded bar to ensure that the bushes were inline. A few tacks were welded on to set the position, then the rubber bushes were removed and the sleeves were fully welded (didn't want to melt the bushes!...)


JIGGING SLEEVES TO WISHBONE

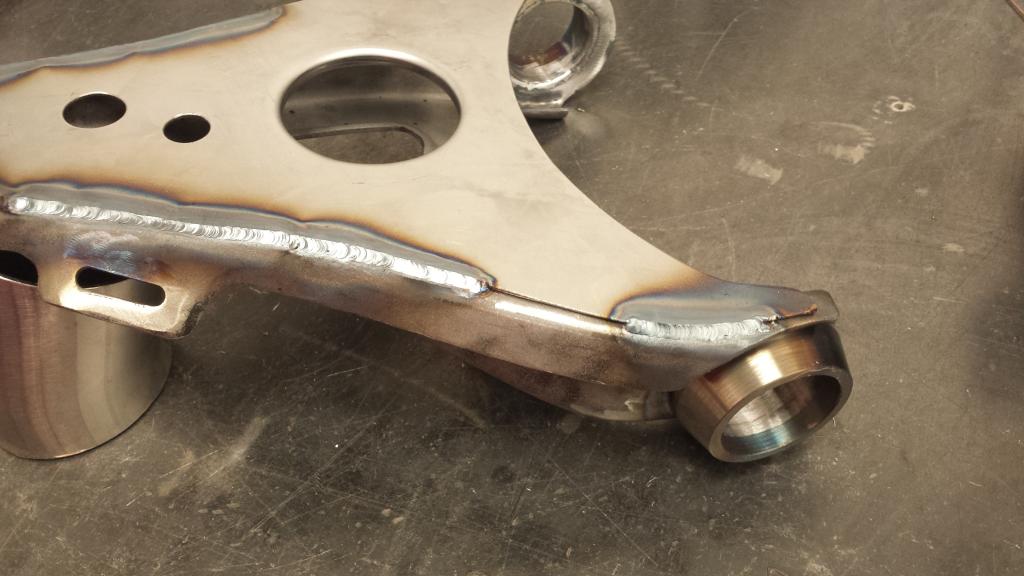

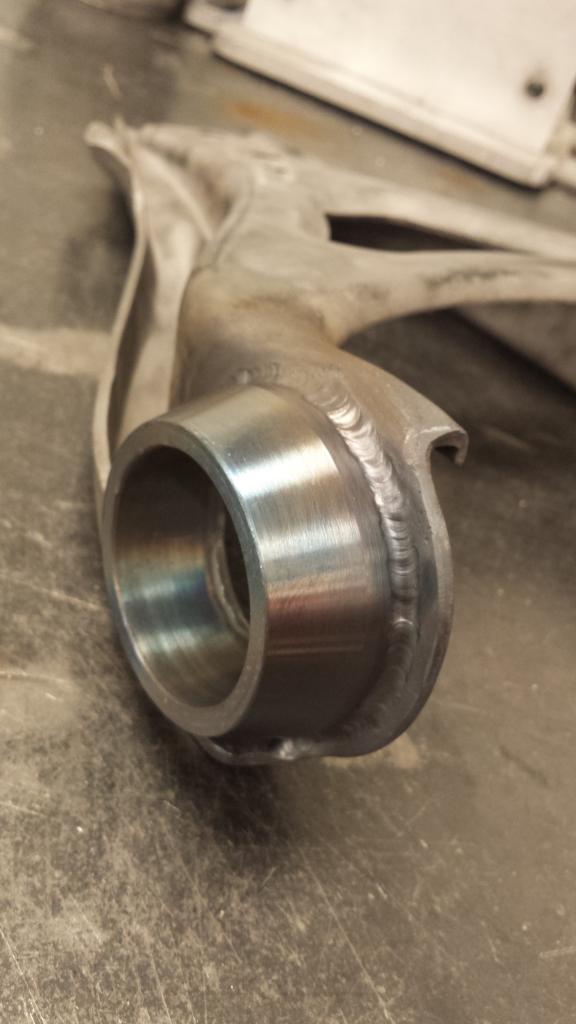

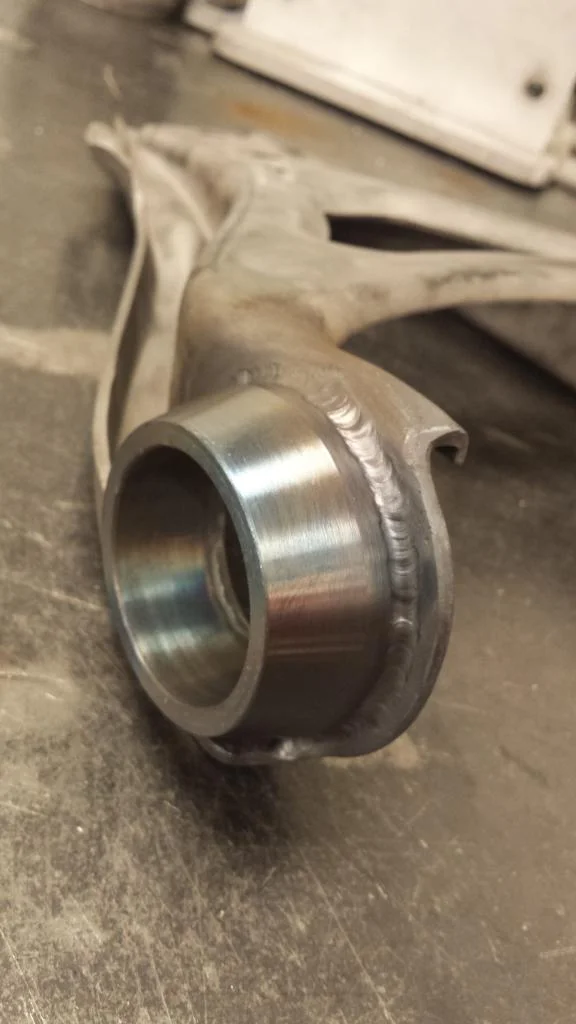

FULLY WELDED SLEEVE

I then located the plate on the wishbone and ensured all the bolt holes lined up before tacking and fully welding them to the wishbones.


PLATE BEING WELDED TO WISHBONE

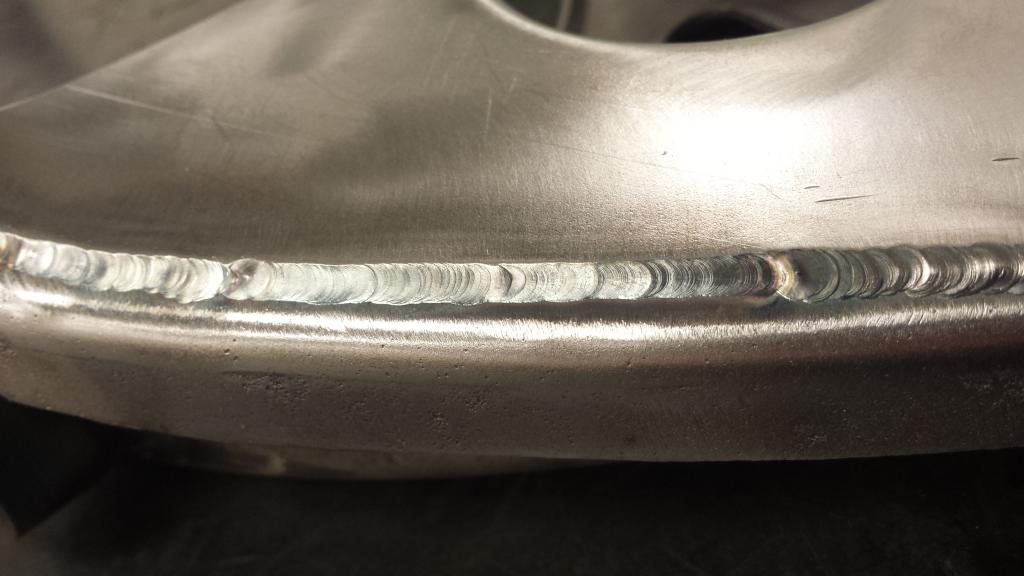

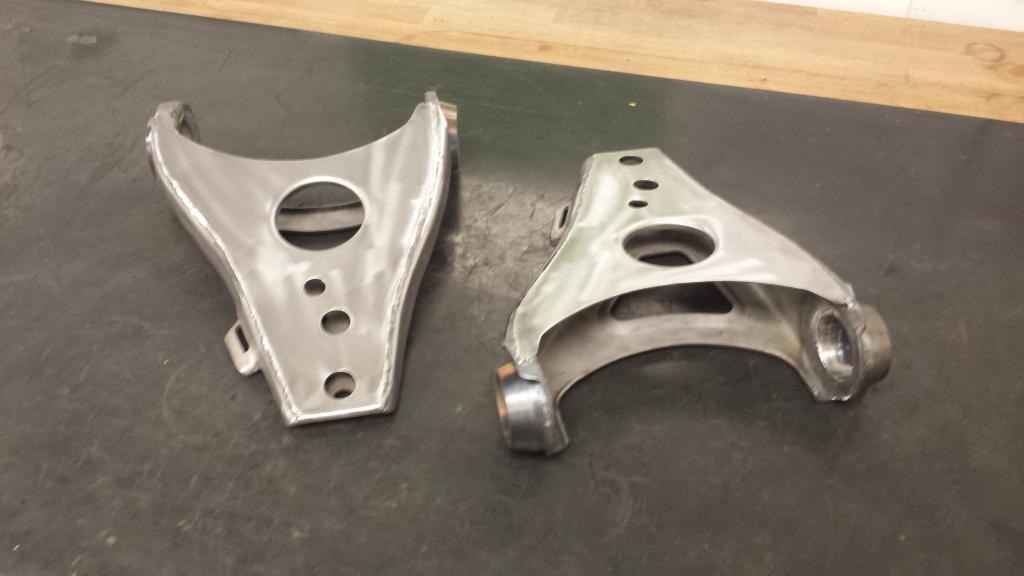

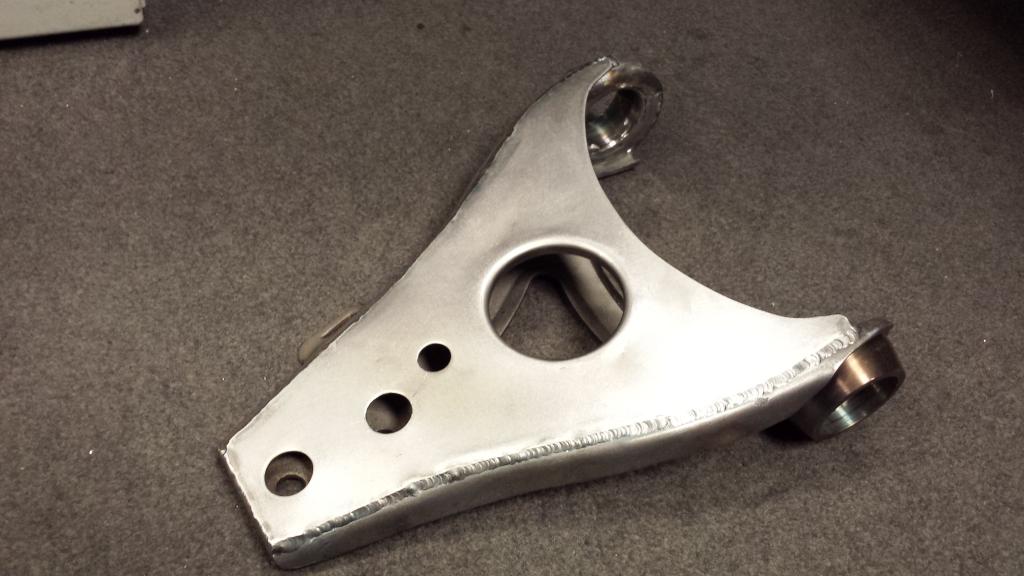

These were then cleaned up with some 3M Scotch Brite pads to remove all the welding discolouration.. The end result i was very pleased with..........

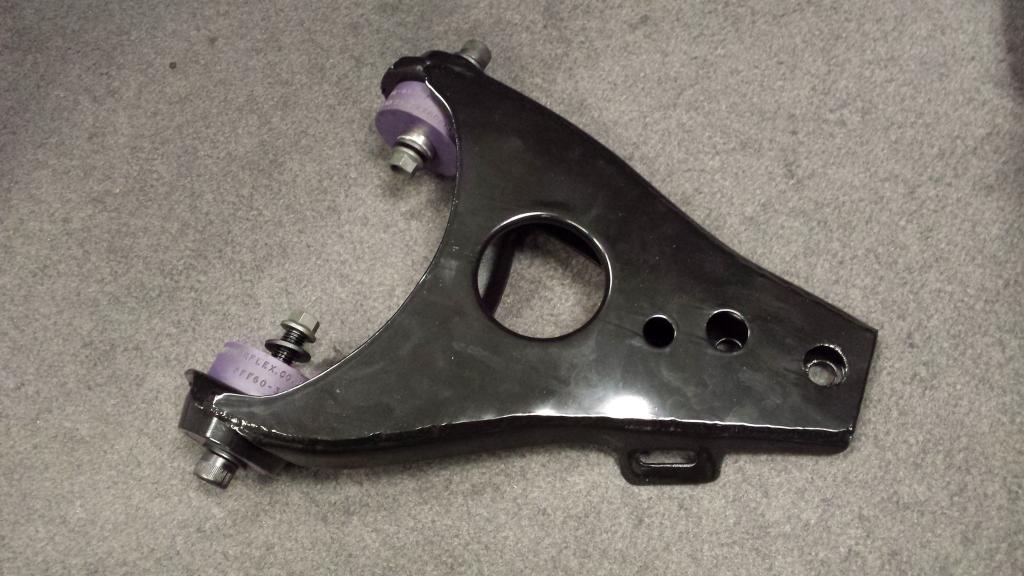

All that was left to do then was to give the wishbones a lick of paint, again Kephos was used, and assemble the poly bushes and inner sleeves ready for fitment onto the car!...

Next challenge I think will be to finish welding in the cage!...



[Martin.]

I'm so jealous of your skills mate. Proper good work that.



[Tomotek]

I'm so jealous of your skills mate. Proper good work that.

Thanks Martin!.. I worked as a welder/fabricator before I went to uni (back in the day) .. so I have had a bit of practice.. It's definitely come in handy.. Especially as I've just started to make my own cage and weld that in!



[Mini182]

I have never been convinced the wishbones actually need strengthening, even on track.

Can't fault your work and attention to detail though. Top job!



[Tomotek]

I have never been convinced the wishbones actually need strengthening, even on track.
Can't fault your work and attention to detail though. Top job!

Thanks, I have enjoyed doing it.. I think my slight OCD is showing! haha

Regarding why I stiffened the wishbone:

The standard wishbones are designed to have the original rubber bushes installed, These bushes are designed to improve ride quality for the road, their secondary function is to absorb the shock loadings within the system. These bushes have a large amount of compliance.

For track purposes we need to remove all compliance within the suspension system to enable maximum control of the suspension geometry.
Hence why replacement poly bushes are used, and spherical bearings for pure race cars.

When the compliance is reduced from the bushes, the loadings in the suspension system which are normally absorbed by those bushes is then transferred into other components of the system, in this case the wishbone. Lets not forget Race cars also run slicks or semi cut slicks which will also increase the 'g' force and subsequent suspension loadings that standard road car parts are not designed for.

The standard wishbone design is of a 'U' section profile, which coupled with the load paths and the increased forces in the system will cause the side faces of the wishbone to flex inwards at the top. (I observed this when jigging the steel sleeves, upon measuring both the wishbones it was seen that one of them had bent inwards, which I subsequently straightened out). This flexing is probably why you see so many subframes with elongated mounting holes once the poly bush upgrade has been installed.

By welding the plate on the top the compliance in the wishbone is reduced/eliminated which increases the performance of the suspension.

I also intend to eliminate the compliance from the bushes completely by replacing them with spherical bearings in the future (want to use the car for a bit first).. I know there are kits you can buy online for that.. However I have designed the steel sleeves to accommodate a bearing in the future.. when funds permit.

I hope I explained myself ok.



[Martin.]

You're not too far from me, would love to come and have a nose around all your work when the car is done



[Tony Hunter]

A lot of work gone in there.



[harry289]

Any updates?



[Tomotek]

Any updates? :smile:

Hi Harry, and everyone else that reads my posts (which I am hugely grateful of)
sorry for the lack of updates recently, has it really been over a month since my last post!!.. I have just moved house and started a new job so I have been mega busy and had to take a break from the Clio

Finally getting everything sorted so I have found sound time to do a small update. I will endeavour to do a proper update this week!, I have done a lot more work on the cage!

Sooo... I have relocated to Warwickshire for my new job and my new flat doesn't have a garage :weary:, however on a positive note my parents only live 20 minutes away so I went home and cleared out the garage in preparation for the Clios arrival where it will live for the time being!.. Their garage is a lot bigger so will have a lot more room to work on it too!:laughing::laughing:

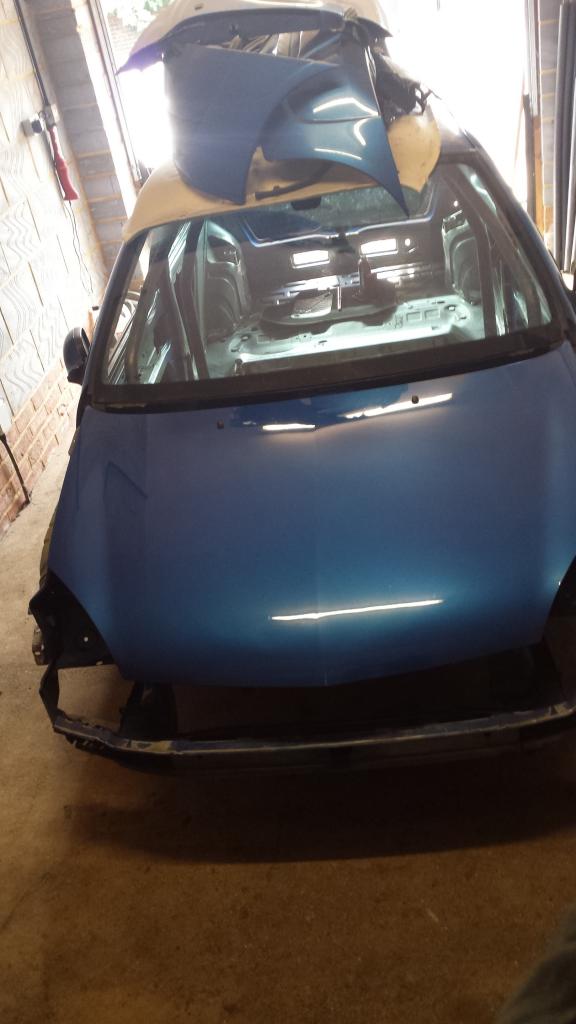

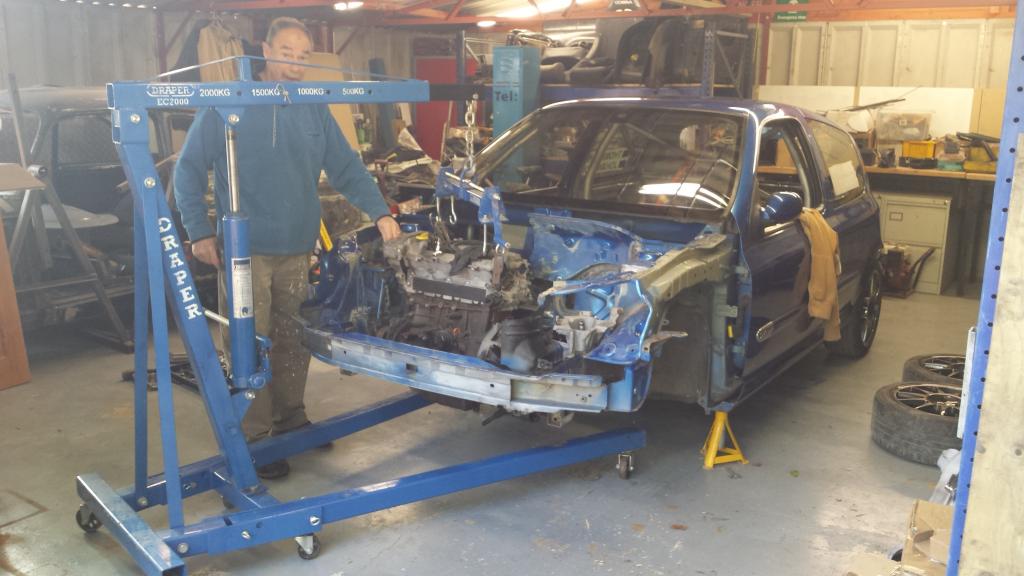

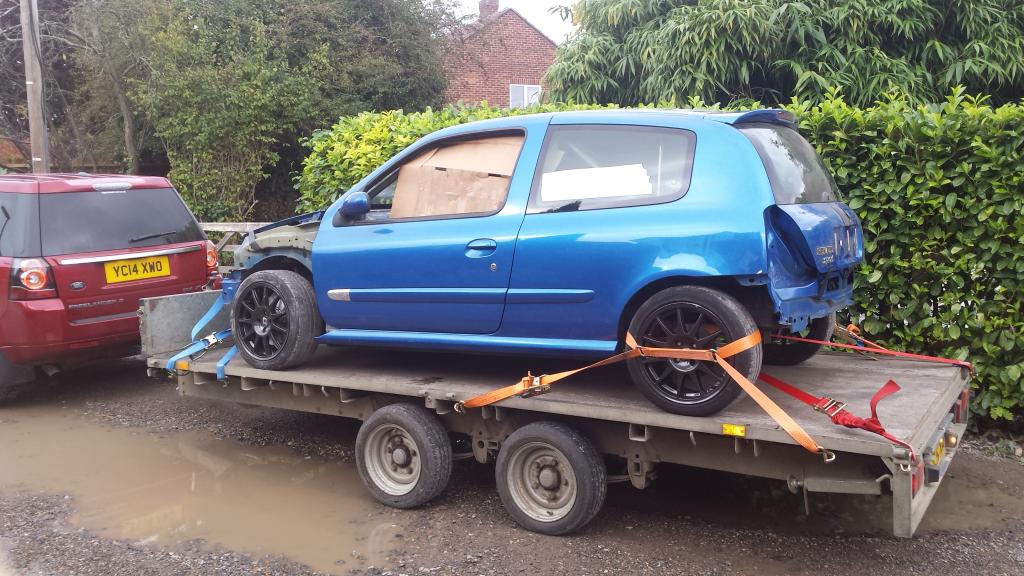

Getting the Clio to my parents was another story!.. As you could see from previous posts I had stripped it down to the bare Chassis, Which it remained until the day before I had to move it!..

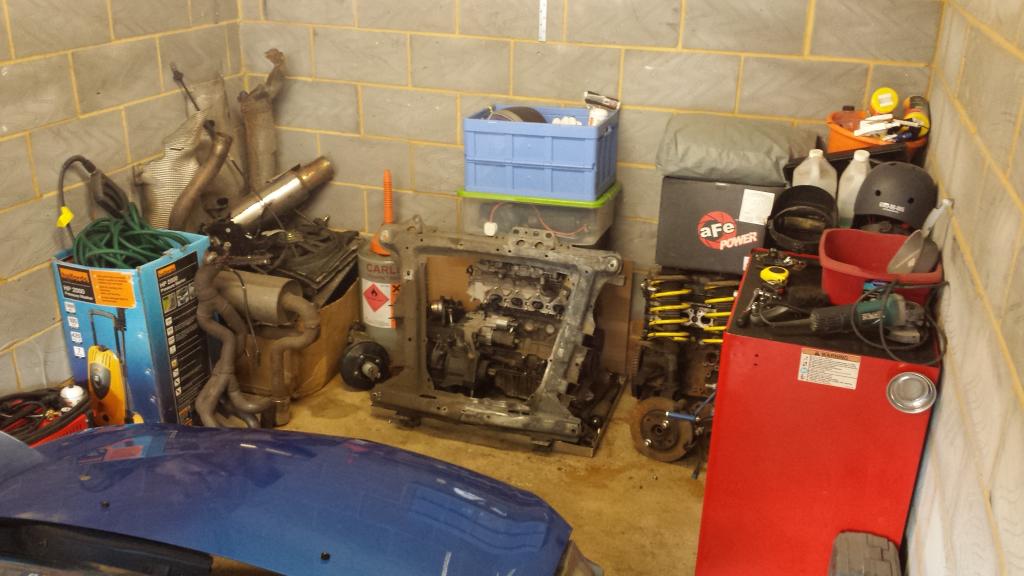

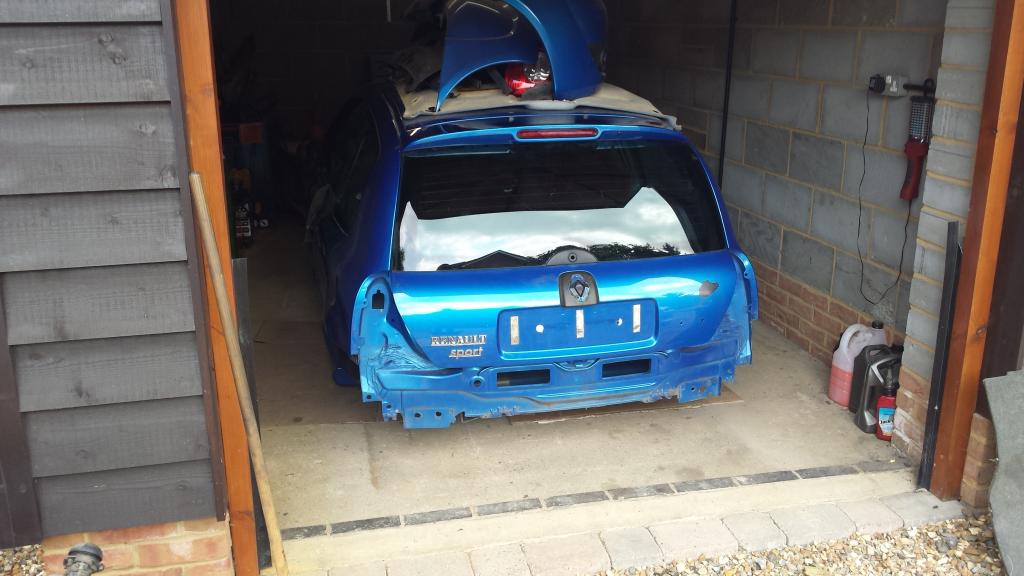

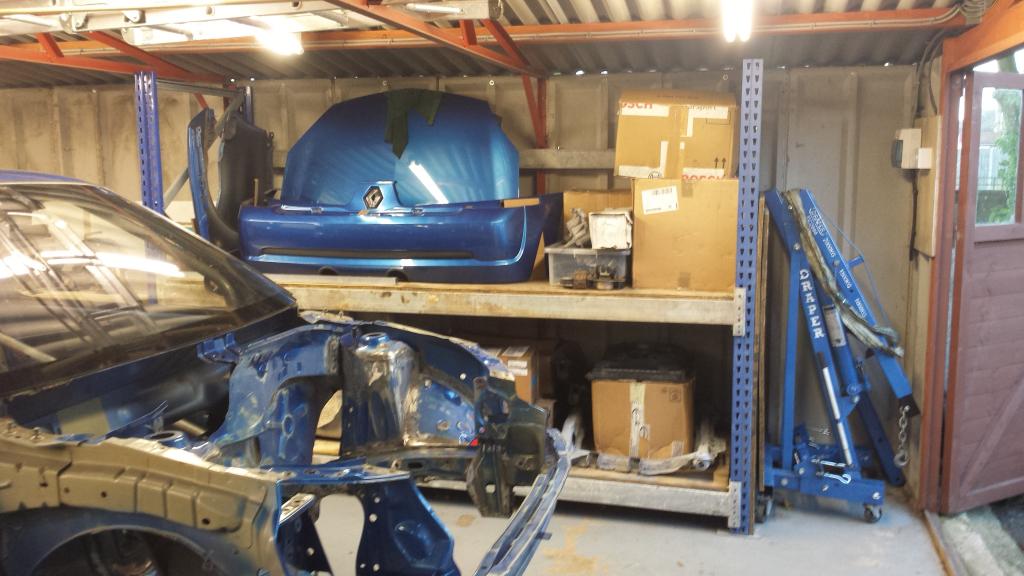

As you can see below there wasn't much room around it!

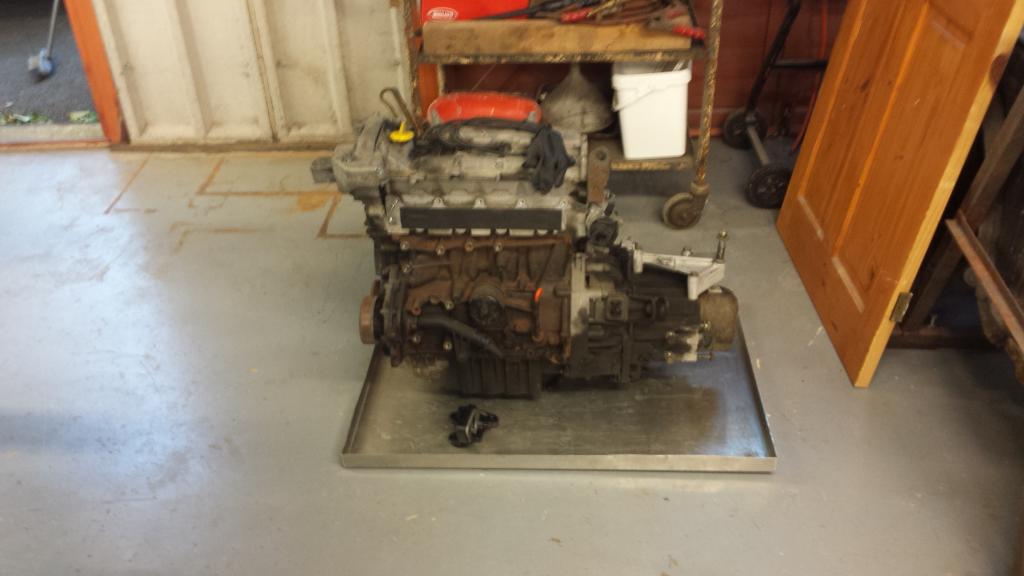

Luckily a Clio isn't the most complex car to get rolling.. Therefore I managed to get the engine back in (using 2 trolley jacks!!:grimacing and built all the suspension back up over night... ready for a good friend to come down with his trailer to get it to my parents! As you can see it was pretty rammed full of parts and boxes!....

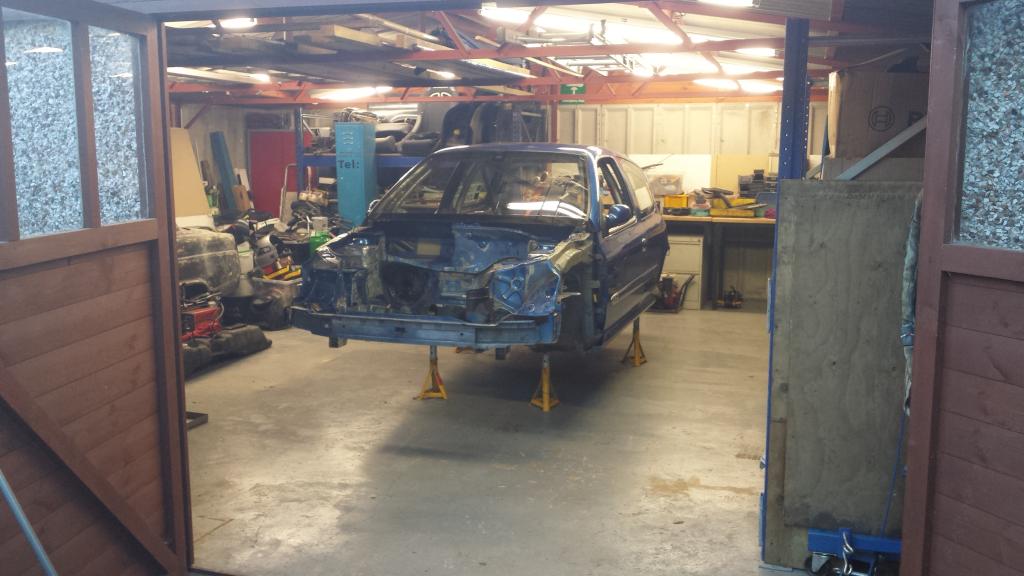

2 hours further North on the M1 and we had arrived at our destination!.. Where we unloaded the car and pushed it into its new home!.. I spent the next day stripping it all back down to a bare shell again. It was a little easier this time as I had all the right tools for the job! which I have massively missed! (i.e engine crane!). I also utilised the racking to properly store all the parts (no more bumpers on the roof! :up The bonnet and boot lid were also removed to aid access to the car.... Here you can see the end result!, can't wait to get back over to work on it with all the room!! (garage still needs a tidy out mind).......
